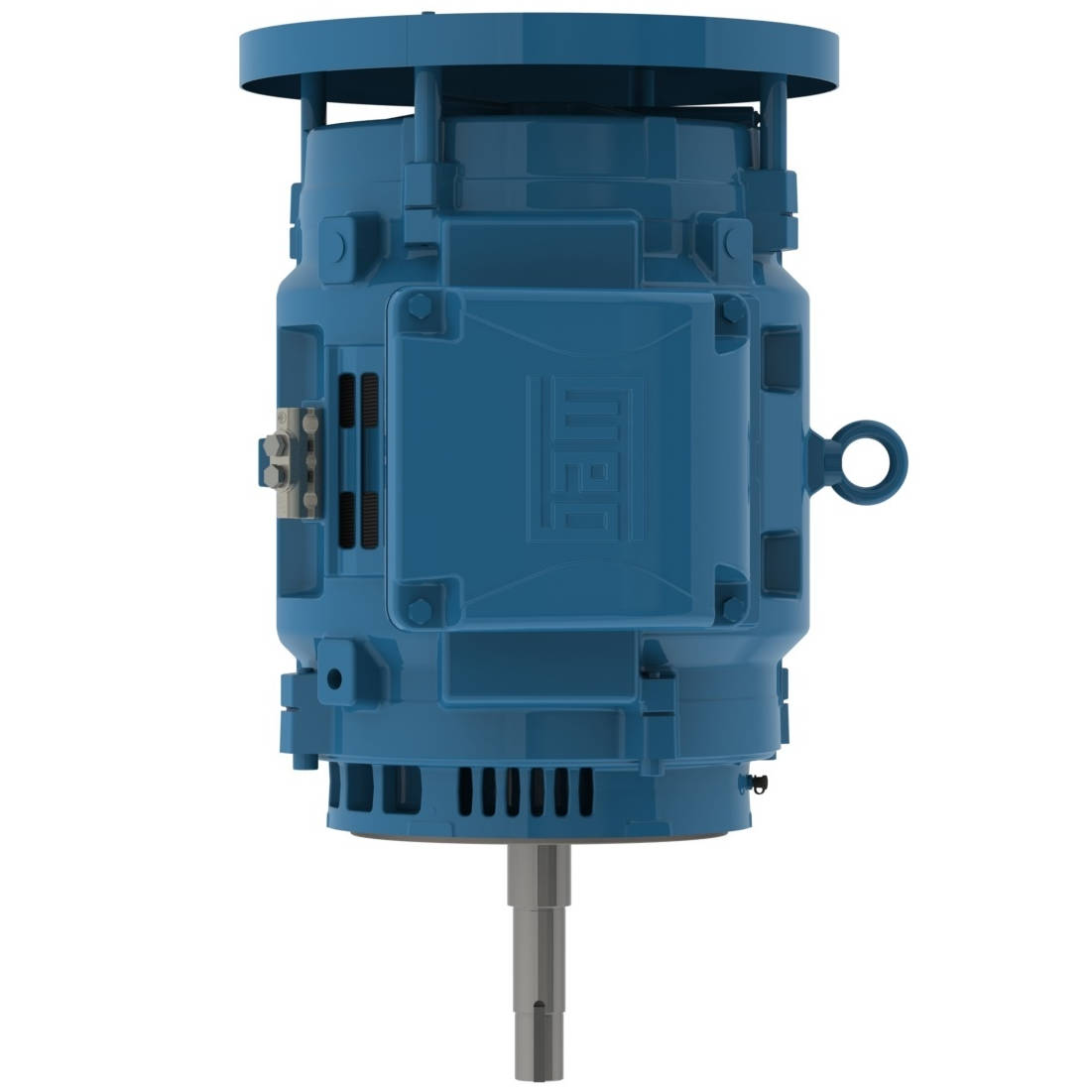

07536OT3E364JPV-W40 WEG 75HP JP Close-Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 07536OT3E364JPV-W40

07536OT3E364JPV-W40 WEG 75HP JP Close-Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 07536OT3E364JPV-W40

Selected accessories will also be added to cart
$7,227.69 / Each
Quantity:
IC01 - ODP, IP23, 364JP/365JP Frame, 230/460/380VAC 50/60Hz 3 Phase, 14836796, NEMA Premium Efficiency, Footless, Vertical Mount, Cast Iron Frame

Electric Motors

Frame364/5JP
Output75 HP (55 kW)
Number of Poles2
Frequency60 Hz
Rated speed3555 rpm
Slip1.25 %
Rated voltage230/460 V
Rated current170/84.8 A
L. R. Amperes1119/560 A
LRC6.6x(Code G)
No load current43.0/21.5 A
Rated torque111 ft.lb
Locked rotor torque200 %
Breakdown torque250 %
Locked rotor time34s (cold) 19s (hot)
Moment of inertia (J)6.40 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Noise level?84.0 dB(A)
Approx. weight?693 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.7  93.0  93.6

Power factor

50%75%100%
0.77  0.84  0.87
Frame364/5JP
Output60 HP (45 kW)
Number of Poles2
Frequency50 Hz
Rated speed2955 rpm
Slip1.50 %
Rated voltage380 V
Rated current82.7 A
L. R. Amperes579 A
LRC7.0x(Code H)
No load current20.7 A
Rated torque107 ft.lb
Locked rotor torque190 %
Breakdown torque229 %
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)6.40 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Noise level?84.0 dB(A)
Approx. weight?693 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.7  92.9  94.0

Power factor

50%75%100%
0.78  0.85  0.88
Frame364/5JP
Output60 HP (45 kW)
Number of Poles2
Frequency50 Hz
Rated speed2963 rpm
Slip1.23 %
Rated voltage400 V
Rated current79.4 A
L. R. Amperes588 A
LRC7.4x(Code H)
No load current22.7 A
Rated torque106 ft.lb
Locked rotor torque220 %
Breakdown torque250 %
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)6.40 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Noise level?84.0 dB(A)
Approx. weight?693 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.4  92.8  94.0

Power factor

50%75%100%
0.73  0.83  0.87
Frame364/5JP
Output60 HP (45 kW)
Number of Poles2
Frequency50 Hz
Rated speed2965 rpm
Slip1.17 %
Rated voltage415 V
Rated current78.4 A
L. R. Amperes588 A
LRC7.5x(Code H)
No load current25.0 A
Rated torque106 ft.lb
Locked rotor torque220 %
Breakdown torque280 %
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)6.40 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Noise level?84.0 dB(A)
Approx. weight?693 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  92.7  94.0

Power factor

50%75%100%
0.69  0.80  0.85

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWith
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
75HP
Enclosure
ODP
Frame
364JP/365JP
