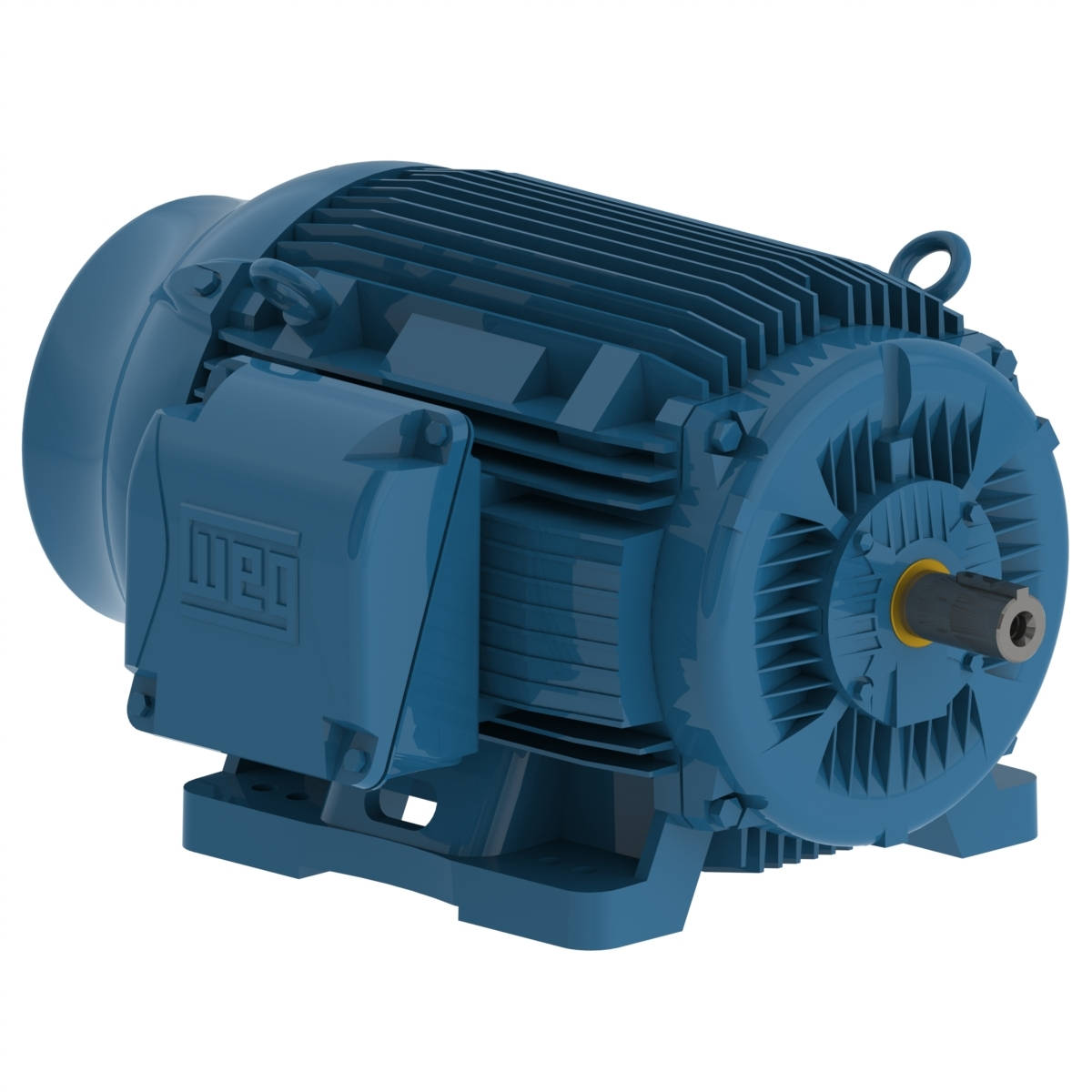

Motor/Control Division

Frame	364/5TS
Output	75 HP (55 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3550 rpm
Slip	1.39 %
Rated voltage	460 V
Rated current	81.9 A
L. R. Amperes	541 A
LRC	6.6x(Code G)
No load current	19.0 A
Rated torque	111 ft.lb
Locked rotor torque	220 %
Breakdown torque	270 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	79.0 dB(A)
Approx. weight?	911 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.6	93.6

Power factor

50%	75%	100%
0.83	0.88	0.90

Frame	364/5TS
Output	50 HP (37 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2960 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	66.7 A
L. R. Amperes	520 A
LRC	7.8x(Code H)
No load current	18.0 A
Rated torque	88.7 ft.lb
Locked rotor torque	240 %
Breakdown torque	320 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	74.0 dB(A)
Approx. weight?	911 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.2	92.5	93.7

Power factor

50%	75%	100%
0.75	0.85	0.90

Frame	364/5TS
Output	50 HP (37 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2965 rpm
Slip	1.17 %
Rated voltage	400 V
Rated current	64.8 A
L. R. Amperes	551 A
LRC	8.5x(Code J)
No load current	19.0 A
Rated torque	88.6 ft.lb
Locked rotor torque	260 %
Breakdown torque	350 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	74.0 dB(A)
Approx. weight?	911 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.5	93.0	93.7

Power factor

50%	75%	100%
0.72	0.83	0.88

Frame	364/5TS
Output	50 HP (37 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2970 rpm
Slip	1.00 %
Rated voltage	415 V
Rated current	62.4 A
L. R. Amperes	568 A
LRC	9.1x(Code K)
No load current	20.0 A
Rated torque	88.4 ft.lb
Locked rotor torque	290 %
Breakdown torque	380 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	74.0 dB(A)
Approx. weight?	911 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.8	93.1	93.7

Power factor

50%	75%	100%
0.70	0.82	0.88

Frame	364/5TS
Output	75 HP (55 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2930 rpm
Slip	2.33 %
Rated voltage	380 V
Rated current	100 A
L. R. Amperes	520 A
LRC	5.2x(Code E)
No load current	18.0 A
Rated torque	134 ft.lb
Locked rotor torque	160 %
Breakdown torque	200 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	74.0 dB(A)
Approx. weight?	911 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.0	92.4

Power factor

50%	75%	100%
0.86	0.90	0.90

Frame	364/5TS
Output	75 HP (55 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2940 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	94.8 A
L. R. Amperes	550 A
LRC	5.8x(Code F)
No load current	19.0 A
Rated torque	134 ft.lb
Locked rotor torque	175 %
Breakdown torque	220 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	74.0 dB(A)
Approx. weight?	911 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.0	93.0

Power factor

50%	75%	100%
0.84	0.89	0.90

Frame	364/5TS
Output	75 HP (55 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	415 V
Rated current	91.4 A
L. R. Amperes	567 A
LRC	6.2x(Code F)
No load current	20.0 A
Rated torque	134 ft.lb
Locked rotor torque	190 %
Breakdown torque	240 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	74.0 dB(A)
Approx. weight?	911 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.6	93.0

Power factor

50%	75%	100%
0.83	0.88	0.90

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	Extended in Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
