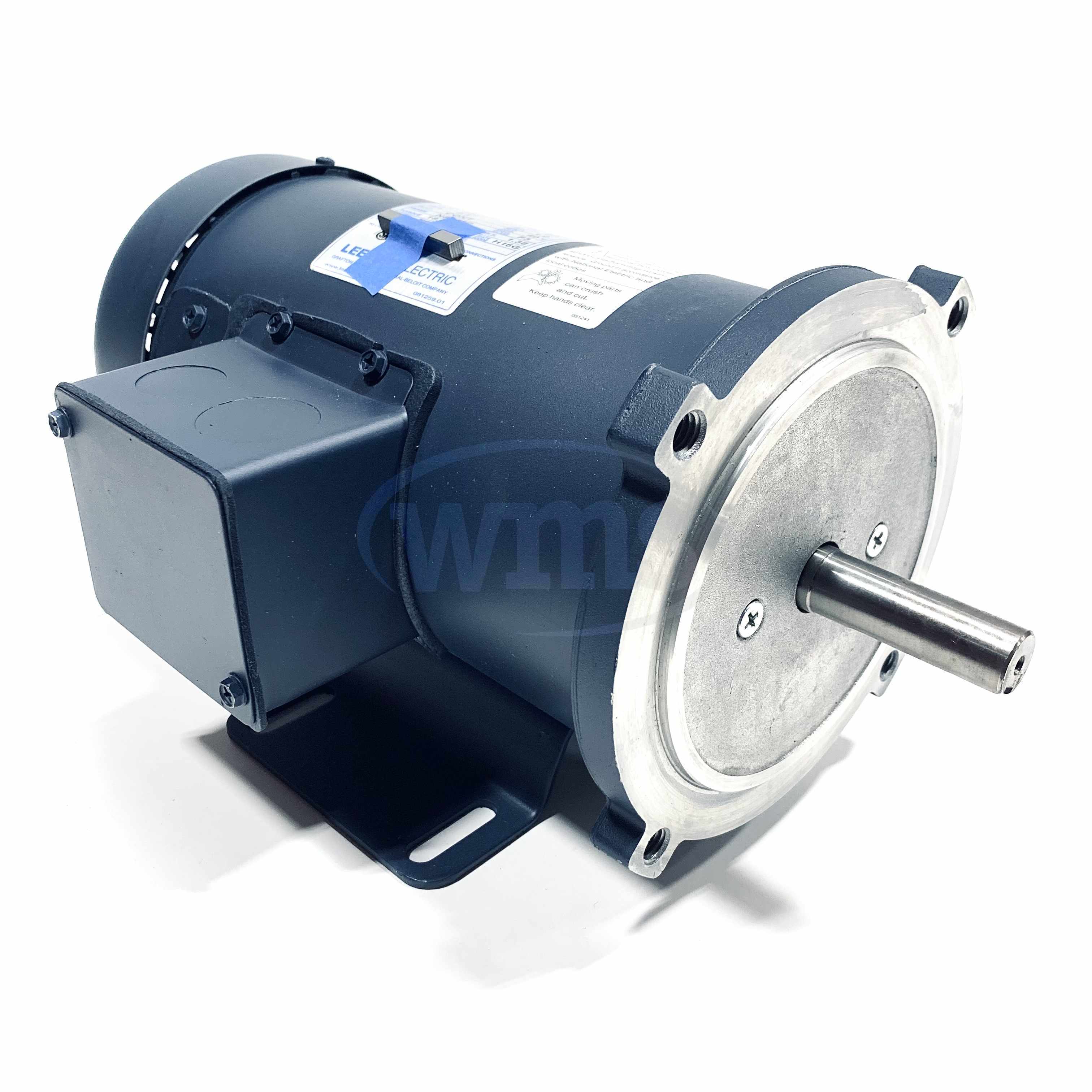

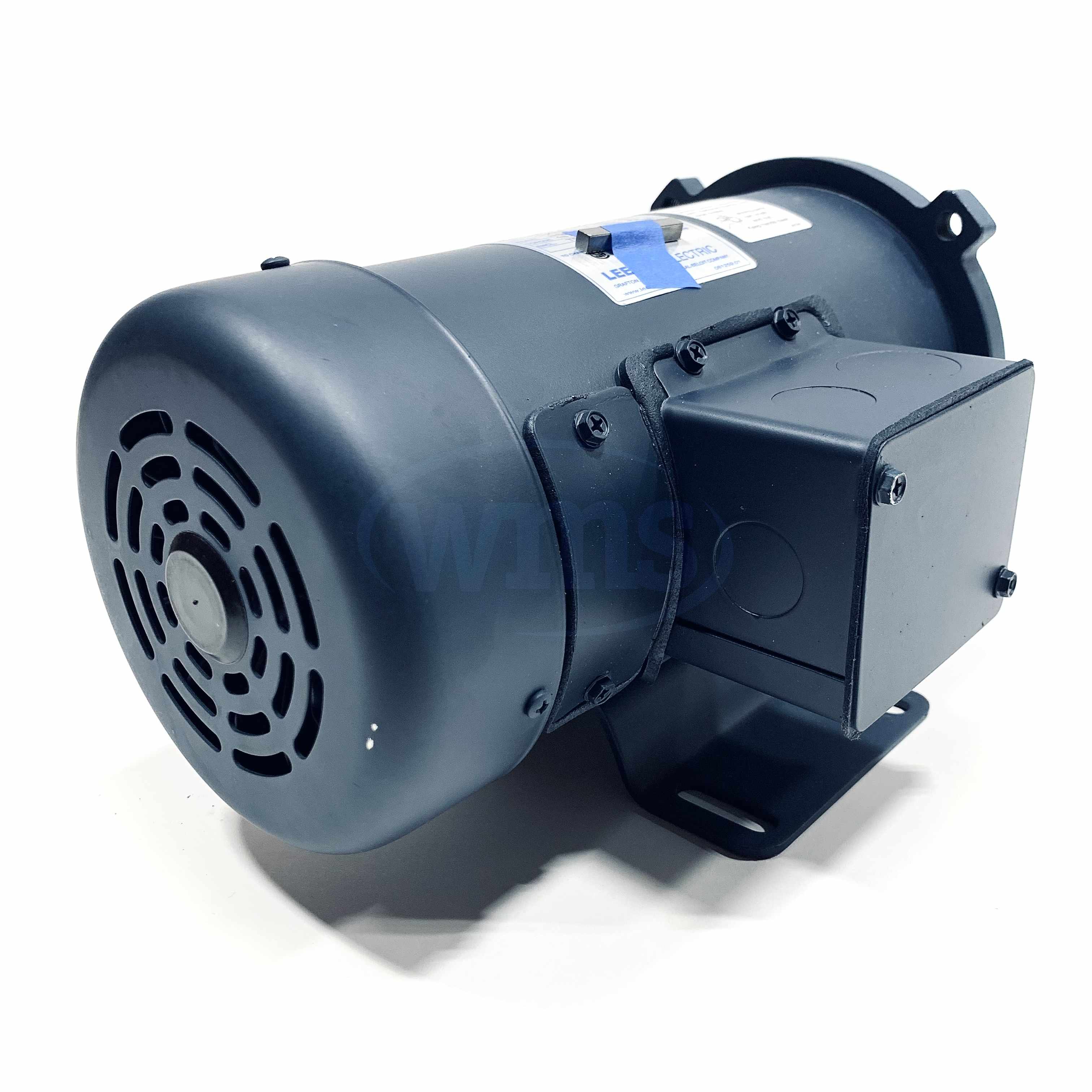

/Products/Electric Motors/DC/Leeson DC Electric Motors/NEMA Frame - SCR Rated/098008.00 Leeson 1/2Hp, 1750 Rpm, SCR Rated Permanent Magnet DC Motor, 180V, 56C

Click Image to Expand

Previous Next

Available Stock: 3

Selected accessories will also be added to cart

$472.54 / Each

Quantity:

TEFC, NSS56C Frame, 180VDC, C-Face with Removable Base, SCR Rated

Brush holder design provides easy access to brushes
Large oversized brushes assure long brush life
Removable bolt-on base; NEMA C face designs
115 or 230 volt input power ratings – 90 / 180 volt output; Capable of dynamic braking
PWM or SCR type controller rated; High starting torque
Permanently lubricated sealed bearings
LEESON SCR controls available to power motors; High starting torque
Higher HP and speed achievable using PWM type DC controls
UL and CSA Listed; Meets NEMA MG1 standards
Dynamically balanced armatures; 30:1 constant torque operation

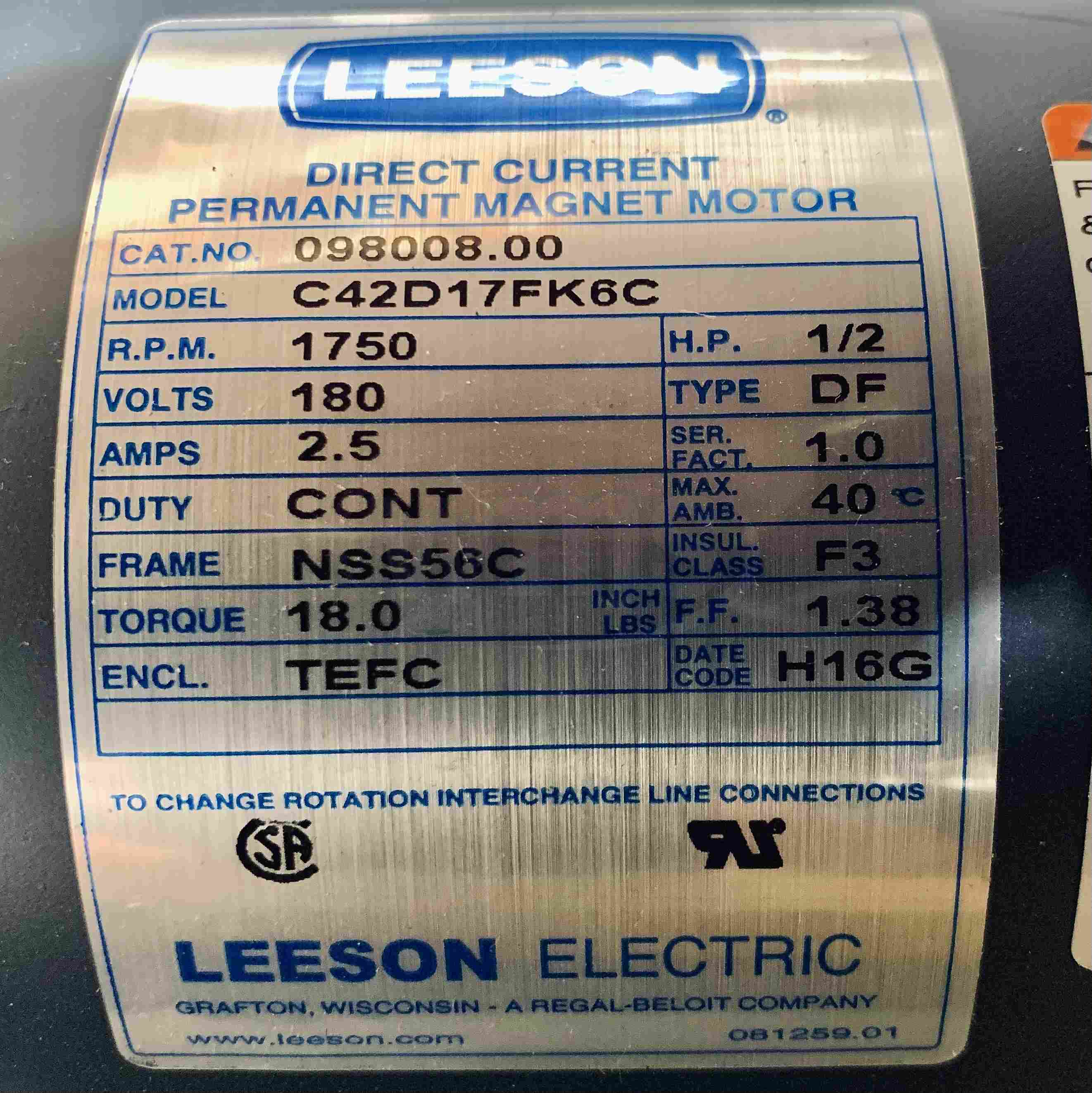

Model :	C42D17FK6C	Catalog No :	098008.00
Part Description :	1/2HP.1750RPM.NSS56C.TEFC.180V.CONT.40C.1.0SF.RIGID C.DC NEMA.C42D17FK6C	Category :	SCR
Stock :	No
