/Products/Electric Motors/DC/Leeson/098069.00 Leeson 3/4HP SCR DC Electric Motor, 1750RPM
Click Image to Expand

Product ID: 098069.00

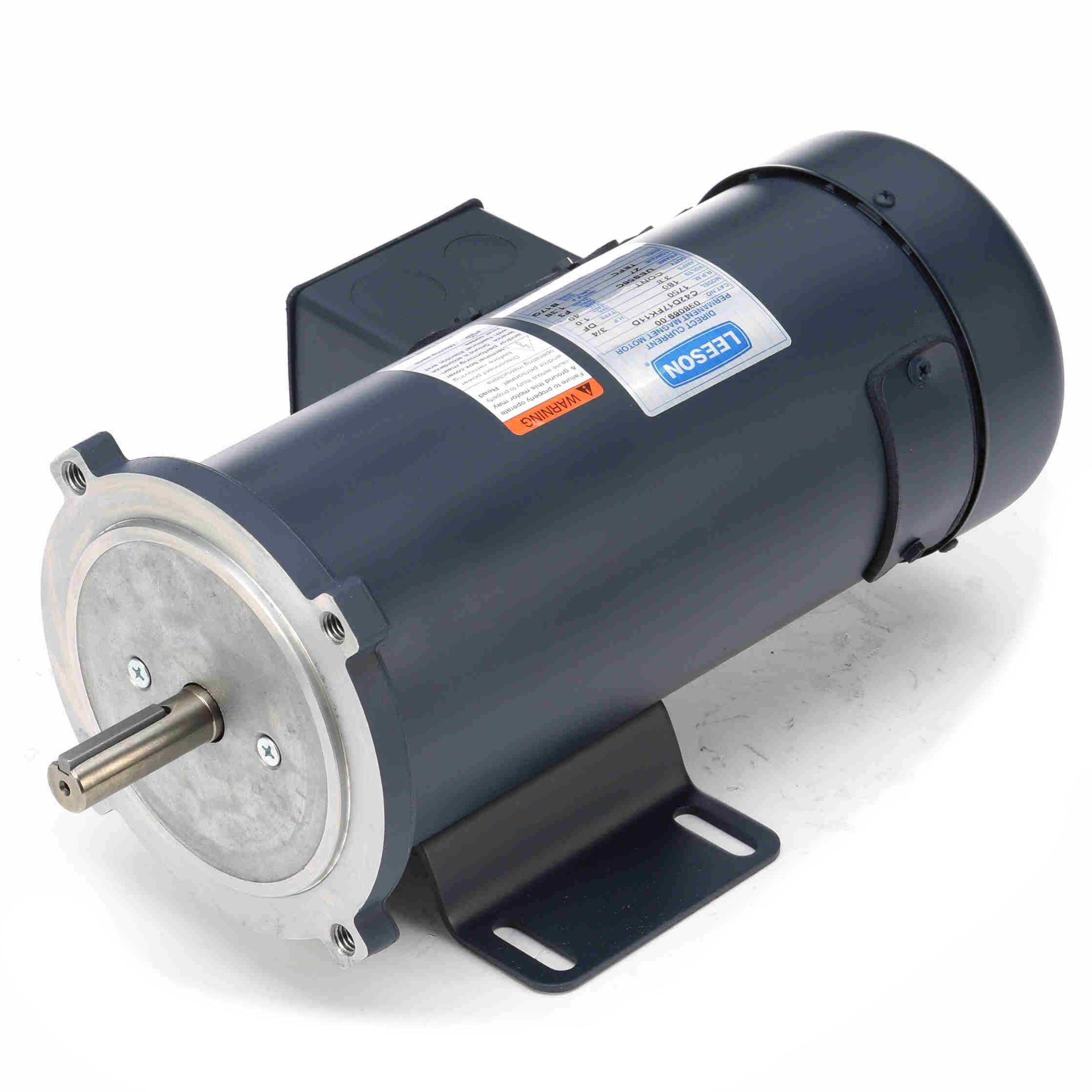

098069.00 Leeson 3/4HP SCR DC Electric Motor, 1750RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 098069.00

Selected accessories will also be added to cart
$649.97 / Each
Quantity:
TEFC, 56C Frame, 180VDC, C-Face, Foot Mounted, Rolled Steel Frame

Features

  • UL and CSA Listed, Meeting NEMA MG1 standards.
  • Brush holder design provides easy access for motor maintenance.
  • Permanent magnet design ensures higher motor efficiency.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
  • Compatible with PWM or SCR type controllers.

General Specifications

General Specifications

UPC: 691720001110 Weight: 34.00 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Nameplate Specifications

Output HP: 0.75 Hp Output KW: 0.56 kW
Voltage: 180 V Current: 3.8 A
Speed: 1750 rpm Service Factor: 1
Efficiency: 82.1 % Duty: Continuous
Insulation Class: F Frame: SS56C
Enclosure: Totally Enclosed Fan Cooled Thermal Protection: No
Ambient Temperature: 40 °C Drive End Bearing Size: 6203
Opp Drive End Bearing Size: 6203 UL: Recognized
CSA: Y CE: N

Technical Specifications

Technical Specifications

Rotation: Reversible Mounting: Rigid C base
Overall Length: 13.81 in Frame Length: 9.50 in
Shaft Diameter: 0.625 in Shaft Extension: 2.06 in
Torque: 27 LB-IN
