/Products/Electric Motors/Single Phase Electric Motors/Leeson Single Phase Electric Motors/100025.00 Leeson 1/2HP General Purpose Electric Motor, 1725RPM
Click Image to Expand

Product ID: 100025.00

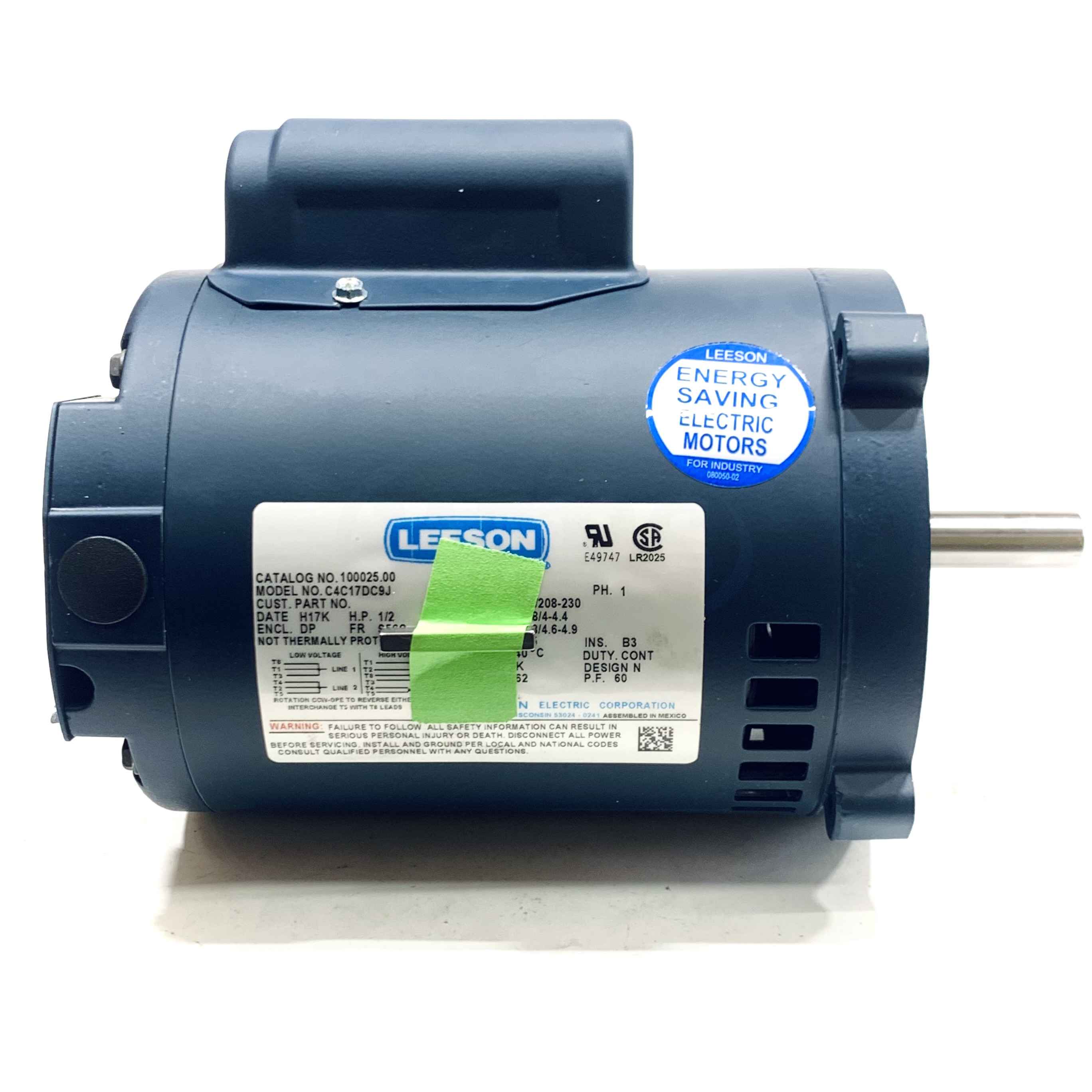

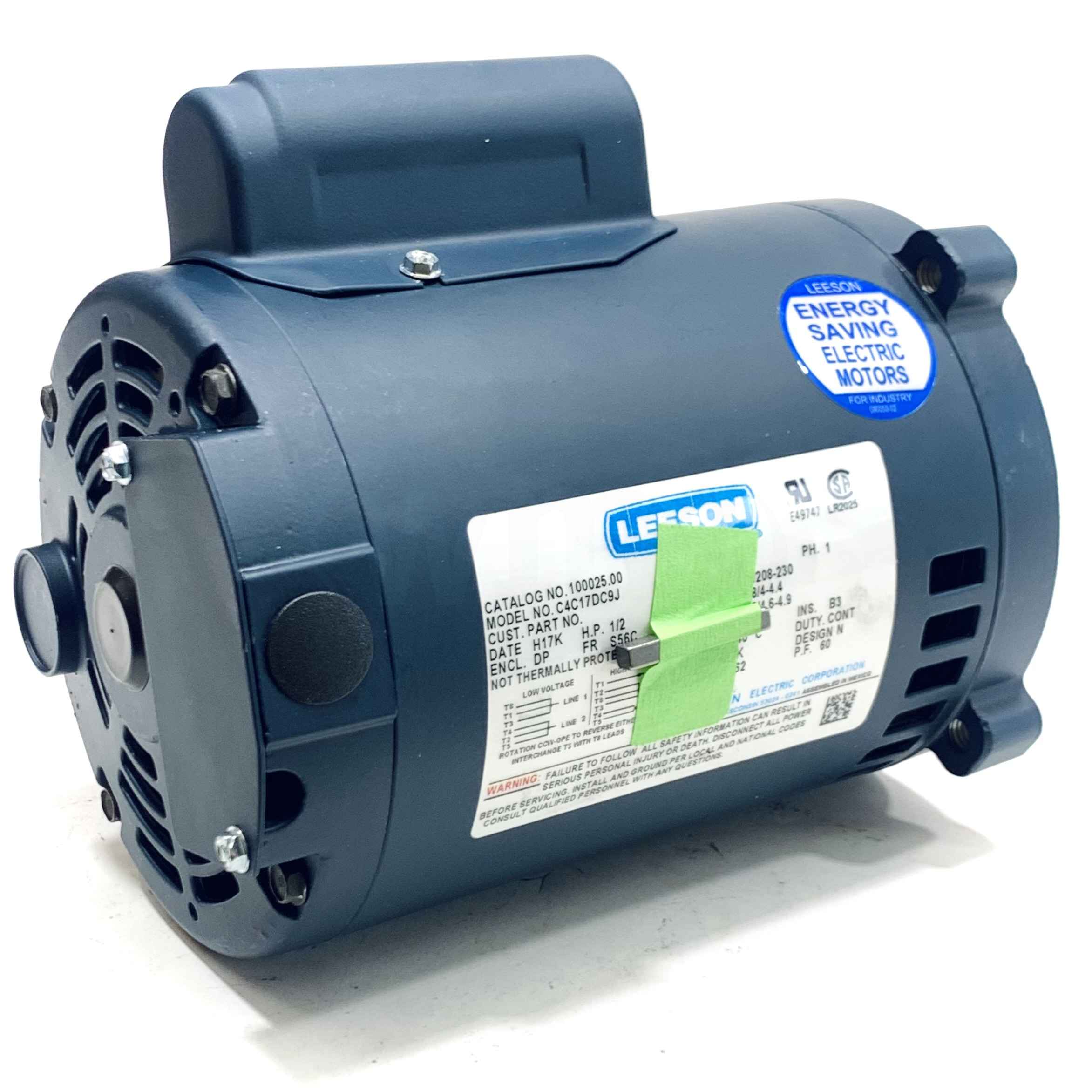

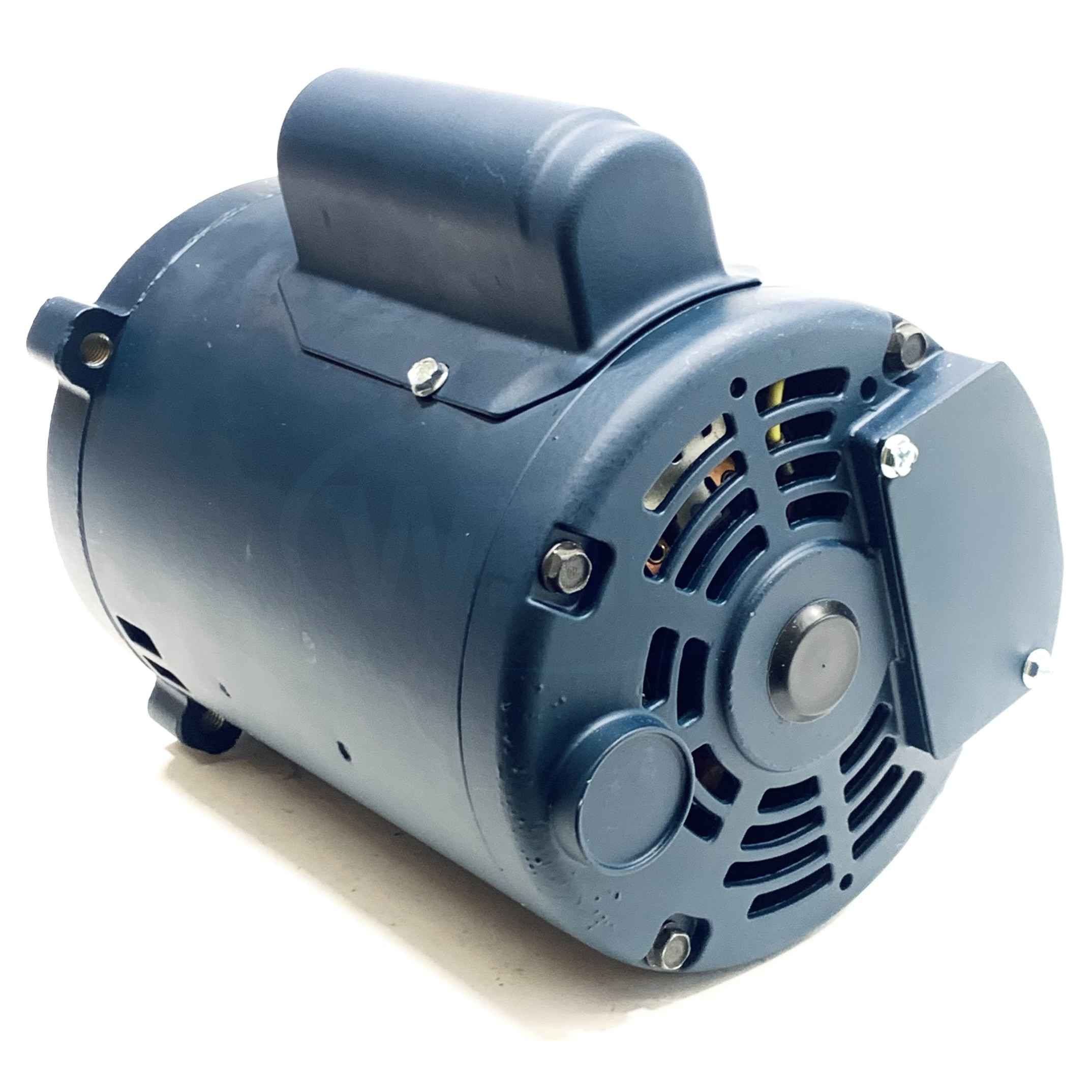

100025.00 Leeson 1/2HP General Purpose Electric Motor, 1725RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 100025.00

Available Stock: 5
Selected accessories will also be added to cart
$200.97 / Each
Quantity:
New, Surplus Stock
Features
  • Durable rolled steel construction
  • NEMA design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified
  • 1-year warranty on general purpose motors
  • 3-year warranty on Premium efficient motors
General Specifications
Model :C4C17DC9JCatalog No :100025.00
Part Description :Obsolete in the US, replaced by E100025.00 ..1/2HP..1725RPM.S56.DP.115/208-230V.1PH.60HZ.CONT.40C.1.25SF.ROUND.C4C17DC9J.....GENERAL PURPOSE.NOT.......Category :Open Drip Proof (ODP)
Stock :No
Nameplate Specifications
Output HP :0.5 HpOutput KW :0.37 kW
Frequency :60 HzVoltage :115/208-230 V
Current :8.8/4-4.4 ASpeed :1725 rpm
Service Factor :1.25 Phase :1
Efficiency :62 %Duty :CONTINUOUS
Insulation Class :B Design Code :N
KVA Code :K Frame :S56C
Enclosure :DP Overload Protector :NOT
Ambient Temperature :40 ?CDrive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :22
Technical Specifications
Electrical Type :CAP START IND RUN Starting Method :ACROSS THE LINE
Poles :4 Rotation :SELECTIVE CCW
Mounting :ROUND Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :ROLLED STEEL Shaft Type :STANDARD 56
Overall Length :9.99 inFrame Length :6 in
Shaft Diameter :0.63 inShaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720004357
Weight :22.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down0.0066.00275.000.50
Locked-Rotor19.5080.00333.000.50
Pull-Up0.0062.00258.000.50
Full Load4.4024.00100.01,7470.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.00
  • 0.197
  • 0.0
  • 21.4
  • 1,794
  • 0.0
  • 0.00
  • 25 %
  • 3.90
  • 0.287
  • 33.1
  • 32.0
  • 1,784
  • 0.0
  • 6.00
  • 50 %
  • 4.00
  • 0.390
  • 48.4
  • 42.4
  • 1,772
  • 0.0
  • 12.00
  • 75 %
  • 4.17
  • 0.493
  • 57.1
  • 51.4
  • 1,760
  • 0.0
  • 18.00
  • 100 %
  • 4.41
  • 0.606
  • 62.0
  • 60.1
  • 1,745
  • 56.9
  • 24.00
  • 125 %
  • 4.79
  • 0.731
  • 63.1
  • 66.4
  • 1,730
  • 0.0
  • 30.00
  • 150 %
  • 5.25
  • 0.866
  • 63.1
  • 71.7
  • 1,708
  • 0.0
  • 36.00
Type
Electric Motor
Input Phase
Single Phase
Horsepower
1/2HP
Speed
1725RPM
Frame
56C
