/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Crusher Duty/10009ET3GKD445T-W22 WEG 100HP Crusher Duty Electric Motor, 900RPM

Product ID: 10009ET3GKD445T-W22

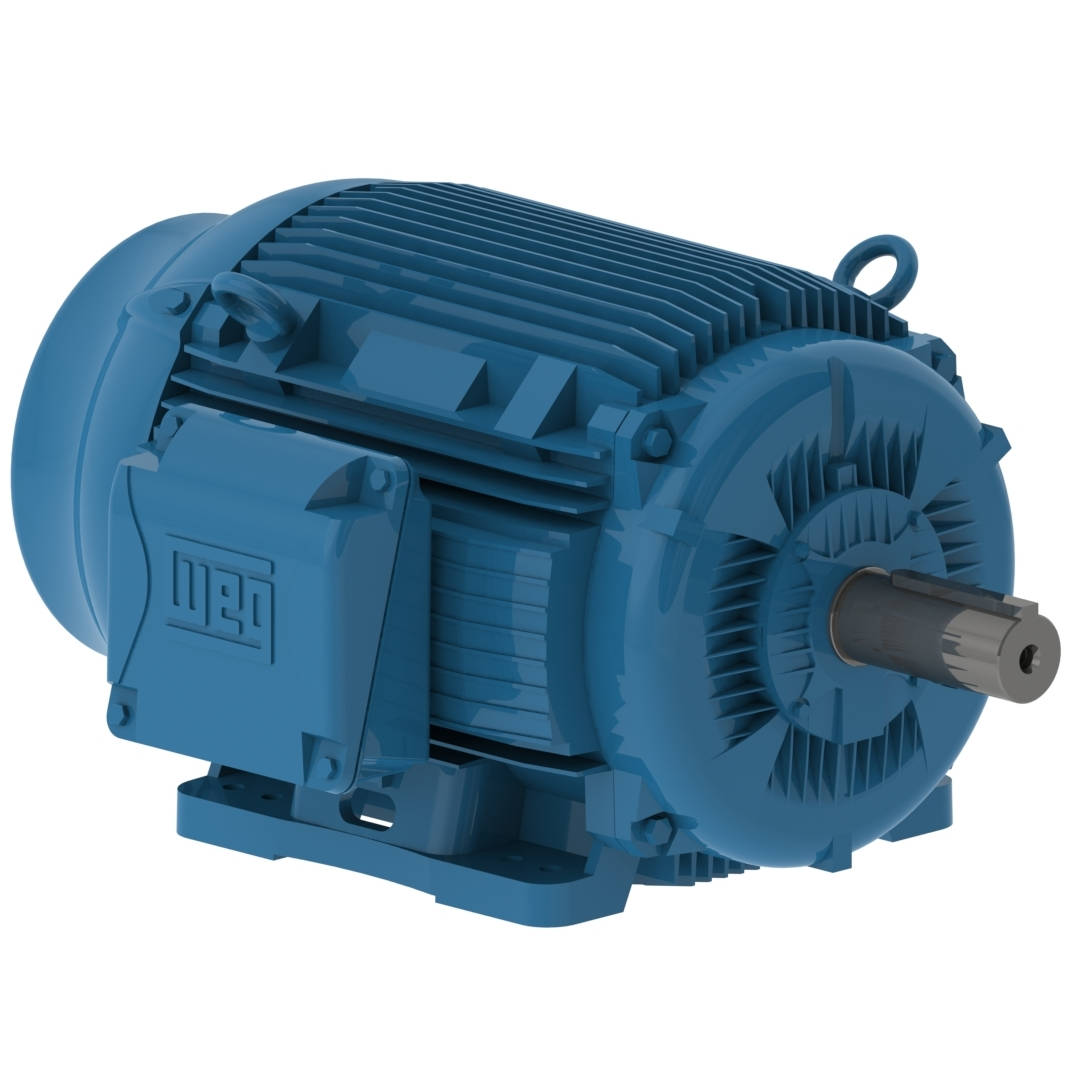

10009ET3GKD445T-W22 WEG 100HP Crusher Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 10009ET3GKD445T-W22

Selected accessories will also be added to cart

$24,019.32 / Each

Quantity:

IC411 - TEFC, IP55, 444T/445T Frame, 460VAC 60Hz 3 Phase, 13500517, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 3-3/8" Keyed Shaft

Electric Motors

Frame	444/5T
Output	100 HP (75 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	890 rpm
Slip	1.11 %
Rated voltage	460 V
Rated current	130 A
L. R. Amperes	793 A
LRC	6.1x(Code H)
No load current	60.0 A
Rated torque	590 ft.lb
Locked rotor torque	210 %
Breakdown torque	220 %

Locked rotor time	27s (cold) 15s (hot)
Design	A
Insulation Class	F
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	63.0 dB(A)
Approx. weight?	1784 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.6	94.1	94.1

Power factor

50%	75%	100%
0.62	0.72	0.77

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	With
Drain	Rubber, automatic
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12

6316ZZC3 Koyo Ball Bearing, Double Shielded

6316ZZC3 Koyo Ball Bearing, Double Shielded

6316-ZZC3
Available Stock: 1

MFG: JTEKT Corporation

6316-ZZC3

$234.17 / Each

Type

Electric Motor

Input Phase

3-Phase

Horsepower

100HP

Enclosure

TEFC

Speed

900RPM

Application

Crusher

Input Voltage

460VAC

Frame

444T

Frame

445T
