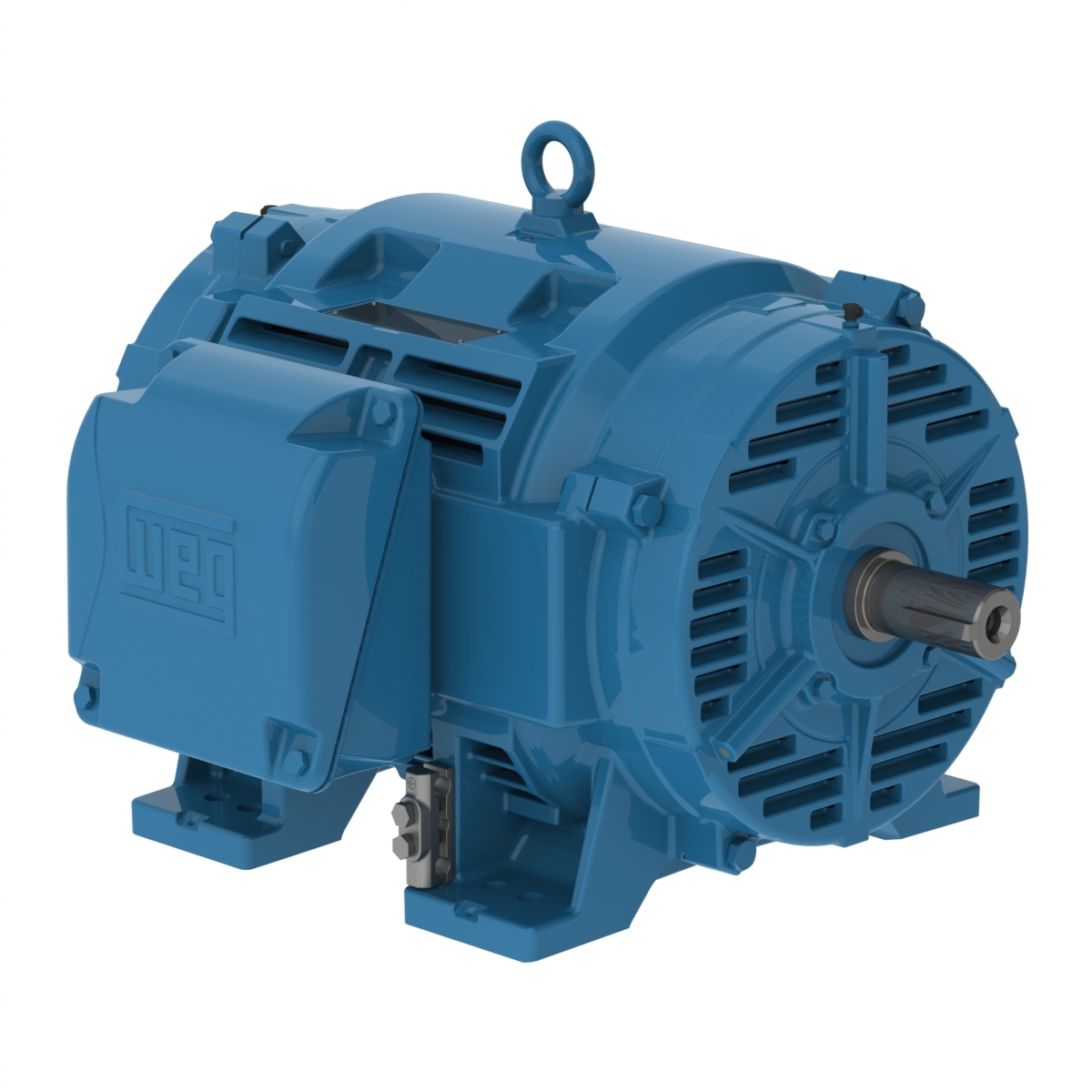

10018OT3ERB404T-W40 WEG 100HP, General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: 10018OT3ERB404T-W40

10018OT3ERB404T-W40 WEG 100HP, General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 10018OT3ERB404T-W40

Selected accessories will also be added to cart
$5,355.75 / Each
Quantity:
14272346, 404T/405T Frame, 208-230/460VAC 3-Phase 50/60Hz, ODP, Foot Mounted, Cast Iron, 2.875" Shaft, NEMA Premium Efficien
Cast iron frame IP23 motor complying with NEMA Premium efficiency levels according to NEMA MG-1.
The W40 motors are designed for environments where dirt and moisture are minimal. They offer low vibration and sound pressure levels additionally to their improved performance.
Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460//380 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 100 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Product details

Generate Documents
  • 380 V 50 Hz 4P IE3
  • 400 V 50 Hz 4P IE3
  • 415 V 50 Hz 4P IE3

Electric Motors

Frame 404/5T
Output 100 HP (75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 208-230/460 V
Rated current 254-230/115 A
L. R. Amperes 1729-1564/782 A
LRC 6.8x(Code G)
No load current 68.5-79.4/39.7 A
Rated torque 291 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 21.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 0.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.4  95.4

Power factor

50% 75% 100%
0.75  0.83  0.86
Frame 404/5T
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1482 rpm
Slip 1.20 %
Rated voltage 380 V
Rated current 103 A
L. R. Amperes 742 A
LRC 7.2x(Code H)
No load current 33.0 A
Rated torque 262 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 21.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 0.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.9  92.9  94.7

Power factor

50% 75% 100%
0.73  0.82  0.86
Frame 404/5T
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1484 rpm
Slip 1.07 %
Rated voltage 400 V
Rated current 97.5 A
L. R. Amperes 683 A
LRC 7.0x(Code H)
No load current 36.5 A
Rated torque 262 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 21.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 0.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.0  92.9  94.7

Power factor

50% 75% 100%
0.72  0.80  0.86
Frame 404/5T
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 96.2 A
L. R. Amperes 750 A
LRC 7.8x(Code J)
No load current 40.0 A
Rated torque 262 ft.lb
Locked rotor torque 270 %
Breakdown torque 300 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 21.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 0.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.0  92.9  94.7

Power factor

50% 75% 100%
0.70  0.80  0.84

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device With
Shaft Material SAE 4140 Carbon Steel
Painting
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without

 Loading...

 Loading...

 Loading...

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type NU-316 C3  6314 C3
Sealing Without Bearing Seal  Without Bearing Seal
Lubrication interval 20000 h  20000 h
Lubricant amount 34 g  27 g
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
2386 lb  2386 lb
