10018OT3E404JM-W40 WEG 100HP JM Close-Coupled Pump Electric Motor, 1800RPM

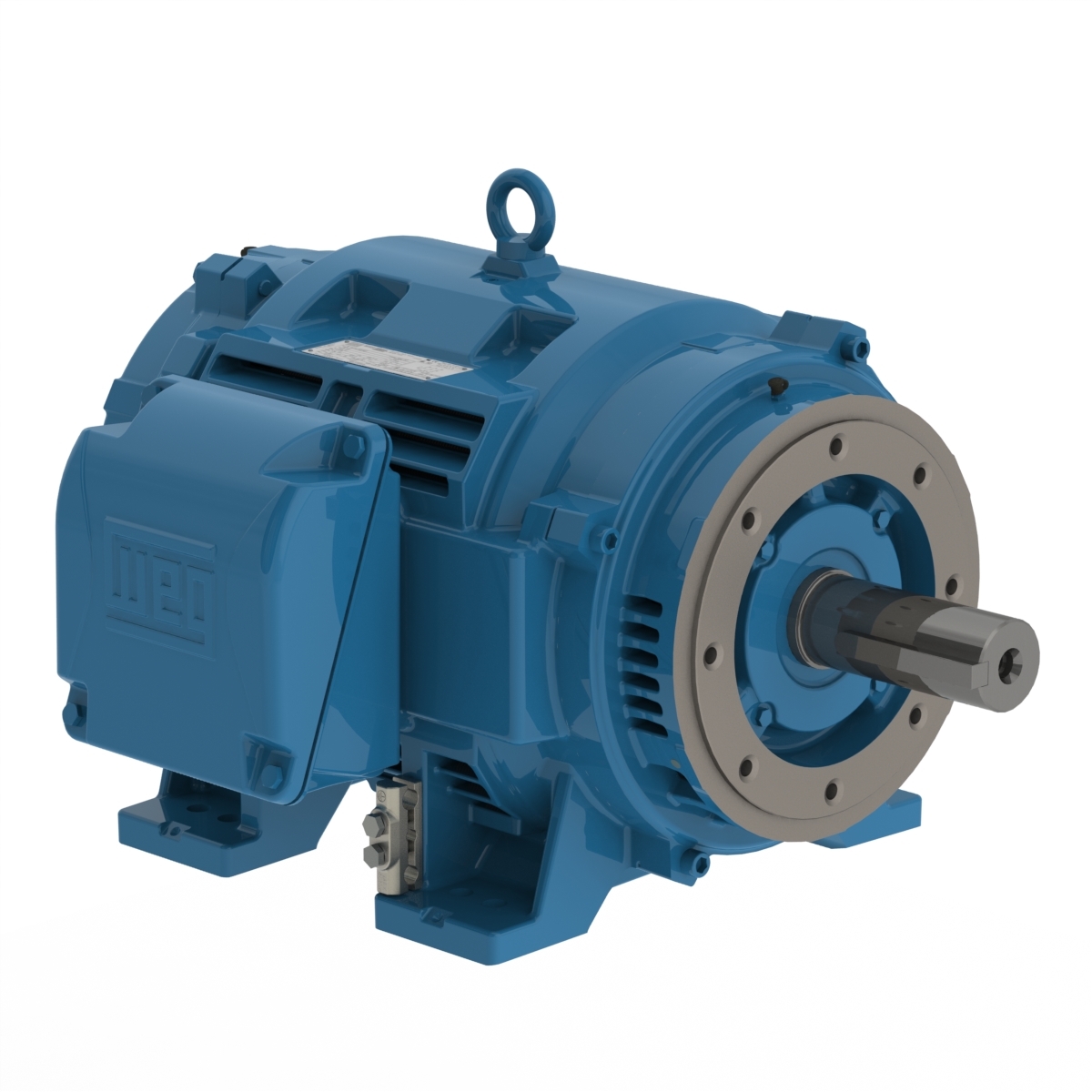

Enlarge Photo

Product ID: 10018OT3E404JM-W40

10018OT3E404JM-W40 WEG 100HP JM Close-Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 10018OT3E404JM-W40

Selected accessories will also be added to cart
$8,095.44 / Each
Quantity:
IC01 - ODP, IP23, 404JM/405JM Frame, 208-230/460VAC 60Hz 3 Phase, 14845935, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame404/5JM
Output100 HP (75 kW)
Number of Poles4
Frequency60 Hz
Rated speed1780 rpm
Slip1.11 %
Rated voltage208-230/460 V
Rated current254-229/115 A
L. R. Amperes1727-1557/782 A
LRC6.8x(Code G)
No load current68.5-79.4/39.7 A
Rated torque295 ft.lb
Locked rotor torque200 %
Breakdown torque250 %
Locked rotor time21s (cold) 12s (hot)
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?992 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.0  95.4  95.4

Power factor

50%75%100%
0.75  0.83  0.86

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
100HP
Enclosure
ODP
Input Voltage
208VAC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
230VAC
Input Voltage
460VAC
Input Voltage
460VAC
Frame
404JM/405JM
