/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Cast Iron, ODP, W40/Foot Mount/10018OT3E404TS-W40 WEG 100HP, General Purpose Electric Motor, 1800RPM

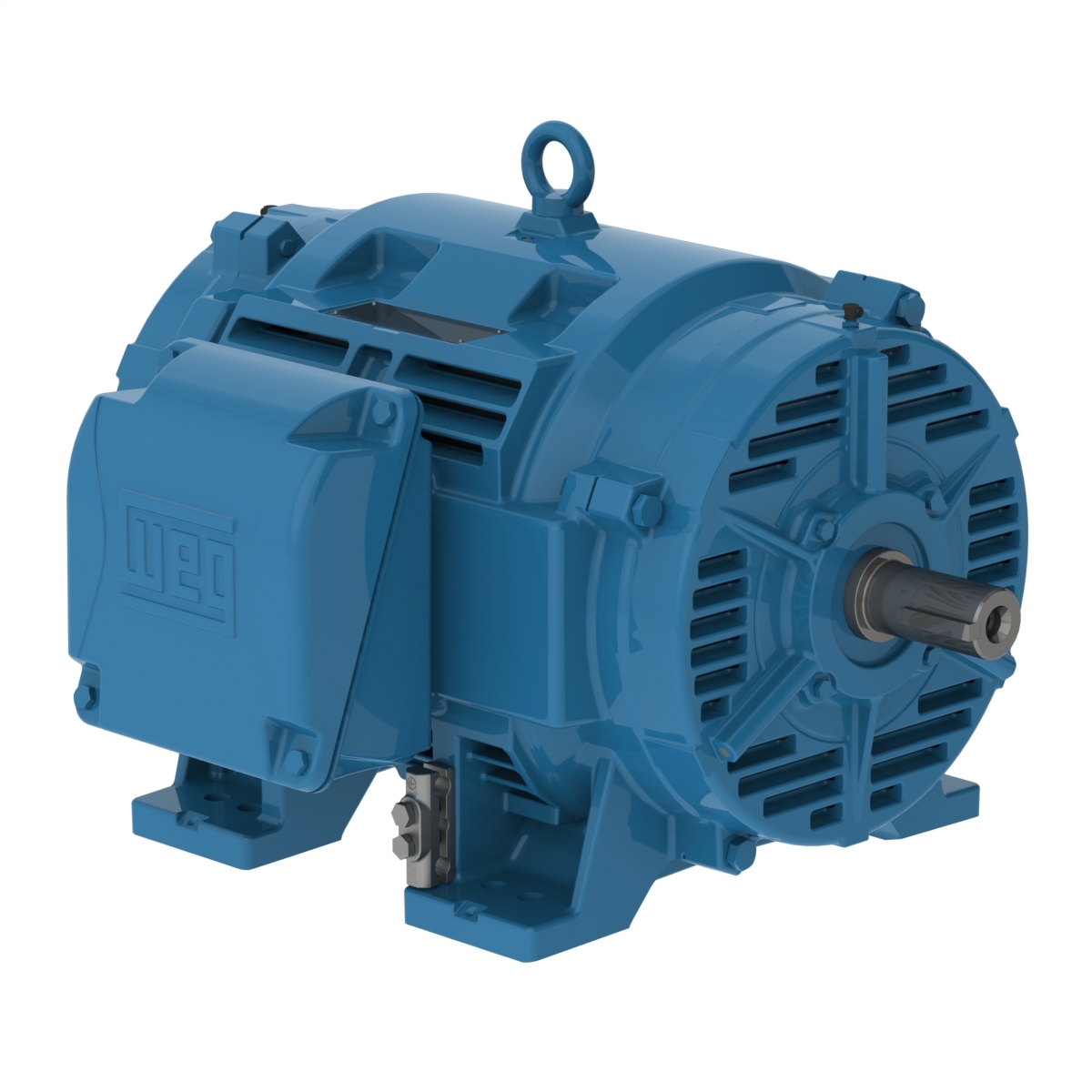

10018OT3E404TS-W40 WEG 100HP, General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: 10018OT3E404TS-W40

10018OT3E404TS-W40 WEG 100HP, General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 10018OT3E404TS-W40

Selected accessories will also be added to cart
$6,355.49 / Each
Quantity:
IC01 - ODP, IP23, 404TS/405TS Frame, 230/460VAC 60Hz 3 Phase, 14284590, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-1/8" Keyed Shaft

Electric Motors

Frame404/5TS
Output100 HP (75 kW)
Number of Poles4
Frequency60 Hz
Rated speed1780 rpm
Slip1.11 %
Rated voltage230/460 V
Rated current230/115 A
L. R. Amperes1564/782 A
LRC6.8x(Code G)
No load current79.4/39.7 A
Rated torque295 ft.lb
Locked rotor torque200 %
Breakdown torque250 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)21.9 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?939 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.0  95.4  95.4

Power factor

50%75%100%
0.75  0.83  0.86
Frame404/5TS
Output75 HP (55 kW)
Number of Poles4
Frequency50 Hz
Rated speed1482 rpm
Slip1.20 %
Rated voltage380 V
Rated current103 A
L. R. Amperes742 A
LRC7.2x(Code H)
No load current33.0 A
Rated torque266 ft.lb
Locked rotor torque220 %
Breakdown torque250 %
Locked rotor time23s (cold) 13s (hot)
Moment of inertia (J)21.9 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?939 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.9  92.9  94.7

Power factor

50%75%100%
0.73  0.82  0.86
Frame404/5TS
Output75 HP (55 kW)
Number of Poles4
Frequency50 Hz
Rated speed1484 rpm
Slip1.07 %
Rated voltage400 V
Rated current97.5 A
L. R. Amperes683 A
LRC7.0x(Code H)
No load current36.5 A
Rated torque265 ft.lb
Locked rotor torque240 %
Breakdown torque280 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)21.9 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?939 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.0  92.9  94.7

Power factor

50%75%100%
0.72  0.80  0.86
Frame404/5TS
Output75 HP (55 kW)
Number of Poles4
Frequency50 Hz
Rated speed1485 rpm
Slip1.00 %
Rated voltage415 V
Rated current96.2 A
L. R. Amperes750 A
LRC7.8x(Code J)
No load current40.0 A
Rated torque265 ft.lb
Locked rotor torque270 %
Breakdown torque300 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)21.9 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?939 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.0  92.9  94.7

Power factor

50%75%100%
0.70  0.80  0.84

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
100HP
Enclosure
ODP
Input Voltage
230VAC
Input Voltage
460VAC
Frame
404TS/405TS
