/Products/Electric Motors/Single Phase/US / Nidec/1003 US-Nidec 1/3HP Carbonator Pump Electric Motor, 1800RPM

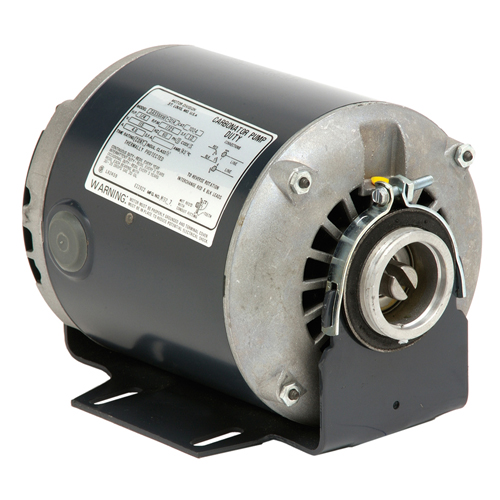

1003 US-Nidec 1/3HP Carbonator Pump Electric Motor, 1800RPM
Enlarge Photo

Product ID: 1003

1003 US-Nidec 1/3HP Carbonator Pump Electric Motor, 1800RPM

MFG: US Motors (Nidec Motor Corporation)
MFG Part Number: 1003

Temporarily out of stock
Selected accessories will also be added to cart
$121.84 / Each
Quantity:
ODP, 48YZ Frame, 115V Single Phase 60Hz

Model_Number:S055NSN7297032J
PRODUCT NAME:.33 HP - ODP - 1725
PHASETYPE:1_SPLIT PHASE
MOTOR ENCLOSURE:ODP
HORSEPOWER:.33
KILOWATTS:0.3
POLES:4
NUMBER SPEEDS:1
RPM:1725
HERTZ:60
VOLTS PRIMARY:115
VOLTS :115
FRME :48
STACK:1.25
MOUNTING:RESILIENT
MOTOR TYPE:FHP
OPPOSITE END BEARING:6203
SHAFT END BEARING:6203
AMBIENT:40
ROTATION:CCW LEAD END REV
SERVICE FACTOR:1
SHIPPING WEIGHT:14
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:37
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:24.52
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:R
LOCKED ROTOR AMPS:40.13
FULL LOAD AMPS PRIMARY:6.5
SERVICE FACTOR AMPS PRIMARY:6.5


Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
1/3HP
Frame
48YZ
