Motor/Control Division

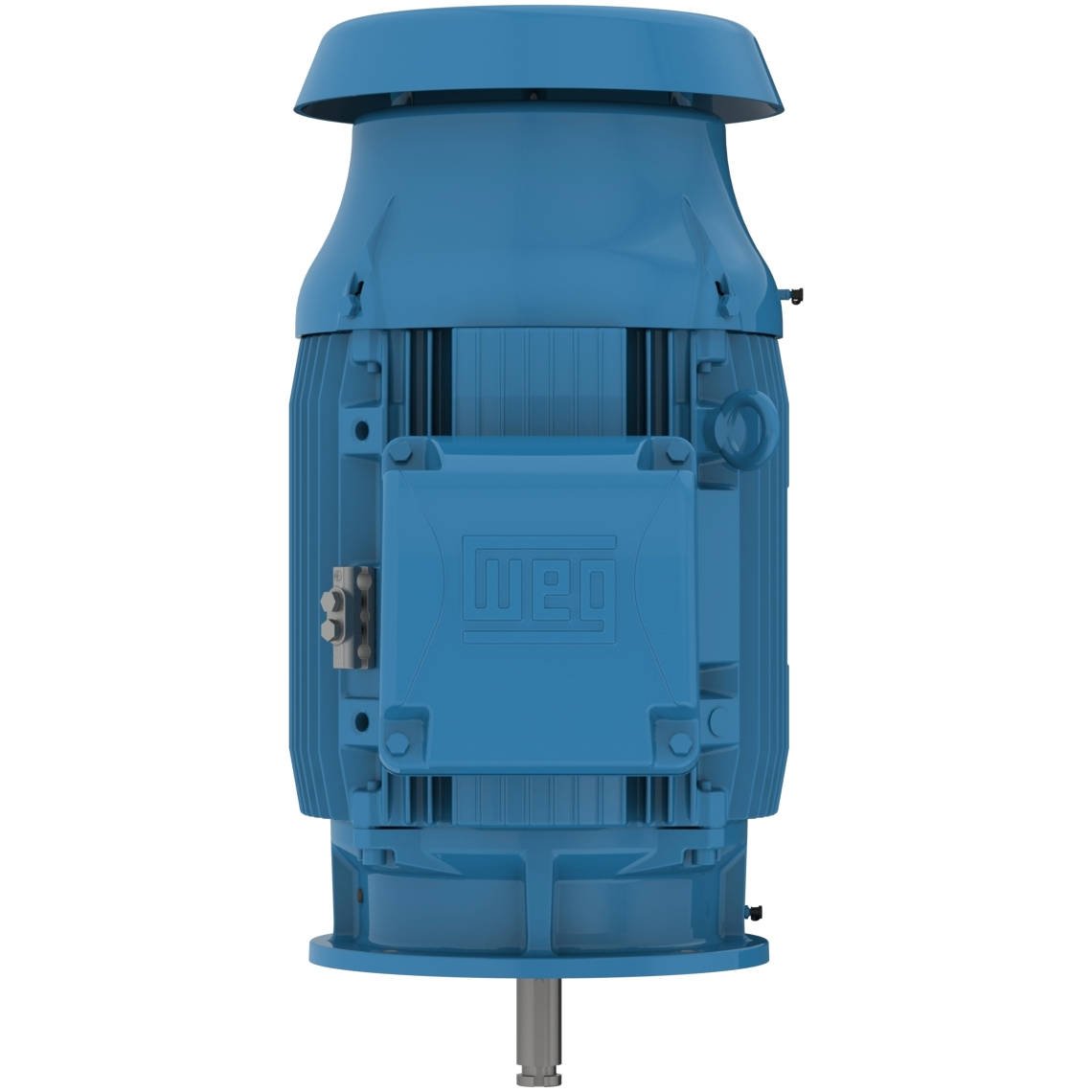

Frame	404/5HPH
Output	100 HP (75 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3545 rpm
Slip	1.53 %
Rated voltage	460 V
Rated current	112 A
L. R. Amperes	728 A
LRC	6.5x(Code G)
No load current	26.0 A
Rated torque	148 ft.lb
Locked rotor torque	240 %
Breakdown torque	260 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	13.2 sq.ft.lb
Design	B
Insulation Class	F
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	79.0 dB(A)
Approx. weight?	1086 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	94.1	94.1

Power factor

50%	75%	100%
0.83	0.88	0.89

Frame	404/5HPH
Output	75 HP (55 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2955 rpm
Slip	1.50 %
Rated voltage	380 V
Rated current	99.6 A
L. R. Amperes	677 A
LRC	6.8x(Code G)
No load current	25.7 A
Rated torque	133 ft.lb
Locked rotor torque	250 %
Breakdown torque	280 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	13.2 sq.ft.lb
Design	B
Insulation Class	F
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	74.0 dB(A)
Approx. weight?	1086 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.8	94.3

Power factor

50%	75%	100%
0.82	0.88	0.89

Frame	404/5HPH
Output	75 HP (55 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2960 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	94.6 A
L. R. Amperes	719 A
LRC	7.6x(Code H)
No load current	27.5 A
Rated torque	133 ft.lb
Locked rotor torque	280 %
Breakdown torque	310 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	13.2 sq.ft.lb
Design	B
Insulation Class	F
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	74.0 dB(A)
Approx. weight?	1086 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.1	93.8	94.3

Power factor

50%	75%	100%
0.80	0.86	0.89

Frame	404/5HPH
Output	75 HP (55 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2965 rpm
Slip	1.17 %
Rated voltage	415 V
Rated current	92.2 A
L. R. Amperes	756 A
LRC	8.2x(Code J)
No load current	29.1 A
Rated torque	133 ft.lb
Locked rotor torque	300 %
Breakdown torque	330 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	13.2 sq.ft.lb
Design	B
Insulation Class	F
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	74.0 dB(A)
Approx. weight?	1086 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.5	94.0	94.3

Power factor

50%	75%	100%
0.78	0.85	0.88

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	With
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
