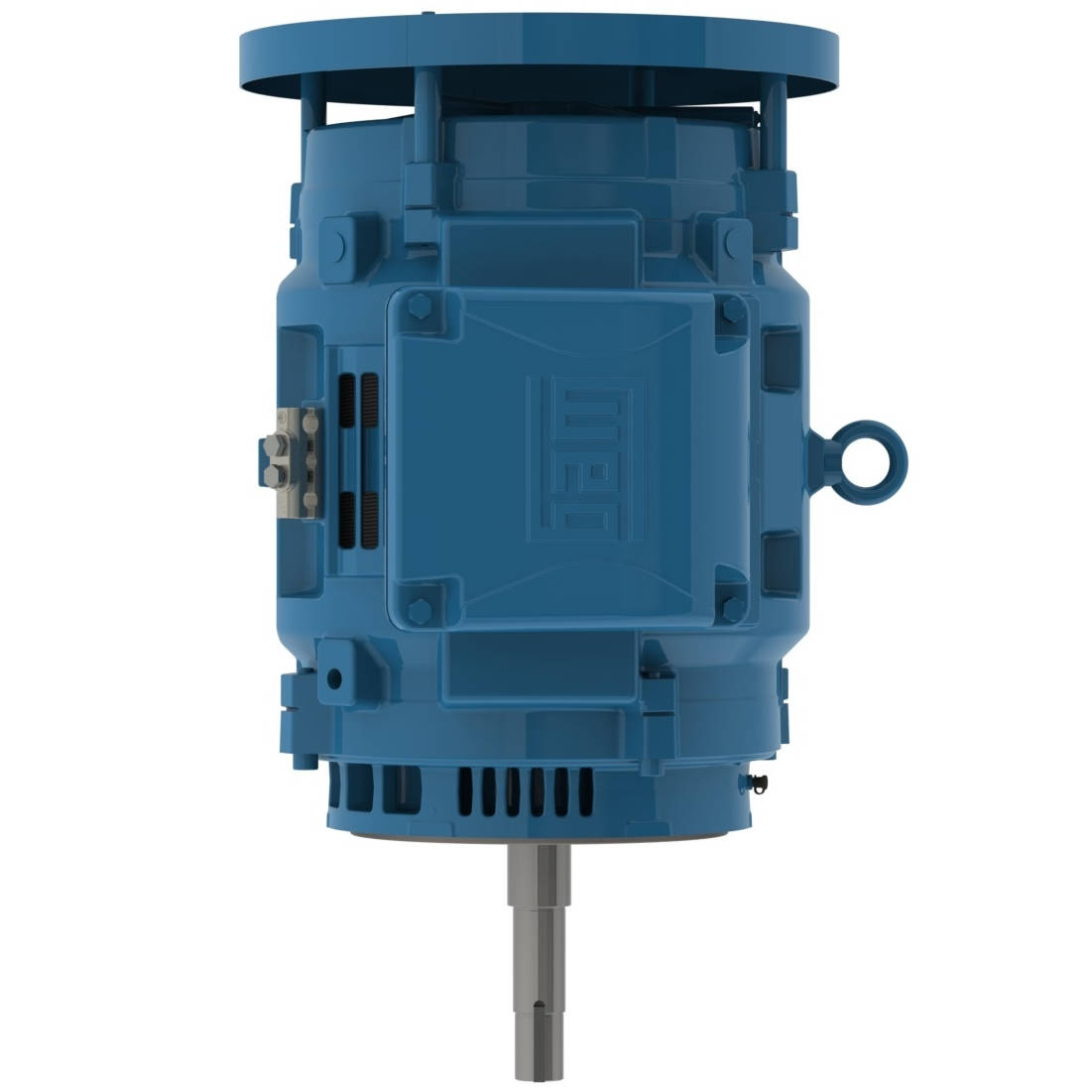

10036OT3H365JPV-W40 WEG 100HP JP Close-Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 10036OT3H365JPV-W40

10036OT3H365JPV-W40 WEG 100HP JP Close-Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 10036OT3H365JPV-W40

Selected accessories will also be added to cart
$7,662.01 / Each
Quantity:
IC01 - ODP, IP23, 364JP/365JP Frame, 575VAC 60Hz 3 Phase, 14836144, NEMA Premium Efficiency, Footless, Vertical Mount, Cast Iron Frame

Electric Motors

Frame364/5JP
Output100 HP (75 kW)
Number of Poles2
Frequency60 Hz
Rated speed3555 rpm
Slip1.25 %
Rated voltage575 V
Rated current92.8 A
L. R. Amperes612 A
LRC6.6x(Code G)
No load current23.6 A
Rated torque148 ft.lb
Locked rotor torque180 %
Breakdown torque229 %
Locked rotor time23s (cold) 13s (hot)
Moment of inertia (J)7.20 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Noise level?84.0 dB(A)
Approx. weight?740 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.4  93.6  93.6

Power factor

50%75%100%
0.77  0.84  0.87

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWith
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
100HP
Enclosure
ODP
Input Voltage
575VAC
Frame
364JP/365JP
