10036OT3G365TS-RFW40 WEG 100HP Refrigeration Electric Motor, 3600RPM

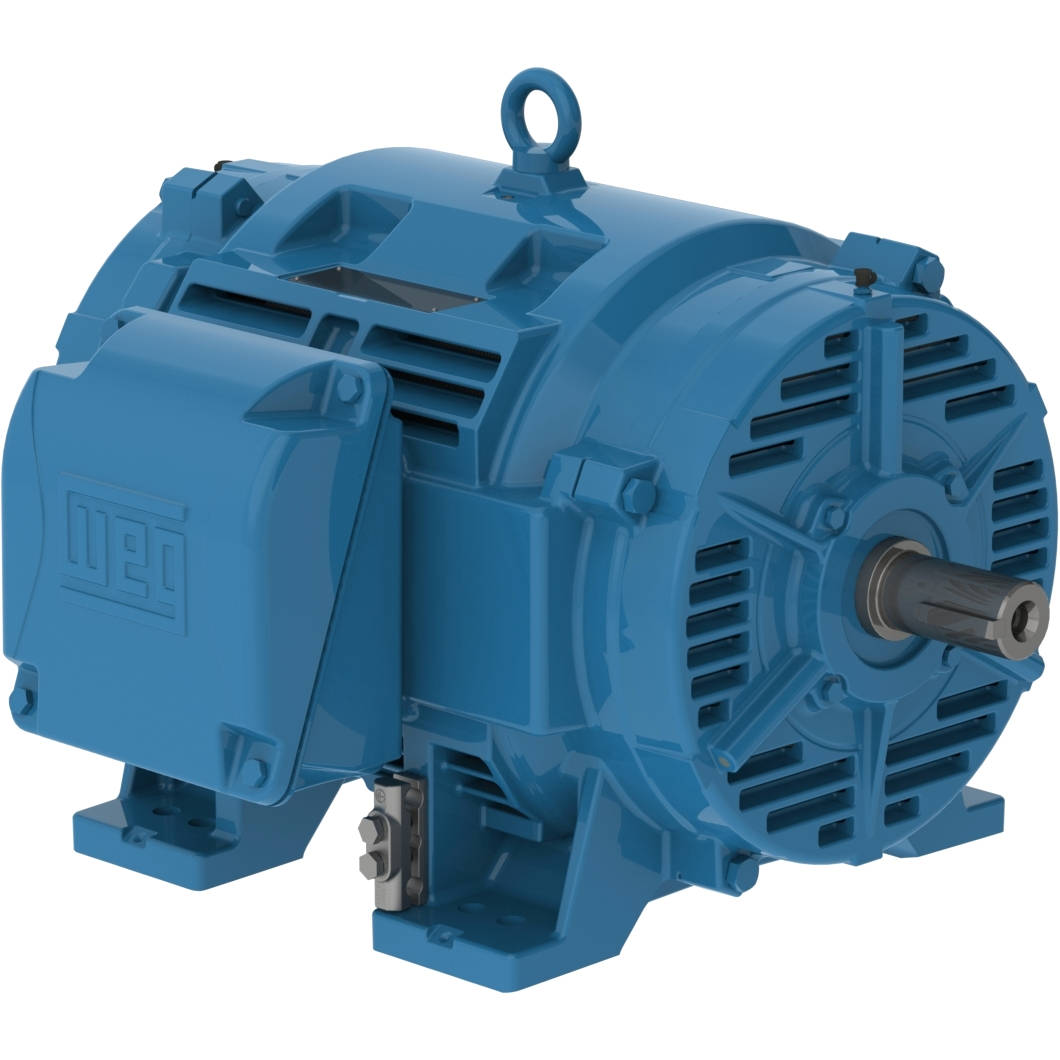

Enlarge Photo

Product ID: 10036OT3G365TS-RFW40

10036OT3G365TS-RFW40 WEG 100HP Refrigeration Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 10036OT3G365TS-RFW40

Selected accessories will also be added to cart
$6,504.12 / Each
Quantity:
IC01 - ODP, IP23, 364TS/365TS Frame, 460VAC 60Hz 3 Phase, 16083044, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Electric Motors

Frame364/5TS
Output100 HP (75 kW)
Number of Poles2
Frequency60 Hz
Rated speed3555 rpm
Slip1.25 %
Rated voltage460 V
Rated current116 A
L. R. Amperes766 A
LRC6.6x(Code G)
No load current29.5 A
Rated torque148 ft.lb
Locked rotor torque180 %
Breakdown torque229 %
Locked rotor time23s (cold) 13s (hot)
Moment of inertia (J)7.20 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?84.0 dB(A)
Approx. weight?774 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.4  93.6  93.6

Power factor

50%75%100%
0.77  0.84  0.87

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Space Heater Voltage110-127/200-240 V
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
100HP
Enclosure
ODP
Frame
364TS/365TS
Application
Refrigeration
