/Products/Electric Motors/3 Phase/Leeson/TENV, Rigid Base/100443.00 Leeson 1/3HP Electric Motor, 1725RPM
Click Image to Expand

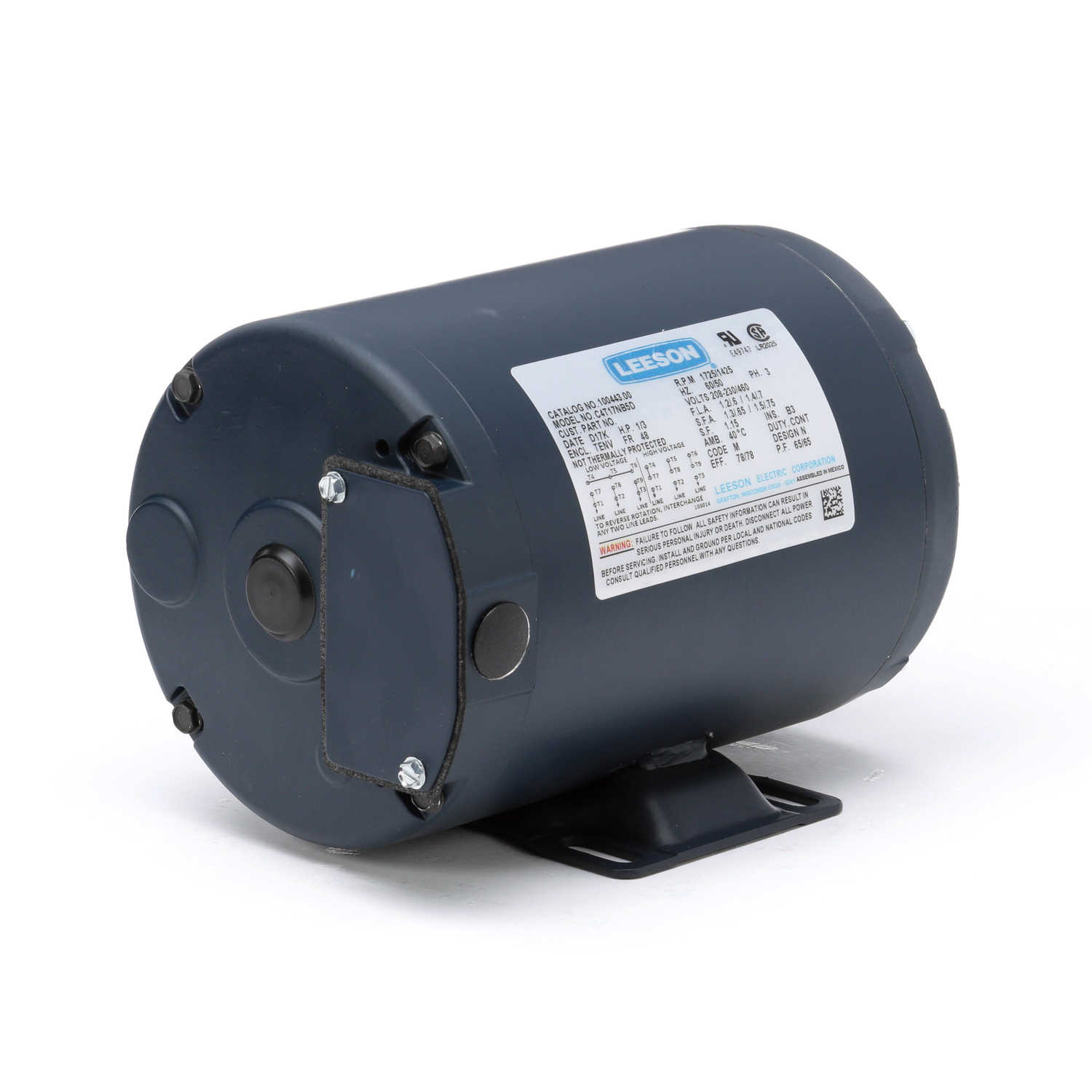

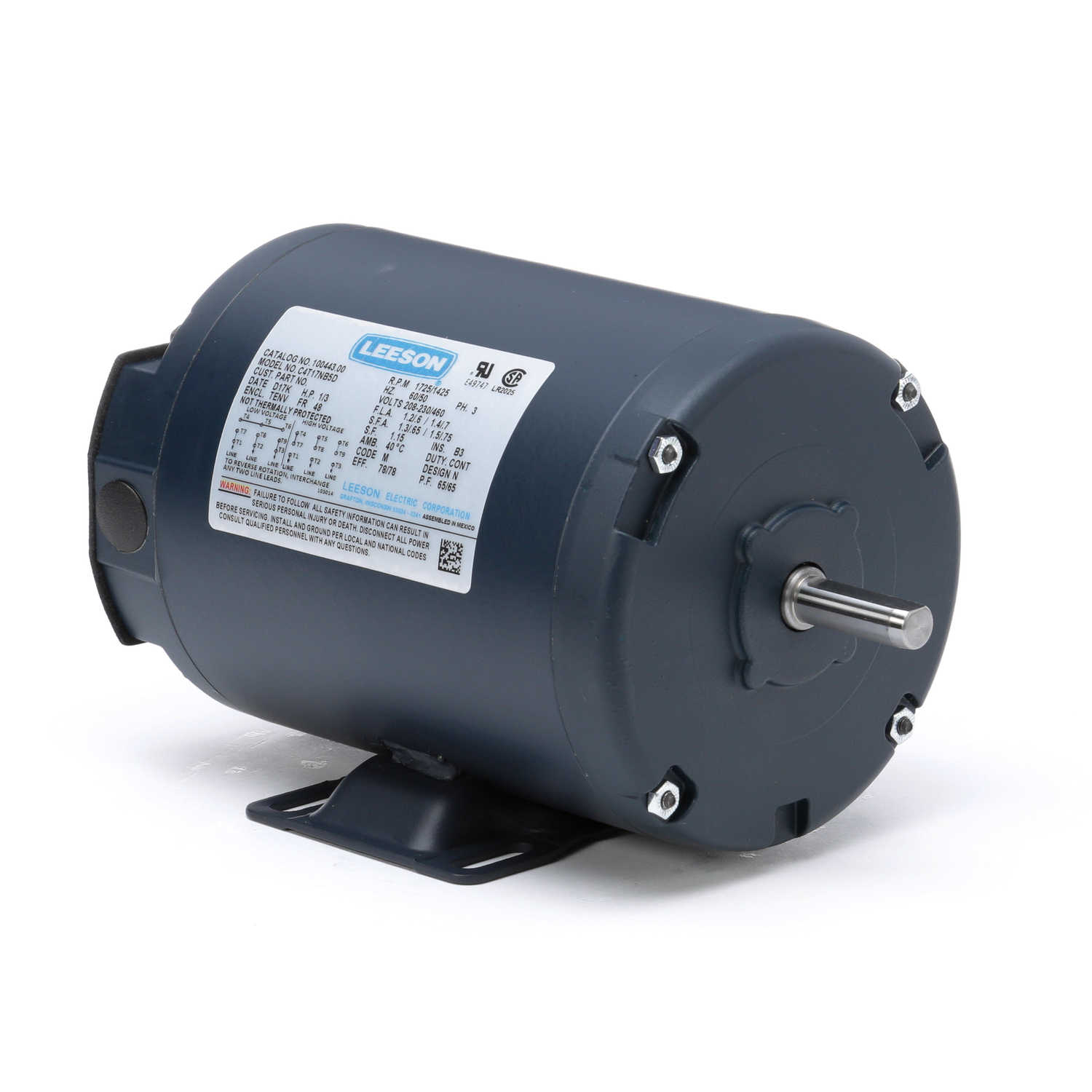

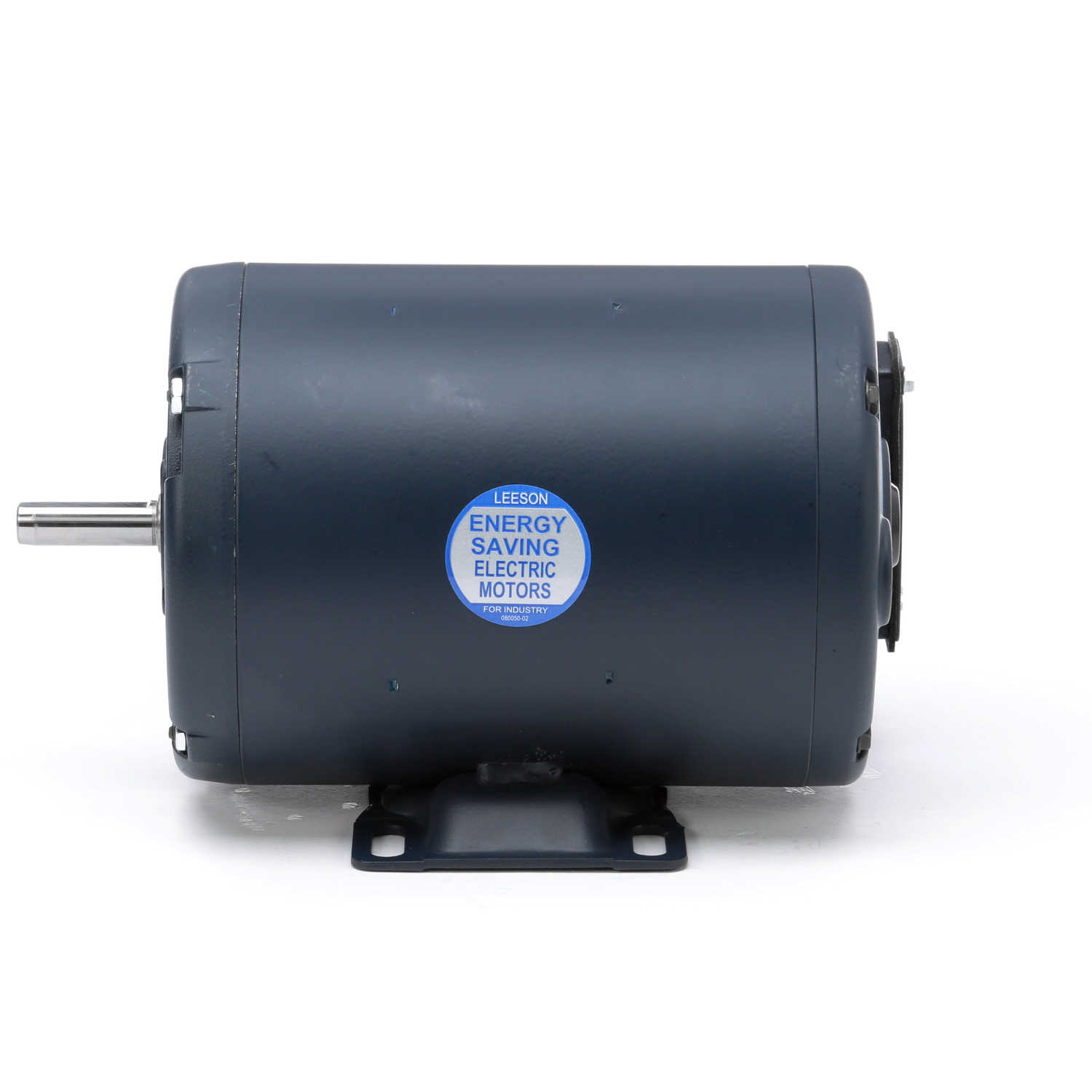

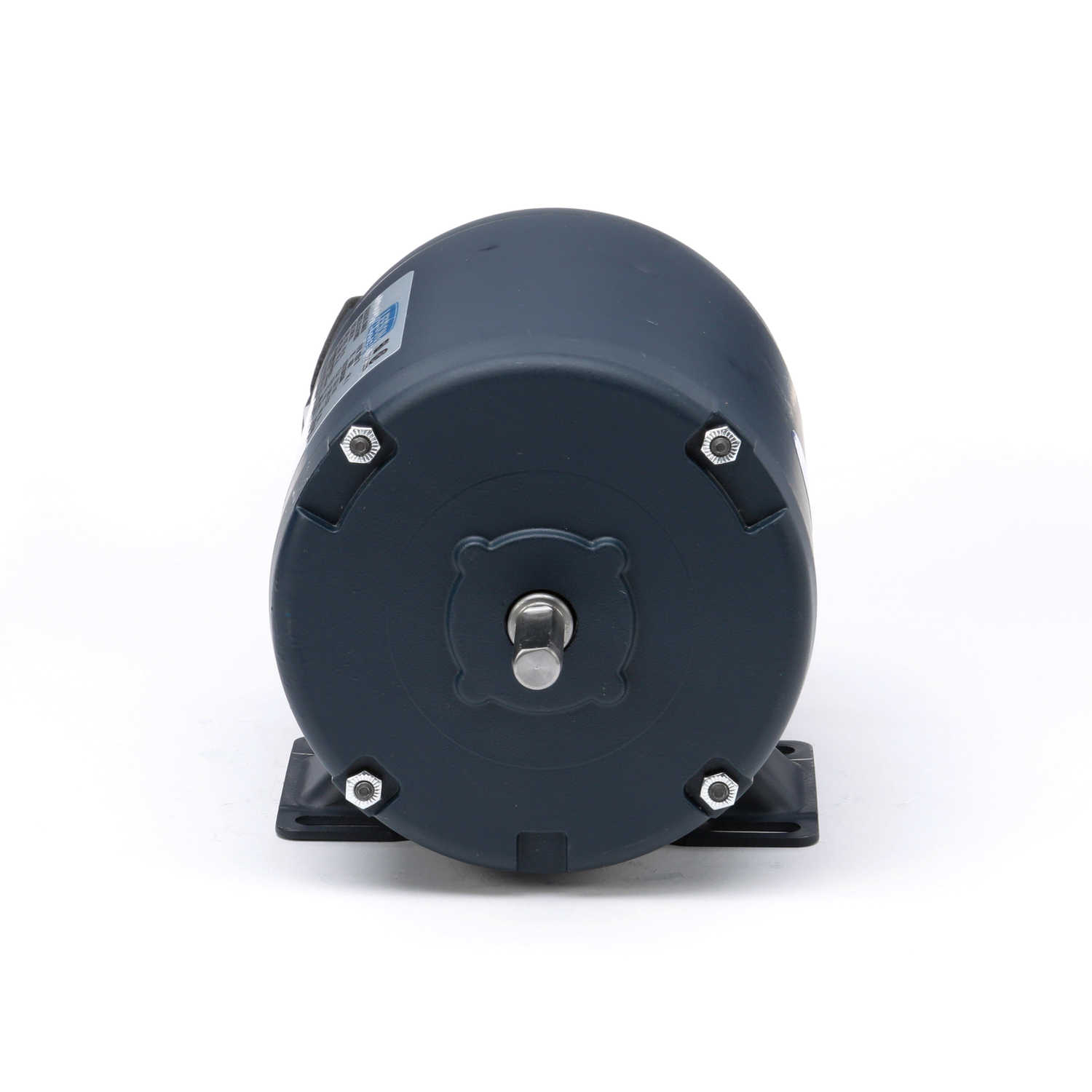

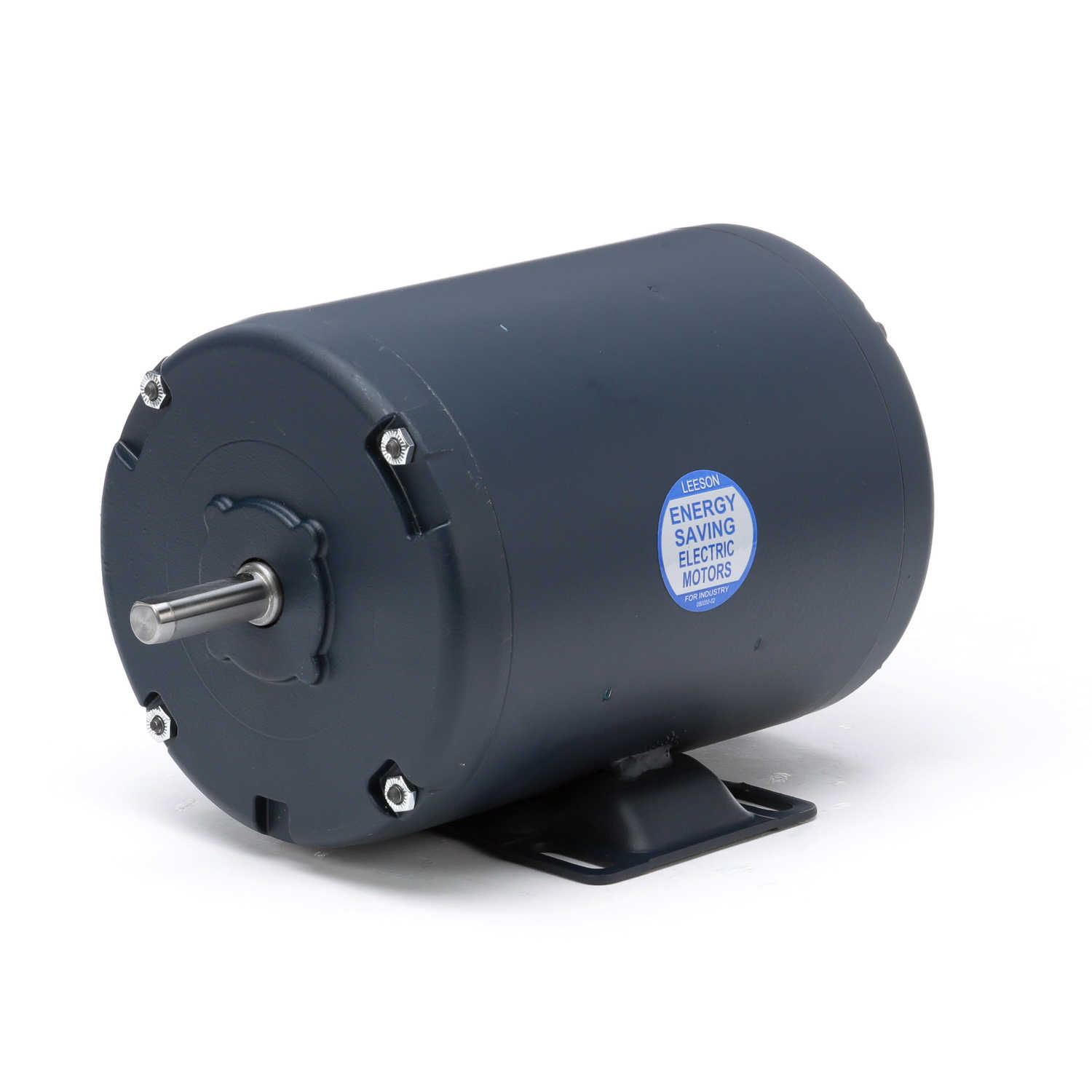

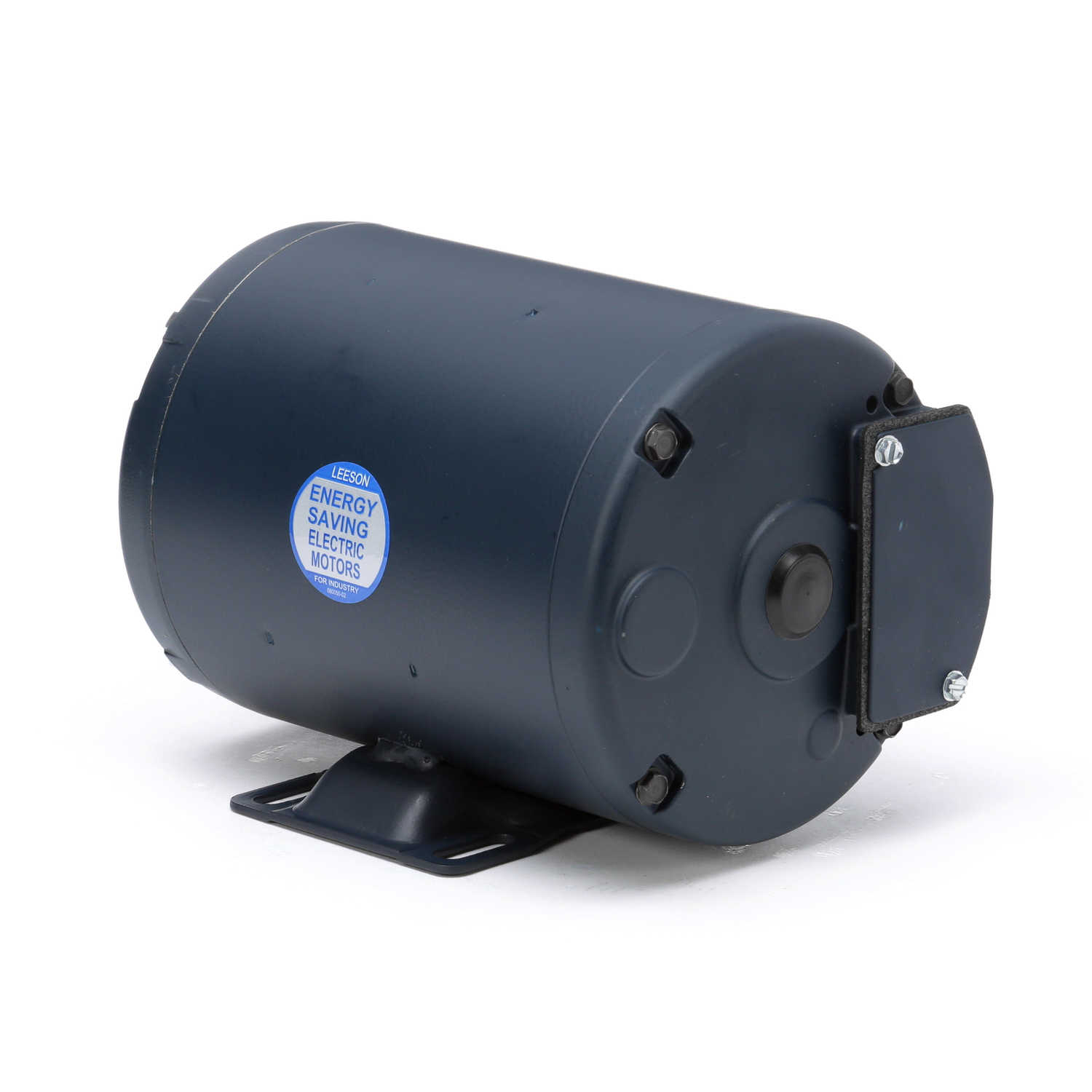

100443.00 Leeson 1/3HP Electric Motor, 1725RPM

Product ID: 100443.00

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 100443.00

Selected accessories will also be added to cart
$416.67 / Each
Quantity:
TENC, 48 Frame, 208-230/460VAC 3-Phase 60Hz, C4T17NB5D, Rigid Base, Rolled Steel, 1/2" Shaft
Features
  • Standard efficient ratings
  • Inverter-rated; Continuous duty
  • Class B insulation systems – 42, 48 and 56 frames
  • UL recognized and CSA certified
  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
  • Dynamically balanced rotors
  • Torques exceed NEMA performance standards
General Specifications
Model :C4T17NB5D Catalog No :100443.00
Part Description :1/3HP..1725/1425RPM.48.TENV.208-230/460V.3PH.60/50HZ.CONT.NOT.40C.1.15/1.15SF.RIGID.GENERAL PURPOSE.C4T17NB5D Category :Totally Enclosed Non-Ventilated (TENV)
Stock :No
Nameplate Specifications
Output HP :0.33 Hp Output KW :0.25 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :1.2/0.60 A Speed :1725 rpm
Service Factor :1.15 Phase :3
Efficiency :78 % Duty :Continuous
Insulation Class :B Design Code :N
KVA Code :M Frame :48
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :9.68 in Frame Length :6.00 in
Shaft Diameter :0.500 in Shaft Extension :1.5 in
Assembly/Box Mounting :F1 ONLY UPC :691720004869
Weight :20.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load1.20100.016.00100.01,7450.000.00.33
Break-Down0.000.080.80505.000.000.00.33
Locked-Rotor8.70725.075.50472.000.000.00.33
Pull-Up0.000.073.90462.000.000.00.33
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.47
  • 0.052
  • 0.0
  • 14.0
  • 1,795
  • 0.0
  • 0.00
  • 25 %
  • 0.48
  • 0.113
  • 55.4
  • 29.9
  • 1,785
  • 0.0
  • 3.95
  • 50 %
  • 0.50
  • 0.178
  • 70.4
  • 44.7
  • 1,773
  • 0.0
  • 7.96
  • 75 %
  • 0.55
  • 0.246
  • 76.3
  • 56.7
  • 1,759
  • 0.0
  • 12.02
  • 100 %
  • 0.60
  • 0.316
  • 78.8
  • 66.1
  • 1,745
  • 40.0
  • 16.08
  • 125 %
  • 0.67
  • 0.390
  • 79.7
  • 73.1
  • 1,729
  • 0.0
  • 20.26
  • 150 %
  • 0.75
  • 0.468
  • 79.9
  • 78.8
  • 1,712
  • 0.0
  • 24.60
