/Products/Electric Motors/Single Phase Electric Motors/Leeson Single Phase Electric Motors/TEAO Rigid Base/100699.00 Leeson 1/4HP 2-Winding Agriculture Fan Duty Electric Motor, 1625RPM
Click Image to Expand

Product ID: 100699.00

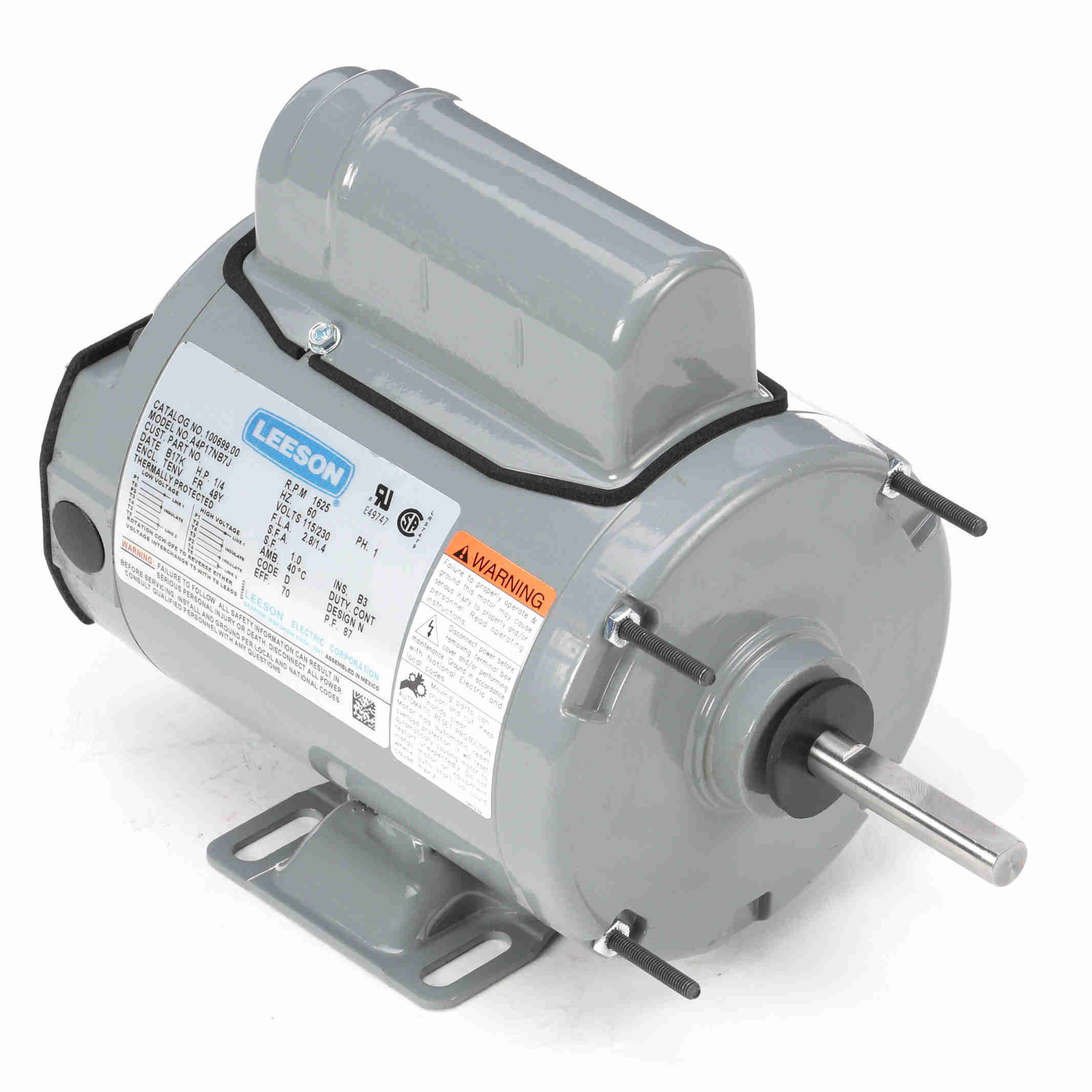

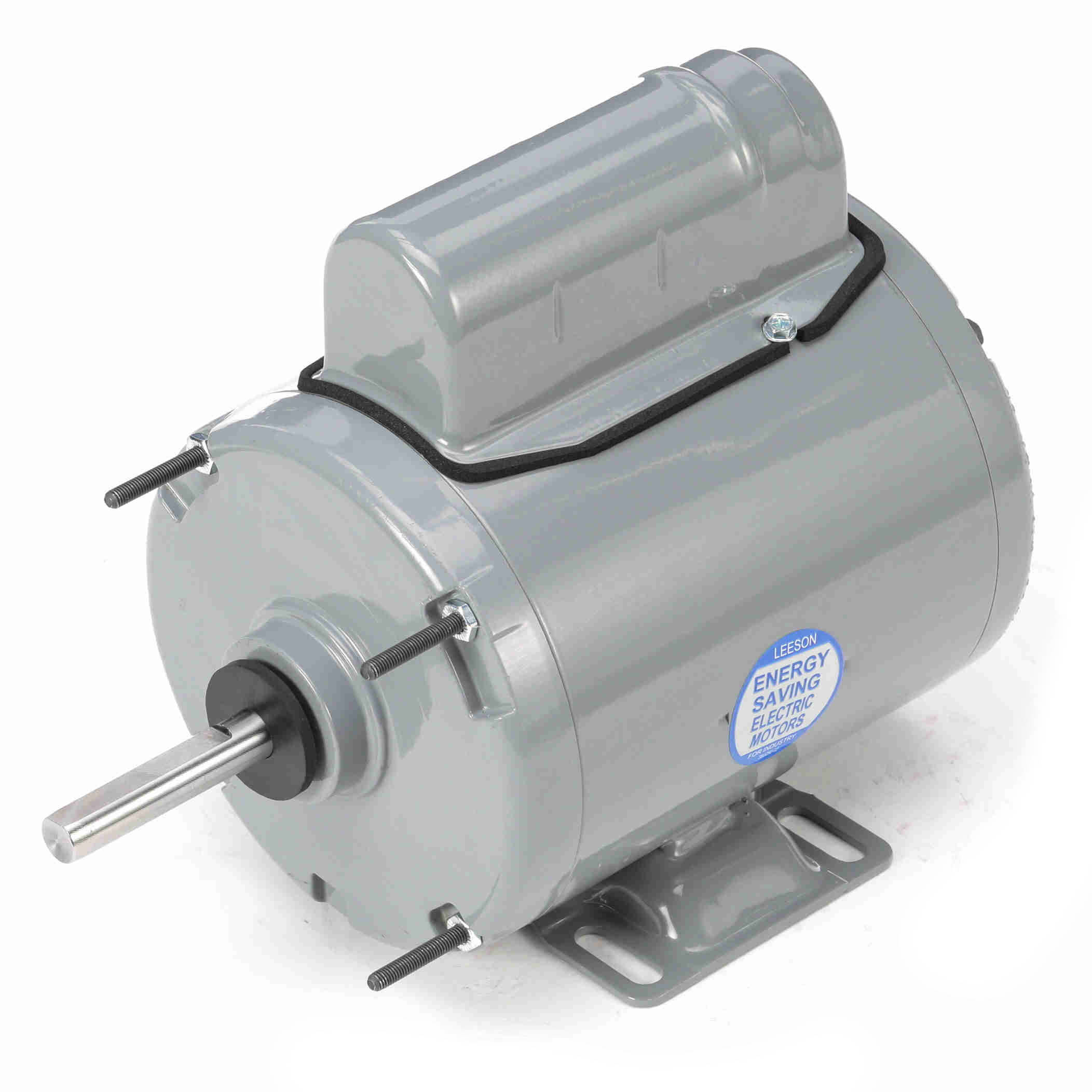

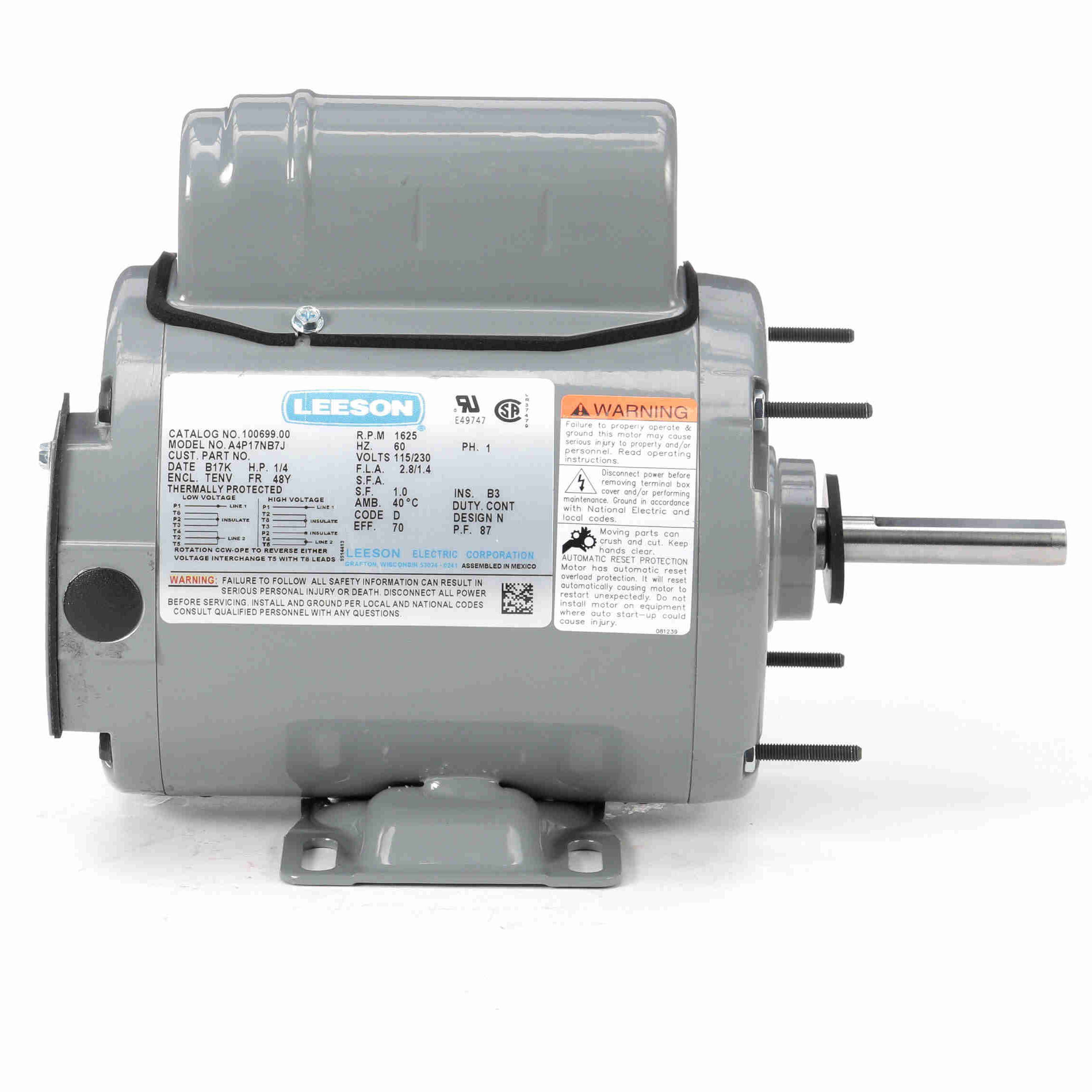

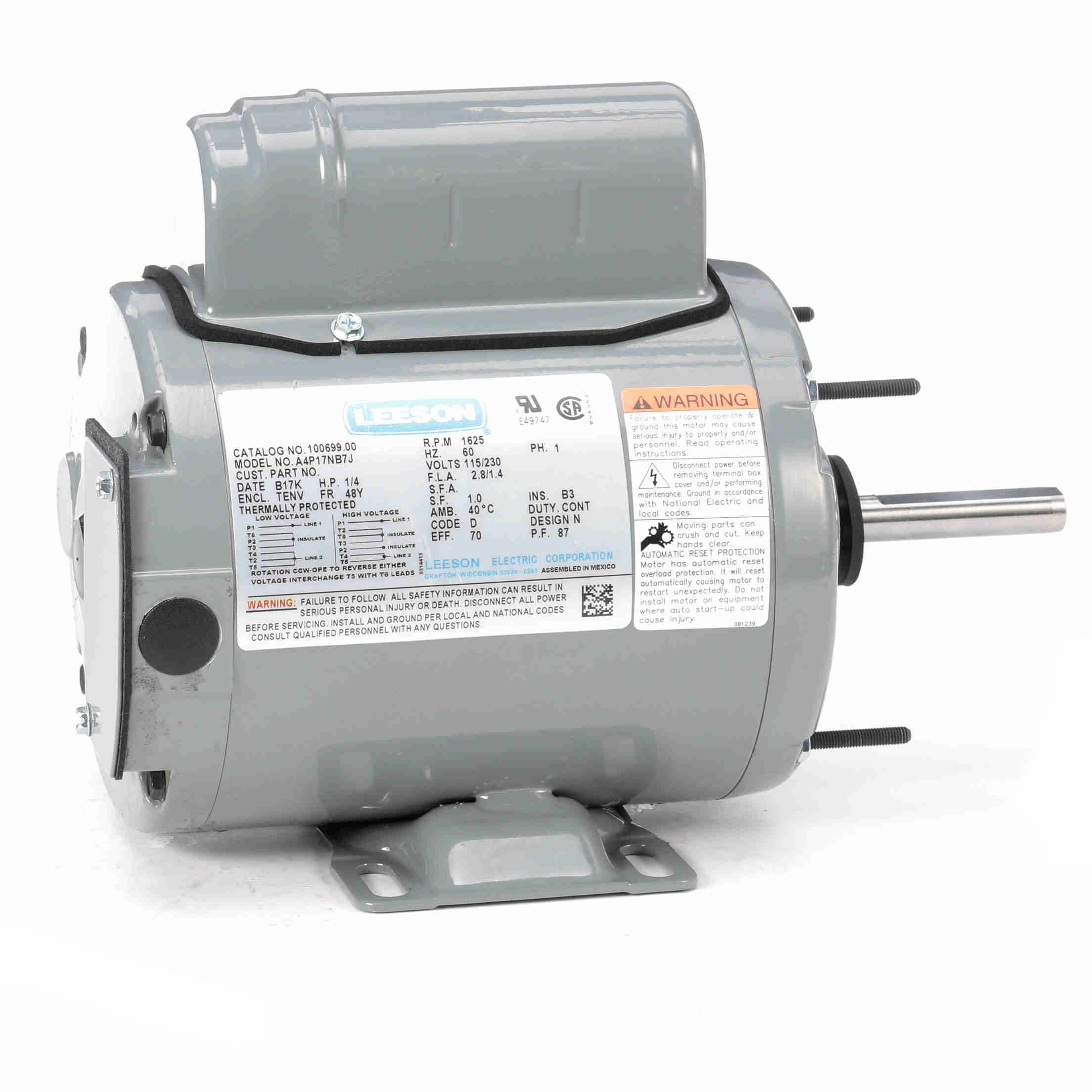

100699.00 Leeson 1/4HP 2-Winding Agriculture Fan Duty Electric Motor, 1625RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A4P17NB7

Selected accessories will also be added to cart
$235.96 / Each
Quantity:
TEAO, 48Y Frame, 115/230VAC Single Phase 60Hz, A4P17NB7J, Rigid Base, PSC

Features

  • Extended through bolts
  • Must be mounted in air stream
  • PSC designs offer low in-rush current
  • Automatic overload protected
  • Resilient mount for quiet operation
  • Corrosion resistant finish

General Specifications

UPC:691720004999Weight:16.00 LB
Packaged Length:13.75 INPackaged Width:7.88 IN
Packaged Height:8.75 IN

Nameplate Specifications

Output HP:0.25 HpOutput KW:0.19 kW
Frequency:60 HzVoltage:115/230 V
Current:2.8/1.4 ASpeed:1625 rpm
Service Factor:1Phase:1
Efficiency:70 %Power Factor:87
Duty:ContinuousInsulation Class:B
Design Code:NKVA Code:D
Frame:48YEnclosure:Totally Enclosed Non Ventilated
Thermal Protection:AutomaticAmbient Temperature:40 ?C
Drive End Bearing Size:6203Opp Drive End Bearing Size:6203
UL:RecognizedCSA:Y
CE:NIP Code:43

Technical Specifications

Electrical Type:Permanent Split CapacitorStarting Method:Across The Line
Poles:4Rotation:Selective Counterclockwise
Resistance Main:9.88 OhmsMounting:Rigid Base
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Rolled Steel
Shaft Type:NEMA 48Overall Length:10.65 in
Frame Length:5.50 inShaft Diameter:0.500 in
Shaft Extension:2.5 inAssembly/Box Mounting:F1 ONLY

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor5.00357.08.0067.000.000.00.25
Full Load1.40100.012.00100.000.000.00.25
Pull-Up0.000.07.5062.000.000.00.25
Break-Down0.000.027.00225.000.000.00.25

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %125 %150 %
Current (Amps)0.700.780.911.101.331.622.00
Rated Output (KW)0.080.120.160.210.270.330.42
Efficiency (%)0.040.758.167.270.170.367.4
Power Factor (%)47.264.776.083.087.389.690.7
Speed (RPM)1,7981,7711,7451,7151,6791,6341,571
Temp. Rise @ FL0.00.00.00.00.00.00.0
Torque (ft-lbs)0.003.006.009.2612.5616.1720.14
Type
Electric Motor
Input Phase
Single Phase
Frame
48Y
Horsepower
1/4HP
Enclosure
TEAO
Speed
1625RPM
