/Products/Electric Motors/Single Phase Electric Motors/Leeson Single Phase Electric Motors/TEAO Rigid Base/100700.00 1/3HP Leeson Ag/Fan Duty Electric Motor

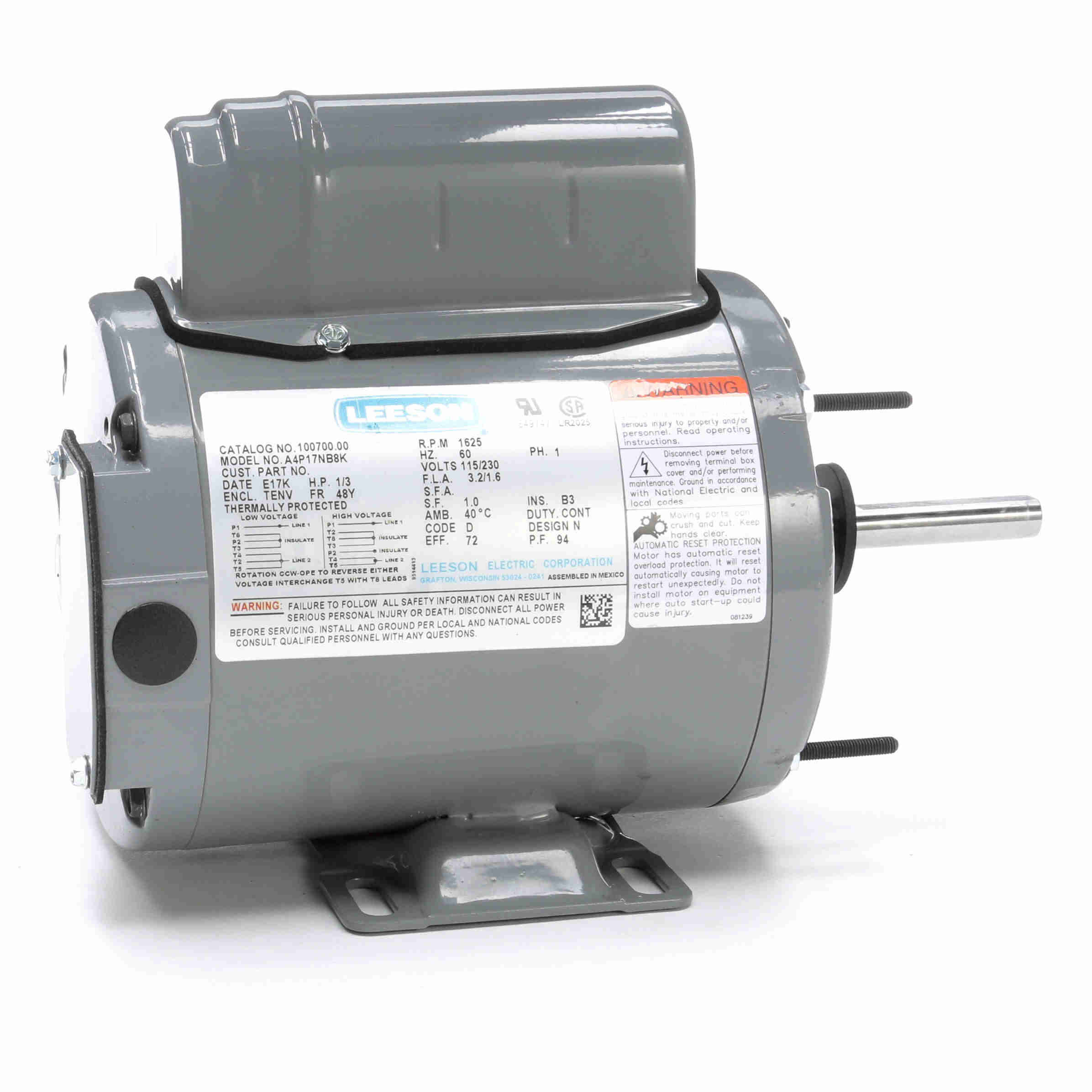

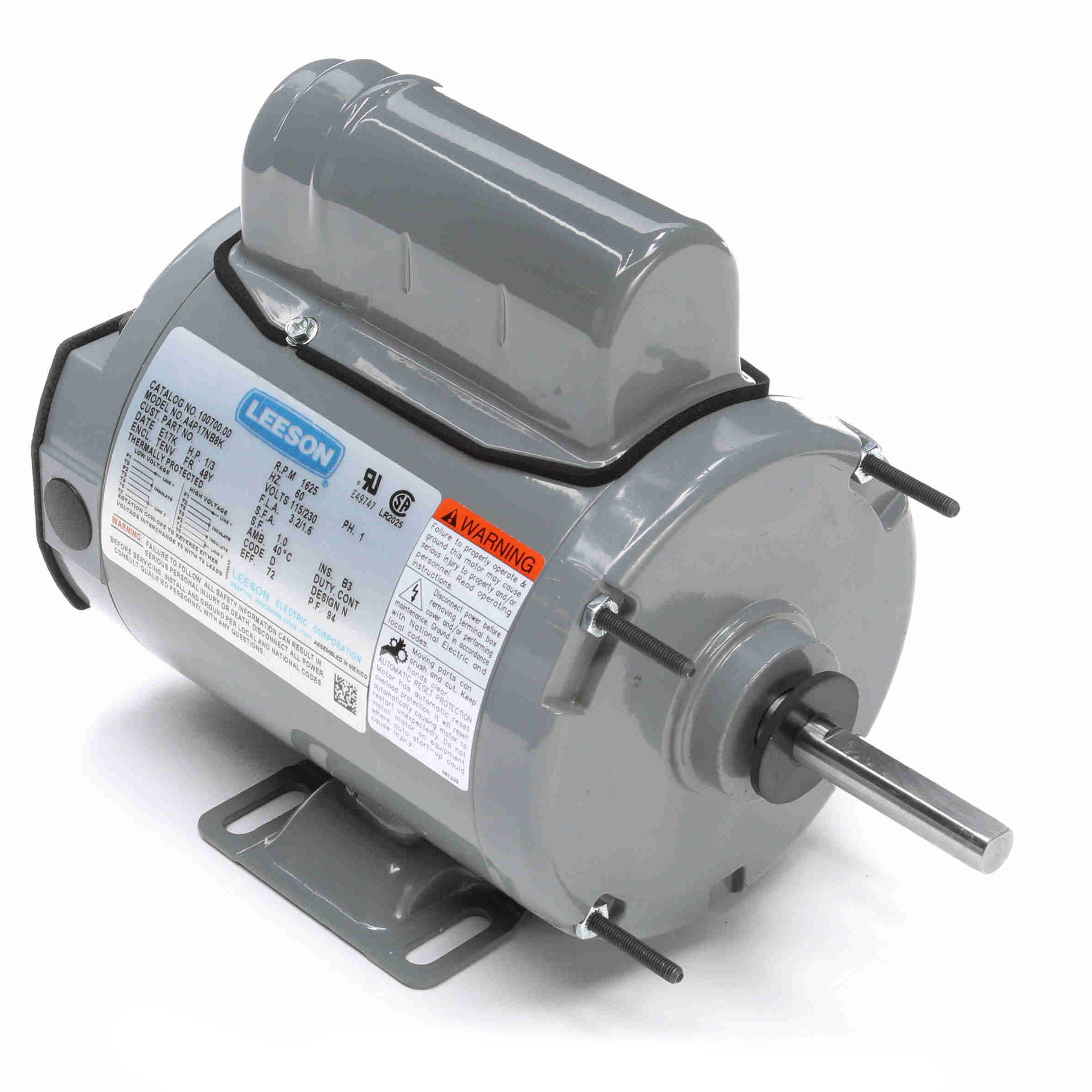

Click Image to Expand

Product ID: 100700.00

100700.00 1/3HP Leeson Ag/Fan Duty Electric Motor

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A4P17NB8

Selected accessories will also be added to cart
$236.00 / Each
Quantity:
TEAO, 1625RPM, 48Y Frame, 1Ph, 115/230V

Features

  • Extended through bolts
  • Must be mounted in air stream
  • PSC designs offer low in-rush current
  • Automatic overload protected
  • Resilient mount for quiet operation
  • Corrosion resistant finish

General Specifications

UPC:691720005002Weight:24.00 LB
Packaged Length:13.75 INPackaged Width:7.88 IN
Packaged Height:8.75 IN

Nameplate Specifications

Output HP:0.33 HpOutput KW:0.25 kW
Frequency:60 HzVoltage:115/230 V
Current:3.2/1.6 ASpeed:1625 rpm
Service Factor:1Phase:1
Efficiency:72 %Power Factor:94
Duty:ContinuousInsulation Class:B
Design Code:NKVA Code:D
Frame:48YEnclosure:Totally Enclosed Non Ventilated
Thermal Protection:AutomaticAmbient Temperature:40 ?C
Drive End Bearing Size:6203Opp Drive End Bearing Size:6203
UL:RecognizedCSA:Y
CE:NIP Code:43

Technical Specifications

Electrical Type:Permanent Split CapacitorStarting Method:Across The Line
Poles:4Rotation:Selective Counterclockwise
Resistance Main:8.32 OhmsMounting:Rigid Base
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Rolled Steel
Shaft Type:NEMA 48Overall Length:10.65 in
Frame Length:5.50 inShaft Diameter:0.500 in
Shaft Extension:2.5 inAssembly/Box Mounting:F1 ONLY

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down0.000.034.00212.000.000.00.33
Locked-Rotor6.00375.010.0062.000.000.00.33
Full Load1.60100.016.00100.000.000.00.33
Pull-Up0.000.09.0056.000.000.00.33

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %125 %150 %
Current (Amps)0.630.771.031.301.581.932.56
Rated Output (KW)0.100.150.210.280.340.420.55
Efficiency (%)0.039.960.667.972.072.367.8
Power Factor (%)65.682.489.992.694.494.493.8
Speed (RPM)1,7981,7741,7471,7201,6881,6531,577
Temp. Rise @ FL0.00.00.00.00.00.00.0
Torque (ft-lbs)0.003.708.3212.3216.4820.6426.72
Type
Electric Motor
Input Phase
Single Phase
Frame
48Y
Enclosure
TEAO
Horsepower
1/3HP
Speed
1625RPM
