/Products/Electric Motors/Single Phase/Leeson/TEAO Rigid Base/100701.00 1/2HP Leeson Ag/Fan Duty Electric Motor
Click Image to Expand

Product ID: 100701.00

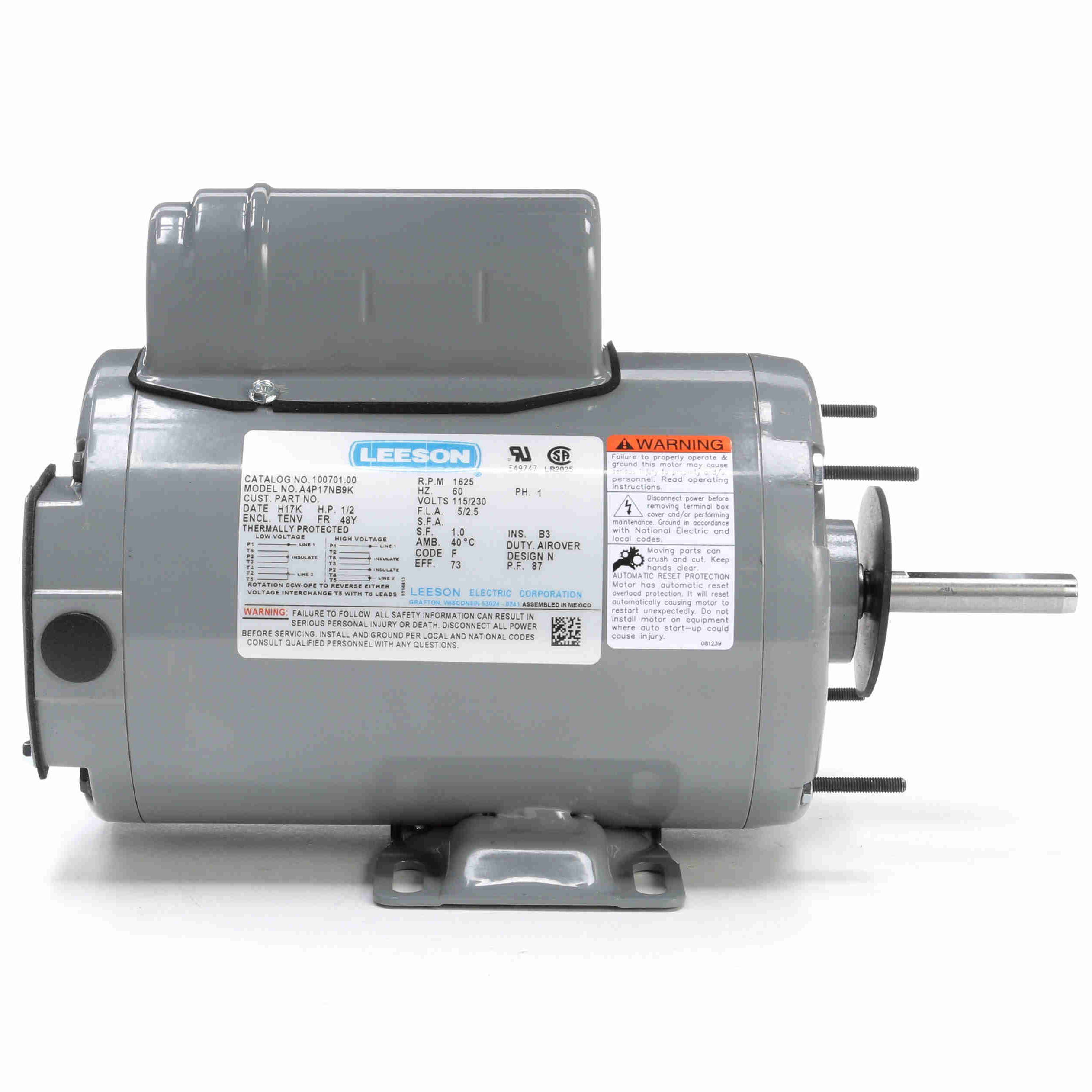

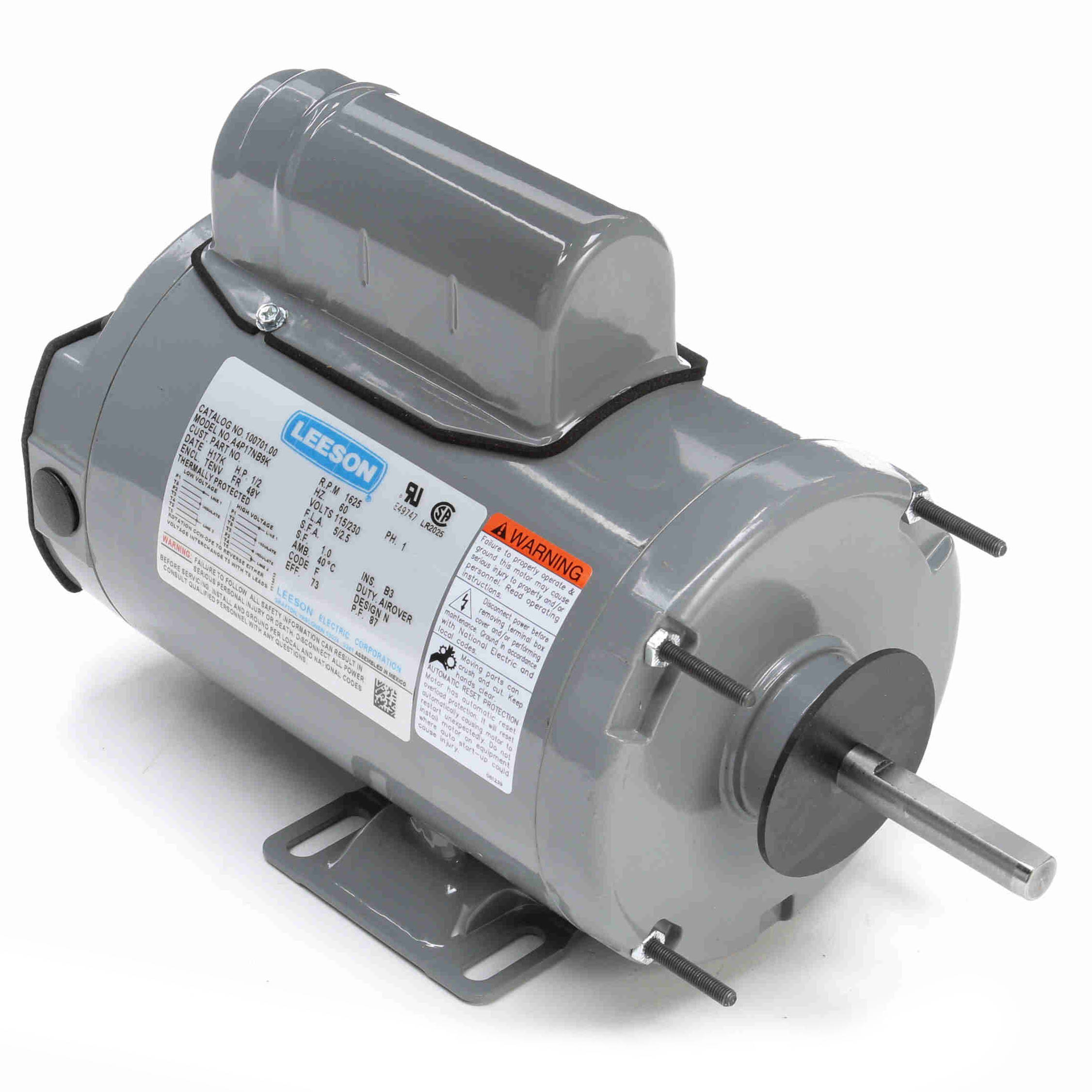

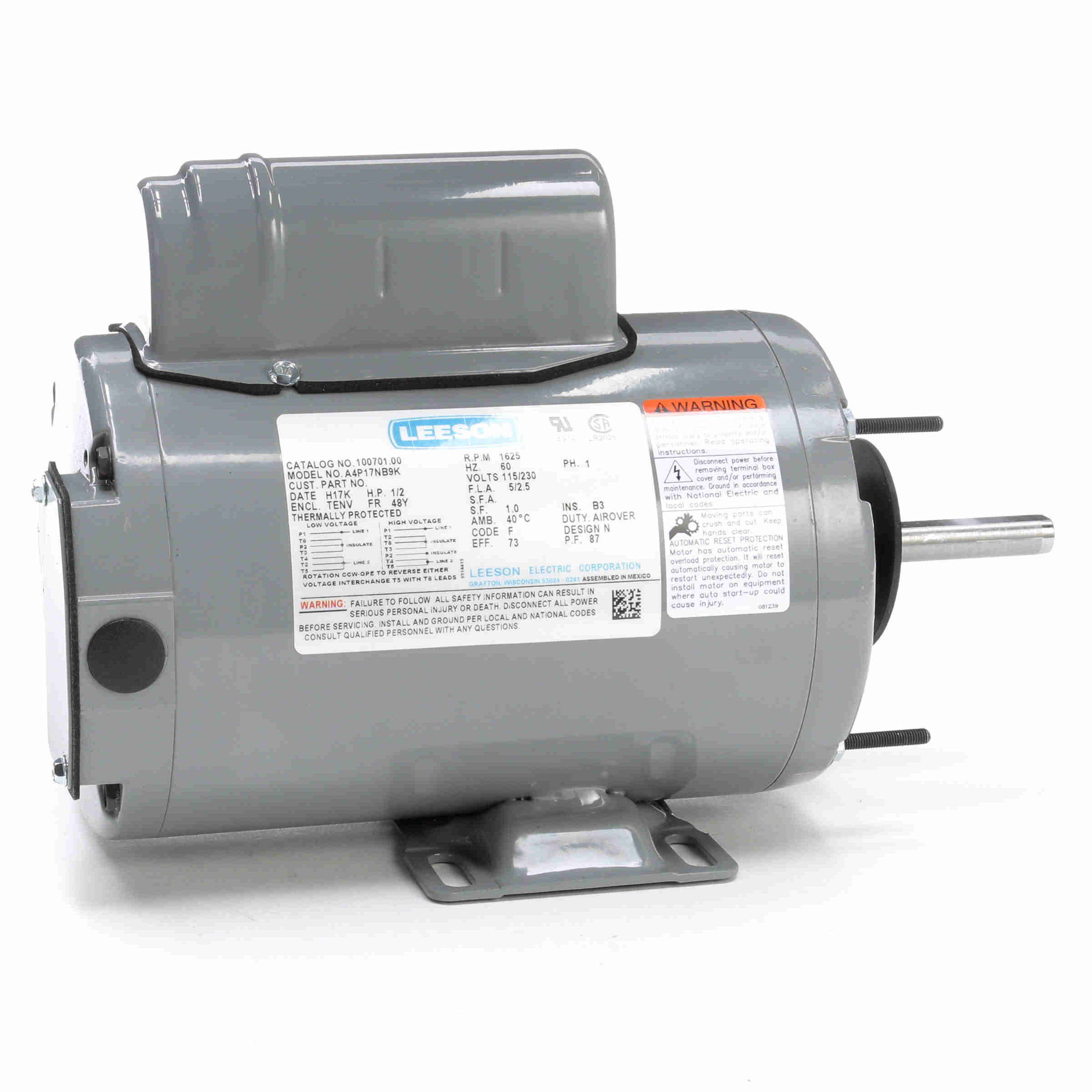

100701.00 1/2HP Leeson Ag/Fan Duty Electric Motor

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A4P17NB9

Temporarily out of stock
Selected accessories will also be added to cart
$282.94 / Each
TEAO, 1750RPM, 48Y Frame, Single Phase, 115/230VAC

Features

  • Extended through bolts
  • Must be mounted in air stream
  • PSC designs offer low in-rush current
  • Automatic overload protected
  • Resilient mount for quiet operation
  • Corrosion resistant finish

General Specifications

UPC: 691720005019 Weight: 24.00 LB
Packaged Length: 14.44 IN Packaged Width: 7.94 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 5.0/2.5 A Speed: 1625 rpm
Service Factor: 1 Phase: 1
Efficiency: 73 % Power Factor: 87
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: F
Frame: 48Y Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 1.2 Ohms Mounting: Rigid base
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 12.15 in
Frame Length: 7.00 in Shaft Diameter: 0.500 in
Shaft Extension: 2.5 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 11.07 0.0 18.85 78.8 0 2.07 0.0 0.50
Break-Down 7.27 0.0 55.90 233.0 1,336 1.49 0.0 0.50
Pull-Up 11.04 0.0 18.71 77.9 200 2.02 0.0 0.50
Full Load 2.55 0.0 24.63 100.0 1,710 0.51 0.0 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 1.35 1.48 1.76 2.13 2.56 3.09 3.77
Rated Output (KW) 0.13 0.21 0.30 0.40 0.51 0.64 0.79
Efficiency (%) 0.0 44.4 62.3 70.0 73.3 73.5 71.2
Power Factor (%) 40.6 62.0 74.3 81.9 86.6 89.3 90.8
Speed (RPM) 1,795 1,777 1,757 1,734 1,708 1,675 1,631
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 5.94 12.02 18.24 24.64 31.39 38.69
