/Products/Electric Motors/3 Phase Metric/Leeson 3-Phase Metric Electric Motors/IEC Washguard All-Stainless/103408.00 Leeson 0.33HP/0.25kW IEC Metric Washguard Electric Motor, 1800RPM

Click Image to Expand

Previous Next

Product ID: 103408.00

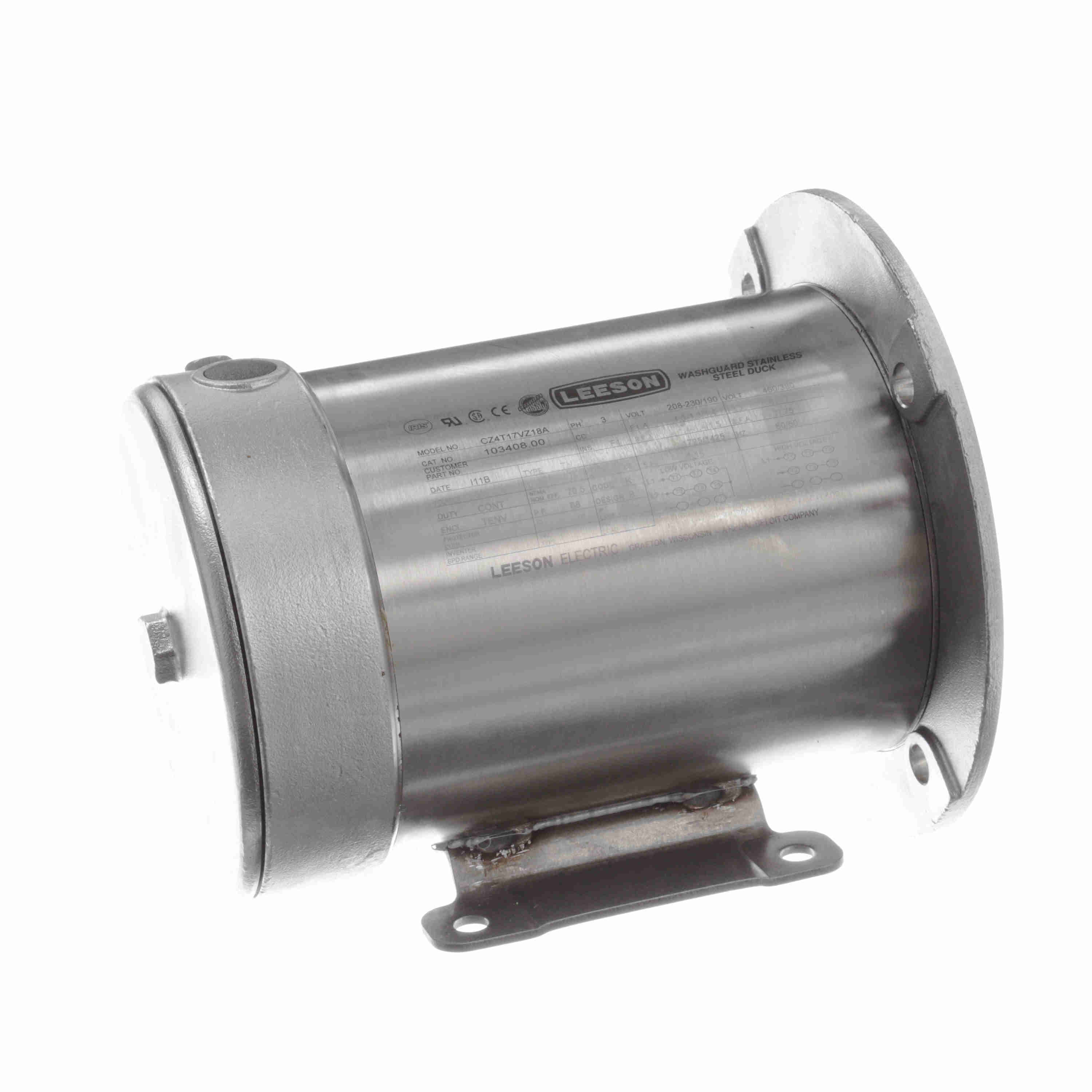

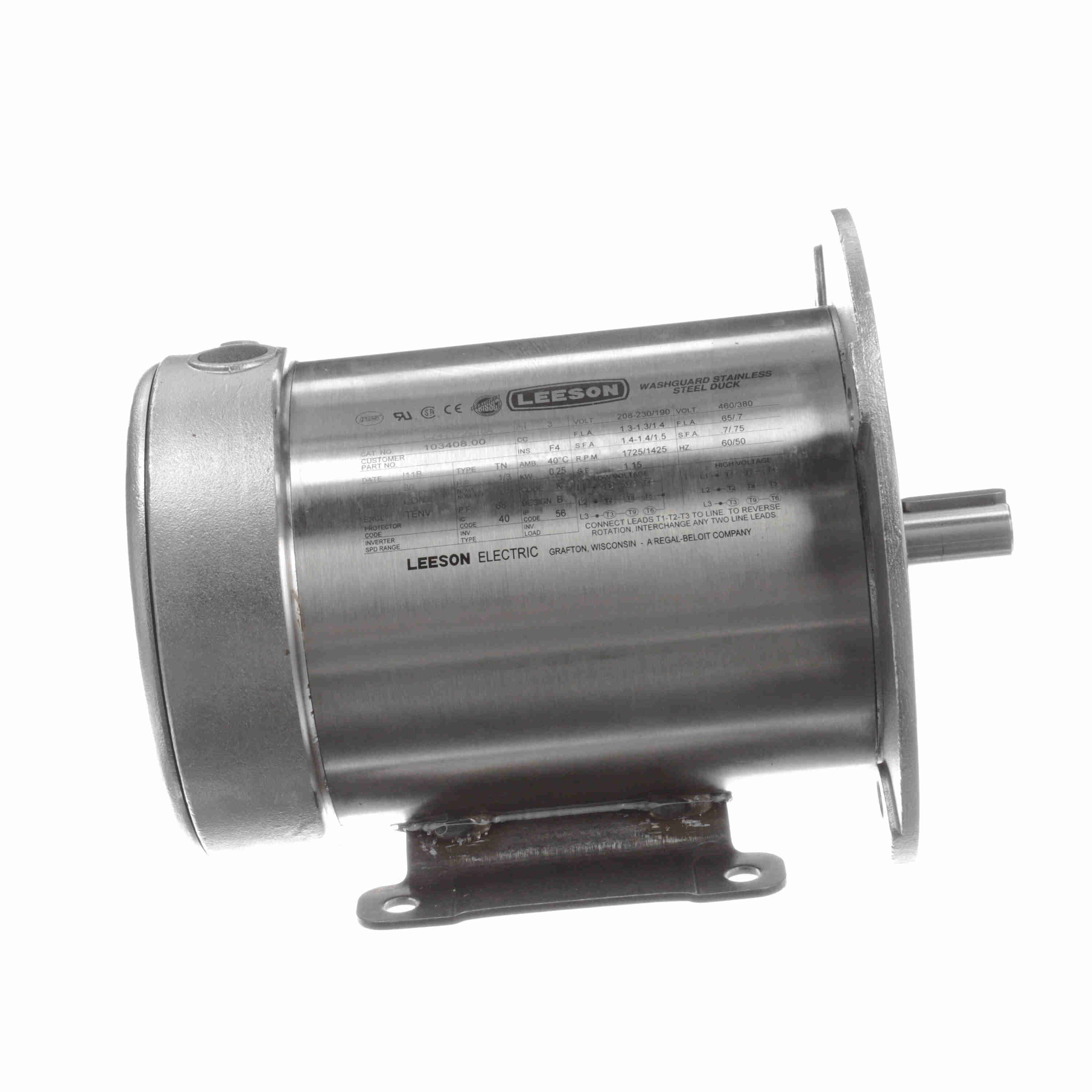

103408.00 Leeson 0.33HP/0.25kW IEC Metric Washguard Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 103408.00

Selected accessories will also be added to cart

$394.97 / Each

Quantity:

TENV, IP56, 80 Frame, 208-230/460VAC 3-Phase 60Hz, Rigid Base, Stainless Steel, 3/4" Shaft

Details
Specs

Features

All exterior components are 300-series stainless steel
All sealing components are Viton? for superior chemical resistance
Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
All Washdown Duty motors have Class F Insulation
Ease to clean construction is BISSC Certified for bakery applications
Full fact nameplate is laser etched on the motor frame

General Specifications

UPC:	691720211731	Weight:	30.00 LB
Packaged Length:	19.5 IN	Packaged Width:	10.44 IN
Packaged Height:	10.88 IN

Nameplate Specifications

Output HP:	0.33 Hp	Output KW:	0.25 kW
Frequency:	60 Hz	Voltage:	208-230/460 V
Current:	1.3-1.3/0.65 A	Speed:	1725 rpm
Service Factor:	1.15	Phase:	3
Efficiency:	70.5 %	Power Factor:	68
Duty:	Continuous	Insulation Class:	F
Design Code:	B	KVA Code:	K
Frame:	80	Enclosure:	Totally Enclosed Non Ventilated
Thermal Protection:	No	Ambient Temperature:	40 ?C
Drive End Bearing Size:	6204	Opp Drive End Bearing Size:	6204
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	56

Technical Specifications

Electrical Type:	Squirrel Cage Induction Run	Starting Method:	Across The Line
Poles:	4	Rotation:	Reversible
Resistance Main:	11 Ohms	Mounting:	Rigid base
Motor Orientation:	HORIZONTAL	Drive End Bearing:	BALL
Opp Drive End Bearing:	BALL	Frame Material:	Stainless Steel
Shaft Type:	IEC	Overall Length:	9.50 in
Frame Length:	5.50 in	Shaft Diameter:	0.750 in
Shaft Extension:	1.57 in	Assembly/Box Mounting:	F1 ONLY

Speed & Load Characteristics

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	(%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Locked-Rotor	8.80	677.0	69.60	435.0	0	0.00	0.0	0.33
Break-Down	0.00	0.0	79.60	498.0	0	0.00	0.0	0.33
Pull-Up	0.00	0.0	68.70	429.0	0	0.00	0.0	0.33
Full Load	1.30	100.0	16.00	100.0	1,742	0.00	0.0	0.33

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	125 %	150 %
Current (Amps)	0.47	0.49	0.52	0.56	0.61	0.68	0.74
Rated Output (KW)	0.07	0.13	0.19	0.26	0.33	0.40	0.46
Efficiency (%)	0.0	50.7	65.9	71.7	74.8	76.5	78.7
Power Factor (%)	19.0	32.3	46.6	59.0	68.1	74.6	78.7
Speed (RPM)	1,795	1,784	1,771	1,757	1,742	1,728	1,714
Temp. Rise @ FL	0.0	0.0	0.0	0.0	50.0	0.0	0.0
Torque (ft-lbs)	0.00	4.00	8.00	12.00	16.00	20.00	24.00

Type

Electric Motor

Speed

1800RPM

Enclosure

TENV

Input Phase

3-Phase

Horsepower

1/3HP

Input Voltage

208VAC

Input Voltage

230VAC

Input Voltage

460VAC
