/Products/Electric Motors/DC/Leeson/Low Voltage/108053.00 Leeson 1HP DC Electric Motor, 1800 RPM

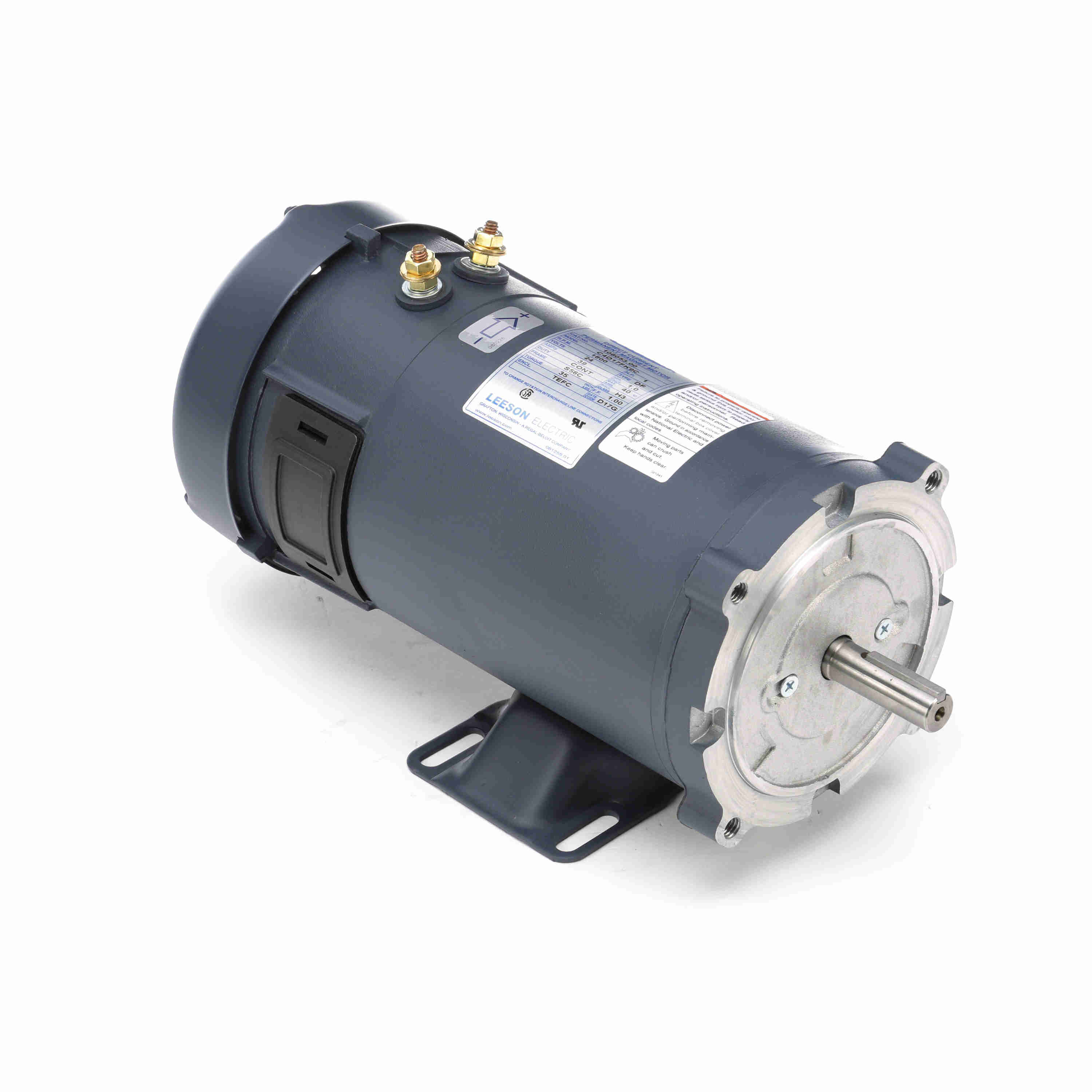

Click Image to Expand

Product ID: 108053.00

108053.00 Leeson 1HP DC Electric Motor, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 108053.00

Selected accessories will also be added to cart
$899.97 / Each
Quantity:
TEFC, S56C Frame, 24VDC, C-Face With Removable Base

Features

Features
  • Oversized brushes for long life; External access to brushes allows for easy replacement further prolonging motor life
  • Heavy-duty, stamped steel, bolt on base (Removable)
  • NEMA C face mounting flange at no additional cost; High strength rolled steel frame
  • Rugged die cast end shields with steel bearing inserts
  • Permanently lubricated sealed ball bearings
  • High starting torques for heavy load applications
  • Linear speed torque characteristics throughout the speed range
  • Capable of dynamic braking for faster stops
  • Reversible rotation; Simple two lead connection

General Specifications

General Specifications
Model :C4D17FK9E Catalog No :108053.00
Part Description :..1HP..1800RPM.S56C.TEFC.24V...CONT.40C.1.0SF.RIGID C.C4D17FK9.....DC NEMA LOW VOLTAGE........ Category :Low Voltage
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :1 Hp Output KW :0.75 kW
Voltage :24 V Current :39.0 A
Speed :1800 rpm Service Factor :1
Efficiency :81.3 % Duty :Continuous
Insulation Class :H Frame :S56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N

Technical Specifications

Technical Specifications
Rotation :Reversible Mounting :Rigid C base
Overall Length :13.82 in Frame Length :6.47 in
Shaft Diameter :0.625 in Shaft Extension :2.06 in
UPC :691720006764 Weight :34.00 LB
