/Products/Electric Motors/3 Phase/Leeson/TEFC, Rigid Base/110275.00 Leeson 3/4HP General Purpose Electric Motor, 1140RPM
Click Image to Expand

Product ID: 110275.00

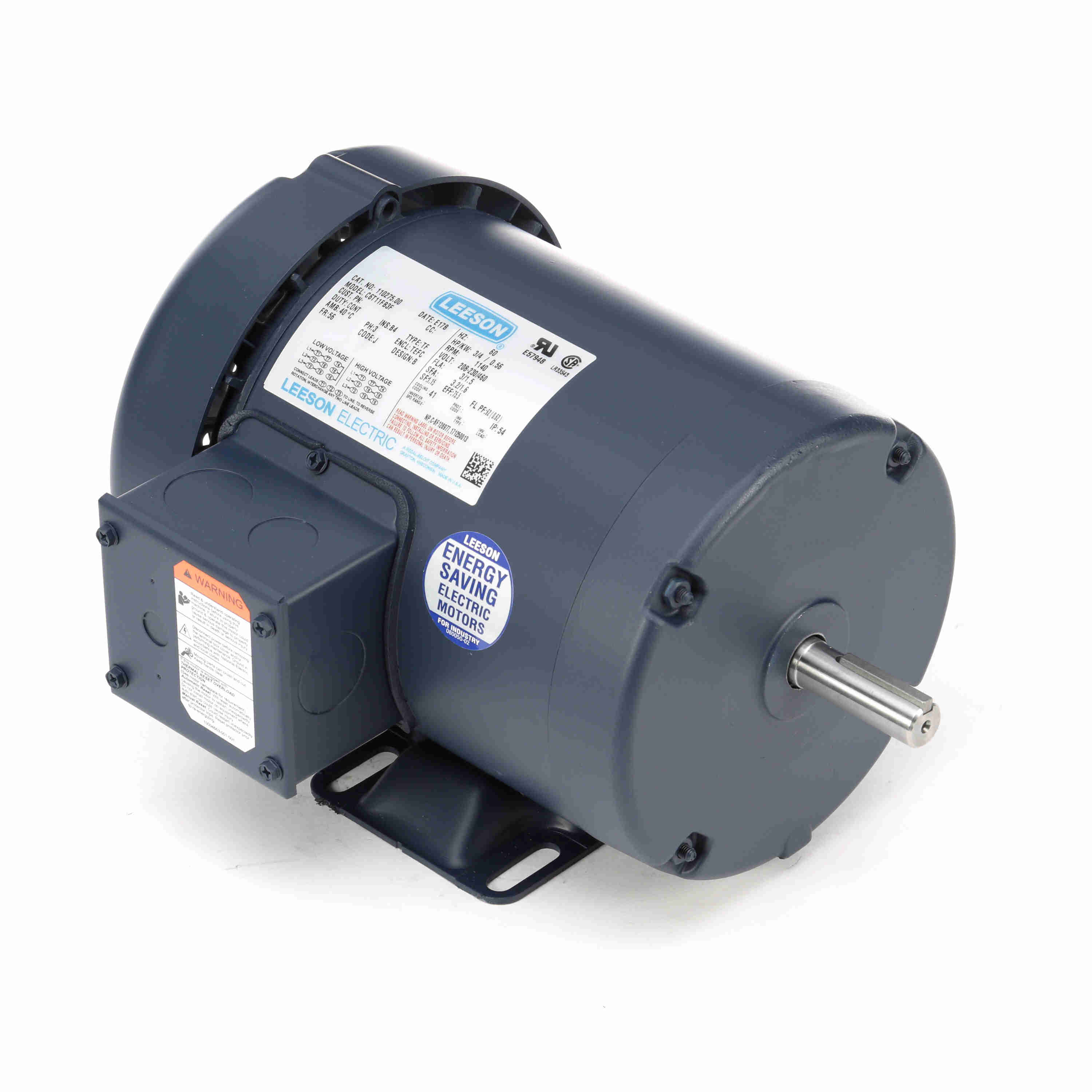

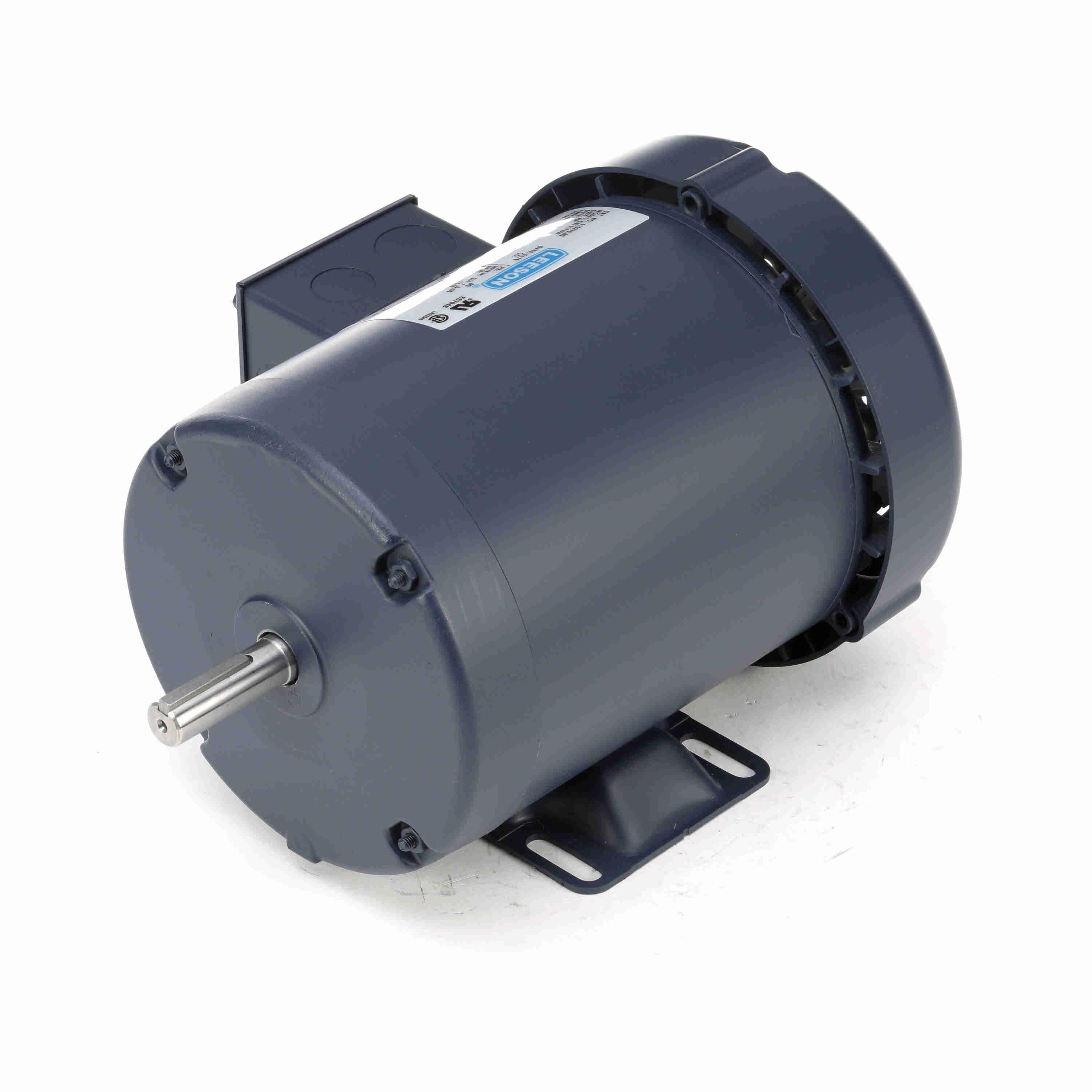

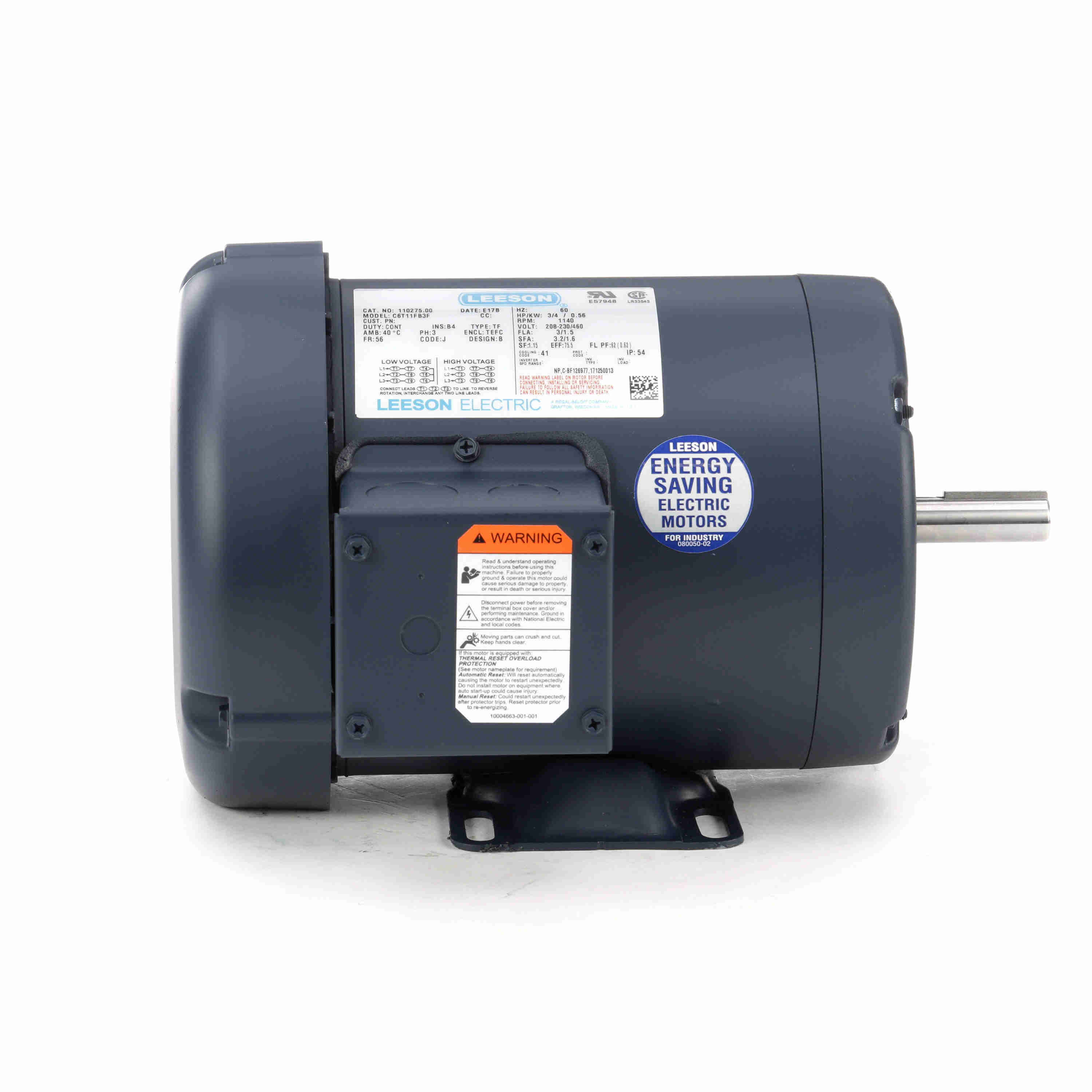

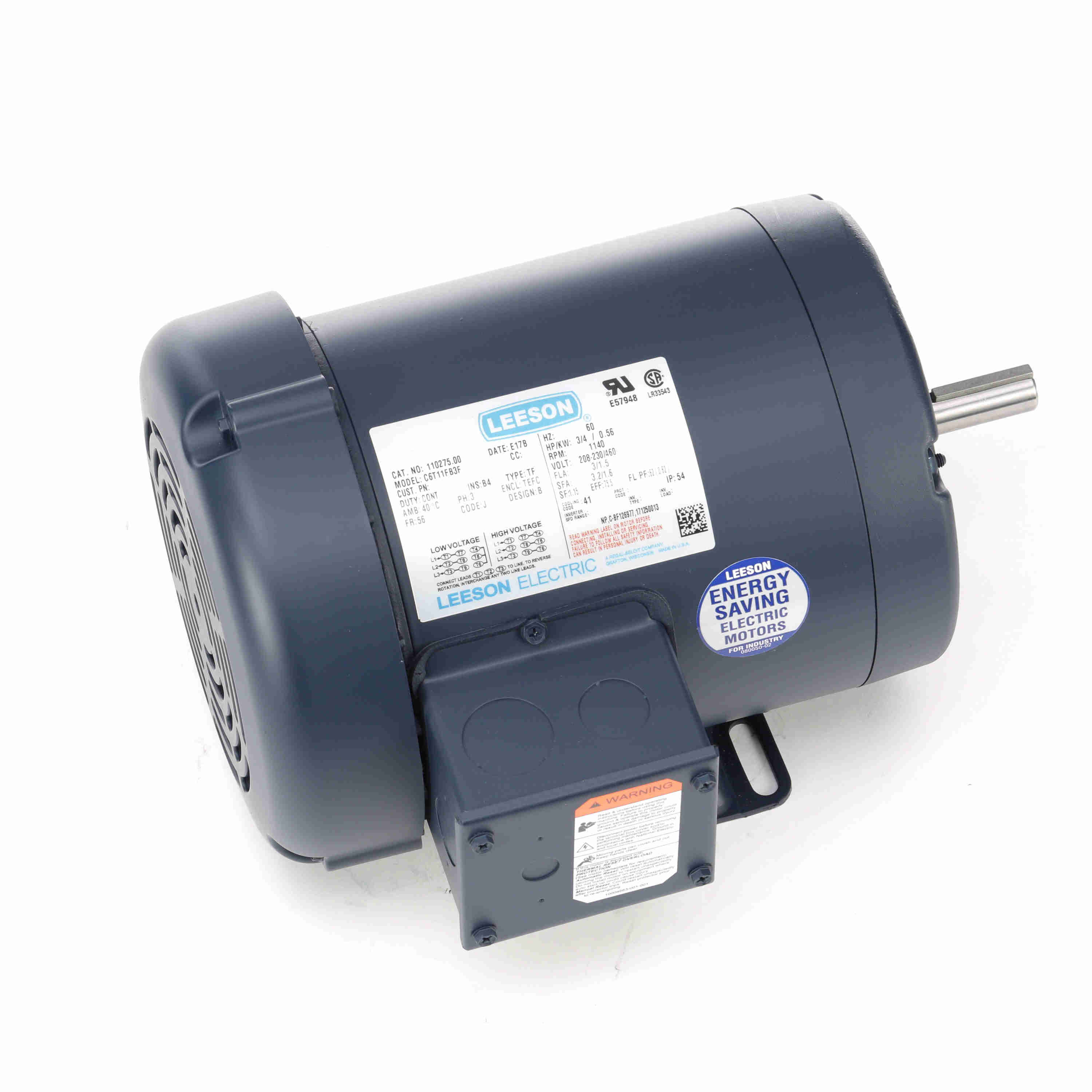

110275.00 Leeson 3/4HP General Purpose Electric Motor, 1140RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 110275.00

Selected accessories will also be added to cart
$567.97 / Each
Quantity:
TEFC, 56 Frame, 208-230/460VAC 3-Phase 60Hz, C6T11FB3F, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Features

Features
  • Standard, EPAct efficient ratings
  • Inverter-rated; Continuous duty
  • Class F insulation system – 140 frame and higher
  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
  • Dynamically balanced rotors
  • Dynamically balanced rotors
  • Torques exceed NEMA performance standards; UL recognized and CSA certified

General Specifications

General Specifications
Model : C6T11FB3F Catalog No : 110275.00
Part Description : 3/4HP..1140RPM.56.TEFC.208-230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.GENERAL PURPOSE.C6T11FB3F Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.75 HP Output KW : 0.56 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 3.0/1.5 A Speed : 1140 RPM
Service Factor : 1.15 Phase : 3
Efficiency : 75.5 % Duty : Continuous
Insulation Class : B Design Code : B
KVA Code : J Frame : 56
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 54

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 6 Rotation : Reversible
Mounting : Rigid Base Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 11.48 in Frame Length : 6.00 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720008263
Weight : 36.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 3.00 3.40 100.0 0 0.75
Locked-Rotor 14.30 7.80 229.0 0 0.75
Pull-Up 0.00 7.75 228.0 0 0.75
Break-Down 0.00 10.50 309.0 0 0.75
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.15
  • 0.089
  • 0.0
  • 9.6
  • 1,199
  • 0.0
  • 0.00
  • 25 %
  • 1.19
  • 0.237
  • 60.7
  • 25.0
  • 1,190
  • 0.0
  • 0.85
  • 50 %
  • 1.26
  • 0.393
  • 70.4
  • 39.2
  • 1,180
  • 0.0
  • 1.70
  • 75 %
  • 1.37
  • 0.550
  • 74.0
  • 50.0
  • 1,168
  • 0.0
  • 2.50
  • 100 %
  • 1.52
  • 0.718
  • 75.5
  • 62.0
  • 1,155
  • 66.1
  • 3.35
  • 125 %
  • 1.68
  • 0.870
  • 78.4
  • 65.2
  • 1,143
  • 0.0
  • 4.20
  • 150 %
  • 1.87
  • 1.045
  • 76.9
  • 70.3
  • 1,129
  • 0.0
  • 5.00
