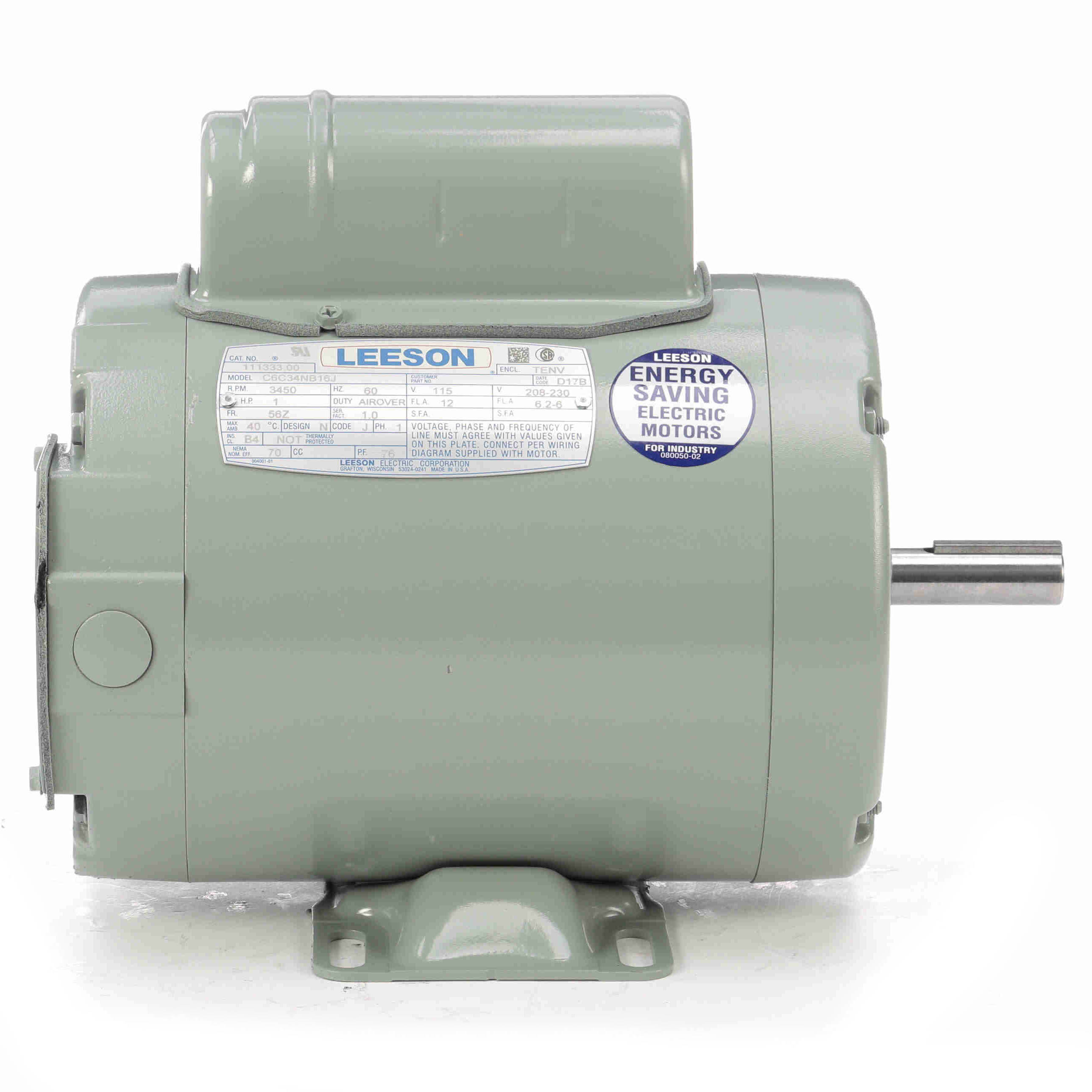

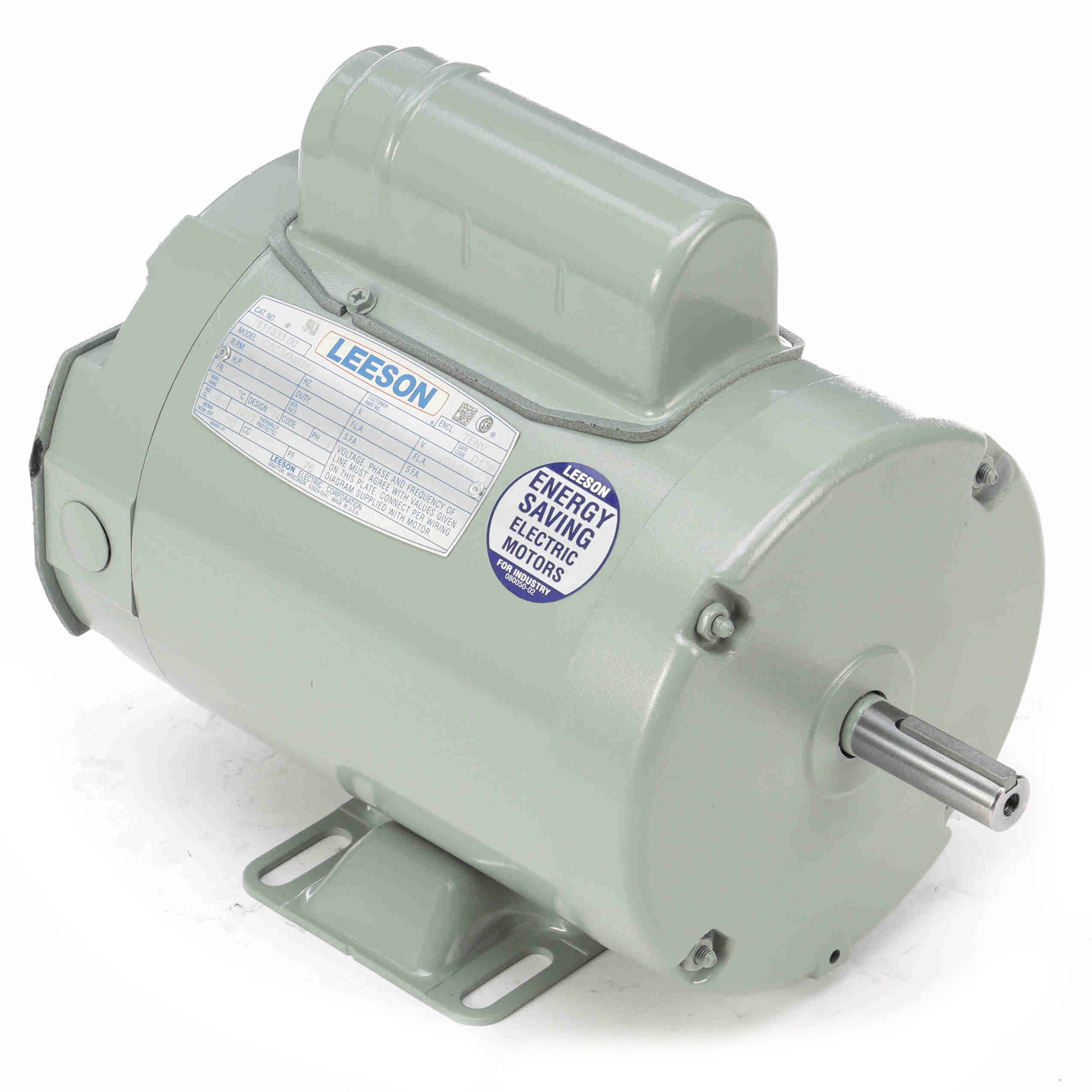

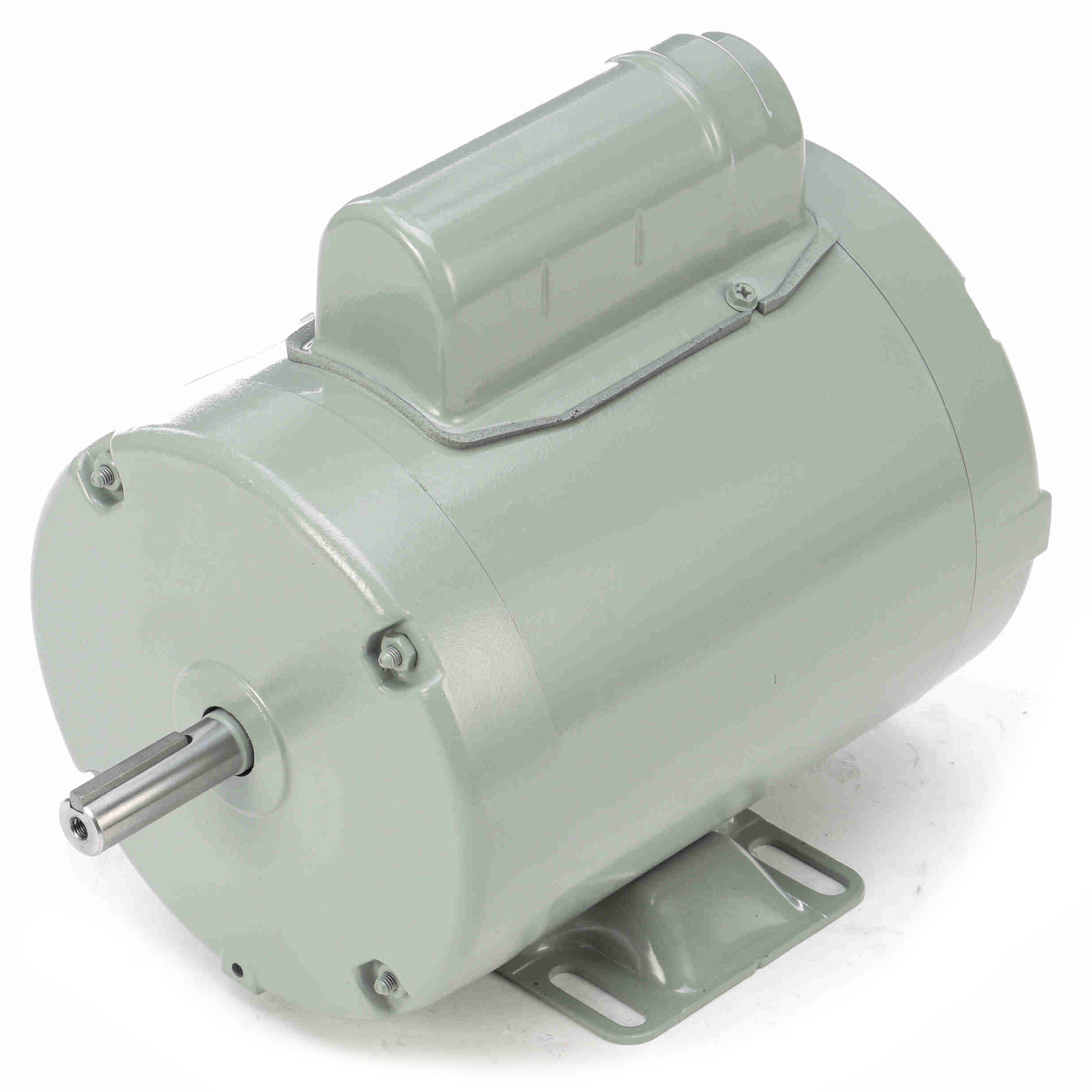

Aeration Fan Motors
Features:
• Belt driven fans or fan on shaft applications
• Capacitor start design
• Must be mounted in airstream for proper cooling
• Epoxy paint to resist corrosion
• Built-in terminal boards
Features
- UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
- Double-shielded bearings extend the service life of the motor.
- Single and three phase, TEFC, TEAO, and ODP construction.
- Overload protection prevents motor from overheating.
General Specifications
| UPC: | 691720009949 | Weight: | 32.00 LB |
| Packaged Length: | 14.44 IN | Packaged Width: | 7.94 IN |
| Packaged Height: | 10.88 IN |
Nameplate Specifications
| Output HP: | 1 Hp | Output KW: | 0.75 kW |
| Frequency: | 60 Hz | Voltage: | 115/208-230 V |
| Current: | 12.0/6.2-6.0 A | Speed: | 3450 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Efficiency: | 70 % | Power Factor: | 76 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | N | KVA Code: | J |
| Frame: | 56Z | Enclosure: | Totally Enclosed Air Over |
| Thermal Protection: | No | Ambient Temperature: | 40 ?C |
| Drive End Bearing Size: | 6203 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 43 |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Capacitor Start Induction Run | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Selective Counterclockwise |
| Resistance Main: | 1.92 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | NEMA 56 | Overall Length: | 10.90 in |
| Frame Length: | 6.00 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 1.87 in | Assembly/Box Mounting: | F1 ONLY |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (OZ-FT) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 34.00 | | 80.00 | 333.0 | 0 | | | 1.00 |
| Full Load | 6.00 | | 24.00 | 100.0 | 3,491 | | | 1.00 |
| Pull-Up | 0.00 | | 60.00 | 250.0 | 2,800 | | | 1.00 |
| Break-Down | 0.00 | | 64.00 | 267.0 | 3,000 | | | 1.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % | 150 % |
| Current (Amps) | 3.70 | 3.95 | 4.44 | 5.13 | 5.99 | 7.04 | 8.28 |
| Rated Output (KW) | 0.18 | 0.39 | 0.60 | 0.82 | 1.06 | 1.31 | 1.60 |
| Efficiency (%) | 0.0 | 49.1 | 63.5 | 68.7 | 70.5 | 70.1 | 68.4 |
| Power Factor (%) | 21.2 | 42.6 | 58.3 | 69.4 | 76.6 | 81.2 | 83.9 |
| Speed (RPM) | 3,599 | 3,568 | 3,544 | 3,519 | 3,491 | 3,458 | 3,420 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 60.0 | 0.0 | 0.0 |
| Torque (OZ-FT) | 0.00 | 6.00 | 12.00 | 18.00 | 24.00 | 30.00 | 36.00 |
