/Products/Electric Motors/Single Phase/Leeson/Jet Pump Motors/113955.00 Leeson 1/2HP Jet Pump Electric Motor, 3450RPM
Click Image to Expand

Product ID: 113955.00

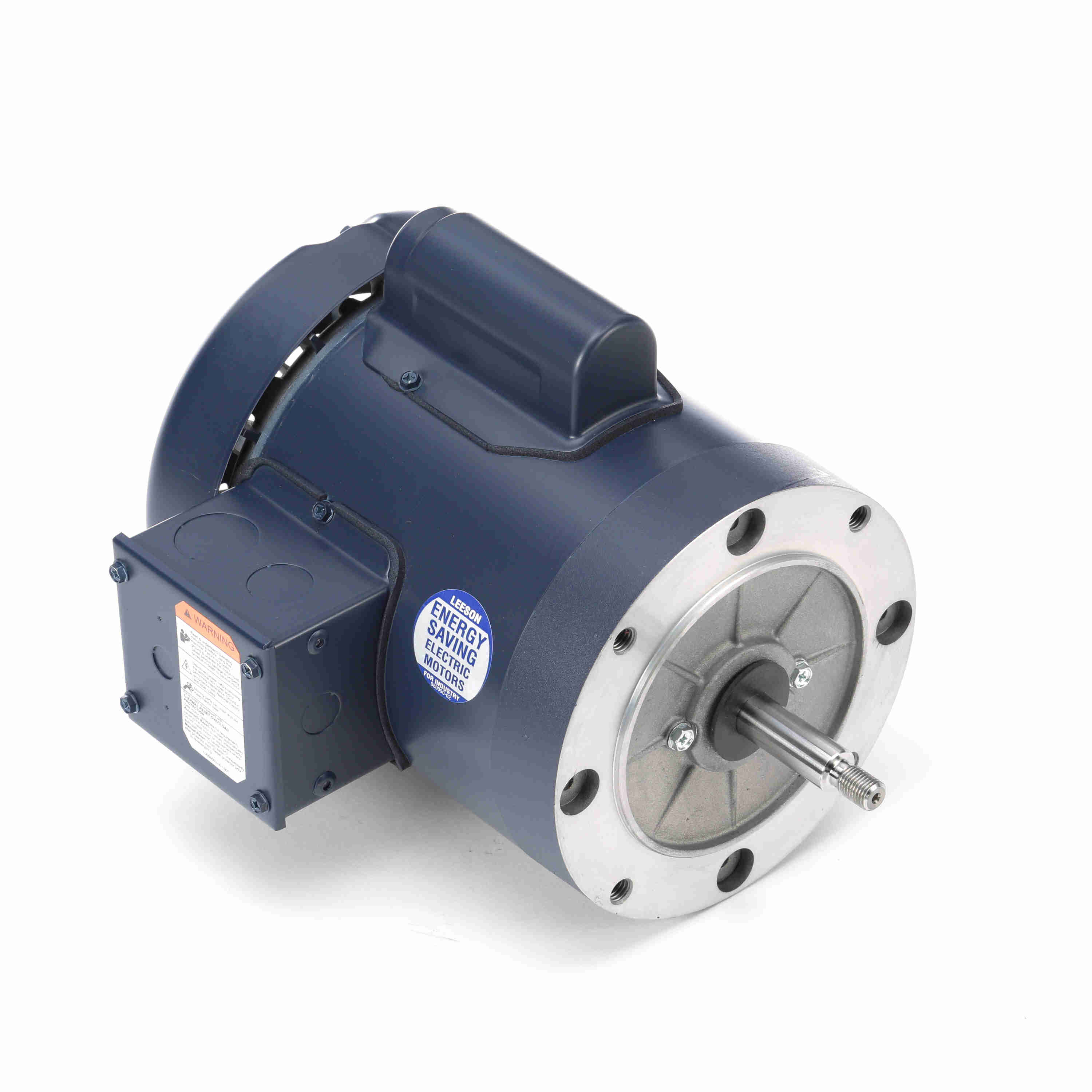

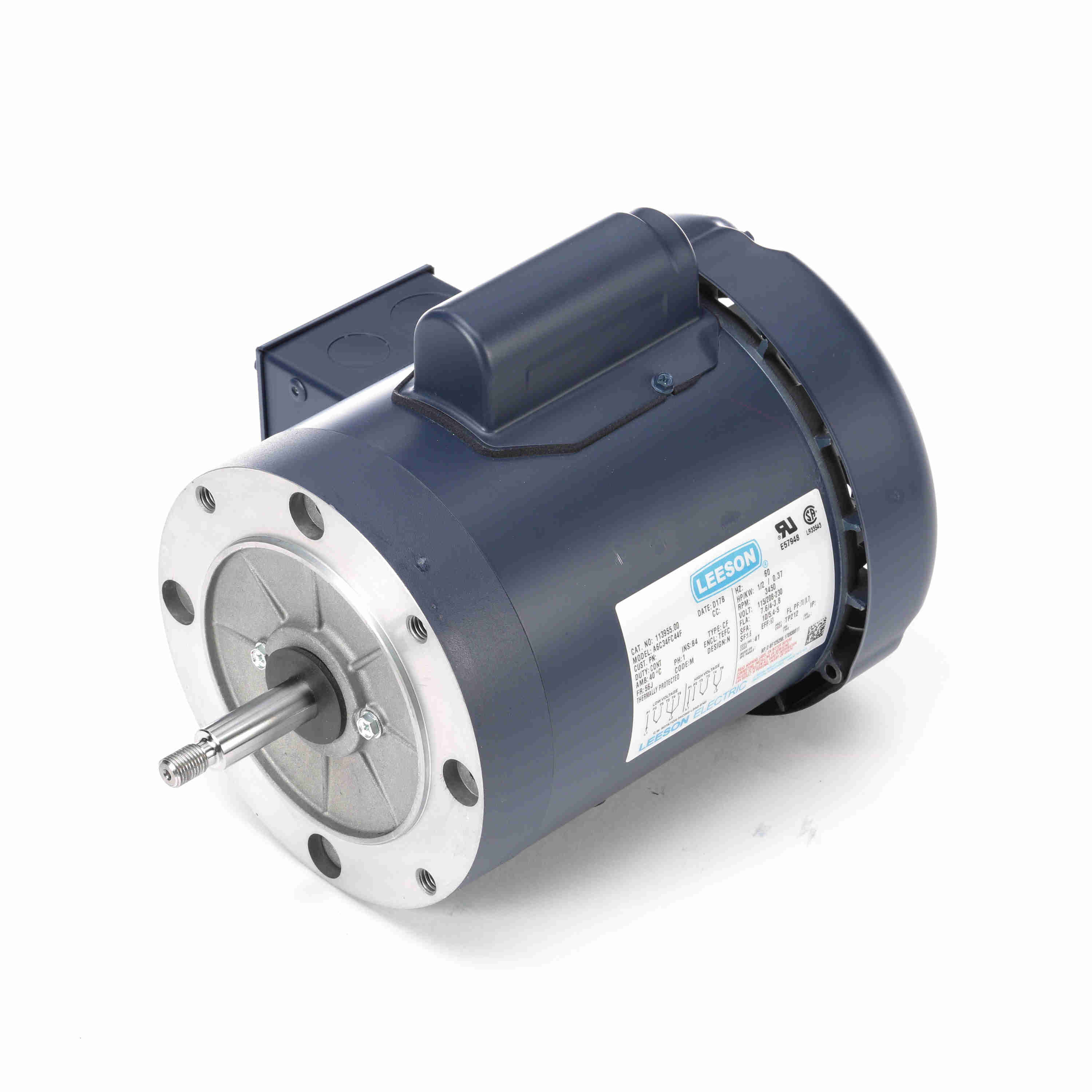

113955.00 Leeson 1/2HP Jet Pump Electric Motor, 3450RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 113955.00

Selected accessories will also be added to cart
$488.74 / Each
Quantity:
56J Frame, TEFC, 115/208-230VAC 60Hz Single Phase
Features
  • NEMA 56 C face mounting flange
  • Keyed shafts made of carbon steel
  • Threaded shafts made of 416 grade stainless steel
  • Dual rotation - Key shaft motors only
  • Quiet flow-through ventilation system
  • Double sealed bearings on shaft end
  • Terminal board with quick connects
  • Locked shaft-end bearings
  • UL recognized and CSA certified
General Specifications
Model : A6C34FC44F Catalog No : 113955.00
Part Description : 1/2HP..3450RPM.56.TEFC.115/208-230V.1PH.60HZ.CONT.AUTOMATIC.40C.1.6SF.ROUND.JET PUMP.A6C34FC44F Category : Jet Pump
Stock : No
Nameplate Specifications
Output HP : 0.5 Hp Output KW : 0.37 kW
Frequency : 60 Hz Voltage : 115/208-230 V
Current : 7.6/4-3.8 A Speed : 3450 rpm
Service Factor : 1.6 Phase : 1
Efficiency : 63 % Duty : CONTINUOUS
Insulation Class : B Design Code : N
KVA Code : M Frame : 56J
Enclosure : TEFC Overload Protector : AUTOMATIC
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 43
Technical Specifications
Electrical Type : CAP START IND RUN Starting Method : ACROSS THE LINE
Poles : 2 Rotation : FIXED CW
Mounting : ROUND Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL Shaft Type : JET PUMP
Overall Length : 11.28 in Frame Length : 5.5 in
Shaft Diameter : 0.63 in Shaft Extension : 2.44 in
Assembly/Box Mounting : F1 ONLY UPC : 691720012994
Weight : 25.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 32.00 267.0 0 0.50
Full Load 3.80 12.00 100.0 3,486 0.50
Pull-Up 0.00 32.00 267.0 0 0.50
Locked-Rotor 22.00 45.00 375.0 0 0.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.80
  • 0.160
  • 0.0
  • 24.8
  • 3,598
  • 0.0
  • 0.00
  • 25 %
  • 2.88
  • 0.260
  • 36.0
  • 39.3
  • 3,564
  • 0.0
  • 2.96
  • 50 %
  • 3.09
  • 0.367
  • 51.1
  • 51.6
  • 3,538
  • 0.0
  • 5.97
  • 75 %
  • 3.34
  • 0.473
  • 59.3
  • 61.6
  • 3,515
  • 0.0
  • 8.99
  • 100 %
  • 3.69
  • 0.594
  • 63.0
  • 70.0
  • 3,486
  • 46.0
  • 12.09
  • 125 %
  • 4.18
  • 0.720
  • 64.9
  • 74.9
  • 3,456
  • 0.0
  • 15.23
  • 150 %
  • 4.74
  • 0.861
  • 65.1
  • 79.0
  • 3,420
  • 0.0
  • 18.45
