/Products/Electric Motors/Single Phase Stainless Steel/Leeson/Washguard - Stainless Steel/C-Face less Base, TENV/116349.00 Leeson 1/3HP Washguard All-Stainless Electric Motor, 1725RPM
Click Image to Expand

Product ID: 116349.00

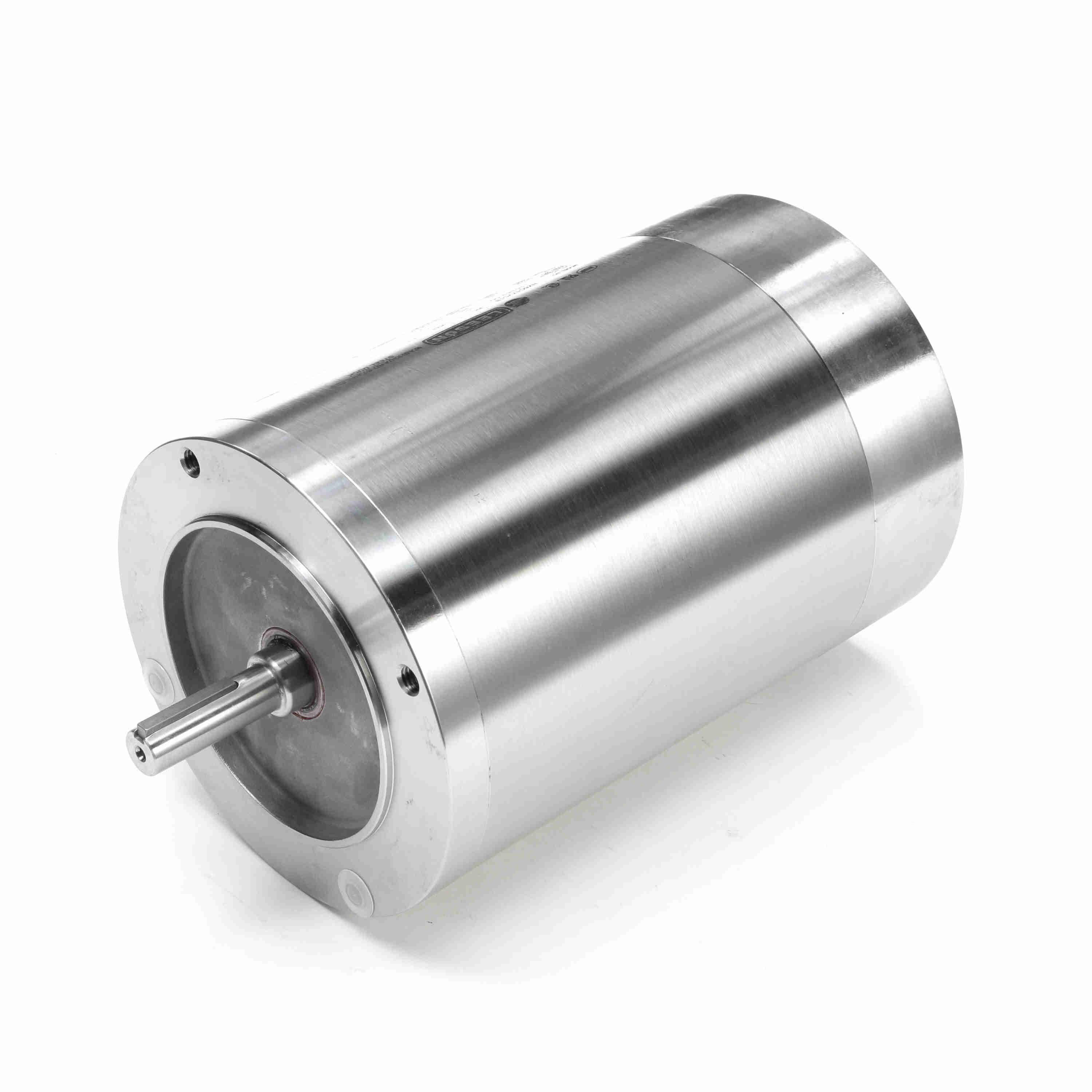

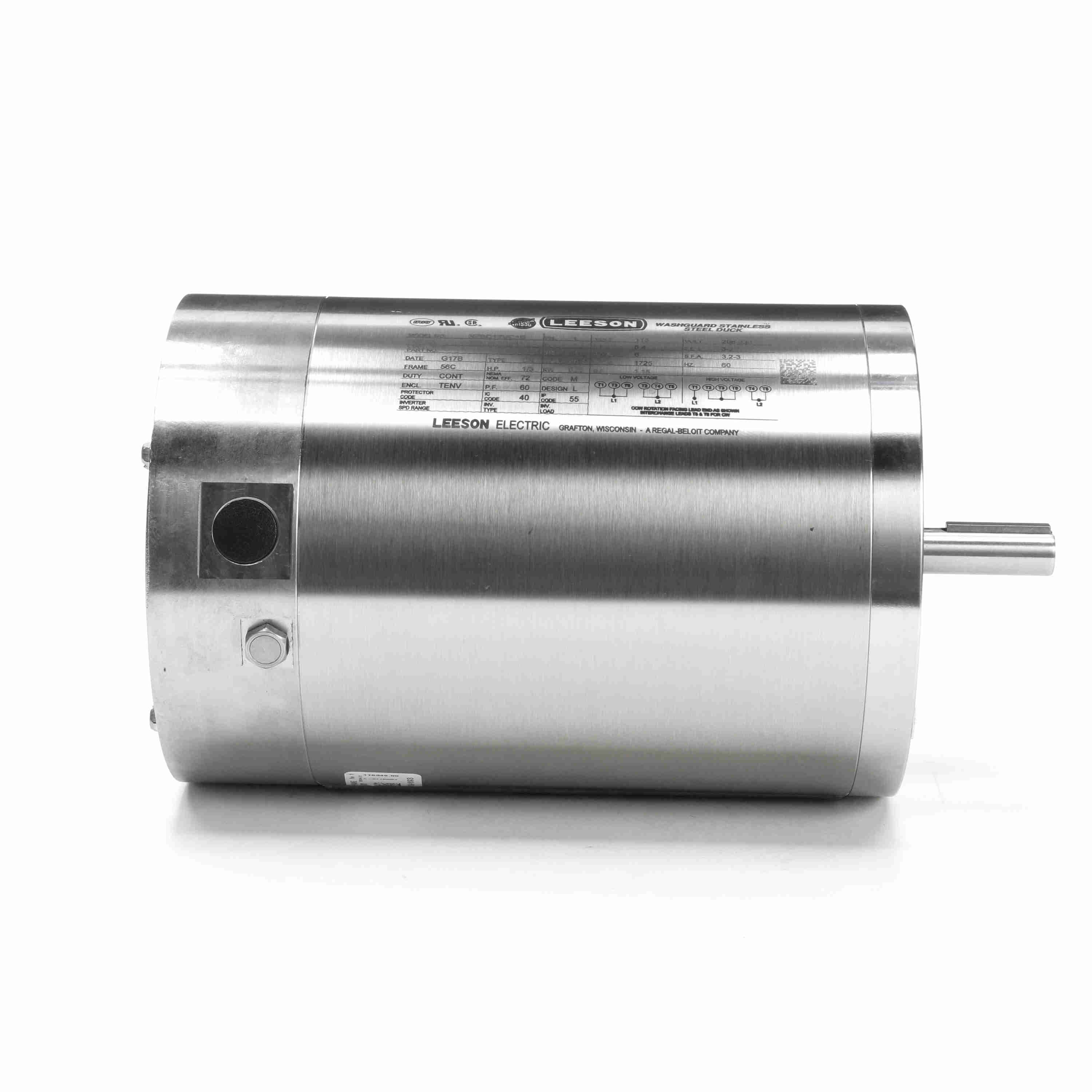

116349.00 Leeson 1/3HP Washguard All-Stainless Electric Motor, 1725RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 116349.00

Selected accessories will also be added to cart
$1,192.70 / Each
Quantity:
TENV, 56 Frame, 115/208-230V Single Phase 60Hz, C-Face, NZ6C17VC1B

Features

Features
  • All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
  • End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • Single-phase motors use Solid State Sinpac® switch – no mechanical switch contacts to corrode and fail.

General Specifications

General Specifications
Model :NZ6C17VC1B Catalog No :116349.00
Part Description :1/3HP..1725RPM.56.TENV./V.1PH.60HZ.CONT.NOT.40C.1.15SF.C FACE.WASHGUARD-ALL STAINLESS.NZ6C17VC1B Category :1 Phase
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.33 HP Output KW :0.25 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :5.4/3.0-2.7 A Speed :1725 RPM
Service Factor :1.15 Phase :1
Efficiency :72 % Duty :Continuous
Insulation Class :F Design Code :L
KVA Code :M Frame :56C
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Round Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Stainless Steel Shaft Type :NEMA 56
Overall Length :11.70 in Frame Length :7.00 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720307465
Weight :35.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down0.000.045.00281.01,5000.000.00.33
Locked-Rotor16.000.062.00388.000.000.00.33
Pull-Up0.000.040.00250.01,3000.000.00.33
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.90
  • 0.100
  • 0.0
  • 22.9
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 2.02
  • 0.150
  • 42.1
  • 32.3
  • 1,780
  • 0.0
  • 4.00
  • 50 %
  • 2.21
  • 0.188
  • 66.8
  • 37.0
  • 1,769
  • 0.0
  • 8.00
  • 75 %
  • 2.45
  • 0.262
  • 71.5
  • 46.5
  • 1,759
  • 0.0
  • 12.00
  • 100 %
  • 2.68
  • 0.344
  • 72.1
  • 55.8
  • 1,746
  • 93.0
  • 16.00
  • 125 %
  • 3.12
  • 0.433
  • 71.7
  • 60.3
  • 1,732
  • 0.0
  • 20.20
  • 150 %
  • 3.54
  • 0.530
  • 69.0
  • 65.1
  • 1,716
  • 0.0
  • 24.00
