/Products/Electric Motors/3 Phase/Leeson 3-Phase Electric Motors/TEFC, Rigid Base/119395.00 Leeson 1HP Wattsaver General Purpose Electric Motor, 1170RPM
Click Image to Expand

Product ID: 119395.00

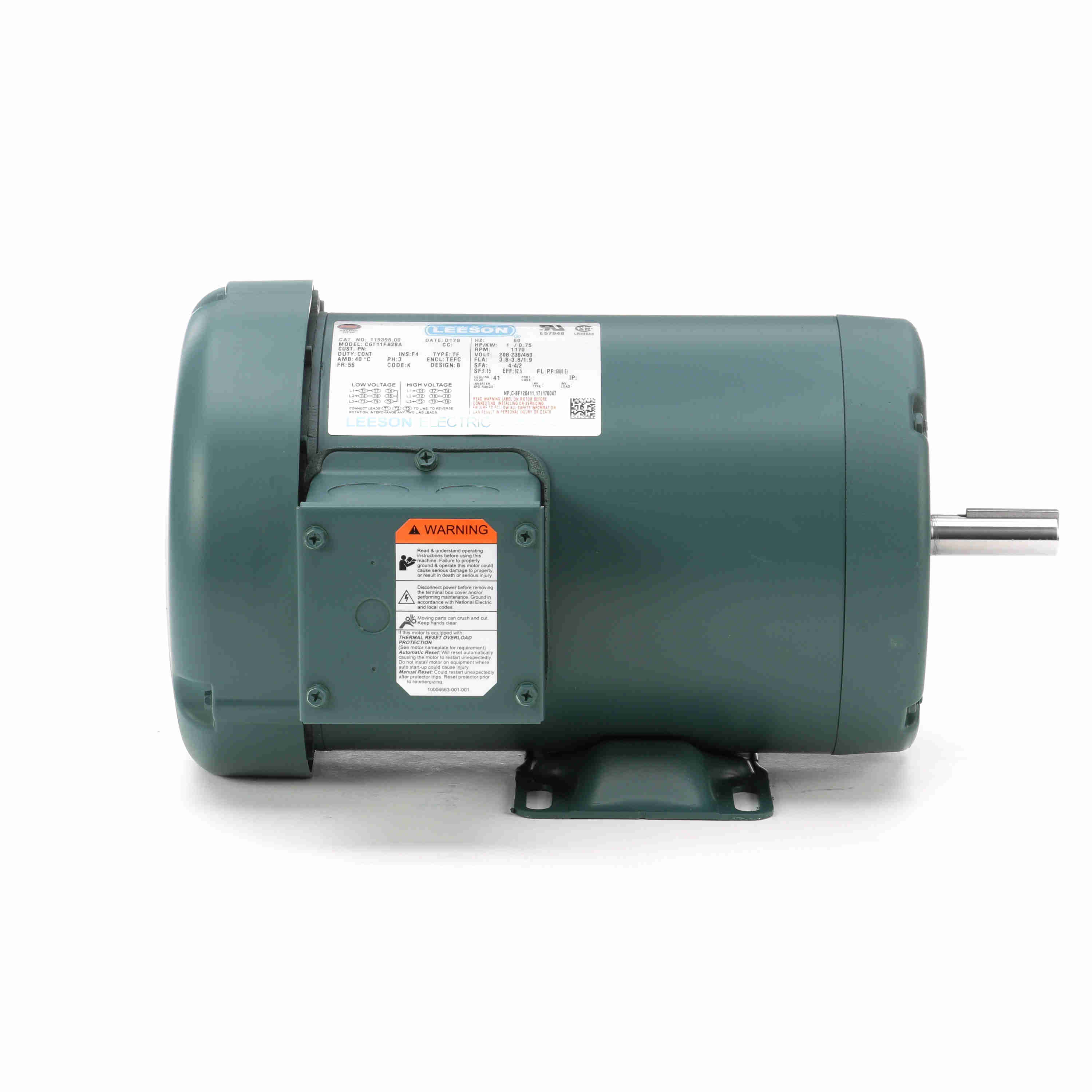

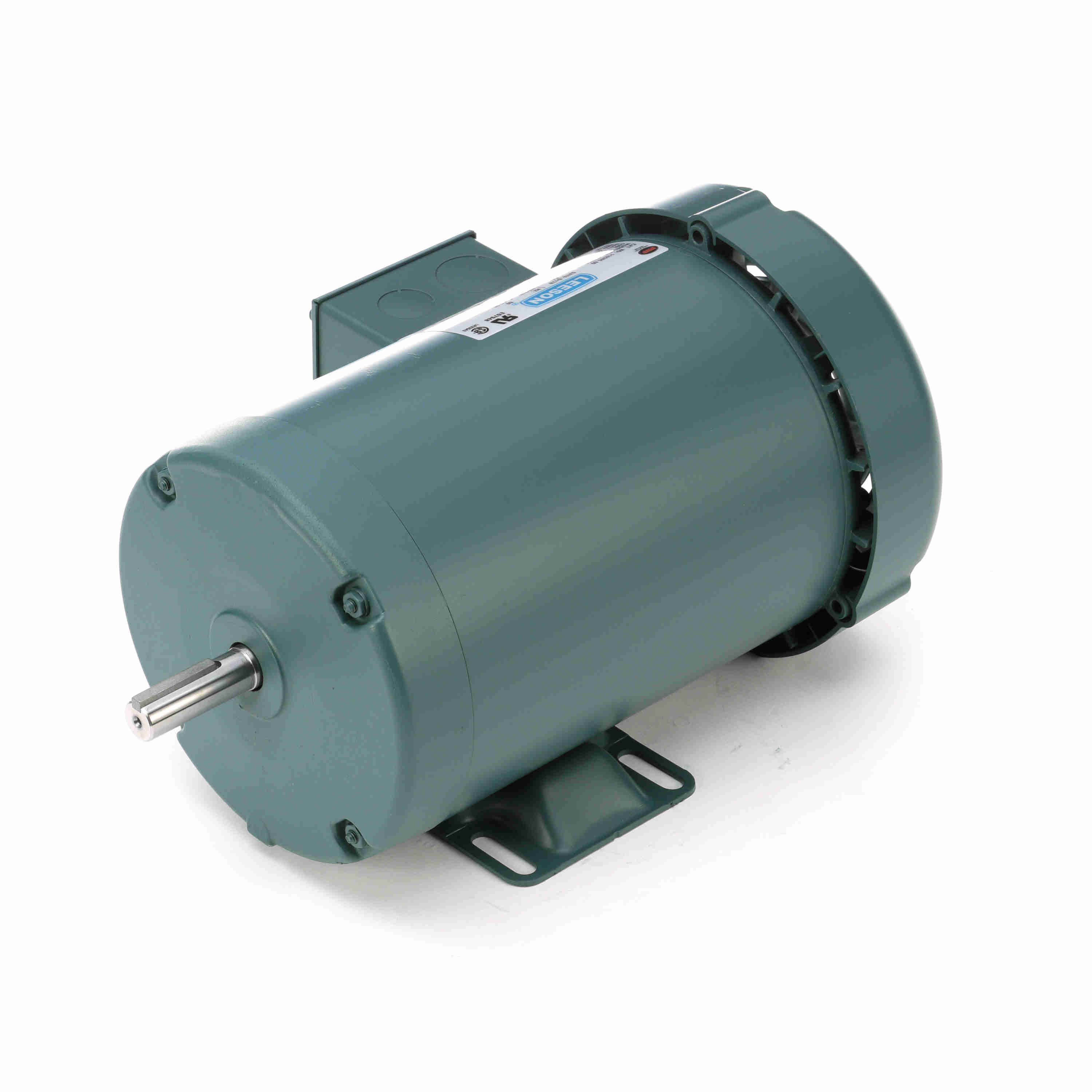

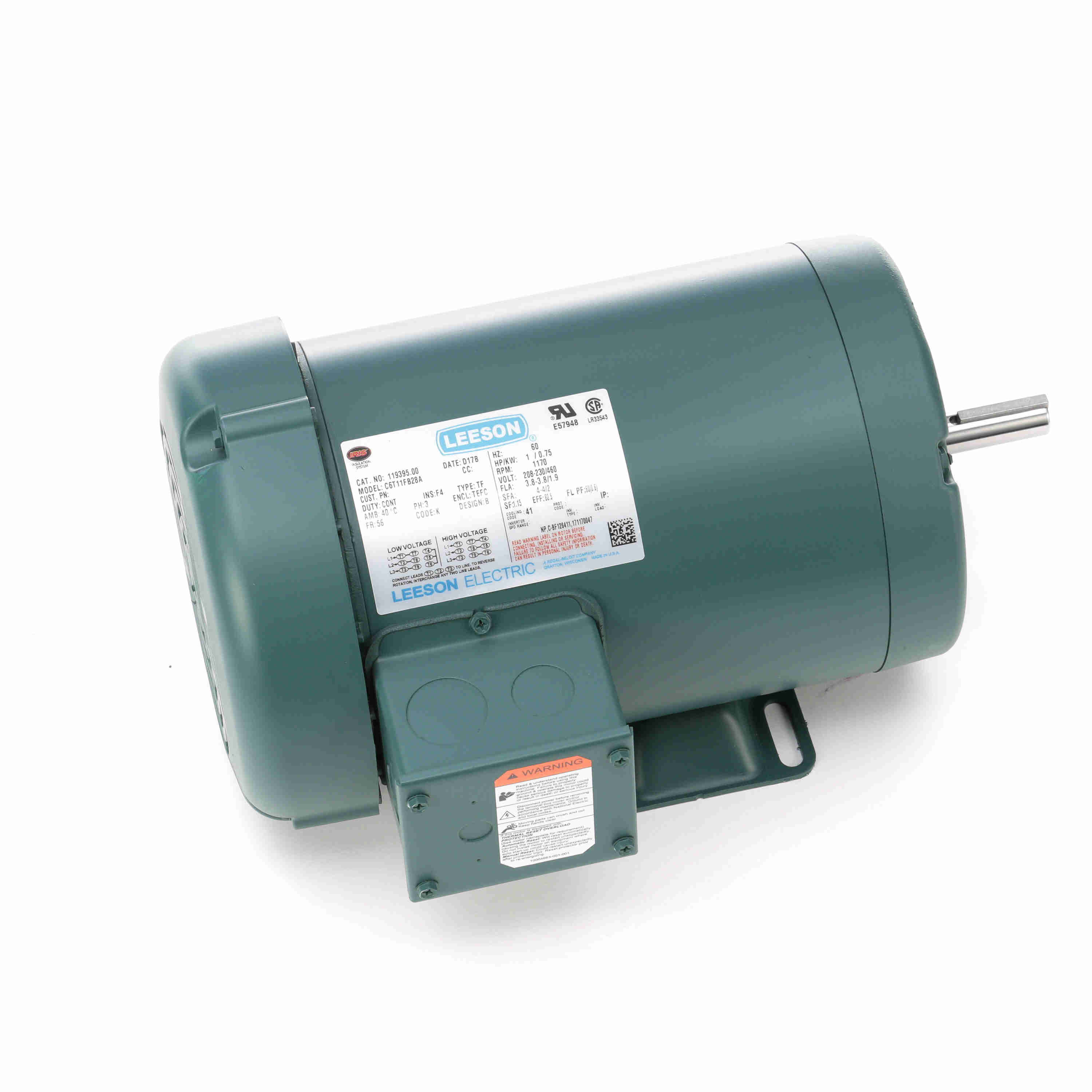

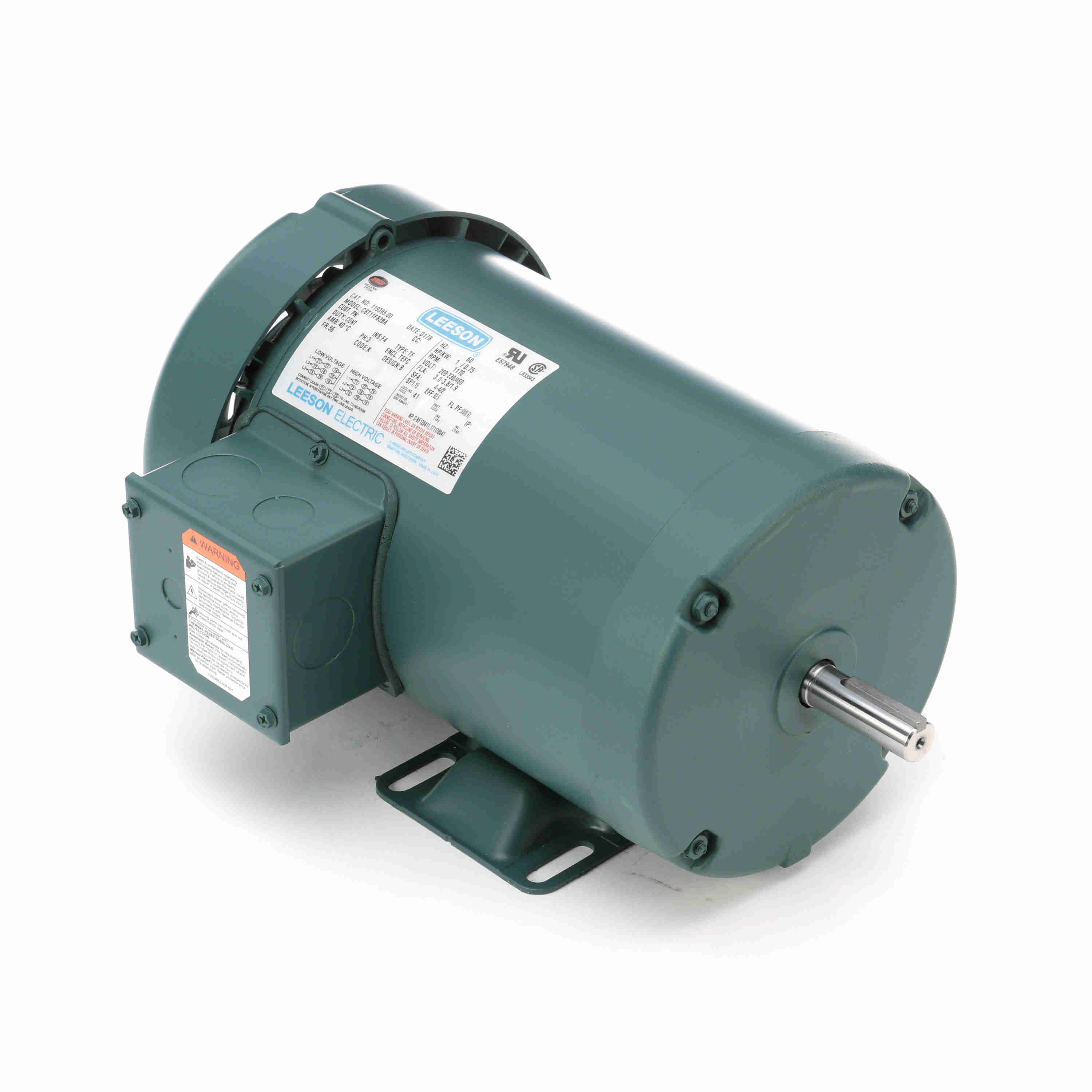

119395.00 Leeson 1HP Wattsaver General Purpose Electric Motor, 1170RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 119395.00

Selected accessories will also be added to cart
$685.97 / Each
Quantity:
TEFC, 56 Frame, 208-230/460VAC 3-Phase 60Hz, C6T11FB28A, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Features

Features
  • Premium efficient ratings
  • Class B insulation systems ? 42, 48 and 56 frames
  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
  • Continuous duty; Dynamically balanced rotors
  • WATTSaver ?e Premium efficient motors
  • Ultimate e Premium efficient motors

General Specifications

General Specifications
Model : C6T11FB28A Catalog No : 119395.00
Part Description : 119395.00..1HP..1170RPM.56.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.C6T11FB28.....GENERAL PURPOSE........ Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1 HP Output KW : 0.75 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 3.8-3.8/1.9 A Speed : 1170 RPM
Service Factor : 1.15 Phase : 3
Efficiency : 82.5 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : K Frame : 56
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 ?C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 6 Rotation : Reversible
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 12.98 in Frame Length : 7.50 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720043523
Weight : 40.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor 10.700.013.50300.004.570.01.00
Pull-Up 9.940.013.30298.01254.550.01.00
Break-Down 7.400.015.80351.07504.040.01.00
Full Load 1.900.04.50100.01,1700.900.01.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.20
  • 0.082
  • 0.0
  • 8.6
  • 1,198
  • 0.0
  • 0.00
  • 25 %
  • 1.24
  • 0.265
  • 70.2
  • 26.8
  • 1,190
  • 0.0
  • 1.10
  • 50 %
  • 1.37
  • 0.464
  • 80.6
  • 42.5
  • 1,180
  • 0.0
  • 2.23
  • 75 %
  • 1.55
  • 0.675
  • 82.9
  • 54.7
  • 1,169
  • 0.0
  • 3.37
  • 100 %
  • 1.78
  • 0.893
  • 83.6
  • 63.0
  • 1,157
  • 41.5
  • 4.54
  • 115 %
  • 1.94
  • 1.032
  • 83.3
  • 66.8
  • 1,148
  • 53.0
  • 5.27
  • 125 %
  • 2.05
  • 1.125
  • 82.9
  • 68.9
  • 1,144
  • 0.0
  • 5.74
  • 150 %
  • 2.37
  • 1.371
  • 81.6
  • 72.6
  • 1,129
  • 0.0
  • 6.98
Type
Electric Motor
Frame
56
Horsepower
1HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Speed
1170RPM
