/Products/Electric Motors/3 Phase/Leeson 3-Phase Electric Motors/121882.00 Leeson Washdown Motor, 1800 Rpm, 2 Hp, 3-Phase,
Click Image to Expand

Product ID: 121882.00

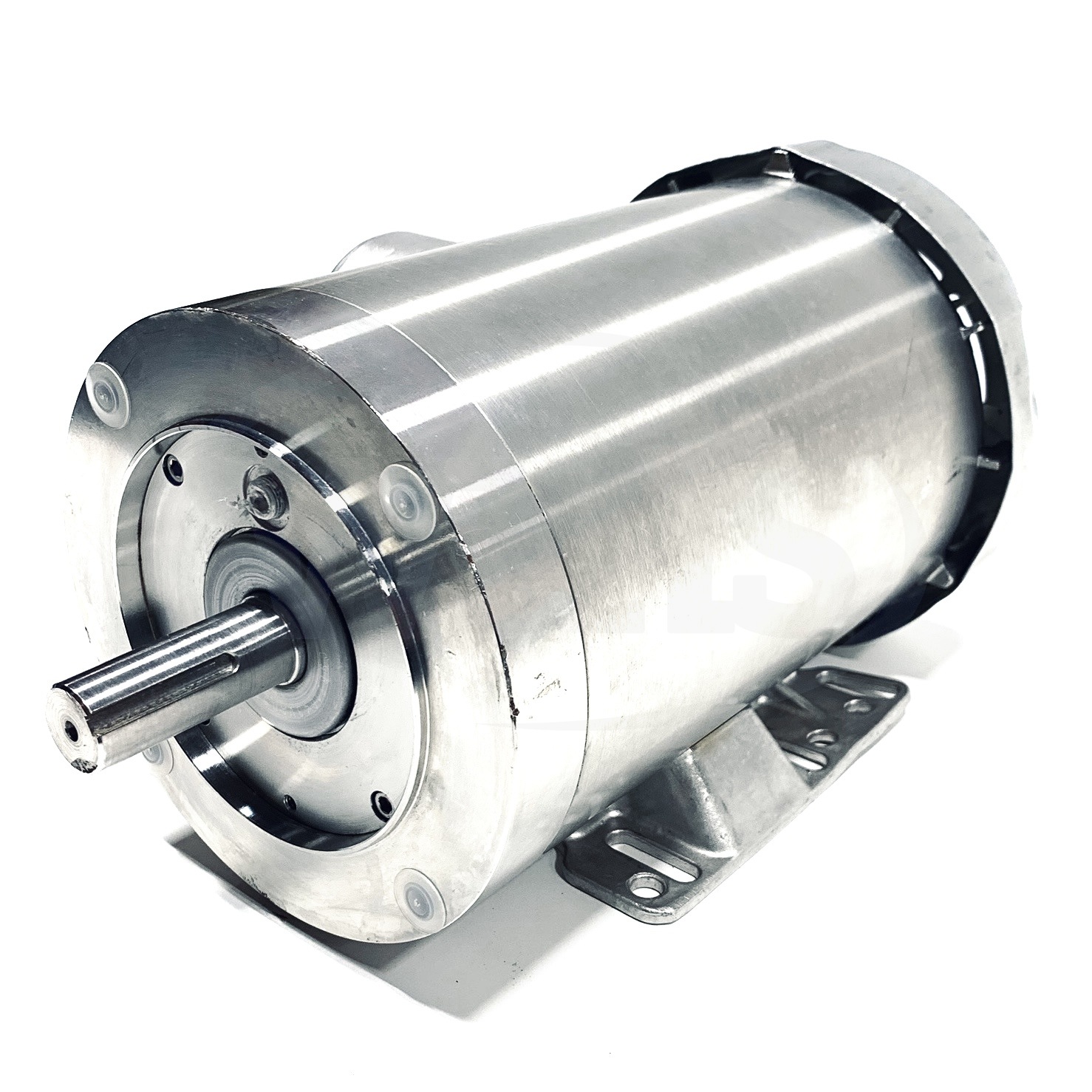

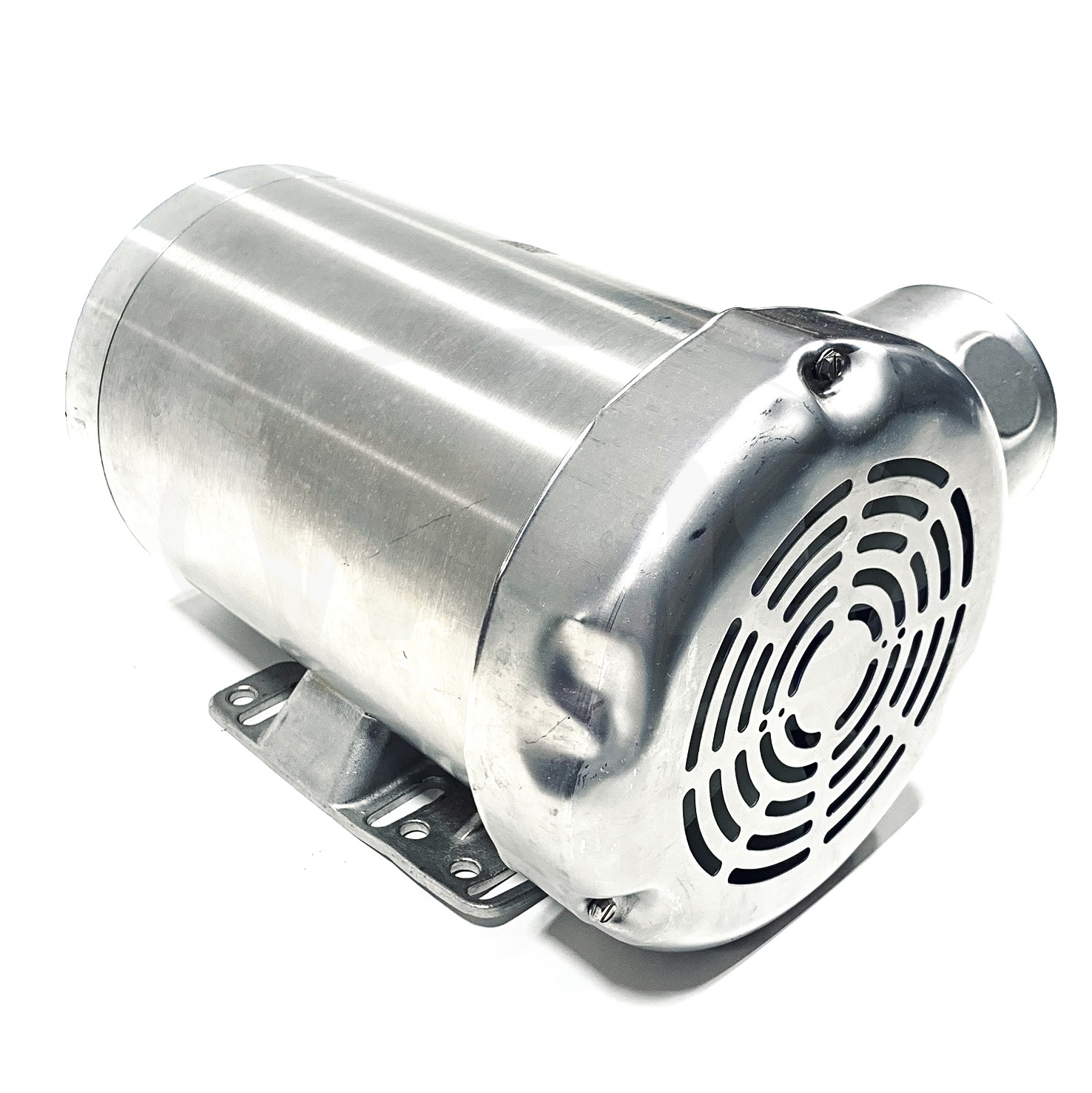

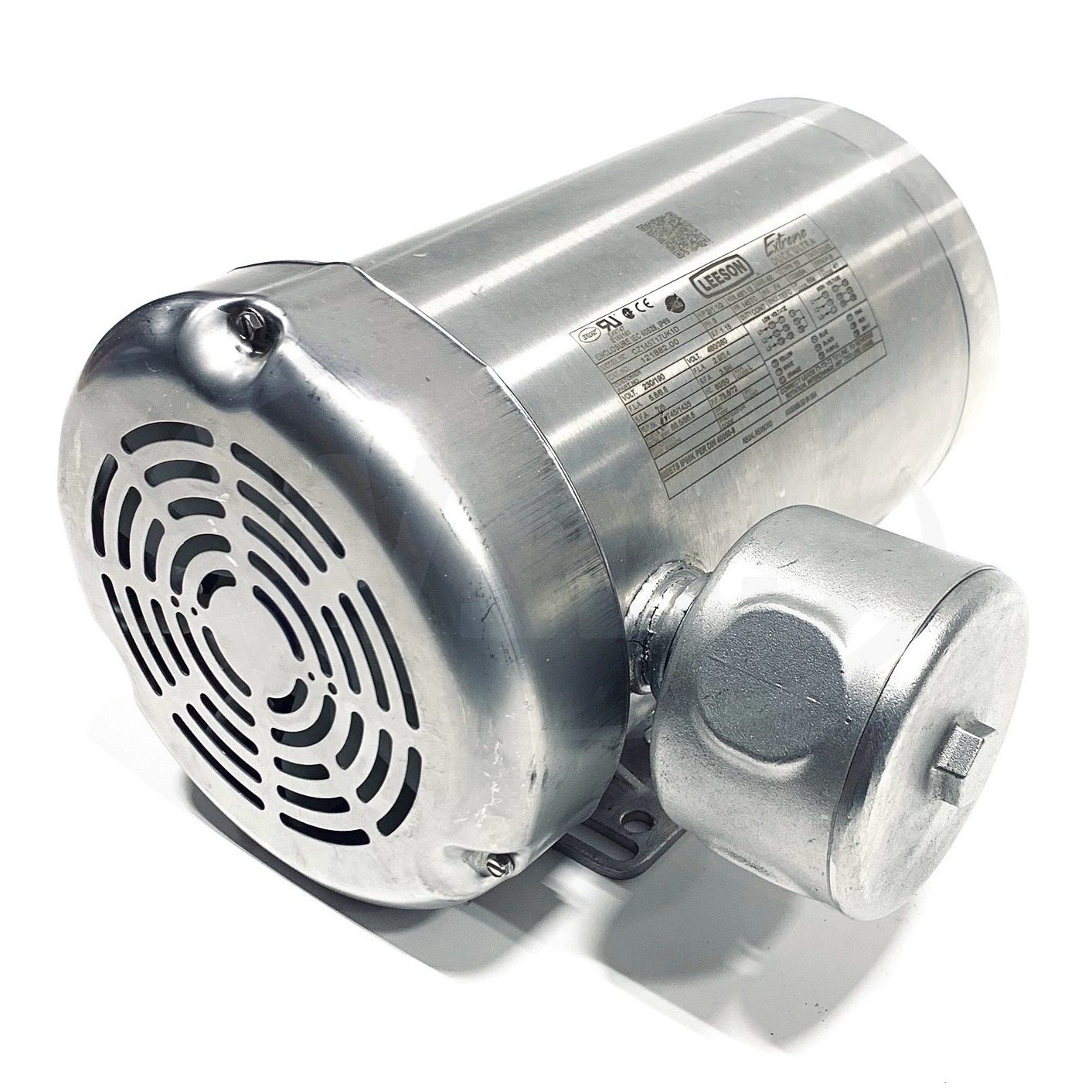

121882.00 Leeson Washdown Motor, 1800 Rpm, 2 Hp, 3-Phase,

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 121882.00

Available Stock: 1
Selected accessories will also be added to cart
$997.97 / Each
Quantity:
New, Surplus Stock

Features

  • Exterior 300-series stainless steel resists corrosion and maintains strength for reliable operation.
  • Patent-pending 360° rotatable conduit box.
  • Designed for various degrees of ingress protection (IP69).
  • 1.15 service factor increases reliability and motor life.
  • LEESON® motors. Motors and solutions at our core™

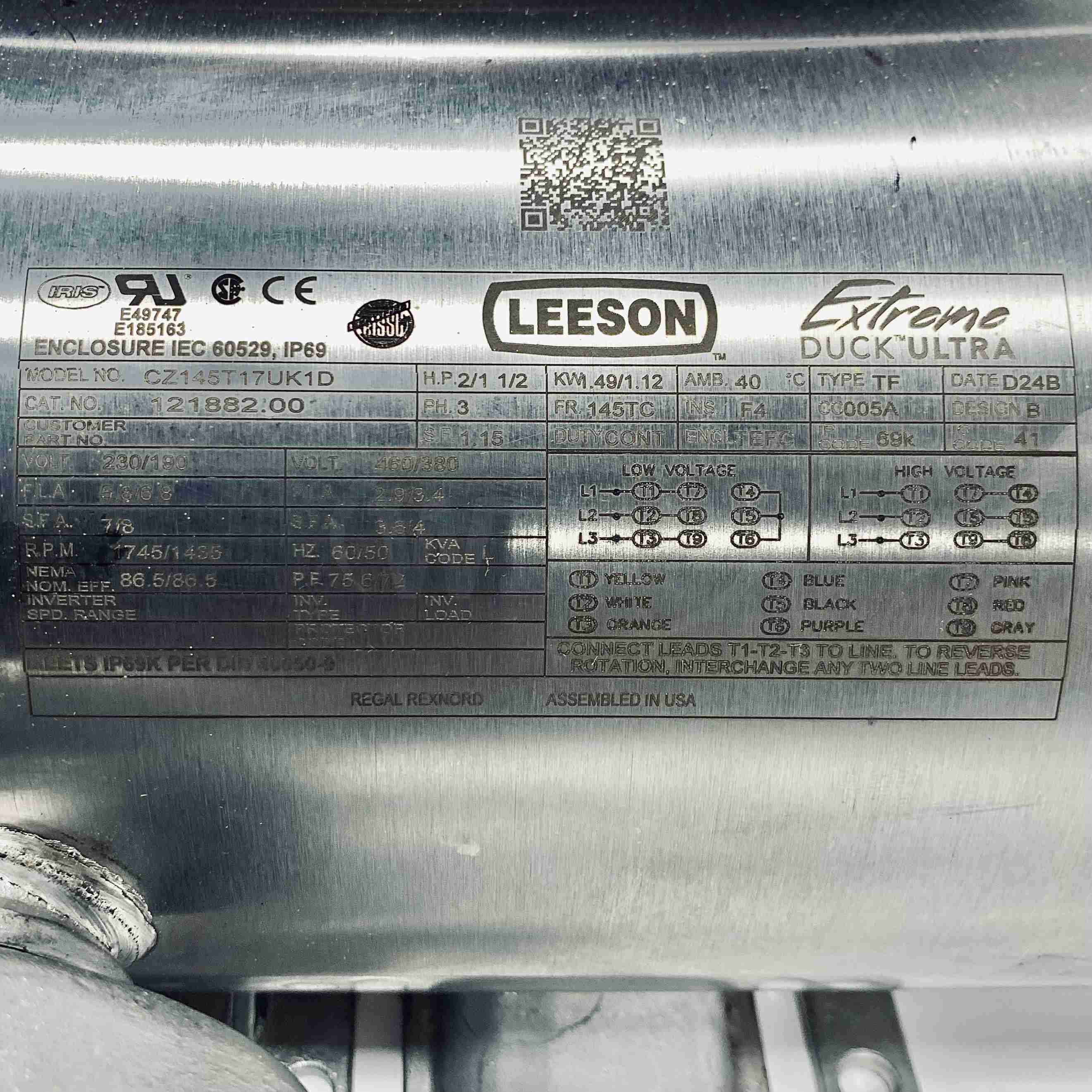

  • Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.

General Specifications

UPC: 691720989326 Weight: 64.00 LB
Packaged Length: 17.94 IN Packaged Width: 13.06 IN
Packaged Height: 12.88 IN Country of Origin: United States of America

Nameplate Specifications

Phase: 3 Output HP: 2 & 1.50 Hp
Output KW: 1.5 & 1.1 kW Voltage: 230/460 & 190/380 V
Speed: 1745 & 1435 rpm Service Factor: 1.15 & 1.15
Frame: 145TC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection Efficiency: 86.5 & 86.5 %
Ambient Temperature: 40 °C Frequency: 60 & 50 Hz
Current: 5.8/2.9 & 6.8/3.4 A Power Factor: 75.6
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: L
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 69
Number of Speeds: 1

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 6 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: T Overall Length: 13.25 in
Frame Length: 8.25 in Shaft Diameter: 0.875 in
Shaft Extension: 2.25 in Assembly/Box Mounting: F1 ONLY
Inverter Load: VARIABLE 10:1
Type
Electric Motor
Horsepower
2HP
Speed
1800RPM
Frame
145TC
