/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Rolled Steel, ODP/Foot Mount/.1218OS1B48-S WEG 0.12HP General Purpose Electric Motor, 1800RPM
Click Image to Expand

Product ID: .1218OS1B48-S

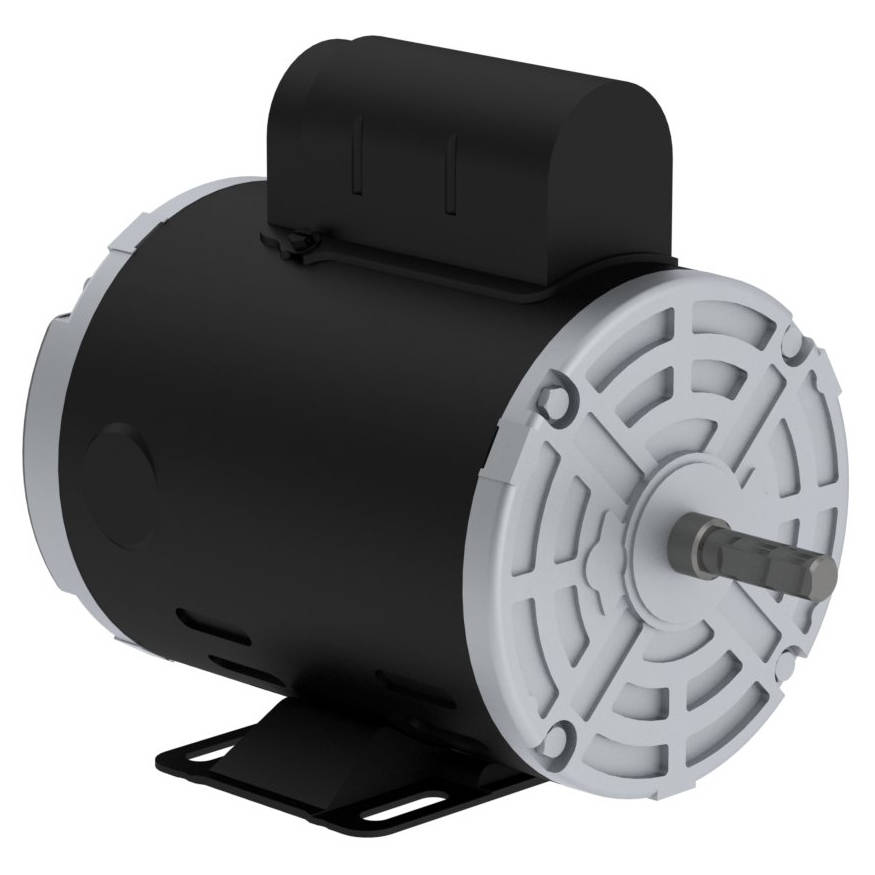

.1218OS1B48-S WEG 0.12HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .1218OS1B48-S

Selected accessories will also be added to cart
$178.89 / Each
Quantity:
IC01 - ODP, 48 Frame, 115/208-230VAC Single Phase 60Hz, 14360313, Foot Mount, Rolled Steel, 1/2" Shaft

Electric Motors

Frame48
Output0.12 HP (0.09 kW)
Number of Poles4
Frequency60 Hz
Rated speed1740 rpm
Slip3.33 %
Rated voltage115/208-230 V
Rated current2.84/1.57-1.42 A
L. R. Amperes13.6/7.54-6.82 A
LRC4.8x(Code P)
No load current2.60/1.12-1.30 A
Rated torque0.357 ft.lb
Locked rotor torque330 %
Breakdown torque310 %
Locked rotor time46s (cold) 26s (hot)
Moment of inertia (J)0.0240 sq.ft.lb
DesignN
Insulation ClassF
Temperature rise80 K
Service factor1.40 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²50.0 dB(A)
Approx. weight³13.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
37.045.050.0

Power factor

50%75%100%
0.410.480.55

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodNot Balanced
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Horsepower
0.12HP
Frame
48
