.1236OS1B48CH-S WEG 0.12HP General Purpose Electric Motor, 3600RPM

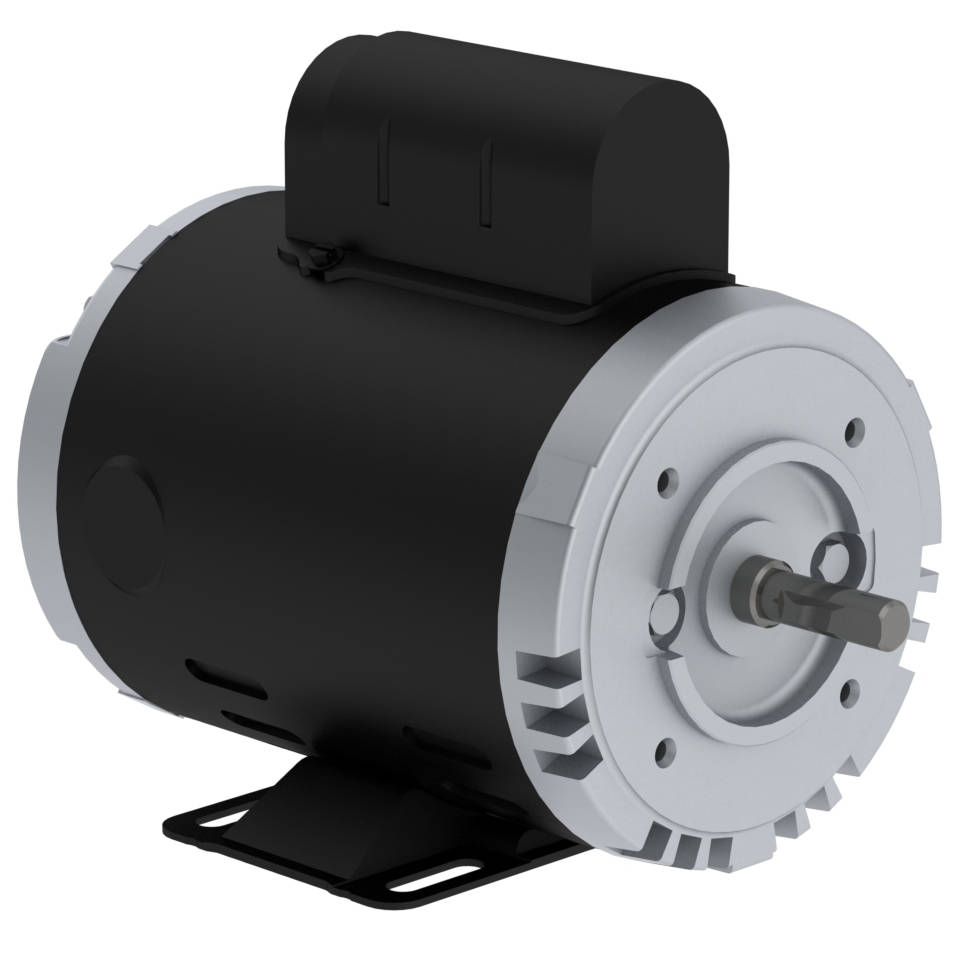

Enlarge Photo

Product ID: .1236OS1B48CH-S

.1236OS1B48CH-S WEG 0.12HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .1236OS1B48CH-S

Selected accessories will also be added to cart
$201.14 / Each
Quantity:
IC01 - ODP, 48 Frame, 115/208-230VAC 60Hz Single Phase, 14419269, Rolled Steel Frame, Foot Mounted, 1/2" Flatted Shaft

Electric Motors

Frame48
Output0.12 HP (0.09 kW)
Number of Poles2
Frequency60 Hz
Rated speed3500 rpm
Slip2.78 %
Rated voltage115/208-230 V
Rated current2.48/1.37-1.24 A
L. R. Amperes15.9/8.77-7.94 A
LRC6.4x(Code R)
No load current1.80/0.776-0.900 A
Rated torque0.180 ft.lb
Locked rotor torque300 %
Breakdown torque300 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)0.0126 sq.ft.lb
DesignN
Insulation ClassF
Temperature rise80 K
Service factor1.40 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?14.3 lb
??
(1) Looking the motor from the shaft end.;?(2) Measured at 1m and with tolerance of +3dB(A).;?(3) Approximate weight, subject to be changed after manufacturing process.;?(4) At 100% of full load.

Efficiency

50%75%100%
32.0?40.0?44.0?

Power factor

50%75%100%
0.60?0.67?0.72?

Features

Frame MaterialRolled Steel?
Impregnation MethodDip and Bake Polyester?
Shaft MaterialSAE 1040/45 Carbon Steel?
PaintingOnly primer ?
Grounding LugsSingle?
Fan Cover materialWithout Fan Cover?
Tropicalized PaintingWithout?
Fan materialWithout fan?
Bearing capYes- Bearing Cap?
Bolt MaterialCarbon Steel?
Balancing MethodNot Balanced?
Drip CoverWithout?
Resilient BaseWithout?
Overload protector (phenolic)Without overload protector ?
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Horsepower
0.12HP
Frame
48
