/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount/12518OT3E405T-W40 WEG 125HP, General Purpose Electric Motor, 1800RPM

Product ID: 12518OT3E405T-W40

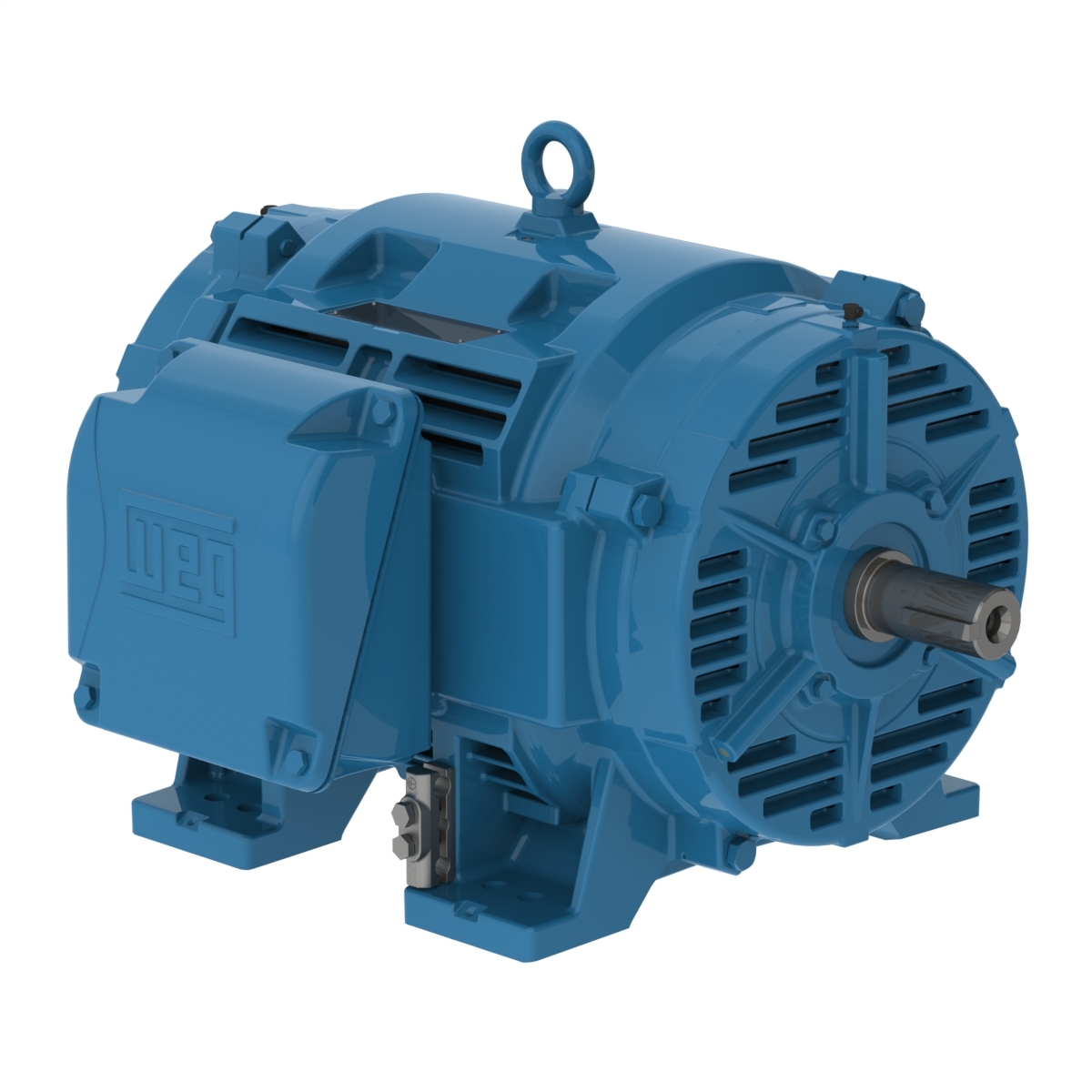

12518OT3E405T-W40 WEG 125HP, General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 12518OT3E405T-W40

Selected accessories will also be added to cart

$5,985.75 / Each

Quantity:

IC01 - ODP, IP23, 404T/405T Frame, 230/460VAC 60Hz 3 Phase, 14272482, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	404/5T
Output	125 HP
Number of Poles	4
Frequency	60 Hz
Rated speed	1780 rpm
Slip	1.11 %
Rated voltage	230/460 V
Rated current	276/138 A
L. R. Amperes	1904/952 A
LRC	6.9x(Code G)
No load current	94.0/47.0 A
Rated torque	369 ft.lb
Locked rotor torque	270 %
Breakdown torque	260 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	25.5 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1031 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.4	95.4

Power factor

50%	75%	100%
0.75	0.83	0.86

Frame	404/5T
Output	100 HP (75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	138 A
L. R. Amperes	994 A
LRC	7.2x(Code H)
No load current	46.3 A
Rated torque	355 ft.lb
Locked rotor torque	240 %
Breakdown torque	260 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	25.5 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1031 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.6	95.0	95.0

Power factor

50%	75%	100%
0.76	0.84	0.87

Frame	404/5T
Output	100 HP (75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	133 A
L. R. Amperes	1024 A
LRC	7.7x(Code H)
No load current	50.2 A
Rated torque	355 ft.lb
Locked rotor torque	270 %
Breakdown torque	300 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	25.5 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1031 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.6	95.0	95.0

Power factor

50%	75%	100%
0.72	0.82	0.86

Frame	404/5T
Output	100 HP (75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	129 A
L. R. Amperes	1032 A
LRC	8.0x(Code J)
No load current	53.7 A
Rated torque	355 ft.lb
Locked rotor torque	290 %
Breakdown torque	320 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	25.5 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1031 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.9	95.0	95.0

Power factor

50%	75%	100%
0.69	0.80	0.85

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
