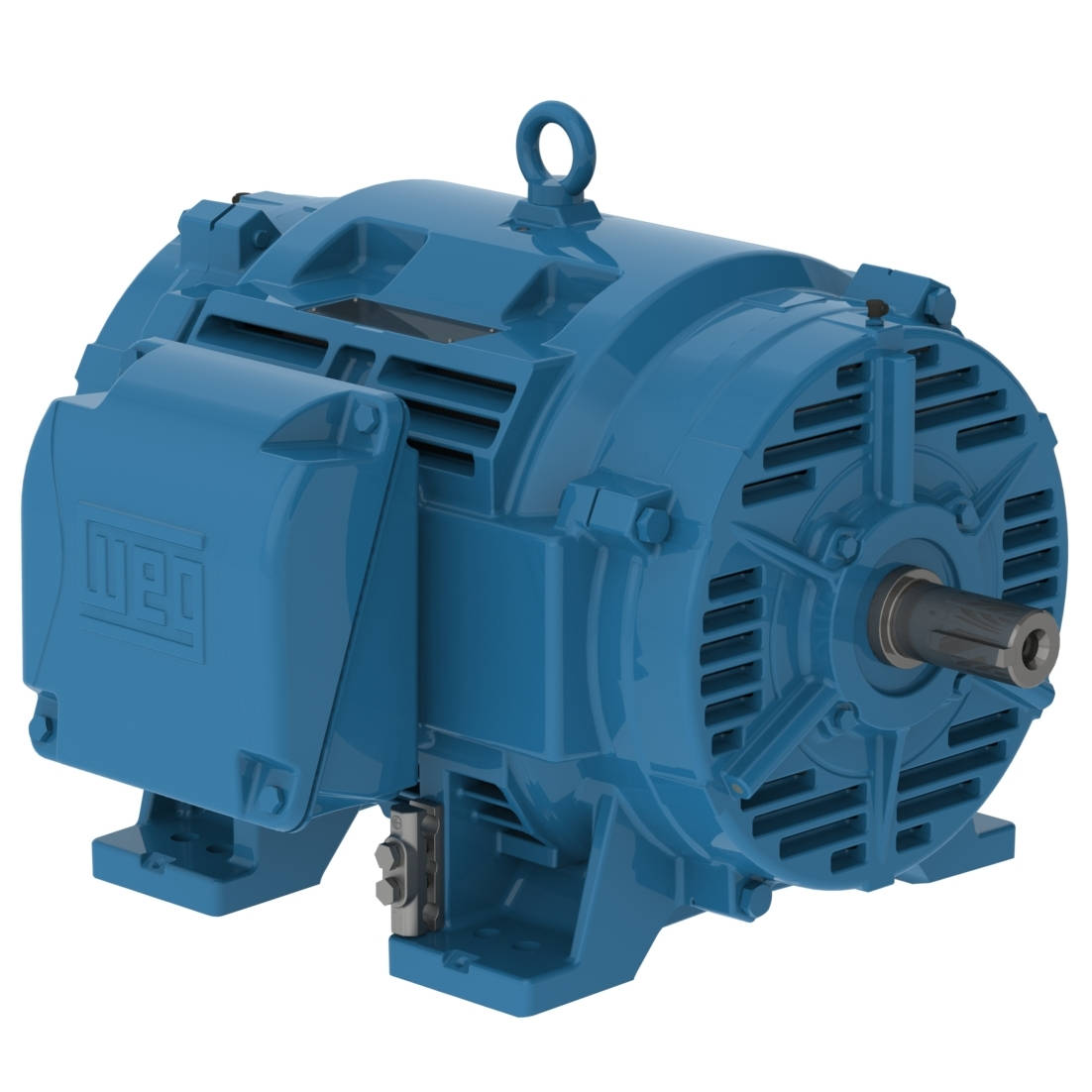

12518OT3G405TS-W40 WEG 125HP, General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: 12518OT3G405TS-W40

12518OT3G405TS-W40 WEG 125HP, General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 12518OT3G405TS-W40

Selected accessories will also be added to cart
$7,103.09 / Each
Quantity:
IC01 - ODP, IP23, 404TS/405TS Frame, 460/380VAC 50/60Hz 3 Phase, 14284972, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-1/8" Keyed Shaft

Electric Motors

Frame404/5TS
Output125 HP
Number of Poles4
Frequency60 Hz
Rated speed1780 rpm
Slip1.11 %
Rated voltage460 V
Rated current138 A
L. R. Amperes952 A
LRC6.9x(Code G)
No load current47.0 A
Rated torque369 ft.lb
Locked rotor torque270 %
Breakdown torque260 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)25.5 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?1010 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.0  95.4  95.4

Power factor

50%75%100%
0.75  0.83  0.86
Frame404/5TS
Output100 HP (75 kW)
Number of Poles4
Frequency50 Hz
Rated speed1480 rpm
Slip1.33 %
Rated voltage380 V
Rated current138 A
L. R. Amperes994 A
LRC7.2x(Code H)
No load current46.3 A
Rated torque355 ft.lb
Locked rotor torque240 %
Breakdown torque260 %
Locked rotor time16s (cold) 9s (hot)
Moment of inertia (J)25.5 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?1010 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.6  95.0  95.0

Power factor

50%75%100%
0.76  0.84  0.87
Frame404/5TS
Output100 HP (75 kW)
Number of Poles4
Frequency50 Hz
Rated speed1480 rpm
Slip1.33 %
Rated voltage400 V
Rated current133 A
L. R. Amperes1024 A
LRC7.7x(Code H)
No load current50.2 A
Rated torque355 ft.lb
Locked rotor torque270 %
Breakdown torque300 %
Locked rotor time16s (cold) 9s (hot)
Moment of inertia (J)25.5 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?1010 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.6  95.0  95.0

Power factor

50%75%100%
0.72  0.82  0.86
Frame404/5TS
Output100 HP (75 kW)
Number of Poles4
Frequency50 Hz
Rated speed1480 rpm
Slip1.33 %
Rated voltage415 V
Rated current129 A
L. R. Amperes1032 A
LRC8.0x(Code J)
No load current53.7 A
Rated torque355 ft.lb
Locked rotor torque290 %
Breakdown torque320 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)25.5 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?1010 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.9  95.0  95.0

Power factor

50%75%100%
0.69  0.80  0.85

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
125HP
Frame
404TS/405TS
