Product ID: 12518ET3G444TSC-W22

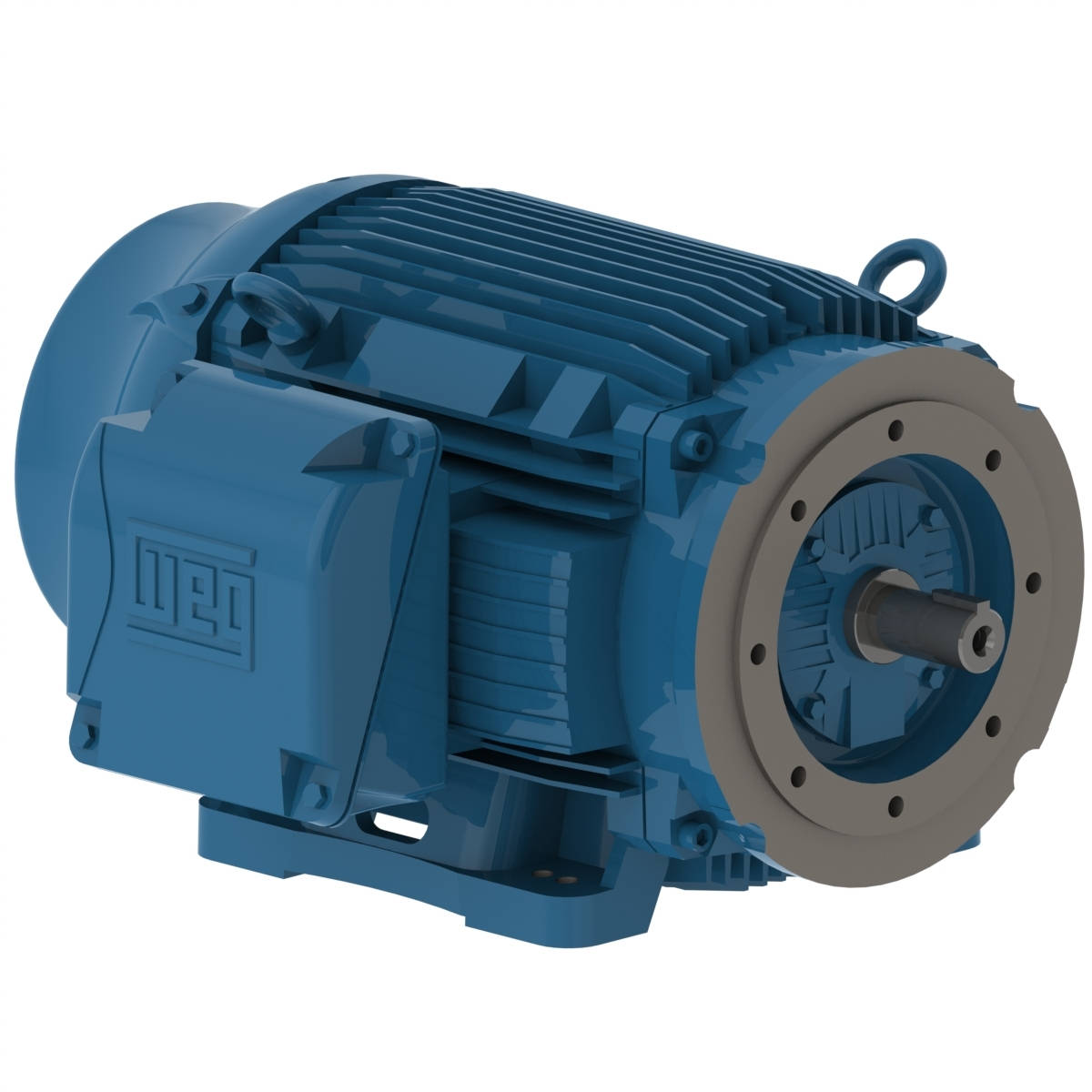

12518ET3G444TSC-W22 WEG 125HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 12518ET3G444TSC-W22

Selected accessories will also be added to cart

$14,434.02 / Each

Quantity:

IC411 - TEFC, IP55, 444TSC/445TSC Frame, 460VAC 60Hz 3 Phase, 12215467, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame	444/5TSC
Output	125 HP
Number of Poles	4
Frequency	60 Hz
Rated speed	1785 rpm
Slip	0.83 %
Rated voltage	460 V
Rated current	139 A
L. R. Amperes	904 A
LRC	6.5x(Code G)
No load current	40.0 A
Rated torque	368 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	48s (cold) 27s (hot)

Moment of inertia (J)	57.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	1641 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.4	95.4

Power factor

50%	75%	100%
0.74	0.82	0.85

Frame	444/5TSC
Output	100 HP (75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1485 rpm
Slip	1.00 %
Rated voltage	380 V
Rated current	139 A
L. R. Amperes	890 A
LRC	6.4x(Code G)
No load current	40.0 A
Rated torque	354 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	57.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1641 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.7	95.1	95.0

Power factor

50%	75%	100%
0.73	0.82	0.86

Frame	444/5TSC
Output	100 HP (75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1485 rpm
Slip	1.00 %
Rated voltage	400 V
Rated current	136 A
L. R. Amperes	952 A
LRC	7.0x(Code H)
No load current	43.0 A
Rated torque	354 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	57.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1641 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.6	95.1	95.0

Power factor

50%	75%	100%
0.69	0.80	0.84

Frame	444/5TSC
Output	100 HP (75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1487 rpm
Slip	0.87 %
Rated voltage	415 V
Rated current	132 A
L. R. Amperes	1003 A
LRC	7.6x(Code J)
No load current	45.0 A
Rated torque	353 ft.lb
Locked rotor torque	240 %
Breakdown torque	280 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	57.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1641 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.3	95.1	95.2

Power factor

50%	75%	100%
0.67	0.78	0.83

Frame	444/5TSC
Output	125 HP
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	380 V
Rated current	168 A
L. R. Amperes	857 A
LRC	5.1x(Code E)
No load current	40.0 A
Rated torque	445 ft.lb
Locked rotor torque	160 %
Breakdown torque	180 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	57.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1641 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.0	94.5

Power factor

50%	75%	100%
0.79	0.85	0.86

Frame	444/5TSC
Output	125 HP
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	160 A
L. R. Amperes	912 A
LRC	5.7x(Code F)
No load current	43.0 A
Rated torque	444 ft.lb
Locked rotor torque	180 %
Breakdown torque	200 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	57.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1641 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.0	94.5

Power factor

50%	75%	100%
0.76	0.83	0.86

Frame	444/5TSC
Output	125 HP
Number of Poles	4
Frequency	50 Hz
Rated speed	1483 rpm
Slip	1.13 %
Rated voltage	415 V
Rated current	155 A
L. R. Amperes	961 A
LRC	6.2x(Code F)
No load current	45.0 A
Rated torque	443 ft.lb
Locked rotor torque	190 %
Breakdown torque	220 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	57.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1641 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.0	95.0

Power factor

50%	75%	100%
0.74	0.82	0.85

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
