/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/P-Base/12536ET3G444HP-W22 WEG 125HP P-Base Pump Electric Motor, 3600RPM

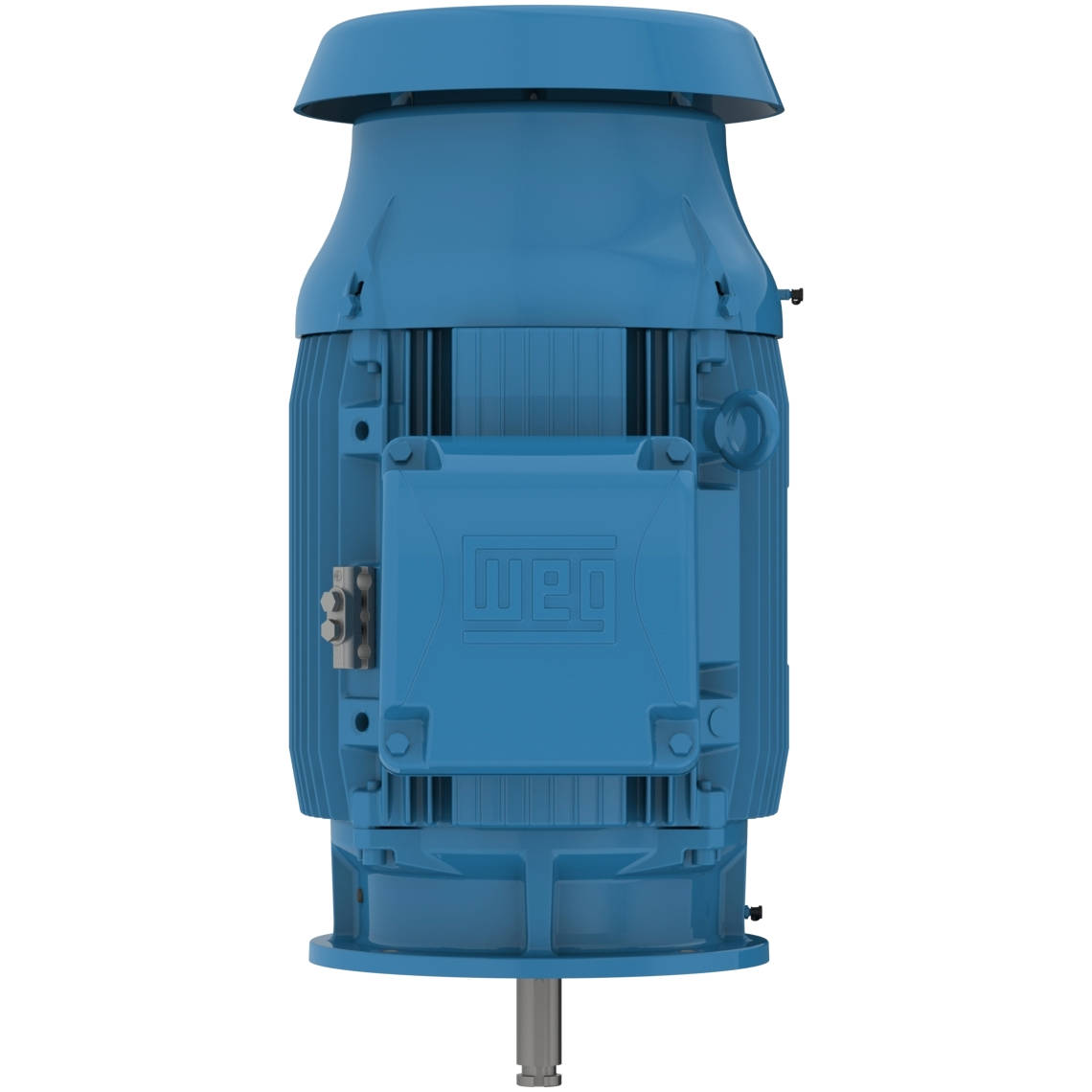

12536ET3G444HP-W22 WEG 125HP P-Base Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 12536ET3G444HP-W22

12536ET3G444HP-W22 WEG 125HP P-Base Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 12536ET3G444HP-W22

Selected accessories will also be added to cart
$15,992.41 / Each
Quantity:
IC411 - TEFC, IP55, 444HP/445HP Frame, 460VAC 60Hz 3 Phase, 13502587, NEMA Premium Efficiency, Footless, Cast Iron Frame, 2-1/8" Shaft

Electric Motors

Frame444/5HP
Output125 HP
Number of Poles2
Frequency60 Hz
Rated speed3570 rpm
Slip0.83 %
Rated voltage460 V
Rated current134 A
L. R. Amperes884 A
LRC6.6x(Code G)
No load current34.0 A
Rated torque184 ft.lb
Locked rotor torque200 %
Breakdown torque250 %
Locked rotor time52s (cold) 29s (hot)
Moment of inertia (J)33.5 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?81.0 dB(A)
Approx. weight?1683 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.6  94.5  95.0

Power factor

50%75%100%
0.82  0.87  0.89
Frame444/5HP
Output100 HP (75 kW)
Number of Poles2
Frequency50 Hz
Rated speed2970 rpm
Slip1.00 %
Rated voltage380 V
Rated current135 A
L. R. Amperes878 A
LRC6.5x(Code G)
No load current33.6 A
Rated torque177 ft.lb
Locked rotor torque200 %
Breakdown torque250 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)33.5 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?1683 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.2  94.3  94.7

Power factor

50%75%100%
0.79  0.87  0.89
Frame444/5HP
Output100 HP (75 kW)
Number of Poles2
Frequency50 Hz
Rated speed2970 rpm
Slip1.00 %
Rated voltage400 V
Rated current128 A
L. R. Amperes909 A
LRC7.1x(Code G)
No load current36.0 A
Rated torque177 ft.lb
Locked rotor torque210 %
Breakdown torque280 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)33.5 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?1683 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.2  94.3  94.7

Power factor

50%75%100%
0.77  0.87  0.89
Frame444/5HP
Output100 HP (75 kW)
Number of Poles2
Frequency50 Hz
Rated speed2975 rpm
Slip0.83 %
Rated voltage415 V
Rated current124 A
L. R. Amperes955 A
LRC7.7x(Code H)
No load current37.9 A
Rated torque177 ft.lb
Locked rotor torque240 %
Breakdown torque300 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)33.5 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?1683 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.8  94.3  94.8

Power factor

50%75%100%
0.75  0.85  0.89
Frame444/5HP
Output125 HP
Number of Poles2
Frequency50 Hz
Rated speed2960 rpm
Slip1.33 %
Rated voltage380 V
Rated current163 A
L. R. Amperes848 A
LRC5.2x(Code D)
No load current33.6 A
Rated torque222 ft.lb
Locked rotor torque160 %
Breakdown torque200 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)33.5 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?1683 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.0  94.5  94.5

Power factor

50%75%100%
0.85  0.88  0.89
Frame444/5HP
Output125 HP
Number of Poles2
Frequency50 Hz
Rated speed2965 rpm
Slip1.17 %
Rated voltage400 V
Rated current154 A
L. R. Amperes878 A
LRC5.7x(Code E)
No load current36.0 A
Rated torque221 ft.lb
Locked rotor torque170 %
Breakdown torque220 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)33.5 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?1683 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.0  94.5  94.5

Power factor

50%75%100%
0.84  0.88  0.89
Frame444/5HP
Output125 HP
Number of Poles2
Frequency50 Hz
Rated speed2970 rpm
Slip1.00 %
Rated voltage415 V
Rated current148 A
L. R. Amperes918 A
LRC6.2x(Code F)
No load current37.9 A
Rated torque221 ft.lb
Locked rotor torque190 %
Breakdown torque240 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)33.5 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?1683 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.0  94.5  95.0

Power factor

50%75%100%
0.82  0.87  0.89

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWith
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
TEFC
Enclosure
TEFC
Horsepower
125HP
Input Voltage
460VAC
Frame
444HP/445HP
