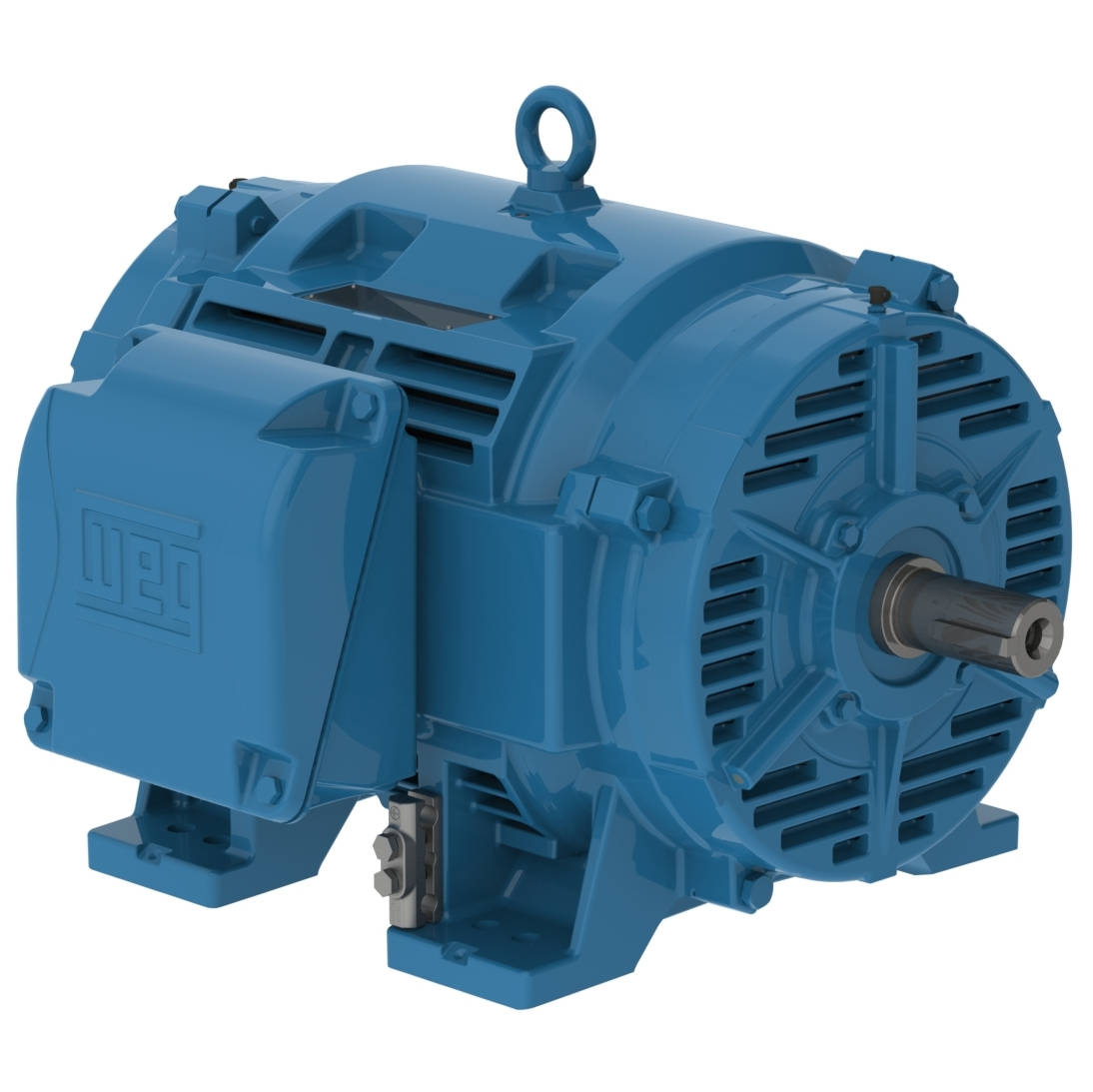

Motor/Control Division

Frame	404/5TS
Output	125 HP
Number of Poles	2
Frequency	50 Hz
Rated speed	2962 rpm
Slip	1.27 %
Rated voltage	380 V
Rated current	163 A
L. R. Amperes	1271 A
LRC	7.8x(Code H)
No load current	42.0 A
Rated torque	222 ft.lb
Locked rotor torque	350 %
Breakdown torque	350 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	12.0 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	VFD
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	84.0 dB(A)
Approx. weight?	1010 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.6	94.1	94.1

Power factor

50%	75%	100%
0.81	0.86	0.89

Frame	404/5TS
Output	125 HP
Number of Poles	2
Frequency	60 Hz
Rated speed	3572 rpm
Slip	0.78 %
Rated voltage	460 V
Rated current	136 A
L. R. Amperes	1306 A
LRC	9.6x(Code K)
No load current	43.0 A
Rated torque	184 ft.lb
Locked rotor torque	350 %
Breakdown torque	350 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	12.0 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	VFD
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	84.0 dB(A)
Approx. weight?	1010 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.6	94.1	94.1

Power factor

50%	75%	100%
0.76	0.84	0.88

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
