/Products/Electric Motors/3 Phase Stainless Steel/WEG 3-Phase Stainless Steel Electric Motors/Hydroduty/TEFC, C-Face, Foot Mount/1313017156 WEG 1HP Hydroduty Washdown Electric Motor, 3450RPM
Click Image to Expand

Product ID: 1313017156

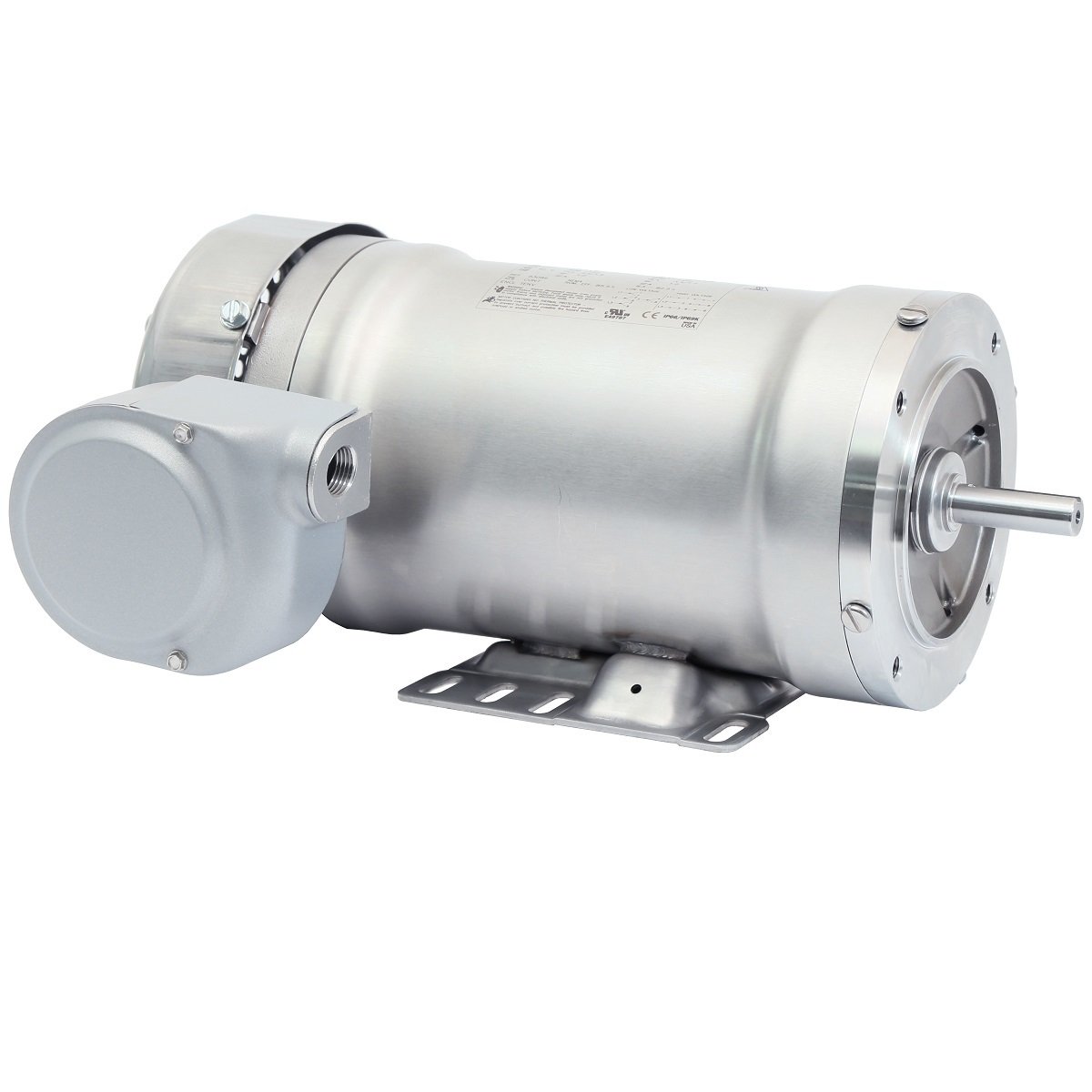

1313017156 WEG 1HP Hydroduty Washdown Electric Motor, 3450RPM

MFG: WEG Electric Corporation
MFG Part Number: 1313017156

Selected accessories will also be added to cart
$1,424.89 / Each
Quantity:
TEFC, IP66, 56C Frame, 230/460VAC 3-Phase 50/60Hz, 14418950, 53131, C-Face, Foot Mounted, Stainless Steel
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

StandardNEMA MG-1
Degree of ProtectionIP66
MountingF-1
FlangeC
Frame MaterialStainless steel
Frequency60/50 Hz
Output rating1 HP
EnclosureTEFC
Number of poles2P
Motor ApplicationHydroDuty
MountingFoot-mounted
EfficiencyNEMA Premium Efficiency
Terminal box¹Left position
Frame56C
Voltage230/460 V
Synchronous speed3600/3000 rpm

Promo Video

Documents

Type
Electric Motor
Speed
3450RPM
Frame
56C
Input Phase
3-Phase
Horsepower
1HP
Enclosure
TEFC
Input Voltage
230VAC
Input Voltage
460VAC
