/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Farm Duty/Jet End Booster Pump/1313171403 WEG 2HP Irrigation Jet End Booster Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: 1313171403

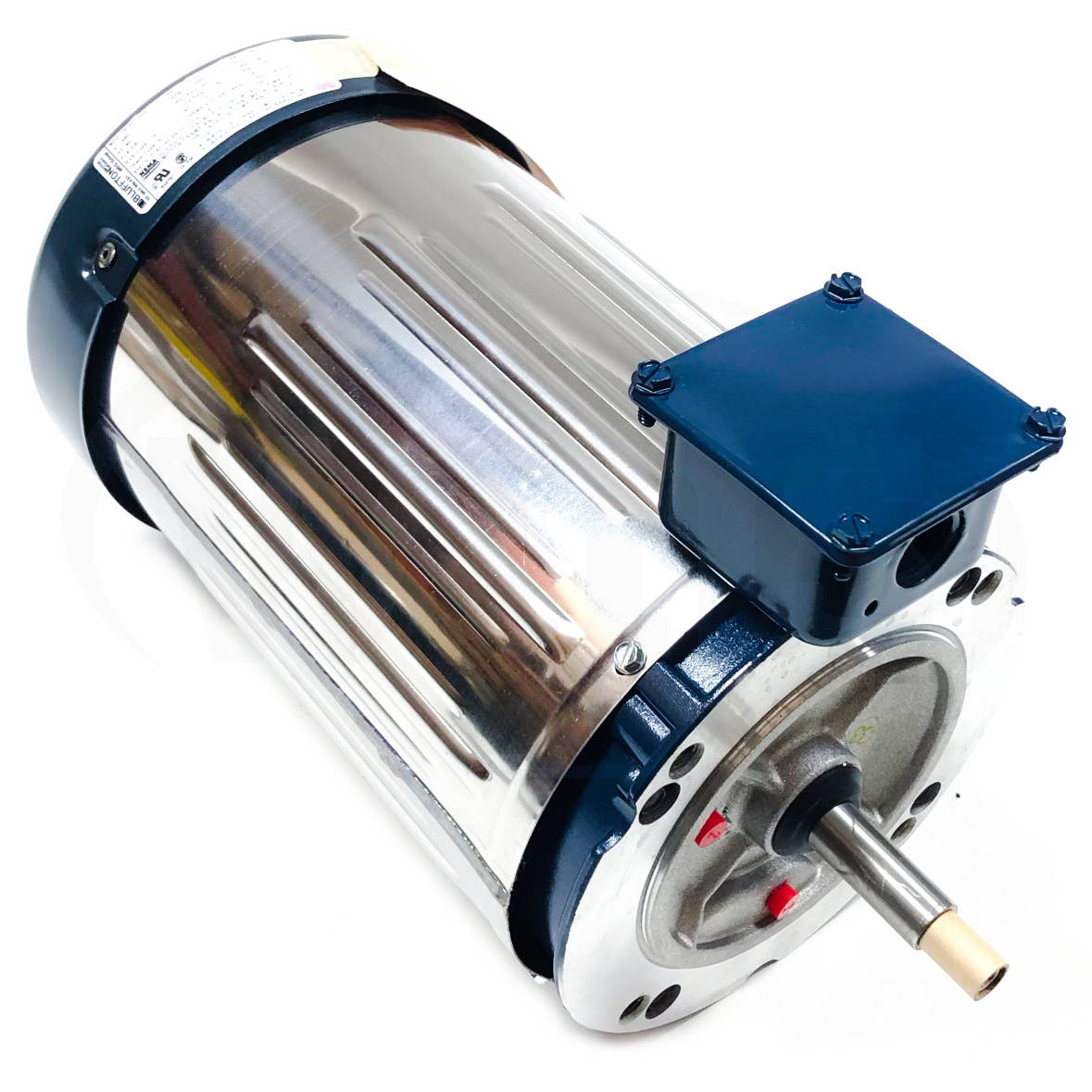

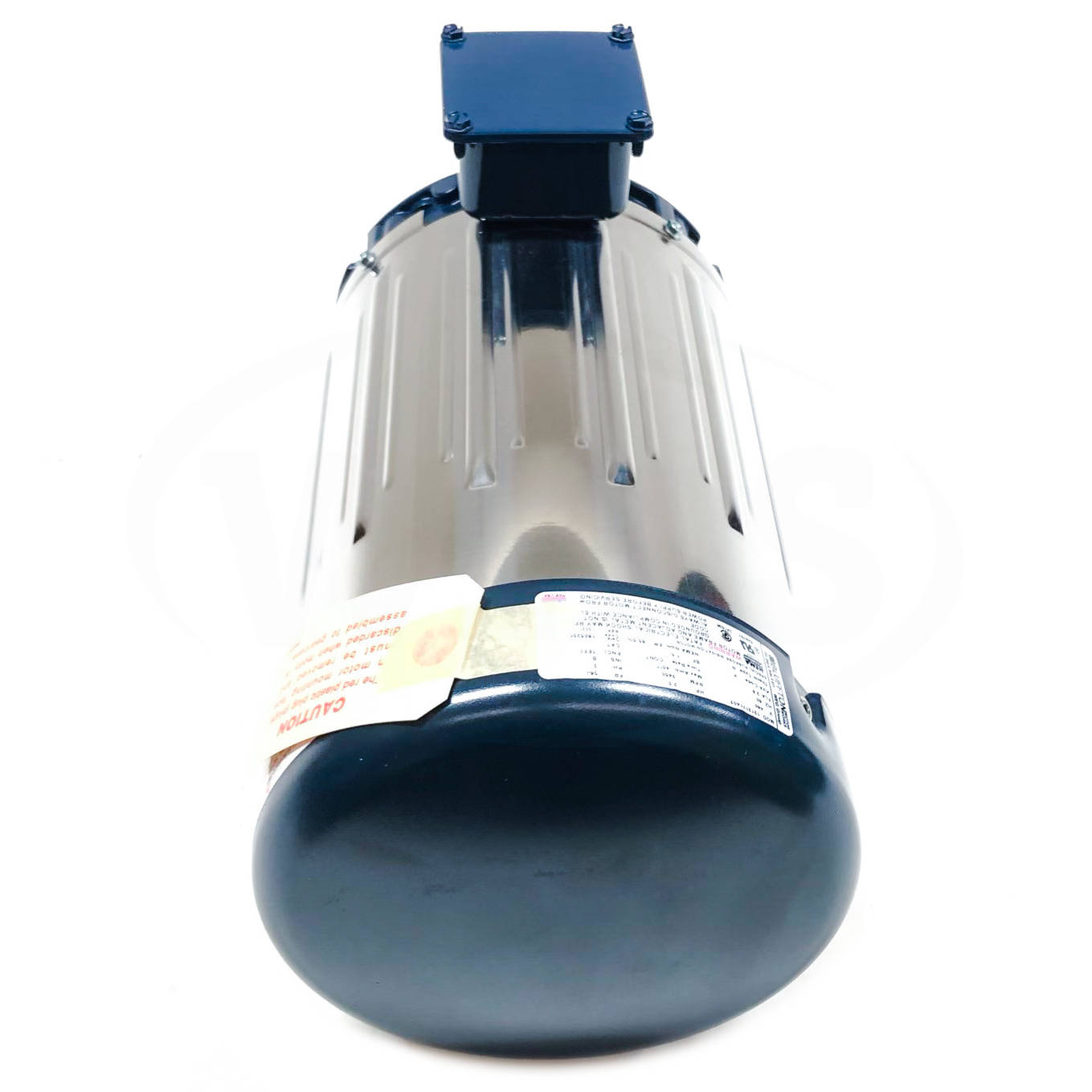

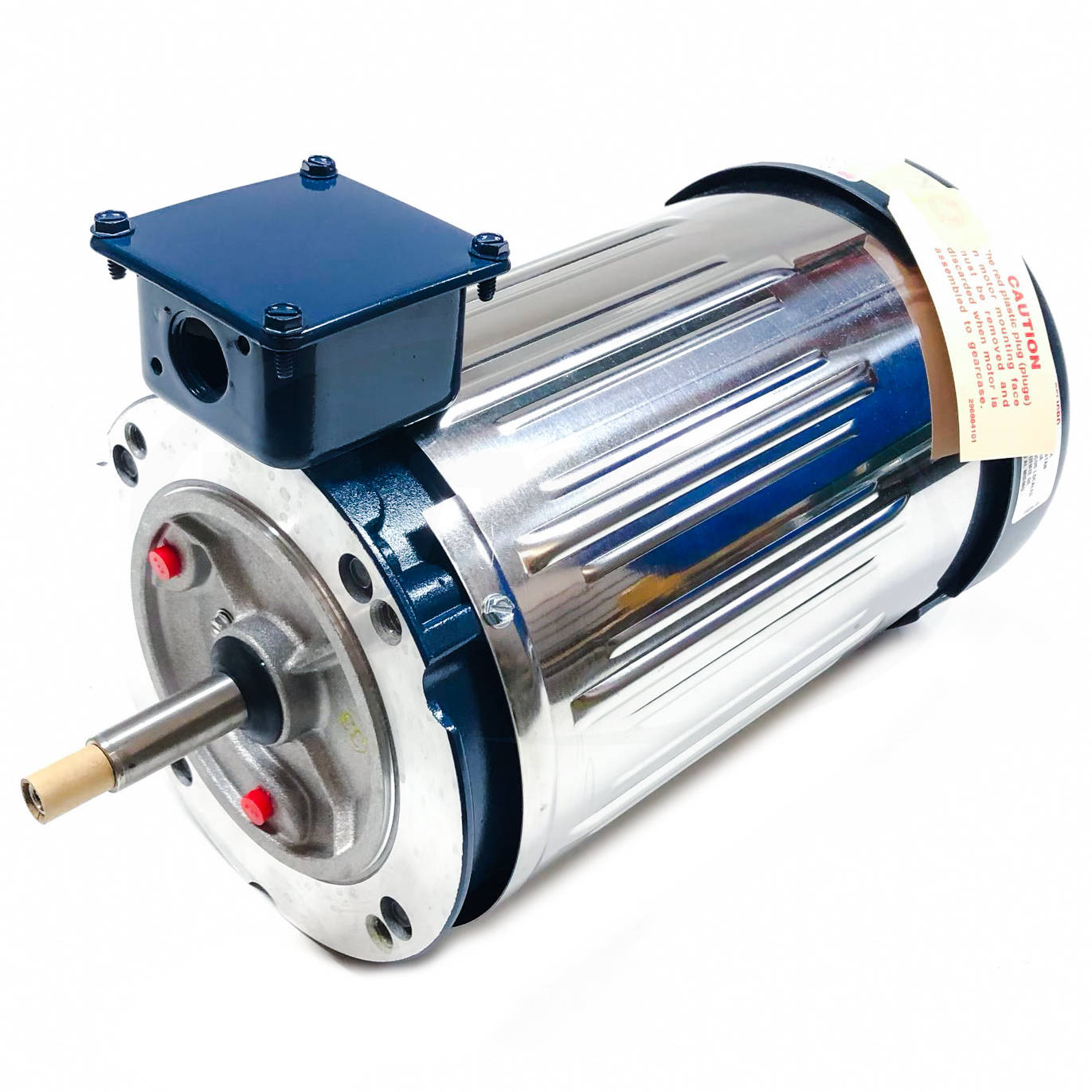

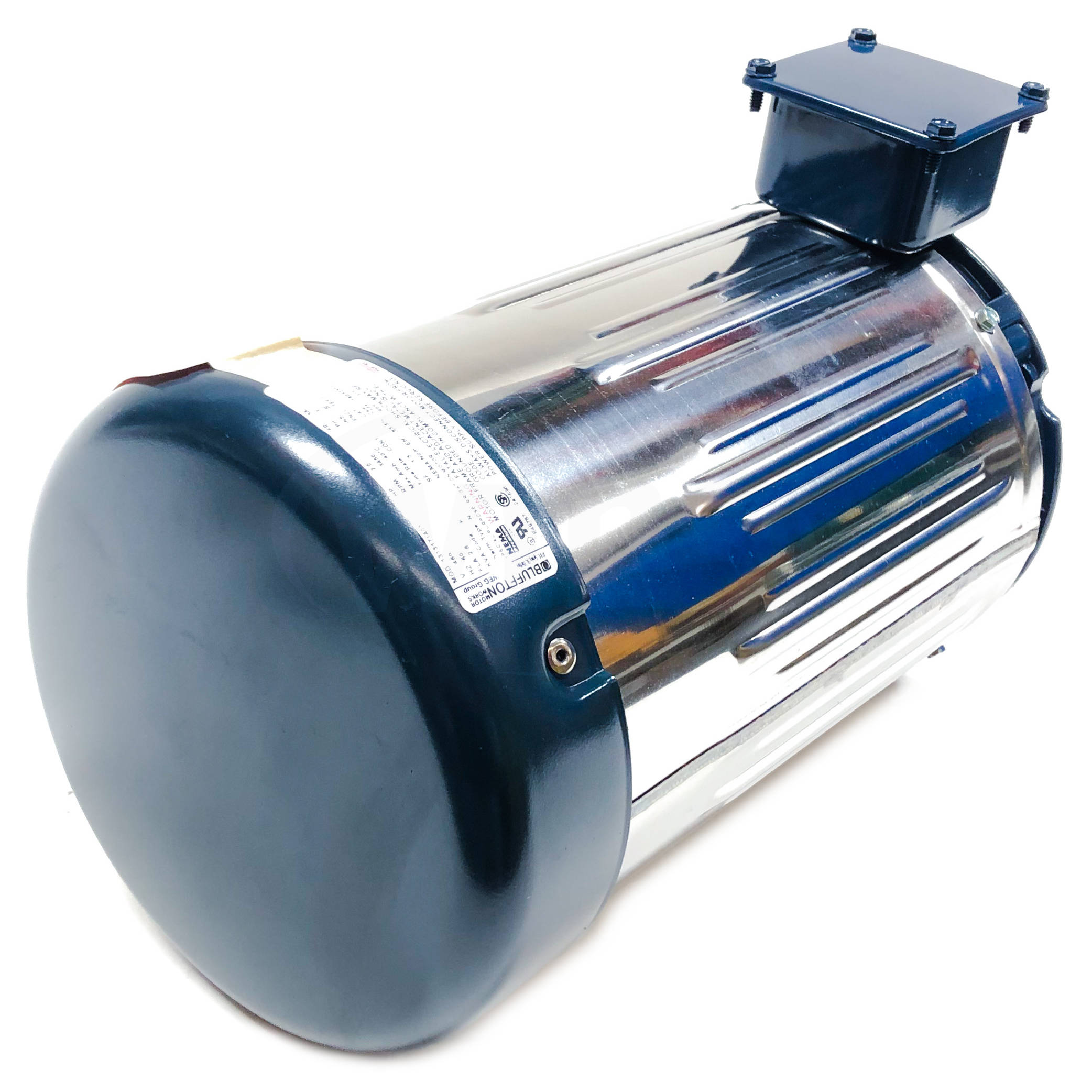

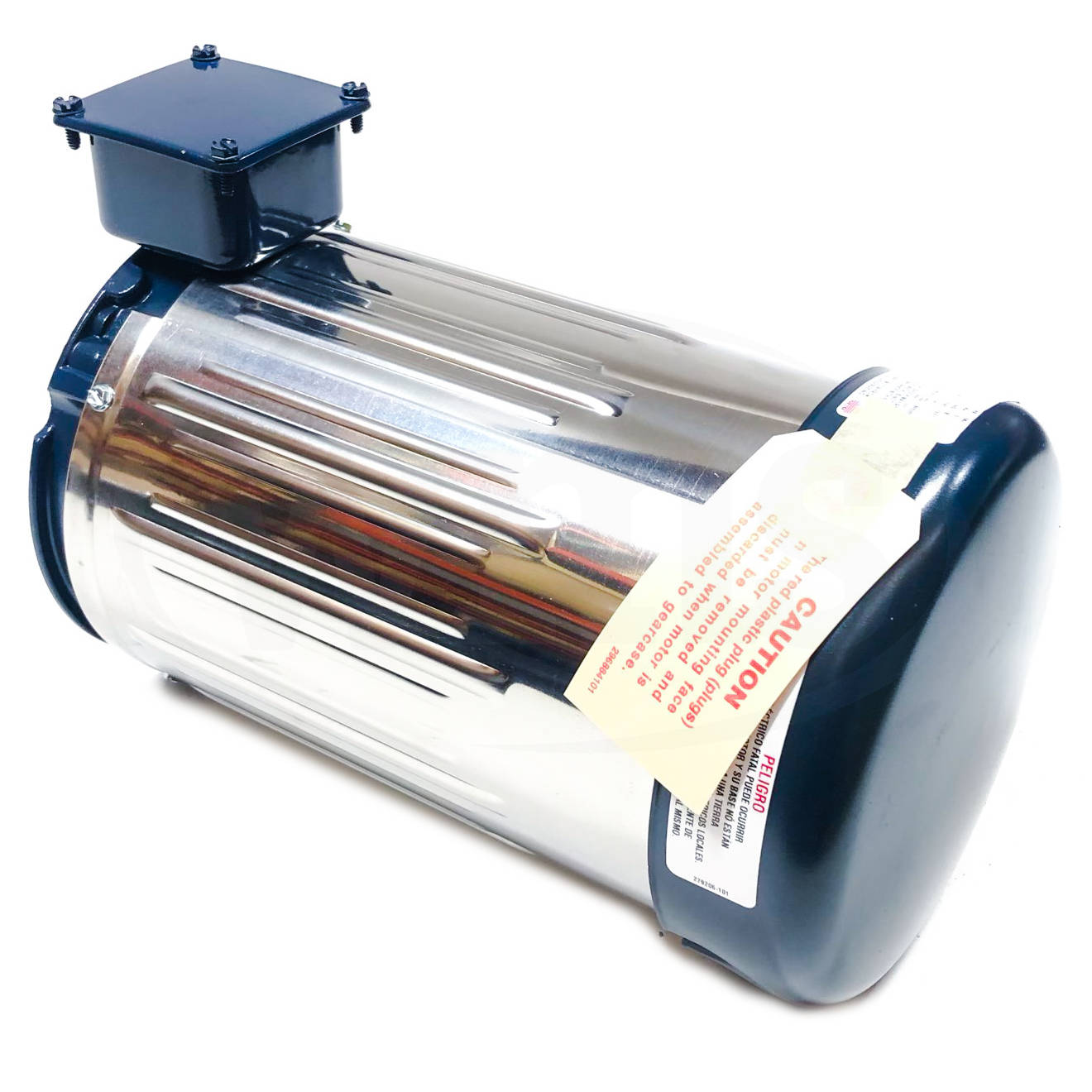

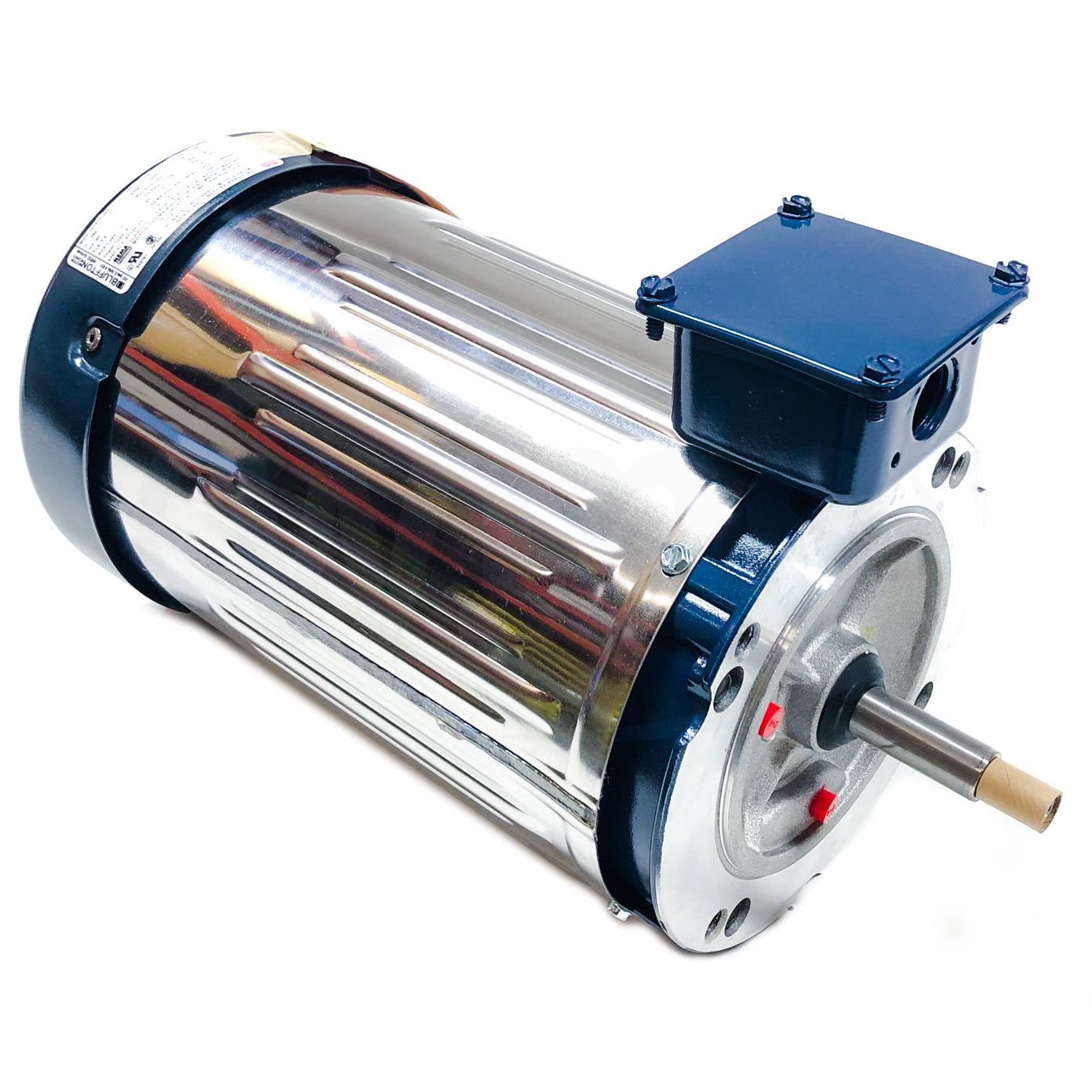

1313171403 WEG 2HP Irrigation Jet End Booster Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 1313171403

Selected accessories will also be added to cart
$744.93 / Each
Quantity:
TEFC, IP55, 56J Frame, 460VAC 3-Phase 60Hz, 14411972, Footless, Farm Duty, NEMA Premium Efficiency
Standard NEMA MG-1
Degree of Protection IP55
Mounting F-1
Flange C
Frame Material Rolled Steel
Frequency 60 Hz
Output rating 2 HP
Enclosure TEFC
Number of poles 02P
Motor Application Farm Duty
Mounting Footless
Efficiency NEMA Premium Efficiency
Terminal box¹ Left position
Frame 56J
Voltage 460 V
Synchronous speed 3600 rpm
Insulation Class B
Service Factor 1.50
KVA Code K
Full Load Amps 2.8
Max Ambient Temperature 40°C
Time Rating Continuous
NEMA Nominal Efficieny 85.5%
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
2HP
Frame
56J
Enclosure
TEFC
Input Voltage
460VAC
