/Products/Electric Motors/3 Phase Stainless Steel/WEG/Hydroduty/TENV, C-Face, Foot Mount/1323007112 WEG 1/2HP Hydroduty Washdown Electric Motor, 3450RPM
Click Image to Expand

Product ID: 1323007112

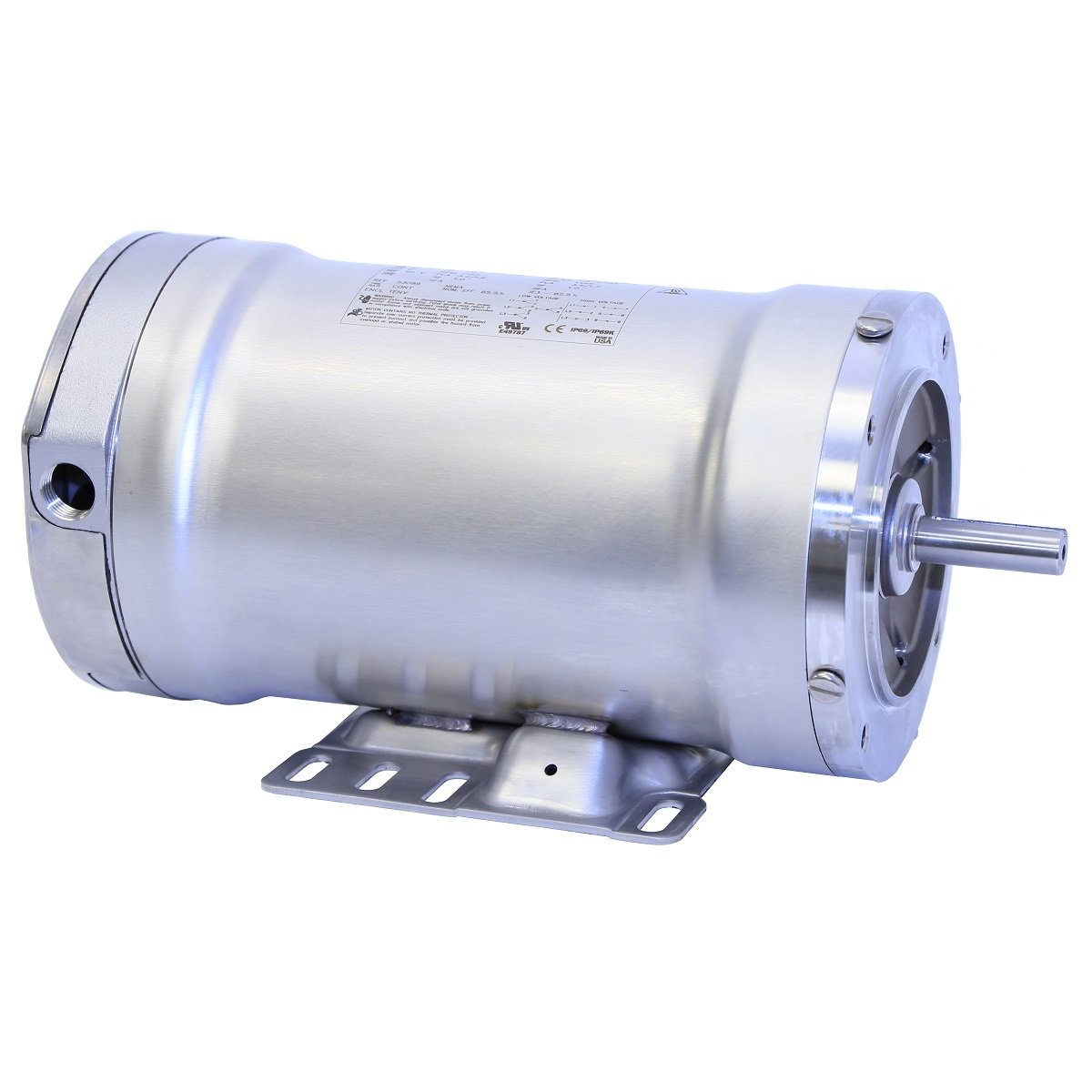

1323007112 WEG 1/2HP Hydroduty Washdown Electric Motor, 3450RPM

MFG: WEG Electric Corporation
MFG Part Number: 1323007112

Selected accessories will also be added to cart
$1,062.00 / Each
Quantity:
TENV, IP66, 56C Frame, 230/460VAC 3-Phase 50/60Hz, 14418904, 53092, C-Face, Foot Mounted, Stainless Steel
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

Standard NEMA MG-1
Degree of Protection IP66
Mounting F-1
Flange C
Frame Material Stainless steel
Frequency 60/50 Hz
Output rating 0.5 HP
Enclosure TENV
Number of poles 02P
Motor Application HydroDuty
Mounting Foot-mounted
Efficiency Standard Efficiency
Terminal box¹ Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 3600/3000 rpm

Promo Video

Documents
