/132450.00 Marathon 3HP Washdown JM Pump Electric Motor, 1800RPM
Click Image to Expand

Product ID: 132450.00

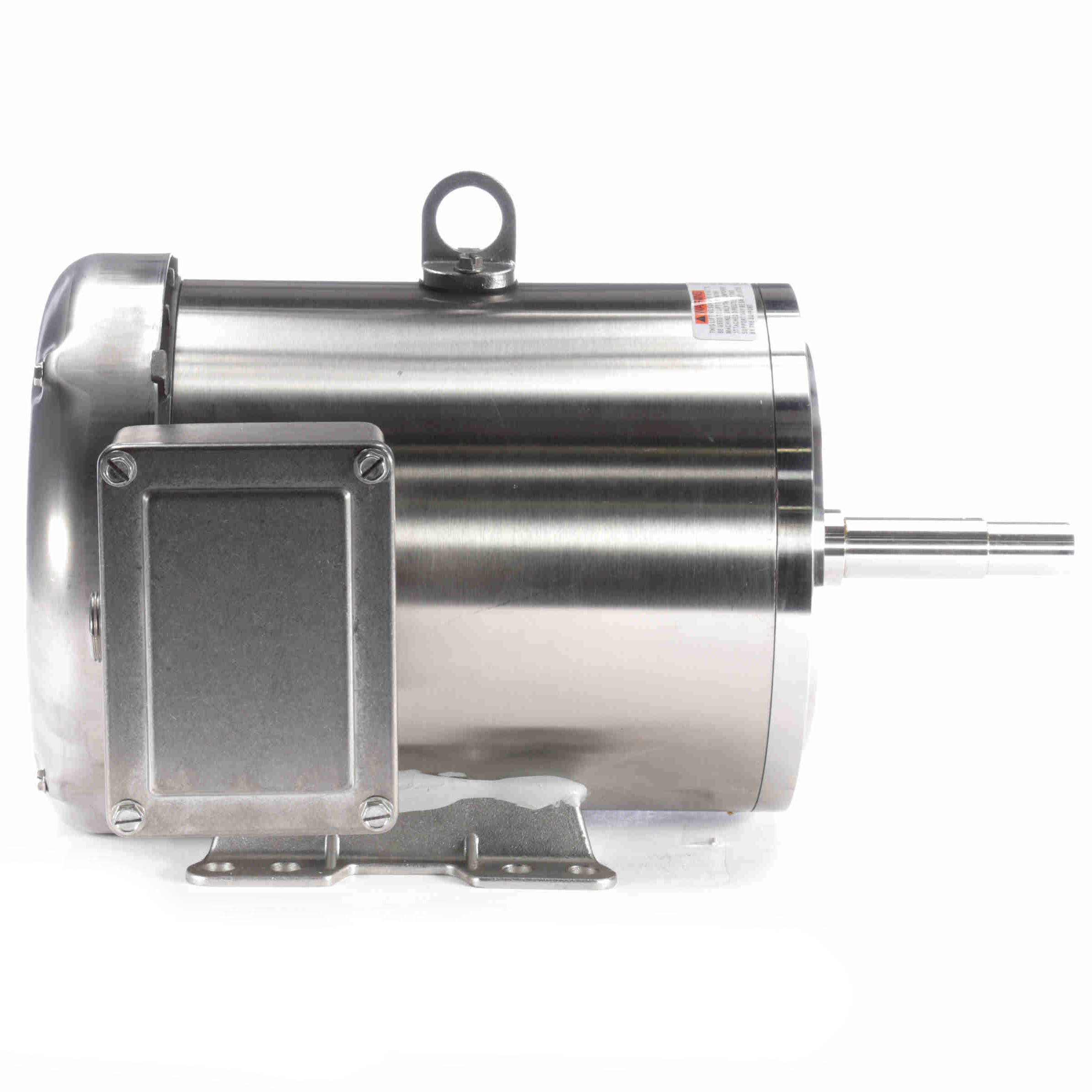

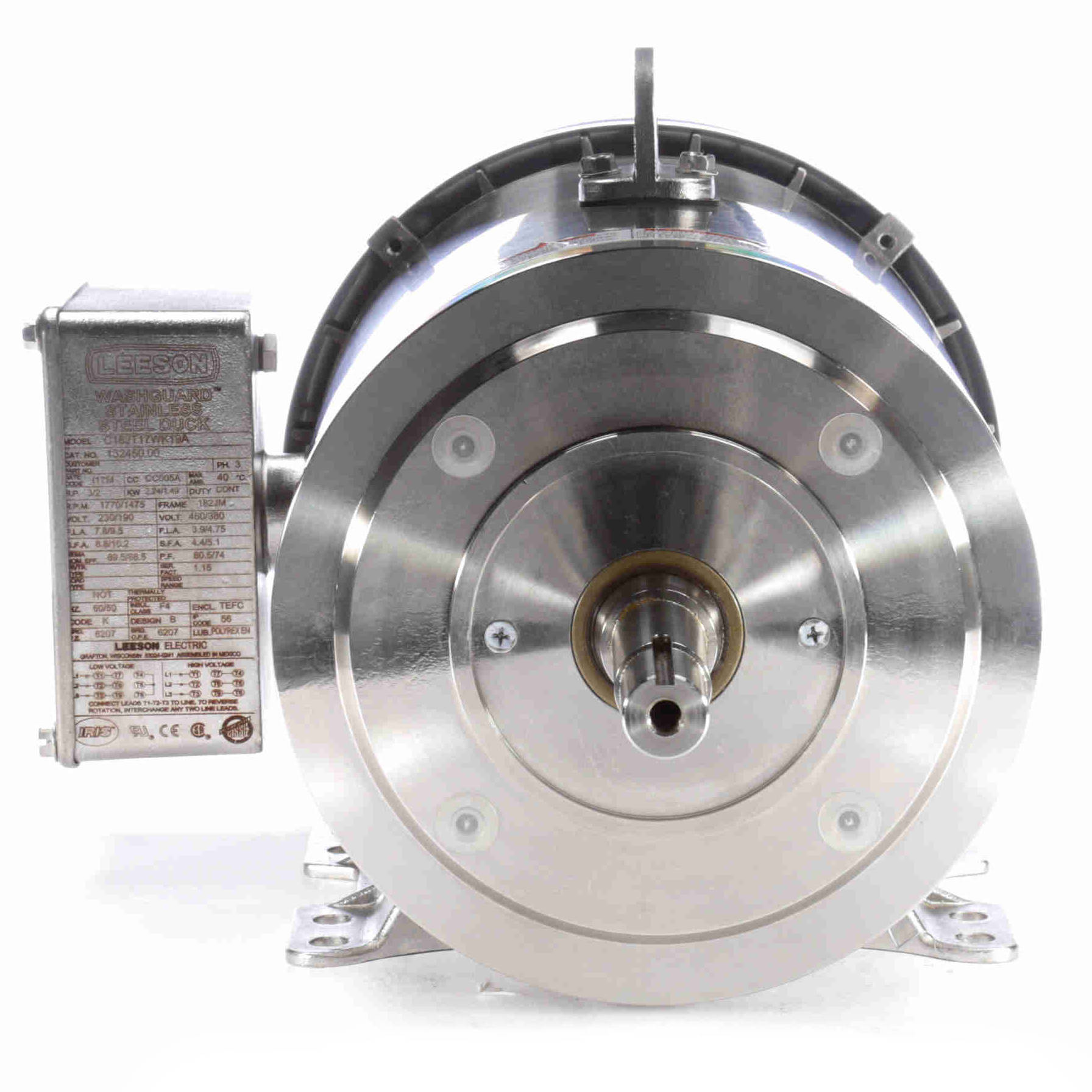

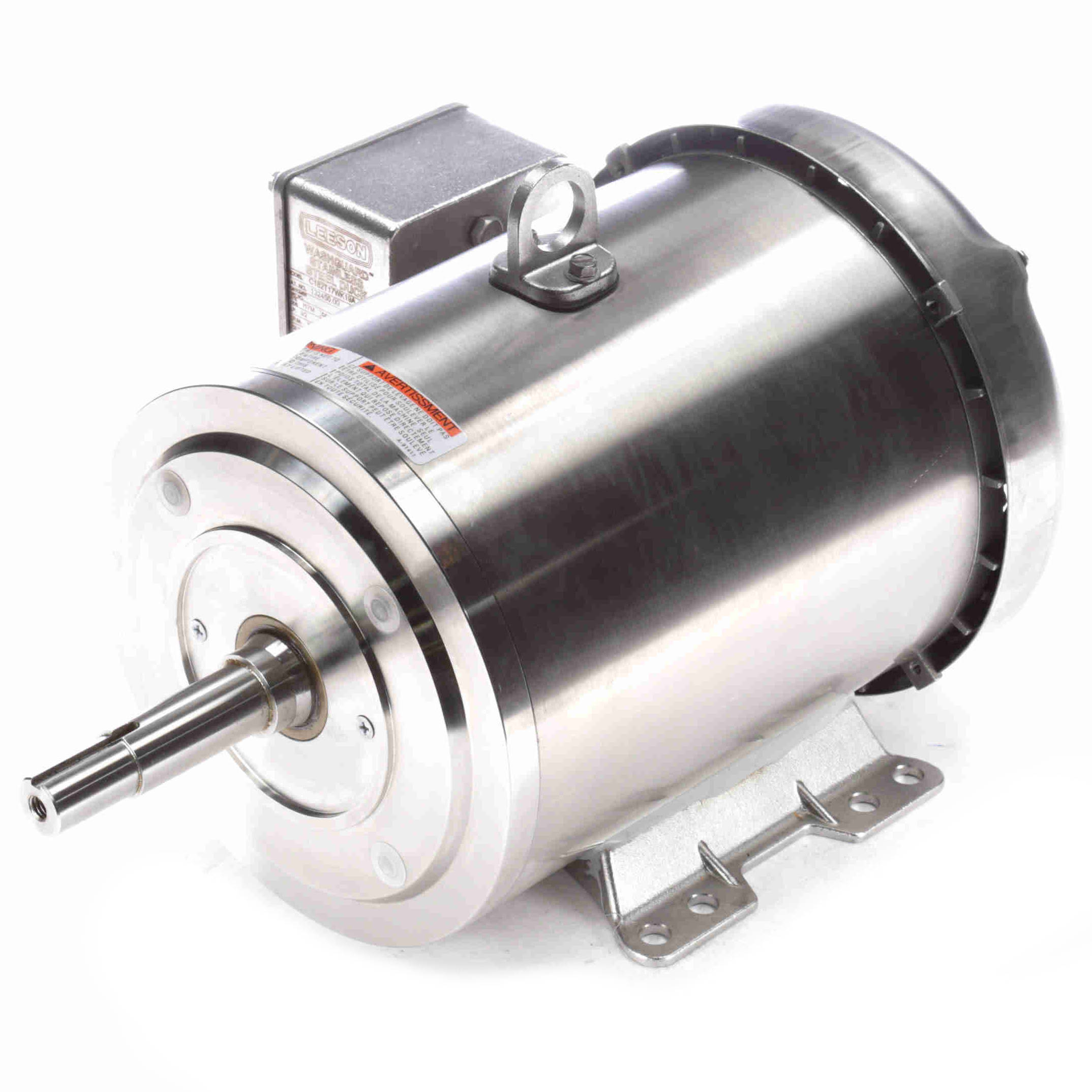

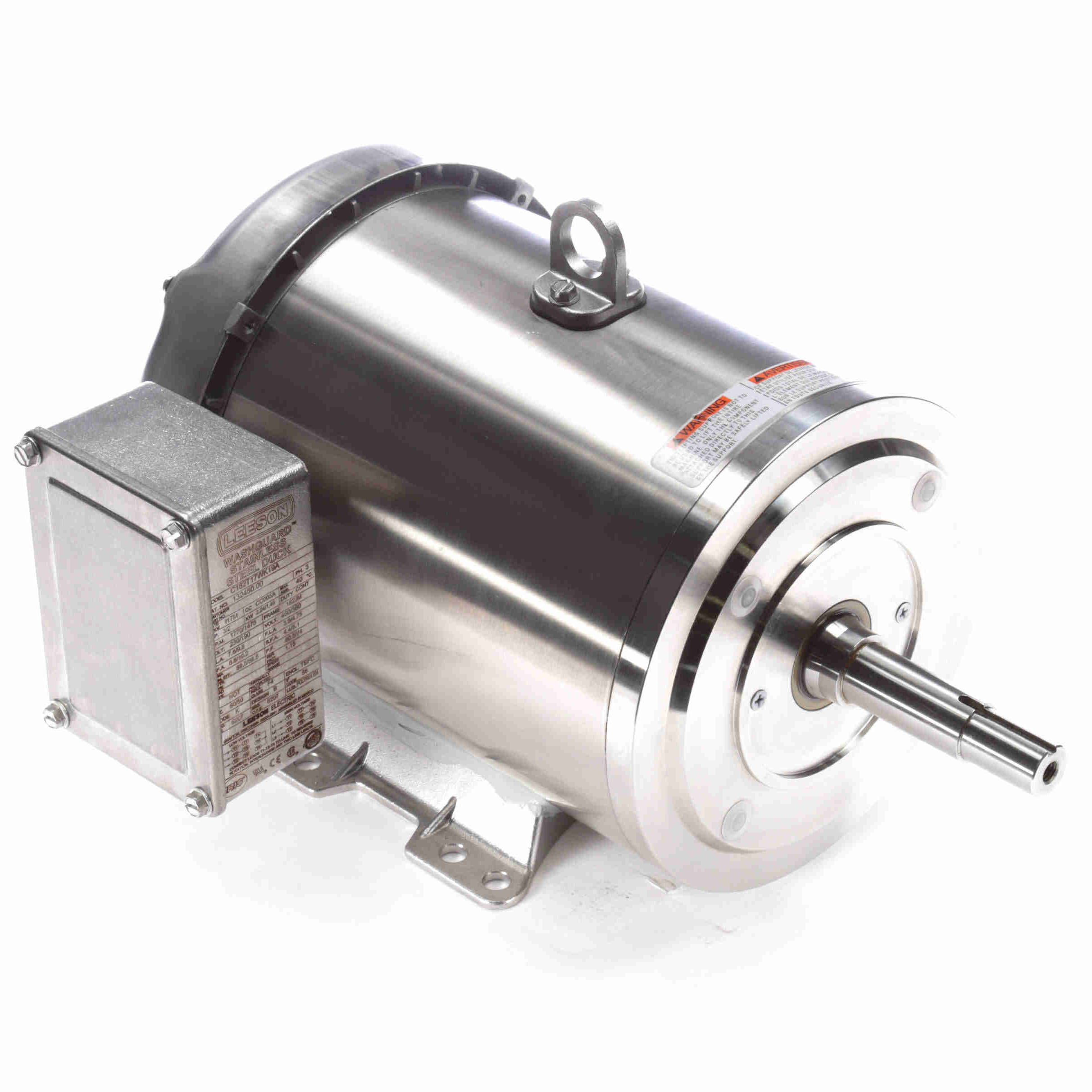

132450.00 Marathon 3HP Washdown JM Pump Electric Motor, 1800RPM

MFG: Marathon Electric
MFG Part Number: 132450.00

Selected accessories will also be added to cart
$1,520.95 / Each
Quantity:
TEFC, 182JM Frame, 230/460VAC 60Hz 3-Phase, Rigid Base, Stainless Steel Frame, 7/8" Keyed Shaft

Features

  • All exterior components are 300-series stainless steel
  • All sealing components are Viton? for superior chemical resistance
  • Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • Double-sealed bearings are pre-lubricated with moisture-resistant high-temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion
  • Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
  • Three phase motors are UL component recognized – file number E57948, guide number PRGY2
  • Full fact nameplate is laser etched on the motor frame

General Specifications

UPC:691720053164Weight:94.00 LB
Packaged Length:17.94 INPackaged Width:13.06 IN
Packaged Height:12.88 IN

Nameplate Specifications

Output HP:3 HpOutput KW:2.2 kW
Frequency:60 HzVoltage:230/460 V
Current:7.8/3.9 ASpeed:1770 rpm
Service Factor:1.15Phase:3
Efficiency:89.5 %Power Factor:80.5
Duty:ContinuousInsulation Class:F
Design Code:BKVA Code:K
Frame:182JMEnclosure:Totally Enclosed Fan Cooled
Thermal Protection:NoAmbient Temperature:40 ?C
Drive End Bearing Size:6207Opp Drive End Bearing Size:6207
UL:RecognizedCSA:Y
CE:YIP Code:43

Technical Specifications

Electrical Type:Squirrel Cage Inverter RatedStarting Method:Line Or Inverter
Poles:4Rotation:Reversible
Resistance Main:6.08 OhmsMounting:Rigid base
Motor Orientation:HORIZONTALDrive End Bearing:BALL
Opp Drive End Bearing:BALLFrame Material:Stainless Steel
Shaft Type:JMOverall Length:16.20 in
Frame Length:9.00 inShaft Diameter:0.875 in
Shaft Extension:4.28 inAssembly/Box Mounting:F1 ONLY

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor33.50859.022.50253.000.000.03.00
Break-Down21.50551.036.00404.000.000.03.00
Pull-Up33.00846.021.00236.000.000.03.00
Full Load3.90100.08.90100.01,7700.0080.53.00

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %115 %125 %150 %
Current (Amps)1.902.102.563.183.904.404.735.61
Rated Output (KW)0.110.691.281.872.502.863.133.79
Efficiency (%)0.080.887.789.689.589.989.588.5
Power Factor (%)6.941.462.773.880.581.683.084.7
Speed (RPM)1,7981,7921,7851,7771,7701,7661,7551,750
Temp. Rise @ FL0.00.00.00.040.047.060.00.0
Torque (ft-lbs)0.002.204.426.648.9110.2611.2013.49
Type
Electric Motor
Speed
1800RPM
Horsepower
3HP
Input Phase
3-Phase
Enclosure
TEFC
Frame
182JM
