/132452.00 Marathon 5HP Washdown JM Pump Electric Motor, 1800RPM
Click Image to Expand

Product ID: 132452.00

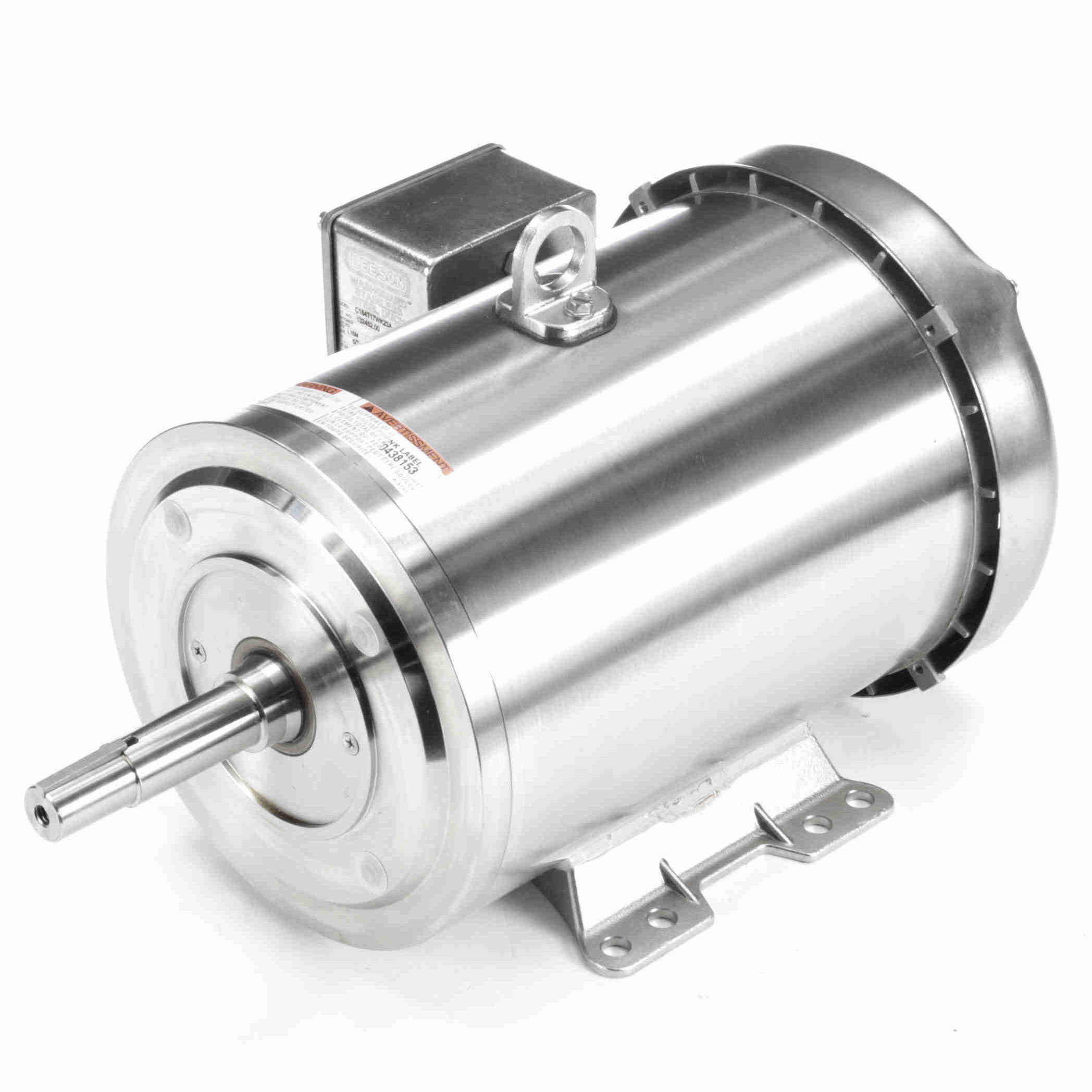

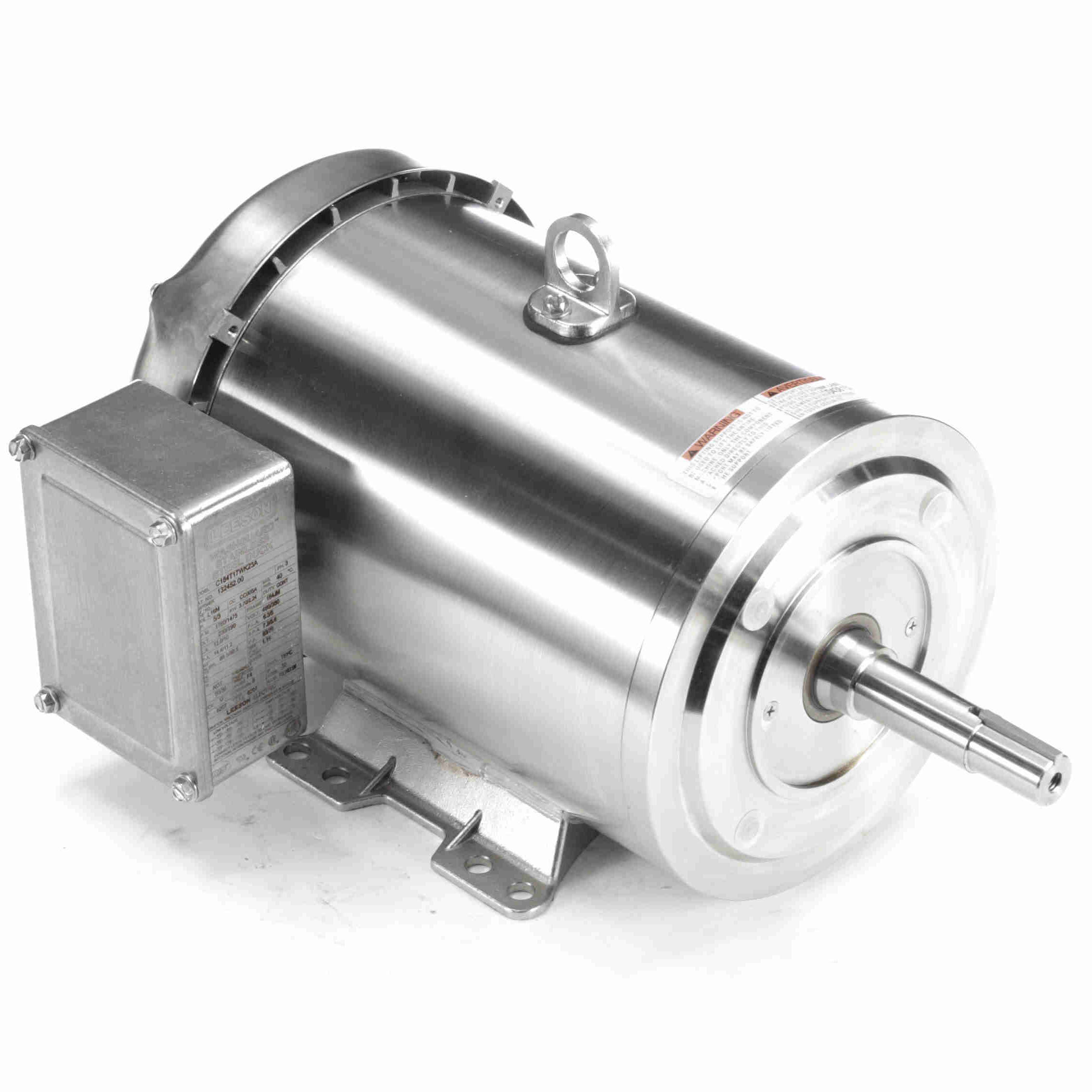

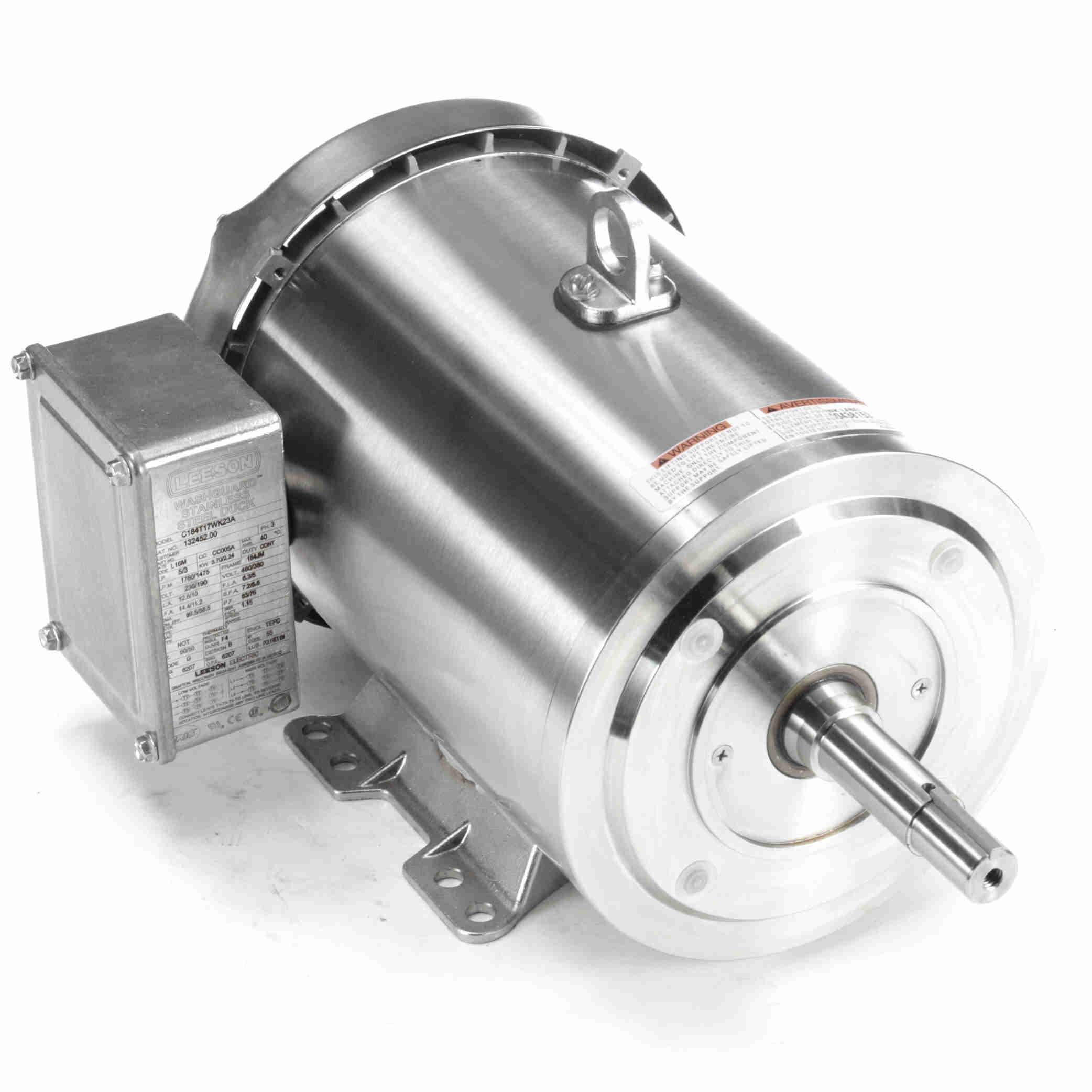

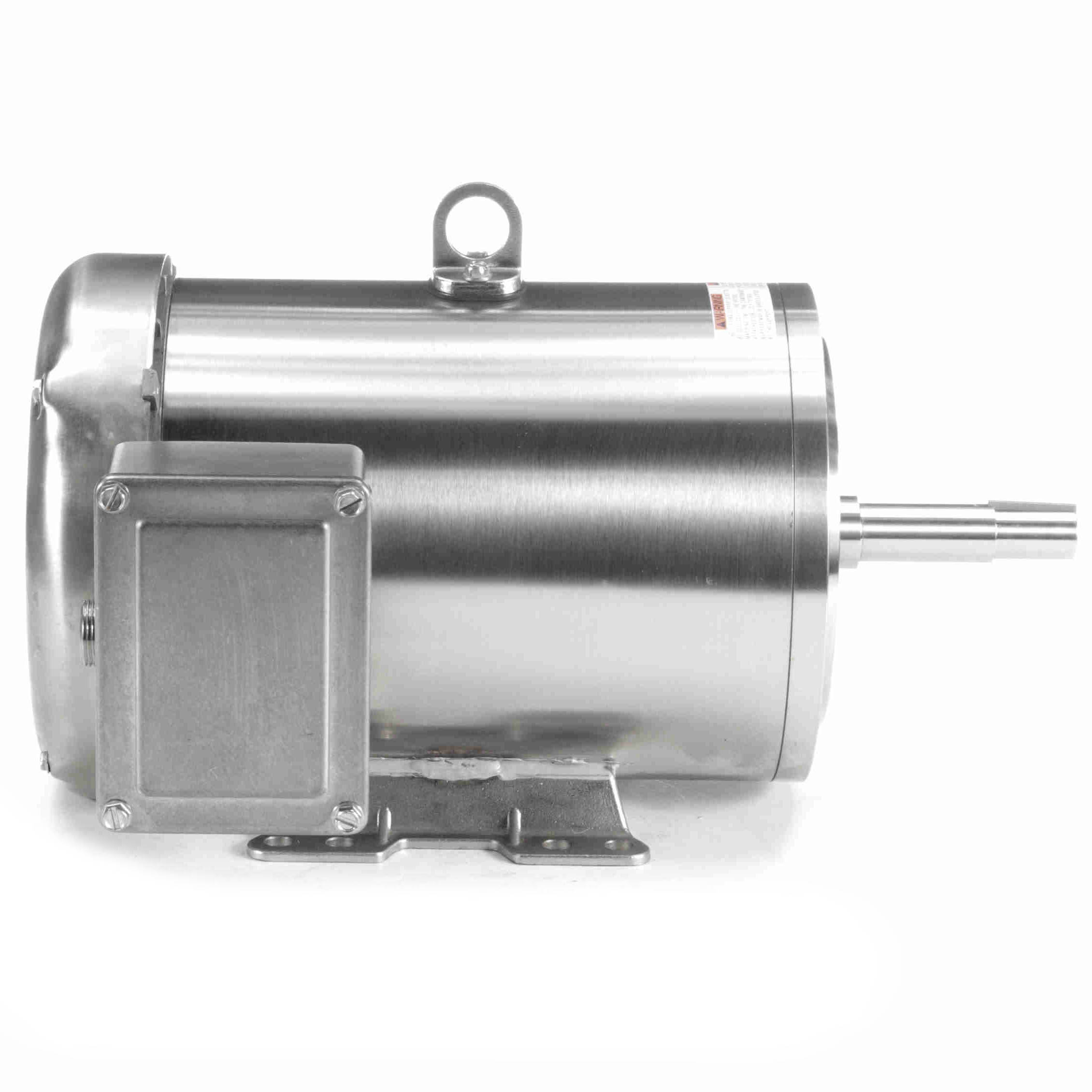

132452.00 Marathon 5HP Washdown JM Pump Electric Motor, 1800RPM

MFG: Marathon Electric
MFG Part Number: 132452.00

Available Stock: 1
Selected accessories will also be added to cart
$1,820.36 / Each
Quantity:
TEFC, 184JM Frame, 230/460VAC 60Hz 3-Phase, Rigid Base, Stainless Steel Frame, 7/8" Keyed Shaft

Features

  • All exterior components are 300-series stainless steel
  • All sealing components are Viton? for superior chemical resistance
  • Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • Double-sealed bearings are pre-lubricated with moisture-resistant high-temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion
  • Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
  • Three phase motors are UL component recognized – file number E57948, guide number PRGY2
  • Full fact nameplate is laser etched on the motor frame

General Specifications

UPC:691720053188Weight:100.00 LB
Packaged Length:17.94 INPackaged Width:13.06 IN
Packaged Height:12.88 IN

Nameplate Specifications

Output HP:5 HpOutput KW:3.7 kW
Frequency:60 HzVoltage:230/460 V
Current:12.6/6.3 ASpeed:1760 rpm
Service Factor:1.15Phase:3
Efficiency:89.5 %Power Factor:83
Duty:ContinuousInsulation Class:F
Design Code:BKVA Code:G
Frame:184JMEnclosure:Totally Enclosed Fan Cooled
Thermal Protection:NoAmbient Temperature:40 ?C
Drive End Bearing Size:6207Opp Drive End Bearing Size:6207
UL:RecognizedCSA:Y
CE:YIP Code:56

Technical Specifications

Electrical Type:Squirrel Cage Inverter RatedStarting Method:Line Or Inverter
Poles:4Rotation:Reversible
Resistance Main:2.68 OhmsMounting:Rigid Base
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Stainless Steel
Shaft Type:JMOverall Length:17.27 in
Frame Length:10.00 inShaft Diameter:0.875 in
Shaft Extension:4.21 inAssembly/Box Mounting:F1/F2 CAPABLE

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up0.000.029.80199.000.000.05.00
Full Load6.30100.014.96100.004.170.05.00
Break-Down0.000.050.20336.000.000.05.00
Locked-Rotor49.00778.030.10201.000.000.05.00

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %115 %125 %150 %
Current (Amps)2.402.803.724.906.307.207.809.46
Rated Output (KW)0.131.092.103.104.174.835.306.49
Efficiency (%)0.085.988.990.289.589.388.086.2
Power Factor (%)6.848.870.979.483.184.285.386.1
Speed (RPM)1,7981,7901,7791,7681,7601,7471,7421,727
Temp. Rise @ FL0.00.00.00.065.090.0110.00.0
Torque (ft-lbs)0.003.687.3911.1314.9617.3818.8422.80
Type
Electric Motor
Speed
1800RPM
Horsepower
5HP
Input Phase
3-Phase
Enclosure
TEFC
Frame
184JM
