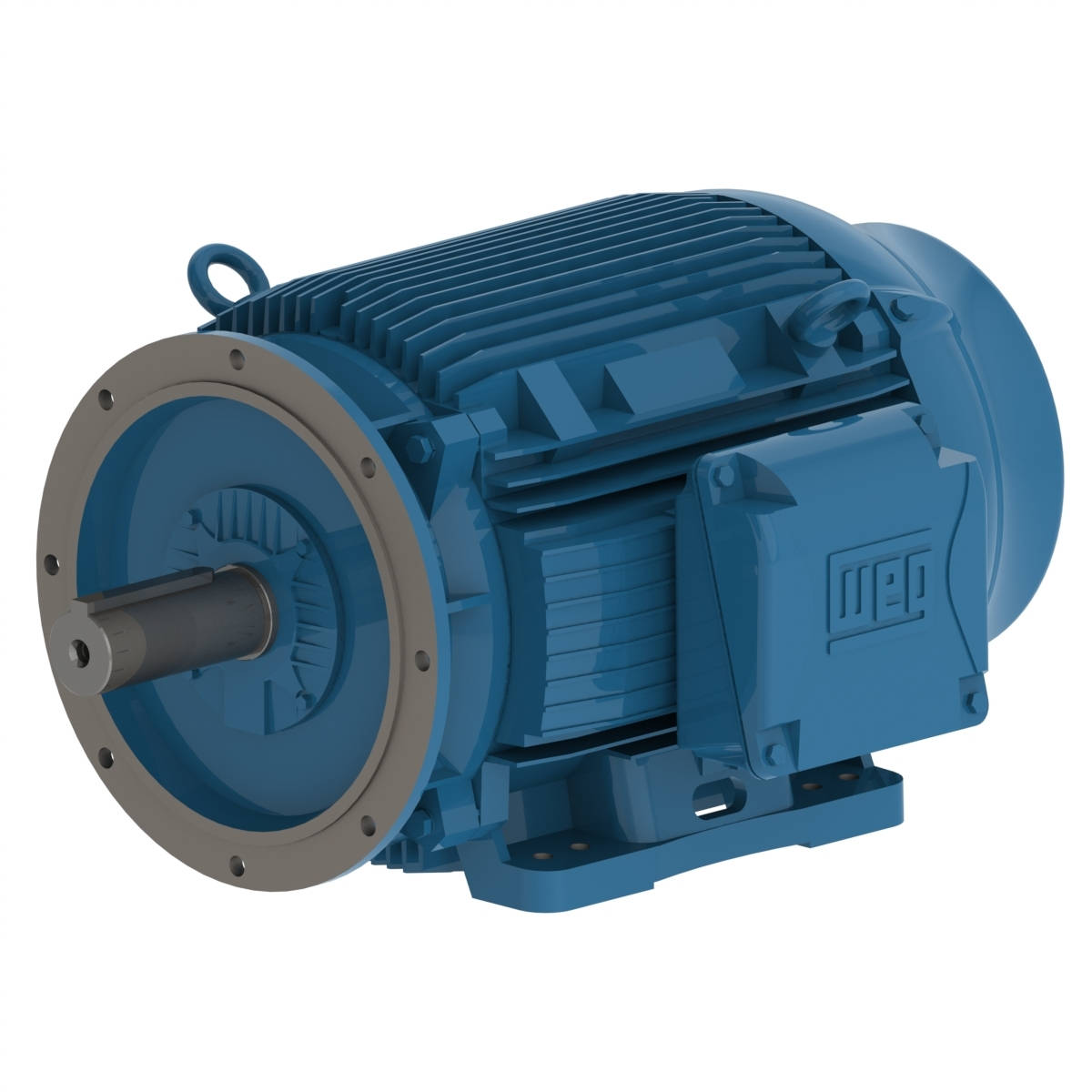

15018ET3G445TSDF2-W22 WEG 150HP Severe Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 15018ET3G445TSDF2-W2

15018ET3G445TSDF2-W22 WEG 150HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 15018ET3G445TSDF2-W2

Selected accessories will also be added to cart
$16,318.15 / Each
Quantity:
IC411 - TEFC, IP55, 444TSD/445TSD Frame, 460VAC 60Hz 3 Phase, 11722406, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F-2 Terminal Box Mounting, 2-3/8" Keyed Shaft
Frame444/5TSD
Output150 HP (110 kW)
Number of Poles4
Frequency60 Hz
Rated speed1780 rpm
Slip1.11 %
Rated voltage460 V
Rated current170 A
L. R. Amperes1122 A
LRC6.6x(Code G)
No load current58.0 A
Rated torque443 ft.lb
Locked rotor torque200 %
Breakdown torque250 %
Locked rotor time48s (cold) 27s (hot)
Moment of inertia (J)66.7 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-2
Rotation?Both (CW and CCW)
Noise level?73.0 dB(A)
Approx. weight?1873 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  95.8

Power factor

50%75%100%
0.74  0.82  0.85
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Severe Duty
Enclosure
TEFC
Enclosure
TEFC
Horsepower
150HP
Input Voltage
460VAC
Frame
444TSD/445TSD
