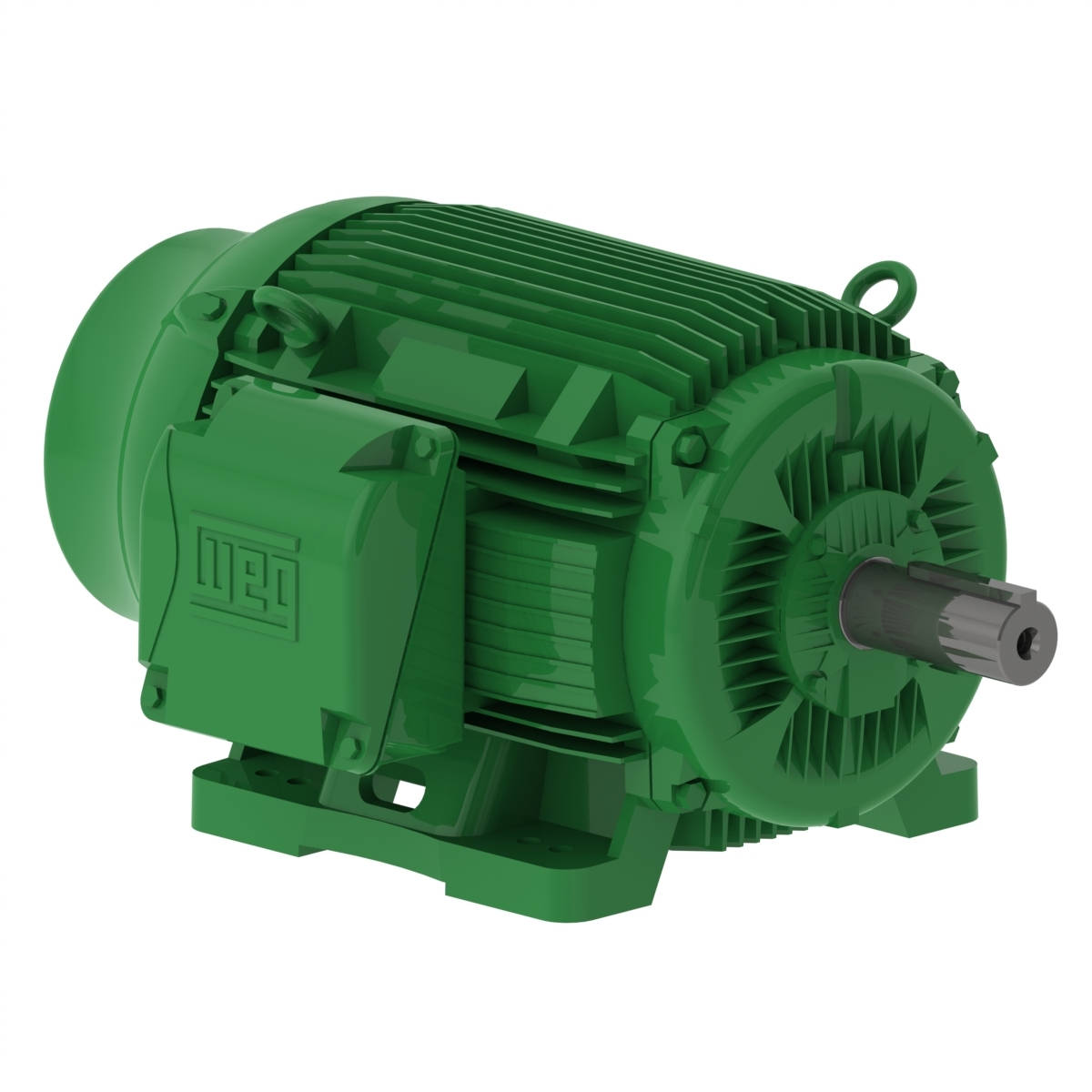

15036EG3G445TS-W22 WEG 150HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 15036EG3G445TS-W22

15036EG3G445TS-W22 WEG 150HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 15036EG3G445TS-W22

Selected accessories will also be added to cart
$18,485.30 / Each
Quantity:
IC411 - TEFC, IP55, 444TS/445TS Frame, 460VAC 60Hz 3 Phase, 11792526, Super Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame444/5TS
Output150 HP (110 kW)
Number of Poles2
Frequency60 Hz
Rated speed3580 rpm
Slip0.56 %
Rated voltage460 V
Rated current163 A
L. R. Amperes1288 A
LRC7.9x(Code H)
No load current53.0 A
Rated torque220 ft.lb
Locked rotor torque260 %
Breakdown torque320 %
Locked rotor time54s (cold) 30s (hot)
Moment of inertia (J)38.5 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?81.0 dB(A)
Approx. weight?1903 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  95.8  96.2

Power factor

50%75%100%
0.77  0.85  0.88
Frame444/5TS
Output150 HP (110 kW)
Number of Poles2
Frequency50 Hz
Rated speed2975 rpm
Slip0.83 %
Rated voltage380 V
Rated current194 A
L. R. Amperes1280 A
LRC6.6x(Code G)
No load current52.0 A
Rated torque265 ft.lb
Locked rotor torque200 %
Breakdown torque260 %
Locked rotor time37s (cold) 21s (hot)
Moment of inertia (J)38.5 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?1903 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  95.8

Power factor

50%75%100%
0.82  0.88  0.90
Frame444/5TS
Output150 HP (110 kW)
Number of Poles2
Frequency50 Hz
Rated speed2980 rpm
Slip0.67 %
Rated voltage400 V
Rated current185 A
L. R. Amperes1332 A
LRC7.2x(Code G)
No load current56.0 A
Rated torque264 ft.lb
Locked rotor torque210 %
Breakdown torque280 %
Locked rotor time37s (cold) 21s (hot)
Moment of inertia (J)38.5 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?1903 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.8  96.2  96.2

Power factor

50%75%100%
0.80  0.87  0.89
Frame444/5TS
Output150 HP (110 kW)
Number of Poles2
Frequency50 Hz
Rated speed2980 rpm
Slip0.67 %
Rated voltage415 V
Rated current181 A
L. R. Amperes1376 A
LRC7.6x(Code H)
No load current58.0 A
Rated torque264 ft.lb
Locked rotor torque229 %
Breakdown torque300 %
Locked rotor time37s (cold) 21s (hot)
Moment of inertia (J)38.5 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?1903 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.8  96.2  96.2

Power factor

50%75%100%
0.78  0.86  0.88

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 6002 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
TEFC
Enclosure
TEFC
Horsepower
150HP
Input Voltage
460VAC
Frame
444TS
Frame
445TS
