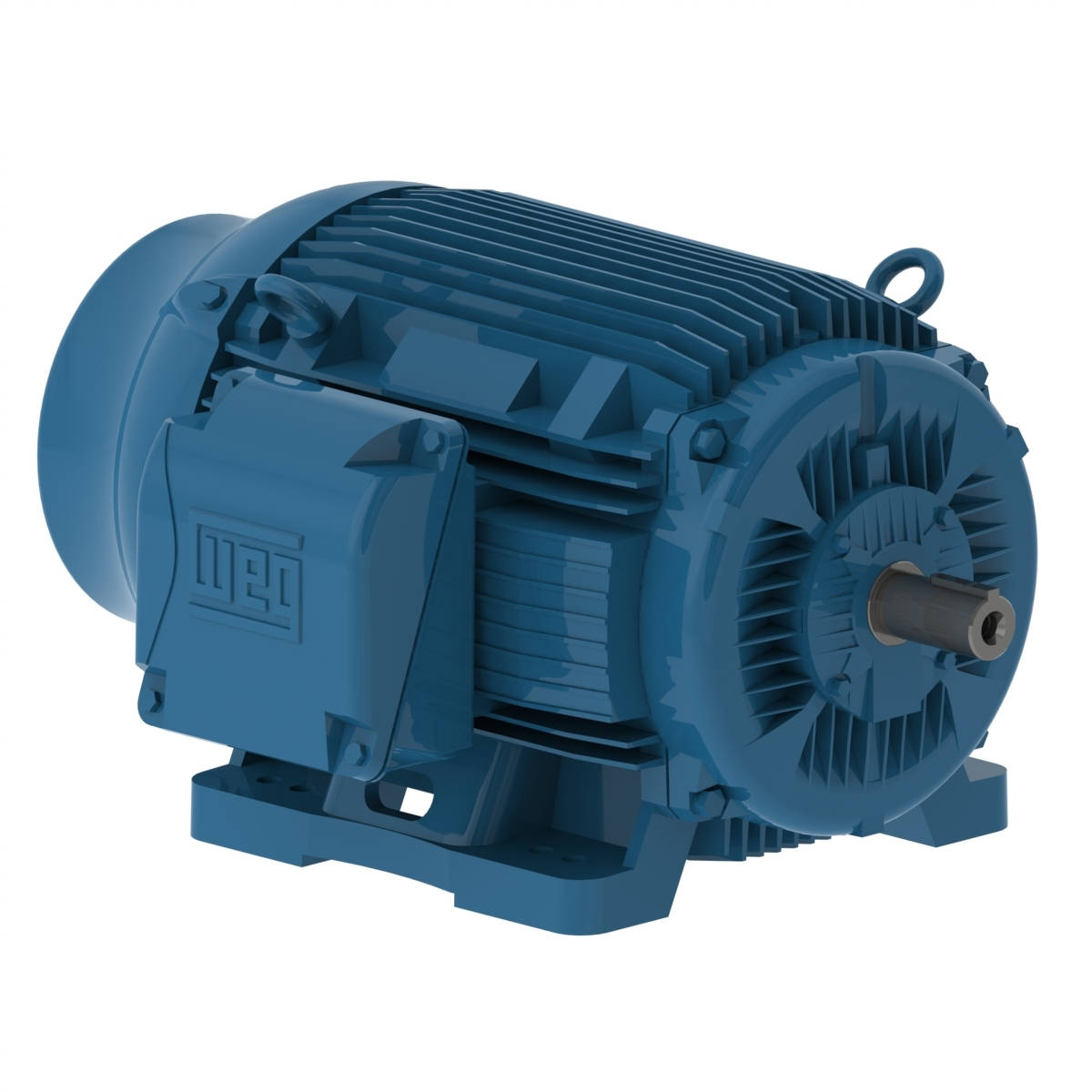

15036ET3E445TS-W22 WEG 150HP Severe Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 15036ET3E445TS-W22

15036ET3E445TS-W22 WEG 150HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 15036ET3E445TS-W22

Selected accessories will also be added to cart
$14,161.50 / Each
Quantity:
IC411 - TEFC, IP55, 444TS/445TS Frame, 230/460/380VAC 50/60Hz 3 Phase, 11165997, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame 444/5TS
Output 150 HP (110 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3570 rpm
Slip 0.83 %
Rated voltage 230/460 V
Rated current 326/163 A
L. R. Amperes 2119/1060 A
LRC 6.5x(Code G)
No load current 82.0/41.0 A
Rated torque 221 ft.lb
Locked rotor torque 180 %
Breakdown torque 240 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 39.1 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 1739 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  95.0  95.0

Power factor

50% 75% 100%
0.83  0.88  0.89
Frame 444/5TS
Output 125 HP
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 380 V
Rated current 162 A
L. R. Amperes 988 A
LRC 6.1x(Code F)
No load current 41.0 A
Rated torque 221 ft.lb
Locked rotor torque 170 %
Breakdown torque 229 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 39.1 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1739 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.7  94.4  95.0

Power factor

50% 75% 100%
0.81  0.88  0.89
Frame 444/5TS
Output 125 HP
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 154 A
L. R. Amperes 1063 A
LRC 6.9x(Code G)
No load current 43.1 A
Rated torque 221 ft.lb
Locked rotor torque 190 %
Breakdown torque 250 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 39.1 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1739 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  94.9  95.0

Power factor

50% 75% 100%
0.79  0.88  0.89
Frame 444/5TS
Output 125 HP
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 148 A
L. R. Amperes 1080 A
LRC 7.3x(Code G)
No load current 45.1 A
Rated torque 221 ft.lb
Locked rotor torque 200 %
Breakdown torque 280 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 39.1 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1739 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  94.9  95.0

Power factor

50% 75% 100%
0.77  0.87  0.89
Frame 444/5TS
Output 150 HP (110 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 200 A
L. R. Amperes 1020 A
LRC 5.1x(Code D)
No load current 41.0 A
Rated torque 266 ft.lb
Locked rotor torque 140 %
Breakdown torque 190 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 39.1 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1739 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  94.5  94.1

Power factor

50% 75% 100%
0.86  0.89  0.89
Frame 444/5TS
Output 150 HP (110 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 400 V
Rated current 189 A
L. R. Amperes 1077 A
LRC 5.7x(Code E)
No load current 43.1 A
Rated torque 266 ft.lb
Locked rotor torque 160 %
Breakdown torque 210 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 39.1 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1739 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  95.0  94.5

Power factor

50% 75% 100%
0.84  0.89  0.89
Frame 444/5TS
Output 150 HP (110 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 415 V
Rated current 182 A
L. R. Amperes 1110 A
LRC 6.1x(Code F)
No load current 45.1 A
Rated torque 266 ft.lb
Locked rotor torque 170 %
Breakdown torque 229 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 39.1 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1739 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  95.0  94.5

Power factor

50% 75% 100%
0.83  0.88  0.89

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C3)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
Fan material Plastic
Screw cap CARBON STEEL SAE 1010/20
NDE bearing Seal WSeal
DE bearing Seal WSeal
Cable Press Material Sem
