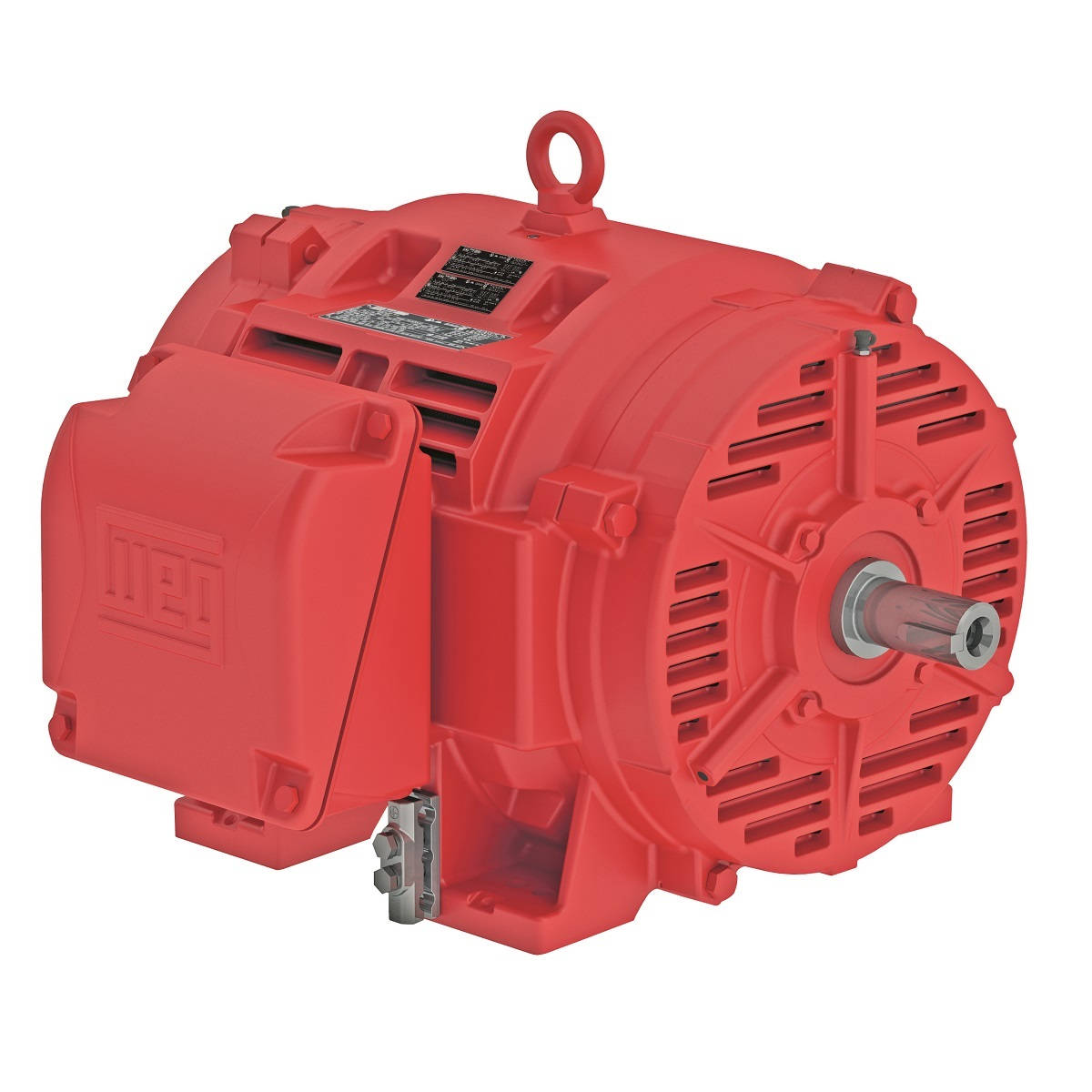

15036OP3HFP405TS-W40 WEG 150HP Fire Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 15036OP3HFP405TS-W40

15036OP3HFP405TS-W40 WEG 150HP Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 15036OP3HFP405TS-W40

Selected accessories will also be added to cart
$8,937.38 / Each
Quantity:
IC01 - ODP, IP23, 404TS/405TS Frame, 575VAC 60Hz 3 Phase, 14282852, High Efficiency, Foot Mounted, Cast Iron Frame, 2-1/8" Keyed Shaft

Electric Motors

Frame404/5TS
Output150 HP (110 kW)
Number of Poles2
Frequency60 Hz
Rated speed3550 rpm
Slip1.39 %
Rated voltage575 V
Rated current131 A
L. R. Amperes866 A
LRC6.6x(Code G)
No load current24.0 A
Rated torque222 ft.lb
Locked rotor torque170 %
Breakdown torque220 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)9.20 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?929 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.0  93.6  93.6

Power factor

50%75%100%
0.84  0.89  0.90

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
150HP
Input Voltage
575VAC
Frame
404TS/405TS
Application
Fire Pump
