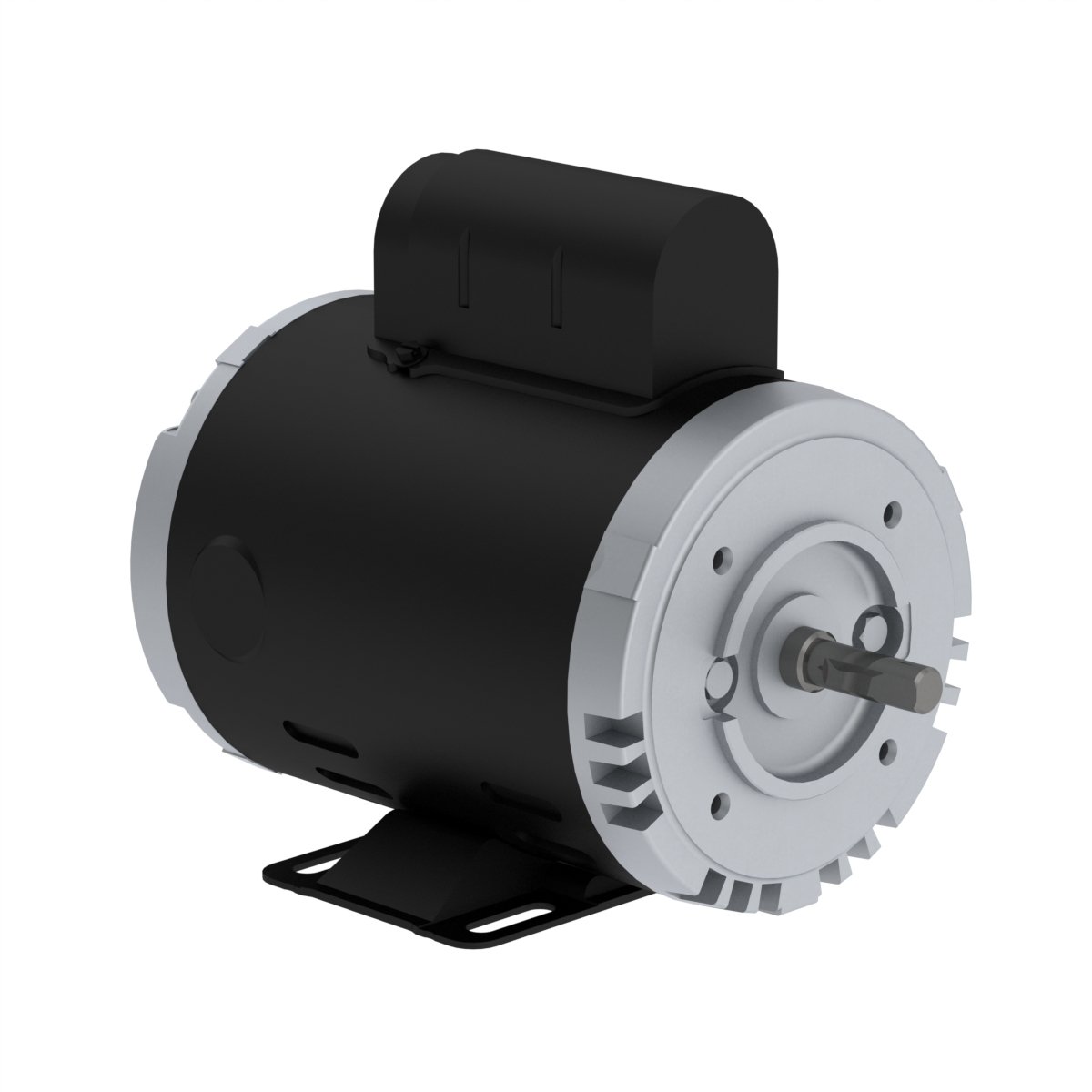

.1618OS1B48CH-S WEG 1/6HP Electric Motor, 1800RPM
Enlarge Photo

Product ID: .1618OS1B48CH-S

.1618OS1B48CH-S WEG 1/6HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .1618OS1B48CH-S

Selected accessories will also be added to cart
$205.59 / Each
Quantity:
IC01 - ODP, 48CH Frame, 115/208-230VAC Single Phase 60Hz, 14419271, C-Face, Foot Mount, Rolled Steel, 1/2" Shaft

Electric Motors

Frame48
Output0.16 HP (0.12 kW)
Number of Poles4
Frequency60 Hz
Rated speed1740 rpm
Slip3.33 %
Rated voltage115/208-230 V
Rated current3.46/1.91-1.73 A
L. R. Amperes19.0/10.5-9.52 A
LRC5.5x(Code P)
No load current3.00/1.29-1.50 A
Rated torque0.476 ft.lb
Locked rotor torque320 %
Breakdown torque300 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)0.0280 sq.ft.lb
DesignN
Insulation ClassF
Temperature rise80 K
Service factor1.35 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²50.0 dB(A)
Approx. weight³14.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
41.049.053.0

Power factor

50%75%100%
0.420.500.57

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodNot Balanced
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
1/6HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Frame
48CH
