UPC Code: 07847781946
Country Of Origin: Please Contact Customer Service.
NEMA: 5-20R
Quantity
Add to Product List
Technical Information Support/Downloads
AC Horsepower Ratings
At Rated Voltage: 1 HP

Electrical Specifications
Amperage: 20 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Self-Grounding
Pole: 2
Temperature Rise: Max 30C at 250 cycles OL at 200 pct rated current
Voltage: 125 VAC
Wire: 3

Environmental Specifications
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 60°C

Material Specifications
Body Material: Thermoplastic Nylon
Clamp Nuts: Zinc-Plated Steel
Color: White
Face Material: Thermoplastic Nylon
Ground Clips: Brass-Plated
Grounding Screw: Brass 8-32
Line Contacts: Brass Triple-Wipe 0.040” Thick
Strap Material: Zinc-Plated Steel
Terminal Screws: Brass 10-32

Mechanical Specifications
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

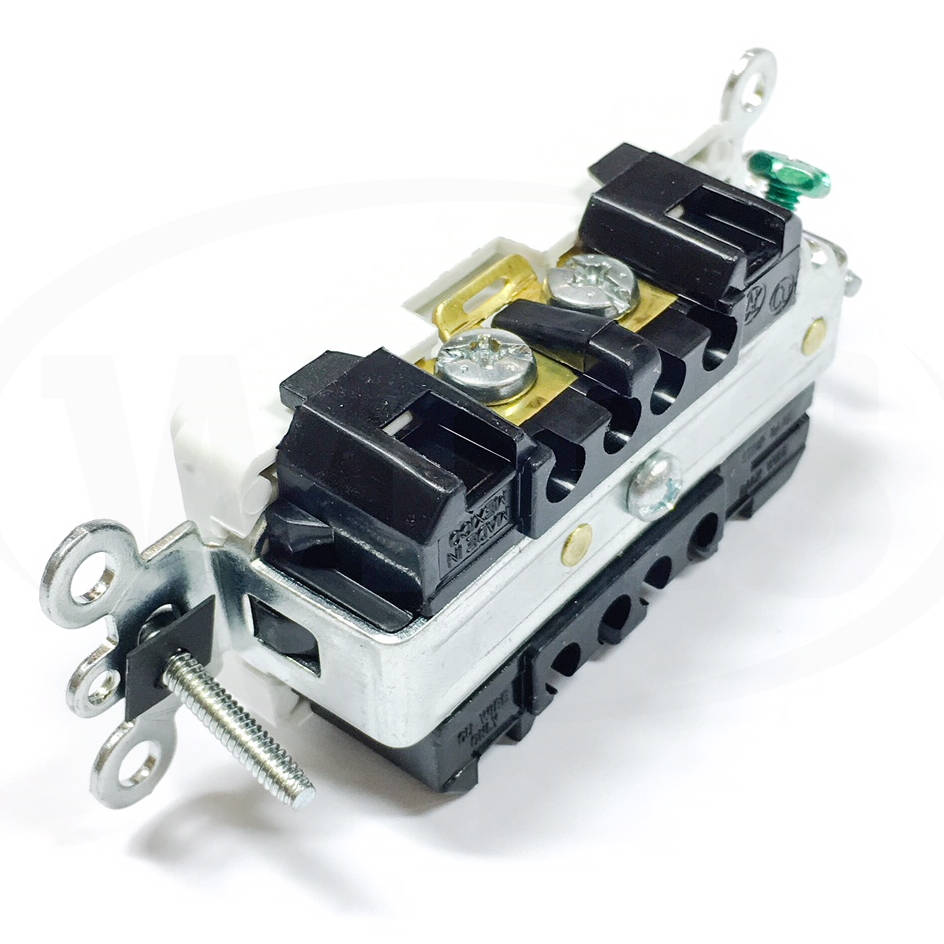

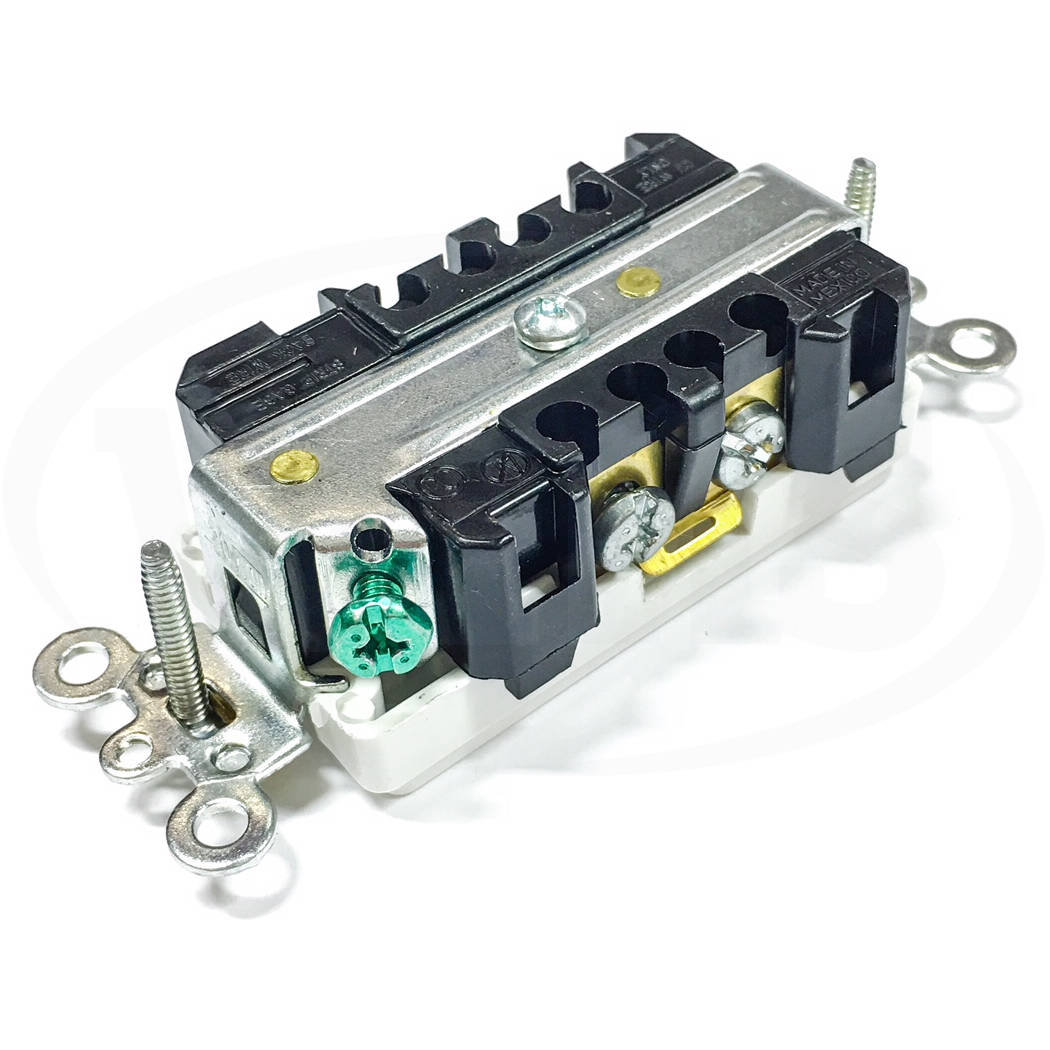

Termination: Back or Side Wire

Product Features
Color: White
NEMA: 5-20R

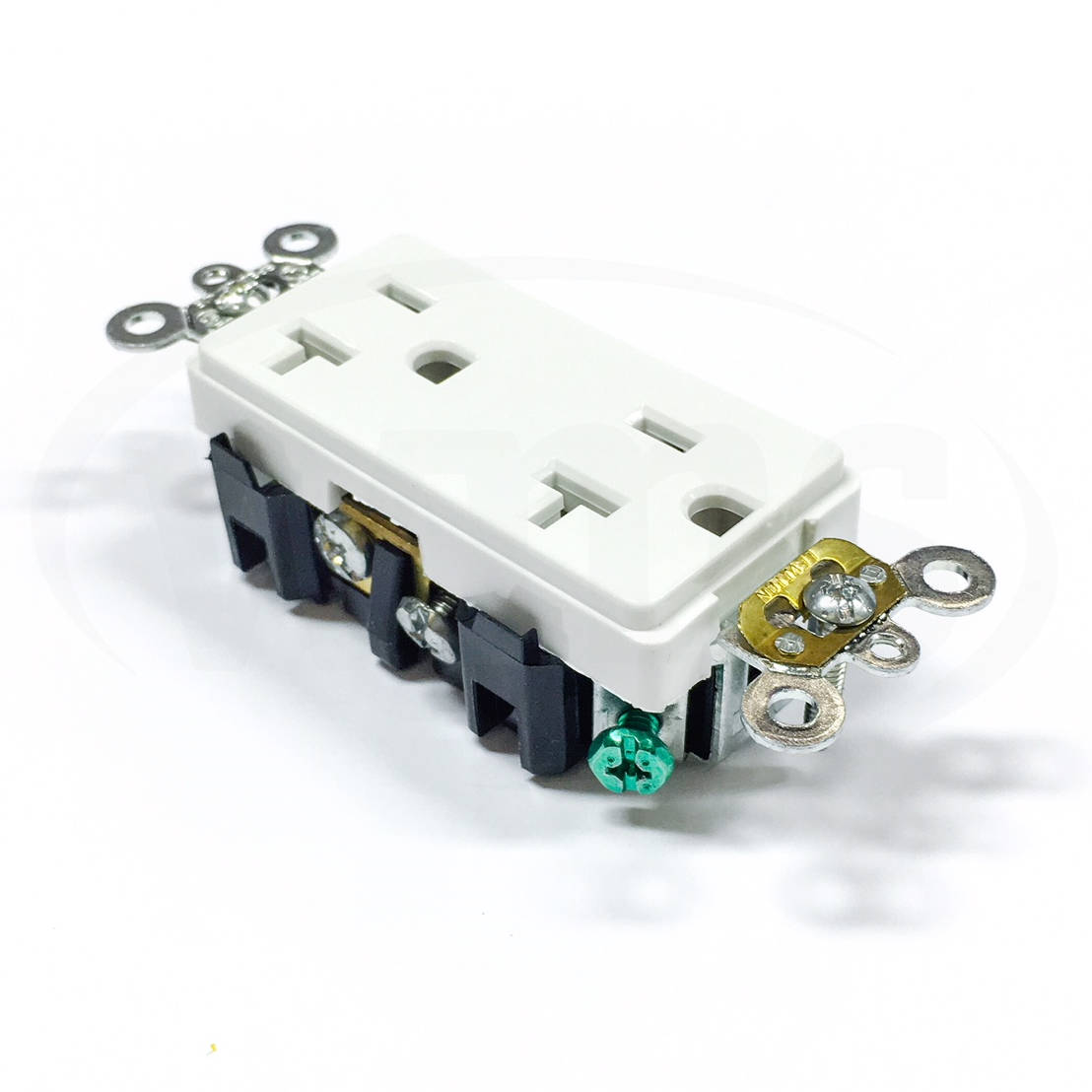

Device Type: Duplex Receptacle Outlet
Feature 4: Smooth Face
Grade: Heavy-Duty Industrial Specification Grade
Brand: Decora Plus

Standards and Certifications
ANSI: C-73
CSA C22.2 No. 42: File 152105
NEMA: WD-6
NOM: 057
UL498: File E13399
