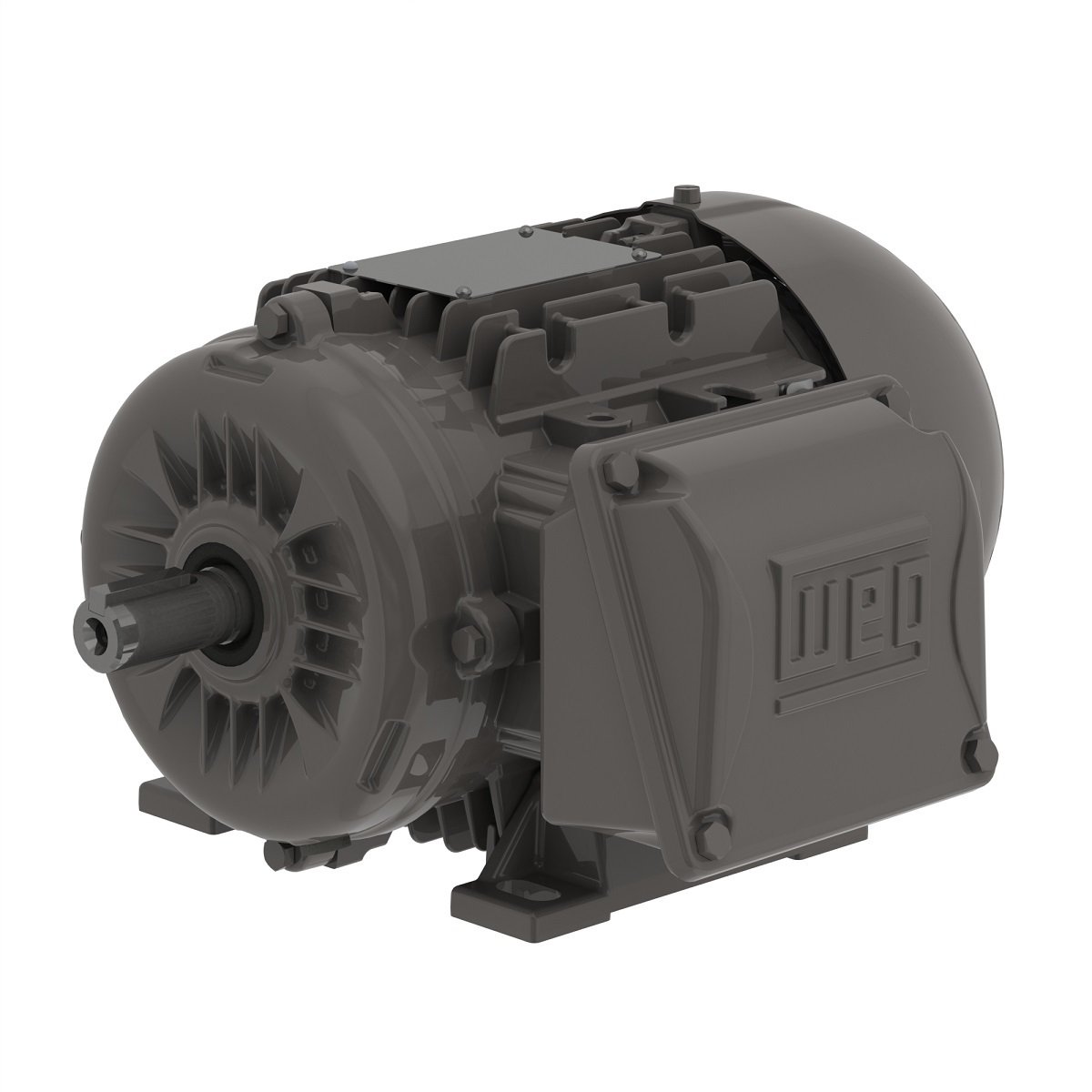

Motor/Control Division

Frame	80
Output	0.25 HP (0.18 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	690 rpm
Slip	8.00 %
Rated voltage	380 V
Rated current	0.782 A
L. R. Amperes	3.52 A
LRC	4.5
No load current	0.600 A
Rated torque	1.88 ft.lb
Locked rotor torque	170 %
Breakdown torque	180 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	0.0574 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	42.0 dB(A)
Approx. weightÂ³	18.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
44.0	53.3	55.5

Power factor

50%	75%	100%
0.45	0.55	0.63

Frame	80
Output	0.25 HP (0.18 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	700 rpm
Slip	6.67 %
Rated voltage	400 V
Rated current	0.775 A
L. R. Amperes	3.49 A
LRC	4.5
No load current	0.630 A
Rated torque	1.85 ft.lb
Locked rotor torque	180 %
Breakdown torque	190 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	0.0574 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	42.0 dB(A)
Approx. weightÂ³	18.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
44.0	53.2	55.9

Power factor

50%	75%	100%
0.43	0.53	0.60

Frame	80
Output	0.25 HP (0.18 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	710 rpm
Slip	5.33 %
Rated voltage	415 V
Rated current	0.780 A
L. R. Amperes	3.51 A
LRC	4.5
No load current	0.650 A
Rated torque	1.82 ft.lb
Locked rotor torque	190 %
Breakdown torque	200 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	0.0574 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	42.0 dB(A)
Approx. weightÂ³	18.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
43.9	53.0	56.3

Power factor

50%	75%	100%
0.40	0.50	0.57

Frame	80
Output	0.25 HP (0.18 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	860 rpm
Slip	4.44 %
Rated voltage	230/460 V
Rated current	1.60/0.799 A
L. R. Amperes	5.27/2.64 A
LRC	3.3
No load current	1.58/0.790 A
Rated torque	1.51 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	0.0574 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	46.0 dB(A)
Approx. weightÂ³	18.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
34.6	43.3	50.5

Power factor

50%	75%	100%
0.40	0.48	0.56

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	BMC - 6 pins
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 7022 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
