/Products/Electric Motors/3 Phase Metric/WEG 3-Phase Metric Electric Motors/Foot Mount, W22/.1836EP3EAL63-W22 WEG 0.25HP/0.18kW IEC TRU-Metric Electric Motor, 3600RPM

Product ID: .1836EP3EAL63-W22

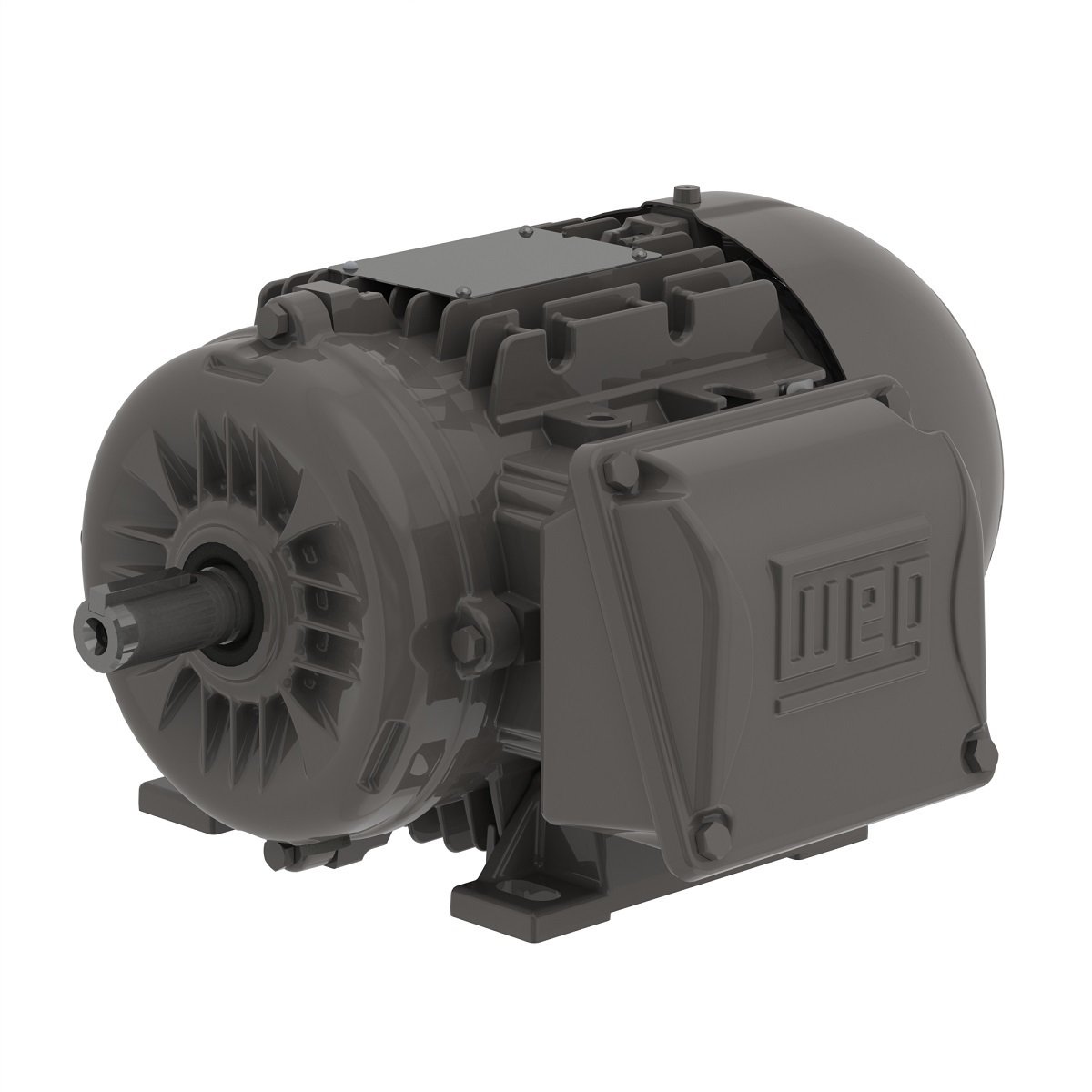

.1836EP3EAL63-W22 WEG 0.25HP/0.18kW IEC TRU-Metric Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .1836EP3EAL63-W22

Selected accessories will also be added to cart

$249.20 / Each

Quantity:

IC411-TEFC, IP55, 63 Frame, 230/460/380-415VAC 3-Phase 50/60Hz, 13982686, 11mm Keyed Shaft, Multimounting, Foot Mount, High Efficiency, Aluminum Frame

Details
Specs

Electric Motors

Frame	63
Output	0.25 HP (0.18 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2735 rpm
Slip	8.83 %
Rated voltage	380 V
Rated current	0.518 A
L. R. Amperes	2.28 A
LRC	4.4
No load current	0.430 A
Rated torque	0.474 ft.lb
Locked rotor torque	220 %
Breakdown torque	229 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.0029 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	52.0 dB(A)
Approx. weightÂ³	14.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
60.0	64.0	66.0

Power factor

50%	75%	100%
0.58	0.70	0.80

Frame	63
Output	0.25 HP (0.18 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2765 rpm
Slip	7.83 %
Rated voltage	400 V
Rated current	0.533 A
L. R. Amperes	2.35 A
LRC	4.4
No load current	0.500 A
Rated torque	0.468 ft.lb
Locked rotor torque	250 %
Breakdown torque	254 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.0029 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	52.0 dB(A)
Approx. weightÂ³	14.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
60.0	64.0	65.0

Power factor

50%	75%	100%
0.53	0.65	0.75

Frame	63
Output	0.25 HP (0.18 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2780 rpm
Slip	7.33 %
Rated voltage	415 V
Rated current	0.550 A
L. R. Amperes	2.42 A
LRC	4.4
No load current	0.540 A
Rated torque	0.466 ft.lb
Locked rotor torque	270 %
Breakdown torque	280 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.0029 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	52.0 dB(A)
Approx. weightÂ³	14.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
58.0	60.0	65.0

Power factor

50%	75%	100%
0.48	0.60	0.70

Frame	63
Output	0.25 HP (0.18 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3400 rpm
Slip	5.56 %
Rated voltage	230/460 V
Rated current	1.01/0.504 A
L. R. Amperes	5.04/2.52 A
LRC	5.0
No load current	0.900/0.450 A
Rated torque	0.381 ft.lb
Locked rotor torque	320 %
Breakdown torque	350 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.0029 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	56.0 dB(A)
Approx. weightÂ³	14.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
55.0	62.0	64.0

Power factor

50%	75%	100%
0.48	0.60	0.70

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1/2"
Terminal Block	BMC - 6 pins
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 7022 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	Not Balanced
Drip Cover	Without
Overload protector (phenolic)	Without overload protector

Type

Electric Motor

Speed

3600RPM

Input Phase

3-Phase

Horsepower

1/4HP

Enclosure

TEFC

Frame

Input Voltage

230VAC

Input Voltage

460VAC

Input Voltage

380VAC

Input Voltage

415VAC
