/Products/Electric Motors/Single Phase Stainless Steel/Leeson/TEFC C-Face with Base/191480.00 1.5HP Leeson Electric SS Motor, Washdown
Click Image to Expand

Product ID: 191480.00

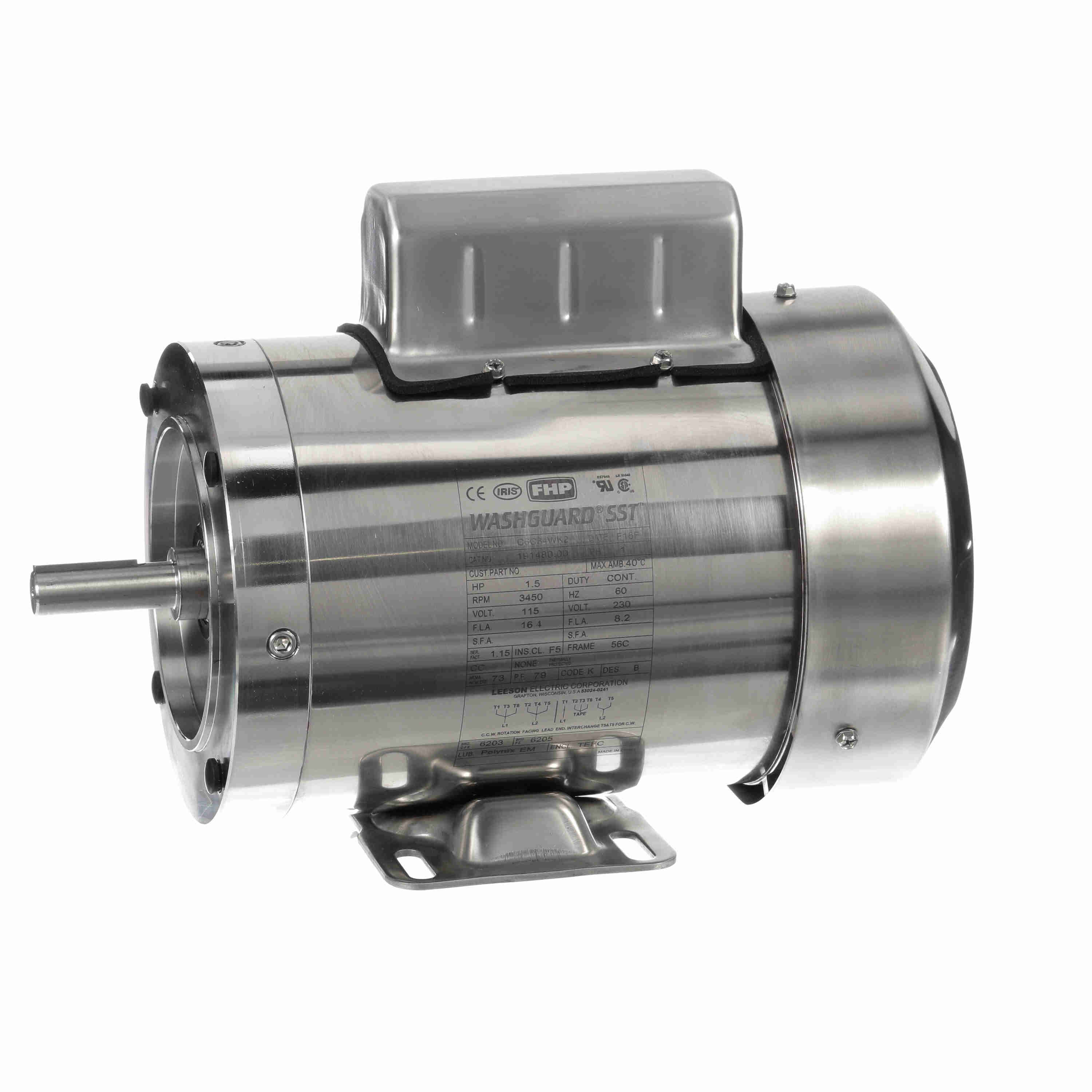

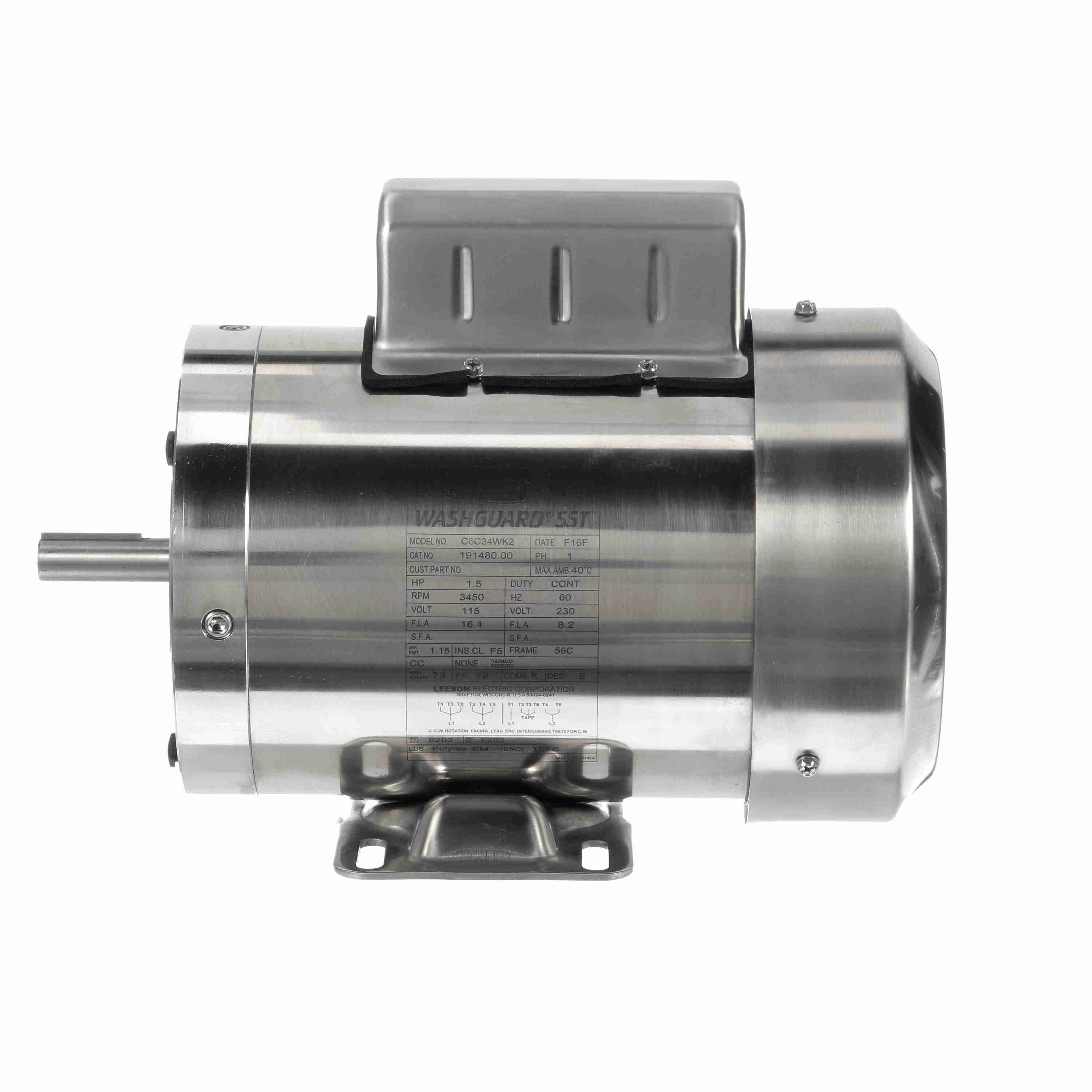

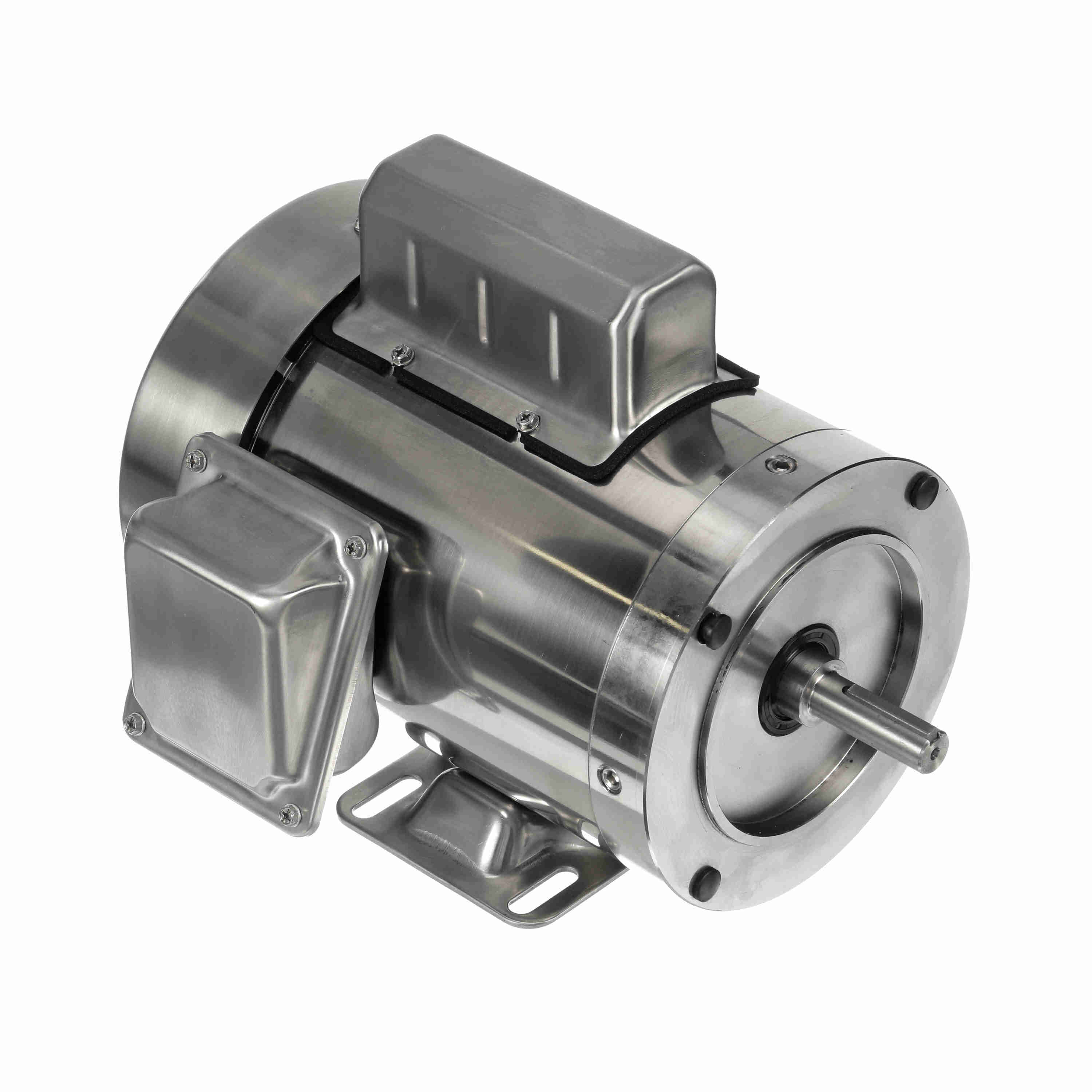

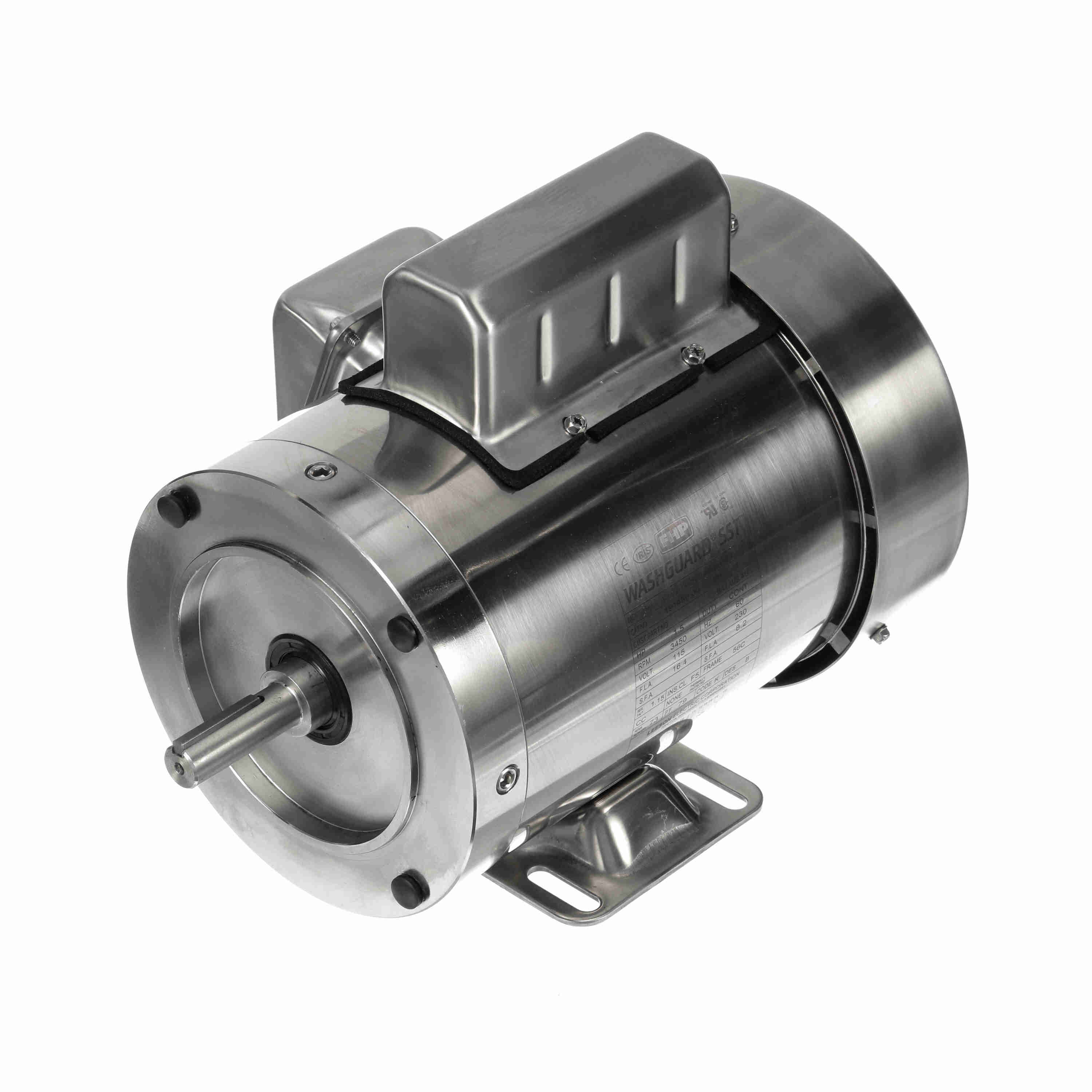

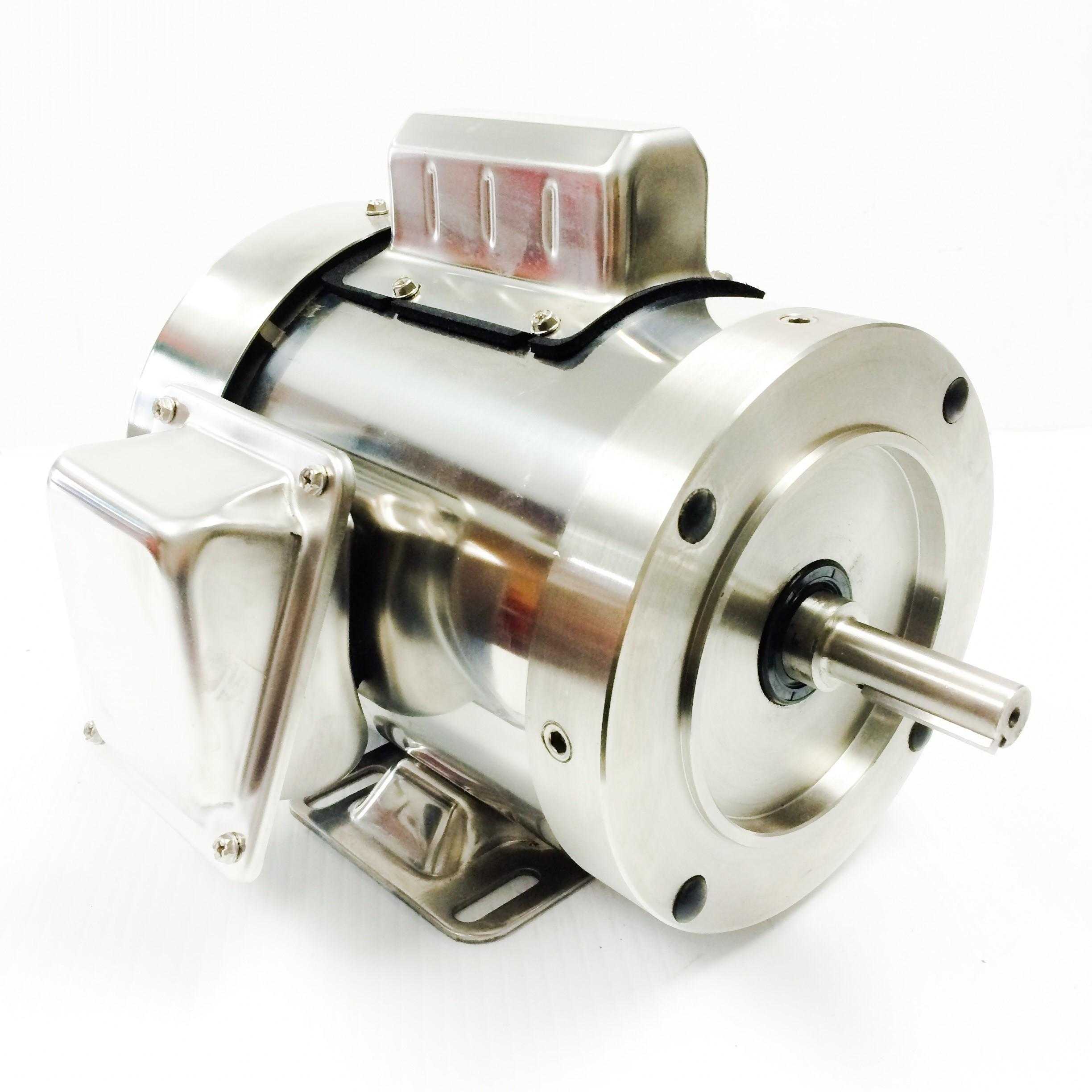

191480.00 1.5HP Leeson Electric SS Motor, Washdown

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C6K34WK2

Selected accessories will also be added to cart
$1,028.50 / Each
Quantity:
3600 RPM, 56C Frame, TEFC, Single Phase, 115/208-230V
Features
  • Paint free exterior
  • BISSC certified for the Baking Industry
  • Stainless Steel Output shafts
  • Repositional drain plugs for all angle mounting
  • Double Sealed bearings
  • Output shaft seal
  • Inverter Duty IRIS™ insulation system
  • Laser etched full-fact nameplate on frame
  • All Stainless exterior
  • Anti-corrosion coating applied to interior components
General Specifications
Model :C6K34WK2A Catalog No :191480.00
Part Description :..1 1/2HP..3600RPM.56.TEFC./V.1PH.60HZ..40C..RIGID C.CA......NOT....... Category :Paint Free
Stock :No
Nameplate Specifications
Output HP :1.50 Hp Output KW :1.1 kW
Frequency :60 Hz Voltage :115/230 V
Current :16.4/8.5-8.2 A Speed :3450 rpm
Service Factor :1.15 Phase :1
Efficiency :75.5 % Duty :Continuous
Insulation Class :F Design Code :N
KVA Code :J Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Stainless Steel Shaft Type :T
Overall Length :11.10 in Frame Length :6.63 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720399491
Weight :41.00 LB
