/Products/Electric Motors/3 Phase Stainless Steel/Leeson 3-Phase Stainless Steel Electric Motors/TENV/TEFC C-Face/191508.00 Leeson 3/4HP Stainless Steel Electric Motor, Washdown Duty

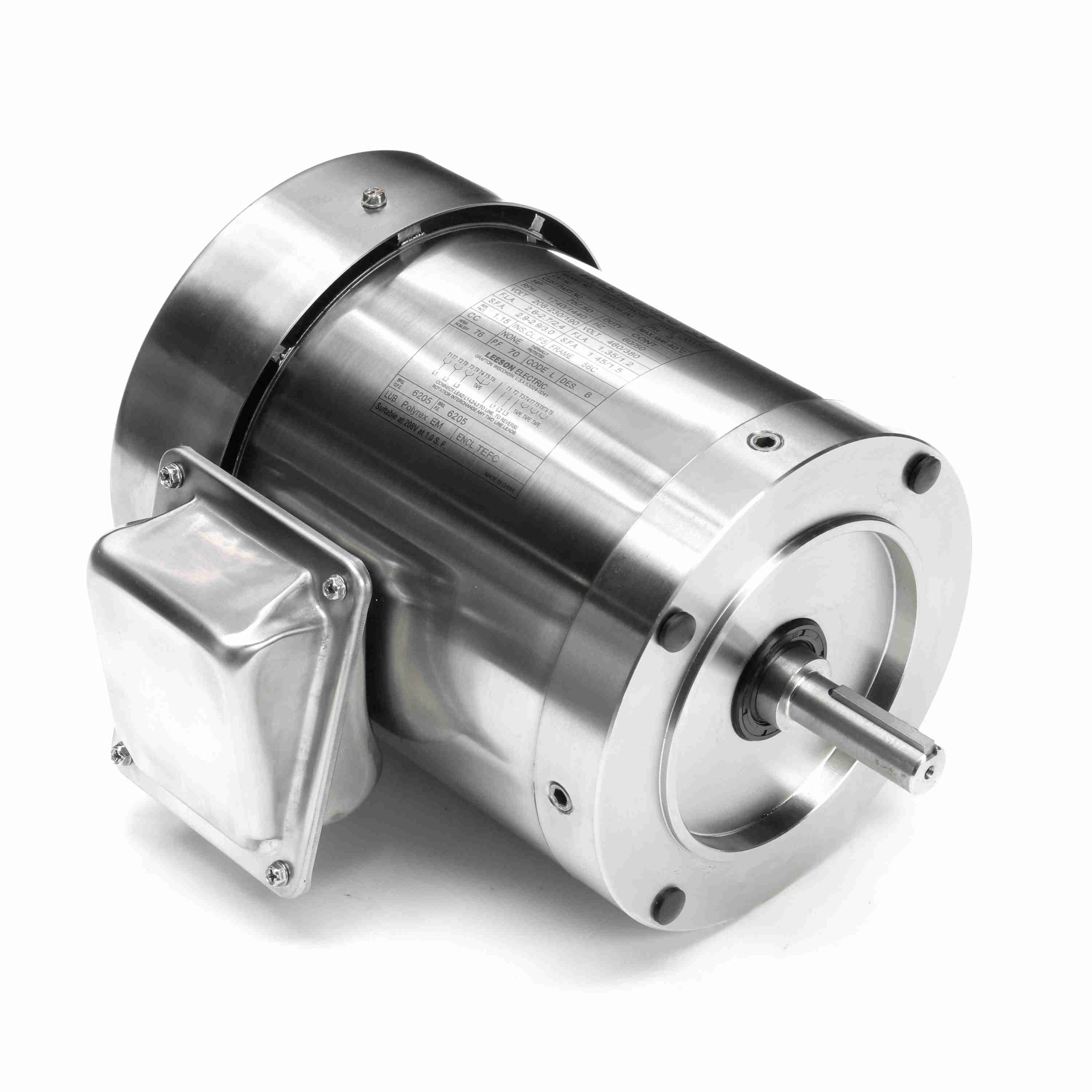

Click Image to Expand

Product ID: 191508.00

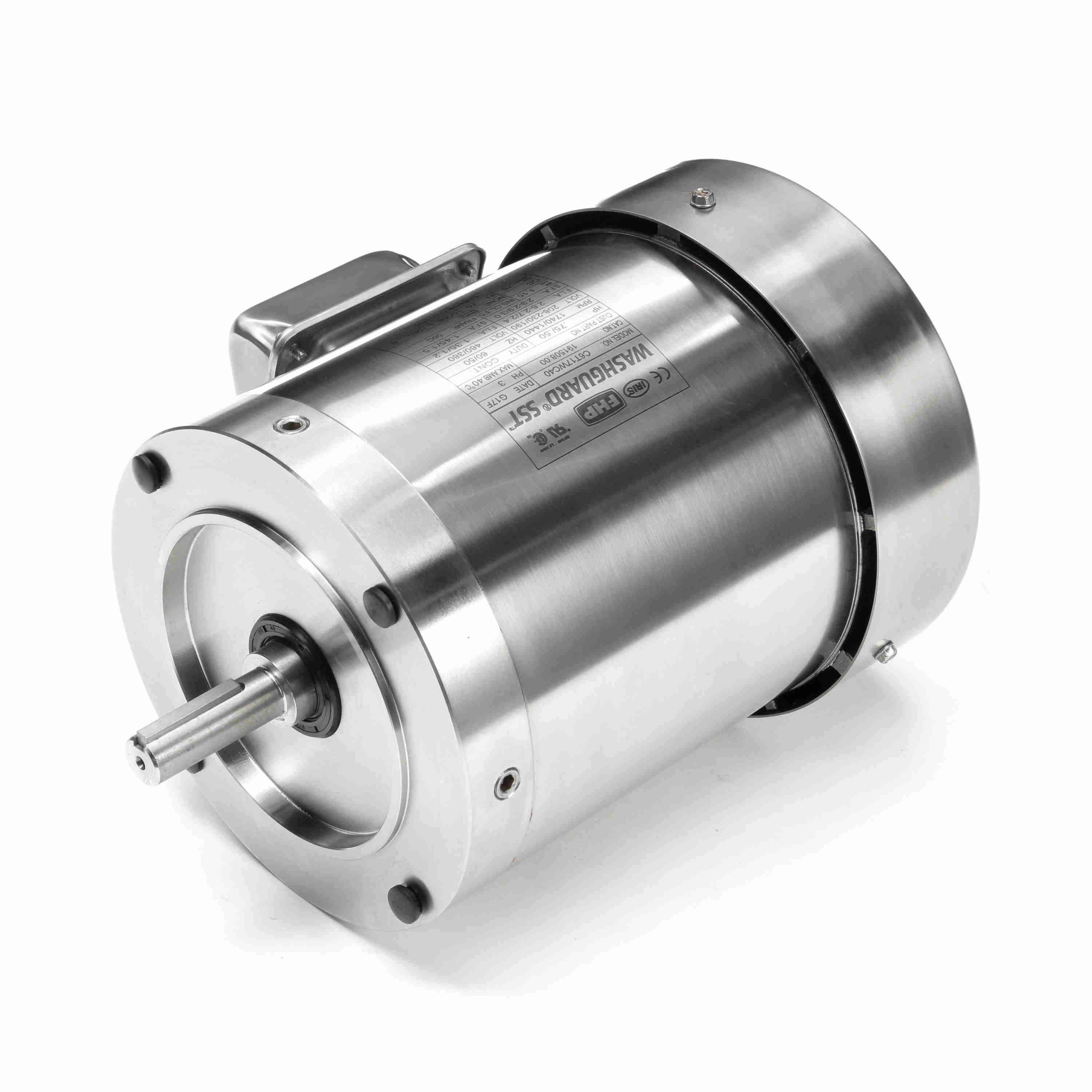

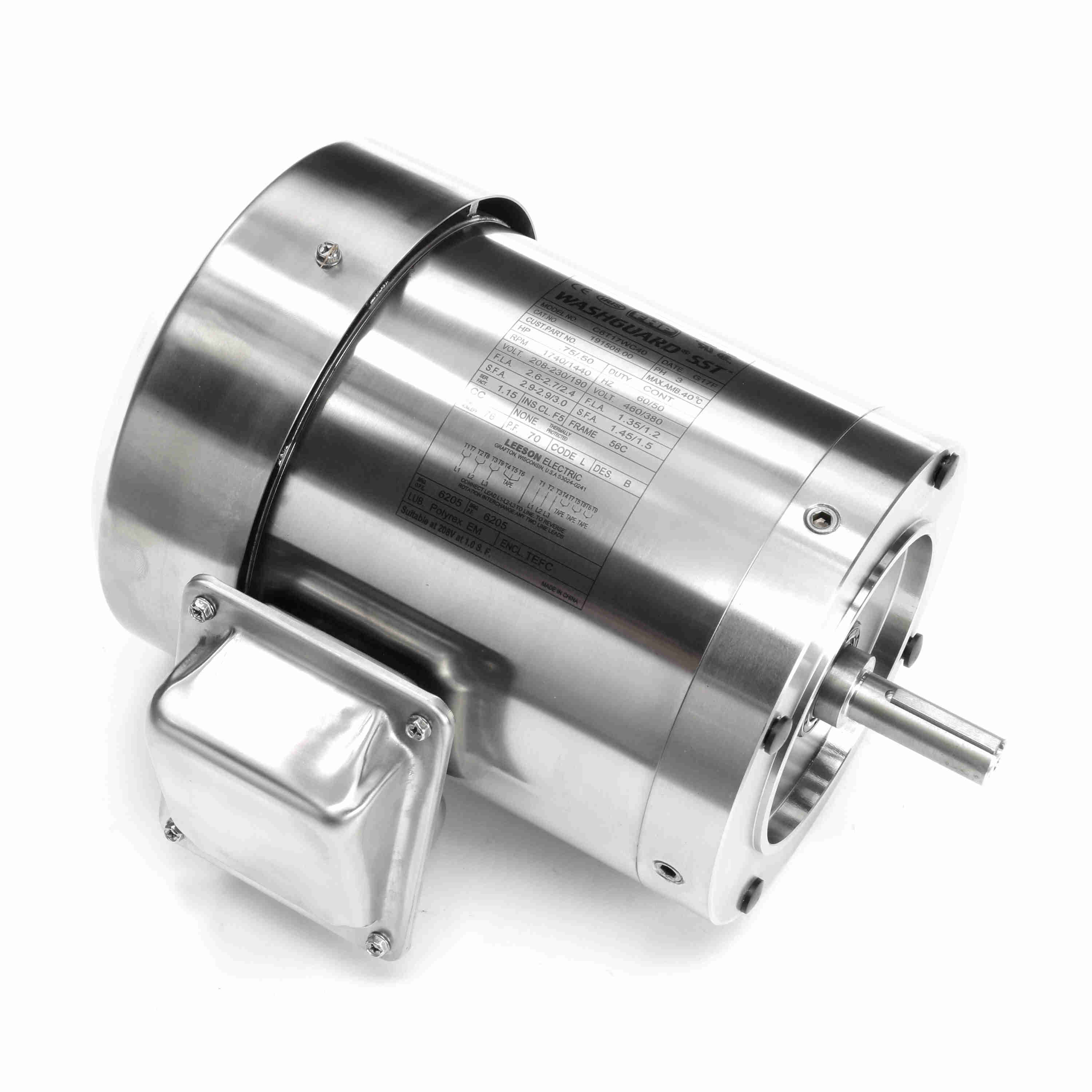

191508.00 Leeson 3/4HP Stainless Steel Electric Motor, Washdown Duty

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C6T17WC40

Selected accessories will also be added to cart
$1,306.90 / Each
Quantity:
1800 RPM, 56C Frame, TEFC, 3 Phase, 230/460VAC

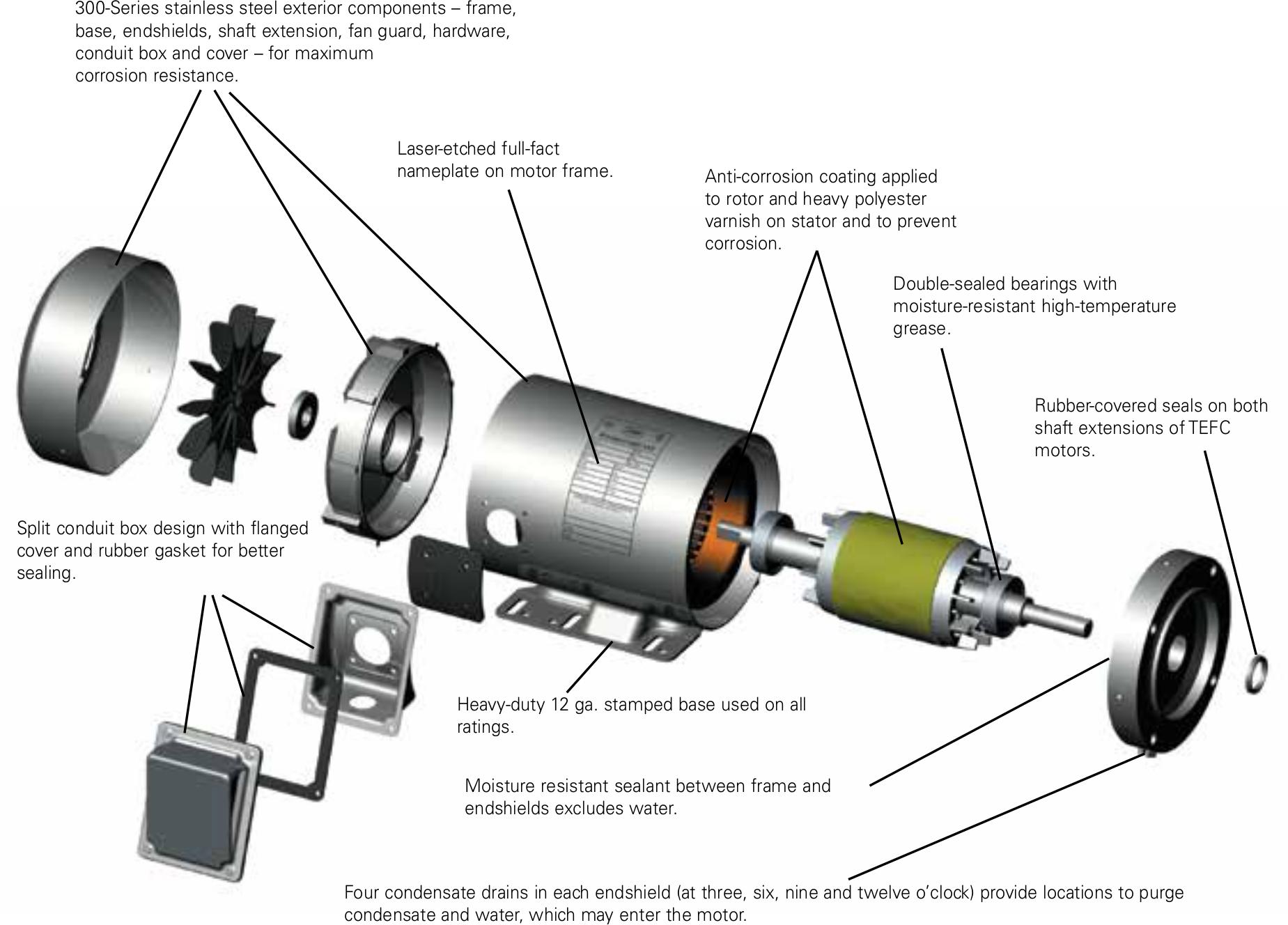

Features

Features
  • Extended Thru-bolts
  • Auto Reset Protectors
  • TEAO designs
  • Laser etched full-fact nameplate on frame
  • All Stainless exterior
  • Anti-corrosion coating applied to interior components

General Specifications

General Specifications
Model :C6T17WC40ACatalog No :191508.00
Part Description :3/4 HP 1800RPM 208-230/460 TEFC 3PH 60HZ SS C FACE NO BASECategory :Paint Free
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.75 HPOutput KW :0.56 kW
Frequency :60 HzVoltage :208-230/460 V
Current :2.4-2.3/1.2 ASpeed :1740 RPM
Service Factor :1.15 Phase :3
Efficiency :82.5 %Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :L Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 ?CDrive End Bearing Size :6205
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :Y
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Stainless Steel Shaft Type :T
Overall Length :11.20 inFrame Length :5.49 in
Shaft Diameter :0.625 inShaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720052839
Weight :32.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor9.300.0116.00322.000.000.00.75
Break-Down0.000.0163.00453.000.000.00.75
Full Load0.00100.036.00100.01,7500.000.00.75
Pull-Up0.000.0113.00314.000.000.00.75
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.70
  • 0.078
  • 0.0
  • 14.0
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 0.77
  • 0.205
  • 69.7
  • 33.4
  • 1,787
  • 0.0
  • 9.00
  • 50 %
  • 0.87
  • 0.351
  • 80.9
  • 50.6
  • 1,776
  • 0.0
  • 18.00
  • 75 %
  • 1.00
  • 0.503
  • 84.0
  • 63.1
  • 1,763
  • 0.0
  • 27.00
  • 100 %
  • 1.15
  • 0.678
  • 82.6
  • 74.0
  • 1,752
  • 0.0
  • 36.00
  • 125 %
  • 1.32
  • 0.818
  • 84.9
  • 77.8
  • 1,738
  • 0.0
  • 45.00
  • 150 %
  • 1.51
  • 0.980
  • 84.4
  • 81.5
  • 1,724
  • 0.0
  • 54.00
Type
Electric Motor
Frame
56C
Input Phase
3-Phase
Horsepower
3/4HP
Enclosure
TEFC
Speed
1800RPM
