/Products/Electric Motors/Single Phase Stainless Steel/Leeson/TEFC Pedestal Fan Motor/191543.00 1/4HP Leeson Electric SS Motor, Washdown
Click Image to Expand

Product ID: 191543.00

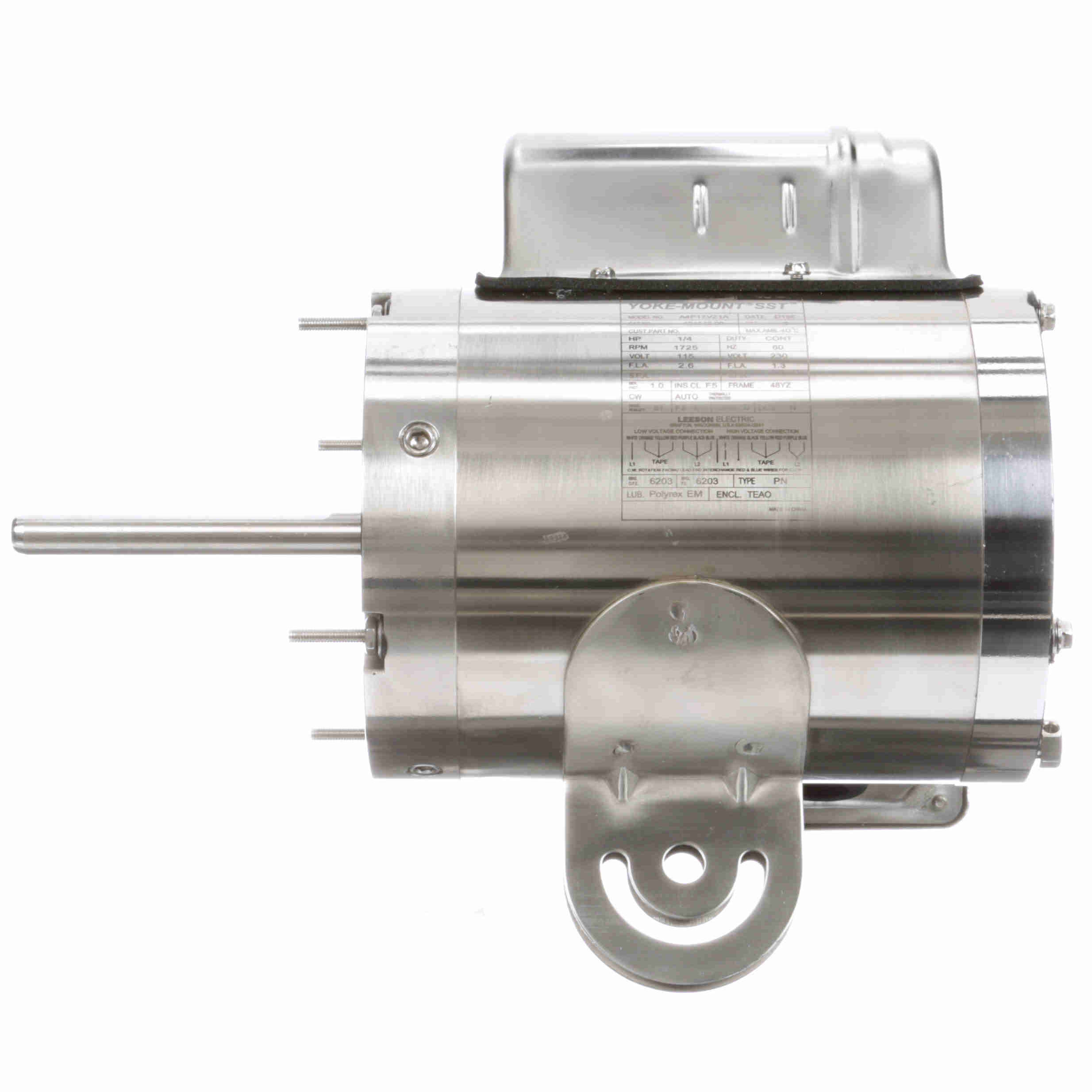

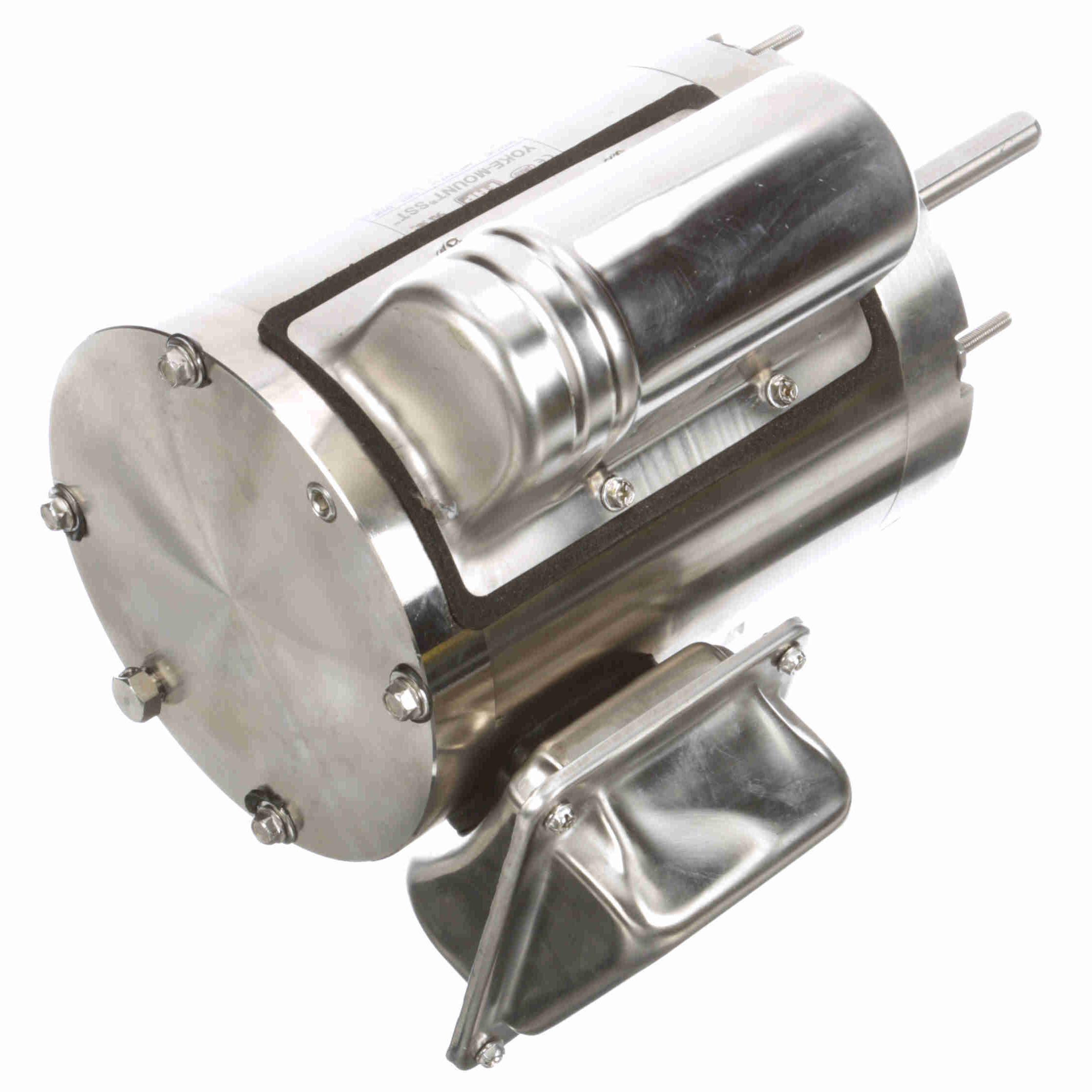

191543.00 1/4HP Leeson Electric SS Motor, Washdown

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A4P17VZ1A

Selected accessories will also be added to cart
$576.32 / Each
Quantity:
TEFC, 48Y Frame, 115/230VAC 60Hz Single Phase, Washdown Duty, Round Body, Extended Studs, 1/2" Shaft

Features

  • BISSC certified for the Baking Industry
  • Stainless Steel Output shafts
  • Repositional drain plugs for all angle mounting
  • Double Sealed bearings
  • Output shaft seal
  • Inverter Duty IRIS™ insulation system
  • Laser etched full-fact nameplate on frame
  • All Stainless exterior
  • Anti-corrosion coating applied to interior components

General Specifications

UPC: 691720052525 Weight: 20.00 LB
Packaged Length: 14.58 IN Packaged Width: 13.75 IN
Packaged Height: 13.22 IN

Nameplate Specifications

Output HP: 0.25 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 2.6/1.3 A Speed: 1735 rpm
Service Factor: 1 Phase: 1
Efficiency: 59.5 % Power Factor: 99
Duty: Continuous Insulation Class: F
Design Code: No Design Code KVA Code: B
Frame: 48YZ Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 55

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Selective Clockwise
Resistance Main: 22.59 Ohms Mounting: Round - Extended Studs
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: Single Special Extension Overall Length: 11.58 in
Shaft Diameter: 0.500 in Shaft Extension: 4.05 in
Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 3.87 322.0 5.60 52.0 0 0.65 0.0 0.25
Break-Down 2.50 208.0 18.50 171.0 0 0.54 0.0 0.25
Full Load 1.20 100.0 10.80 100.0 1,744 0.28 0.0 0.25
Locked-Rotor 3.80 317.0 3.30 31.0 0 0.65 0.0 0.25

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 %
Current (Amps) 0.64 0.71 0.90 1.10 1.20 1.50 1.60 2.10
Rated Output (KW) 0.15 0.16 0.21 0.25 0.28 0.34 0.37 0.47
Efficiency (%) 18.5 29.3 45.0 55.4 59.1 62.9 63.7 60.1
Power Factor (%) 99.2 99.2 99.5 100.0 102.5 98.6 100.3 96.5
Speed (RPM) 1,786 1,782 1,769 1,754 1,744 1,721 1,708 1,643
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 1.70 3.00 5.90 9.00 10.80 14.00 15.50 19.20
