/Products/Electric Motors/Single Phase Stainless Steel/Leeson/TEFC Pedestal Fan Motor/191545.00 1/3HP Leeson Electric SS Motor, Washdown
Click Image to Expand

Product ID: 191545.00

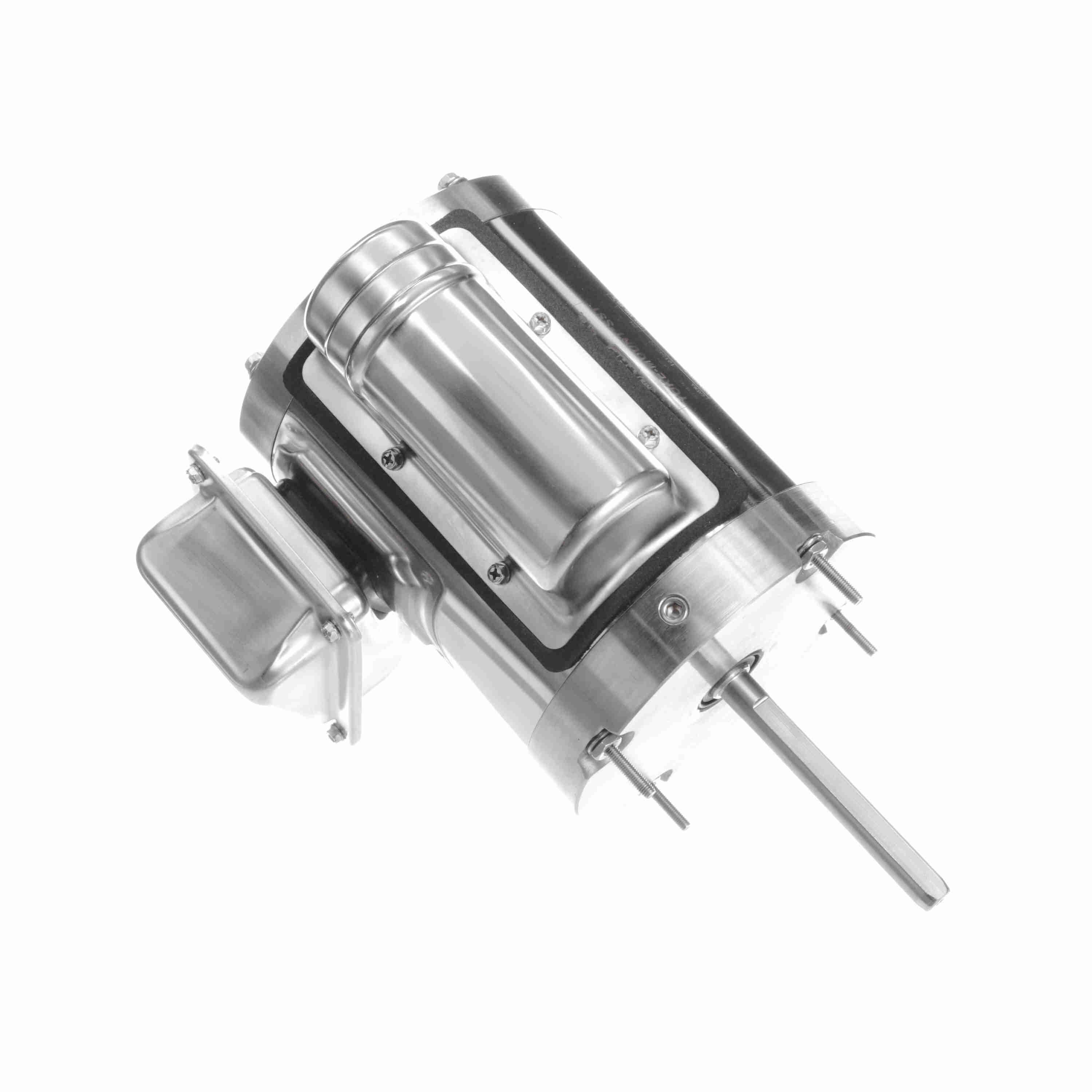

191545.00 1/3HP Leeson Electric SS Motor, Washdown

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A4P17VZ2A

Selected accessories will also be added to cart
$653.98 / Each
Quantity:
1725 RPM, 48Y Frame, TEFC, Single Phase, 115/230V
Features
  • BISSC certified for the Baking Industry
  • Stainless Steel Output shafts
  • Repositional drain plugs for all angle mounting
  • Double Sealed bearings
  • Output shaft seal
  • Inverter Duty IRIS™ insulation system
  • Laser etched full-fact nameplate on frame
  • All Stainless exterior
  • Anti-corrosion coating applied to interior components
General Specifications
Model :A4P17VZ2A Catalog No :191545.00
Part Description :..1/3HP..1725RPM.48Y.TEAO.115/230V.1PH.60HZ.FAN DUTY.40C.1.0SF.YOKE......STAINLESS PEDESTAL FAN MOTOR.AUTO....... Category :Pedestal Fan Motors
Stock :No
Nameplate Specifications
Output HP :0.33 Hp Output KW :0.25 kW
Frequency :60 Hz Voltage :115/230 V
Current :3.0/1.5 A Speed :1755 rpm
Service Factor :1 Phase :1
Efficiency :74 % Duty :Continuous
Insulation Class :F Design Code :NO DESIGN CODE
KVA Code :D Frame :48YZ
Enclosure :Totally Enclosed Air Over Overload Protector :Automatic
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :55
Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Across The Line
Poles :4 Rotation :Selective Clockwise
Mounting :Round - Extended Studs Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Stainless Steel Shaft Type :Single Special Extension
Overall Length :11.58 in Shaft Diameter :0.500 in
Shaft Extension :4.05 in Assembly/Box Mounting :F1 ONLY
UPC :691720052549 Weight :21.00 LB
