/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Cast Iron, ODP, W40/Foot Mount/20018OT3G445TS-W40 WEG 200HP, General Purpose Electric Motor, 1800 RPM
20018OT3G445TS-W40 WEG 200HP, General Purpose Electric Motor, 1800 RPM

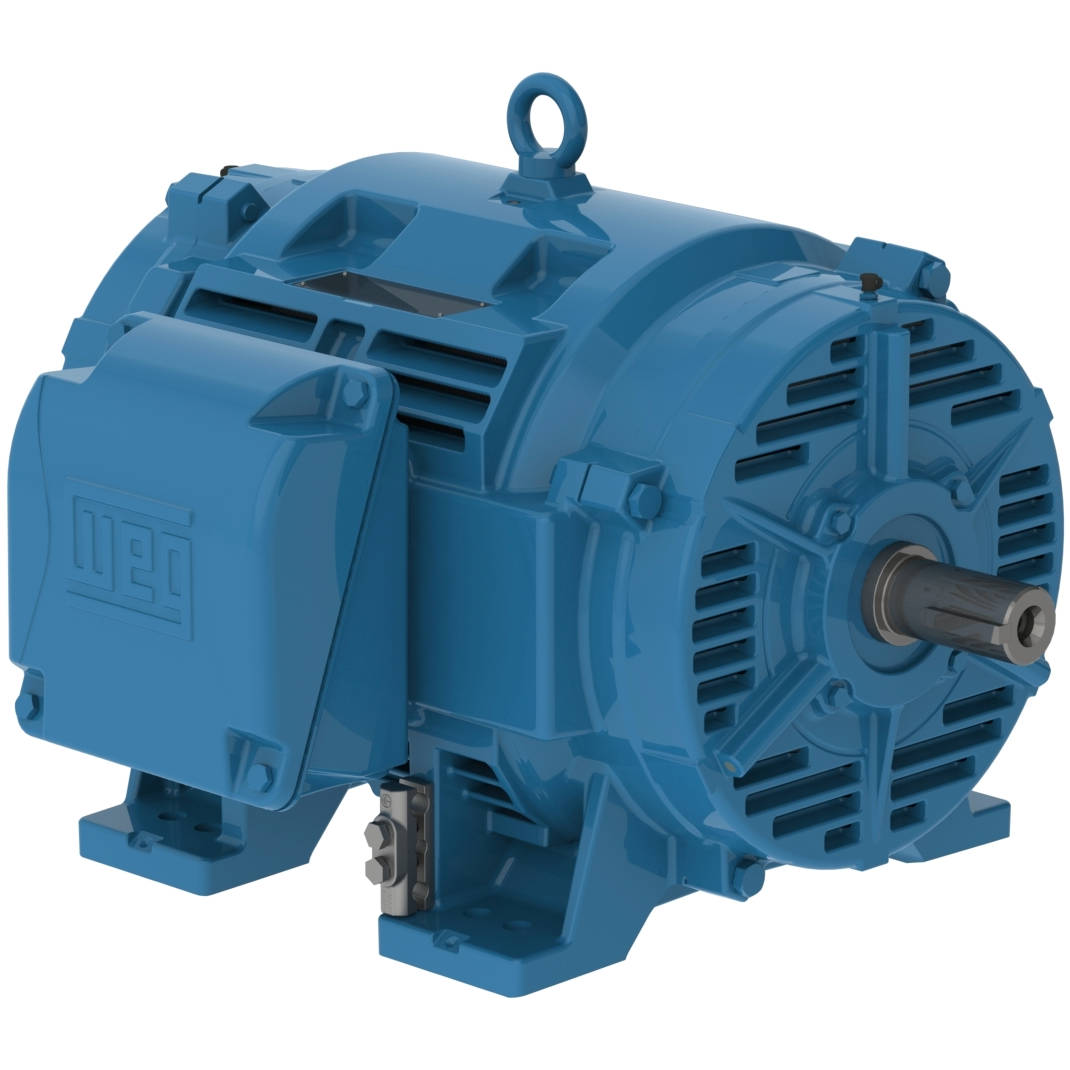

Enlarge Photo

Product ID: 20018OT3G445TS-W40

20018OT3G445TS-W40 WEG 200HP, General Purpose Electric Motor, 1800 RPM

MFG: WEG Electric Corporation
MFG Part Number: 20018OT3G445TS-W40

Selected accessories will also be added to cart
$11,573.56 / Each
Quantity:
IC01 - ODP, IP23, 444TS/445TS Frame, 460/380VAC 50/60Hz 3 Phase, 14285014, NEMA Premium Efficiency, Foot Mounted, 2-3/8" Keyed Shaft

Electric Motors

Frame444/5TS
Output200 HP (150 kW)
Number of Poles4
Frequency60 Hz
Rated speed1783 rpm
Slip0.94 %
Rated voltage460 V
Rated current234 A
L. R. Amperes1544 A
LRC6.6x(Code G)
No load current86.5 A
Rated torque589 ft.lb
Locked rotor torque210 %
Breakdown torque250 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)46.4 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?78.0 dB(A)
Approx. weight?1406 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  95.8

Power factor

50%75%100%
0.72  0.80  0.84
Frame444/5TS
Output175 HP (132 kW)
Number of Poles4
Frequency50 Hz
Rated speed1480 rpm
Slip1.33 %
Rated voltage380 V
Rated current247 A
L. R. Amperes1630 A
LRC6.6x(Code G)
No load current85.2 A
Rated torque621 ft.lb
Locked rotor torque190 %
Breakdown torque220 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)46.4 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?78.0 dB(A)
Approx. weight?1406 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.2  95.6  95.6

Power factor

50%75%100%
0.74  0.82  0.85
Frame444/5TS
Output175 HP (132 kW)
Number of Poles4
Frequency50 Hz
Rated speed1480 rpm
Slip1.33 %
Rated voltage400 V
Rated current237 A
L. R. Amperes1635 A
LRC6.9x(Code H)
No load current93.6 A
Rated torque621 ft.lb
Locked rotor torque210 %
Breakdown torque250 %
Locked rotor time23s (cold) 13s (hot)
Moment of inertia (J)46.4 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?78.0 dB(A)
Approx. weight?1406 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.6  95.6

Power factor

50%75%100%
0.70  0.80  0.84
Frame444/5TS
Output175 HP (132 kW)
Number of Poles4
Frequency50 Hz
Rated speed1485 rpm
Slip1.00 %
Rated voltage415 V
Rated current234 A
L. R. Amperes1568 A
LRC6.7x(Code H)
No load current101 A
Rated torque619 ft.lb
Locked rotor torque229 %
Breakdown torque270 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)46.4 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?78.0 dB(A)
Approx. weight?1406 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.2  95.6  95.6

Power factor

50%75%100%
0.67  0.77  0.82

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector

Bearing details

 Drive EndNon Drive End
Bearing type6314 C3 6212 Z C3
SealingWithout Bearing Seal Without Bearing Seal
Lubrication interval20000 h 20000 h
Lubricant amount27 g 13 g
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
3751 lb 5157 lb

Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
200HP
Frame
444TS
Frame
445TS
